1.9–6m Adjustable Lifting Height

The stand provides a working height range of 1.9m to 6m, allowing users to adjust the position of compatible lighting or event equipment according to venue requirements.

250kg Load Capacity

The stated load capacity is 250kg, providing a substantial load rating for compatible event production equipment. The actual allowable load should always be evaluated according to the complete equipment configuration and manufacturer's operating requirements.

Medium-Duty Truss Support

The product is positioned as a medium-duty crank stand, making it suitable for event production applications where a balance between lifting capacity, transportability, and setup flexibility is required.

Telescopic Square-Tube Structure

The stand uses a telescopic square-tube structure with listed tube sizes of:

100mm / 80mm / 60mm / 40mm

The specified material thickness is 2.5mm.

1.8m Base Length

The stand incorporates a 1.8m base length, providing a substantial footprint for the vertical lifting structure.

Compact for Transportation

The listed packing size is 1900 × 460 × 460mm, allowing the stand to be transported and stored more efficiently than a permanently assembled 6m support structure.

Event Production Applications

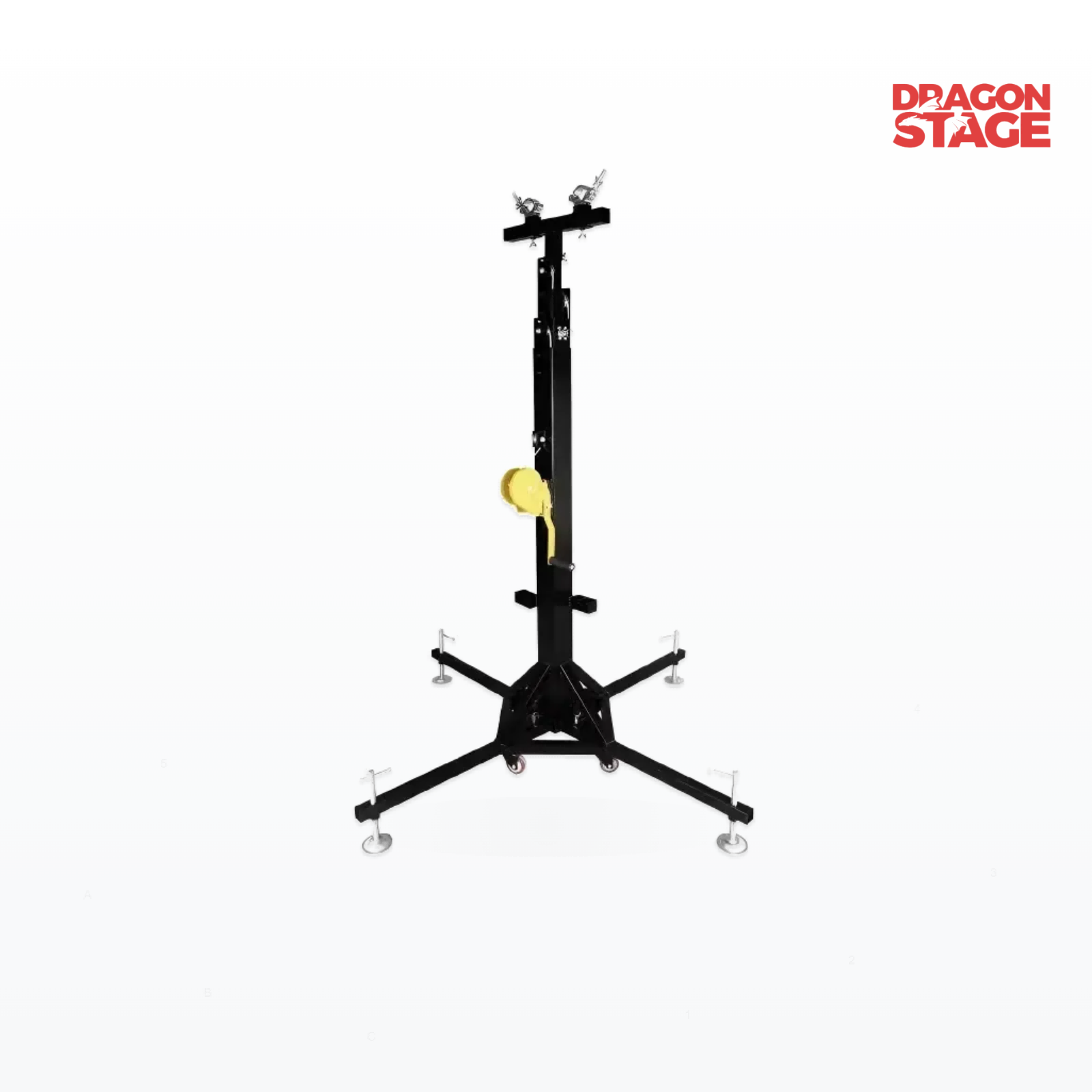

The Truss Medium Duty Crank Stand 1.9–6m can be used in a variety of professional event environments.

Stage Lighting

Provides an adjustable elevated position for compatible stage lighting equipment.

Concert Production

Can be incorporated into temporary concert production systems where adjustable equipment elevation is required.

Event Production

Suitable for event production companies requiring a reusable lifting stand for temporary installations.

Exhibition & Display

The adjustable height can be useful for certain exhibition and display production configurations where elevated equipment support is required.

Entertainment Venues

Suitable for bars, clubs, theatres, and other entertainment environments where compatible equipment needs to be positioned above the working area.

Equipment Rental

The transportable structure and adjustable height make it suitable for rental companies serving multiple event locations.

Main Advantages

Adjustable 1.9–6m Height

Provides flexible positioning for different event layouts.

250kg Rated Capacity

Offers a substantial stated load capacity for compatible event-production equipment.

Medium-Duty Configuration

A practical choice for applications that do not require a larger heavy-duty lifting tower.

1.8m Base

Provides a broad base footprint for the vertical structure.

Compact Packing

The listed 1900 × 460 × 460mm packing size simplifies transportation and storage planning.

70kg Net Weight

The listed net weight is 70kg, offering a relatively manageable transport weight for a stand with a 6m maximum lifting height.

Packing & Transportation

The supplied product page lists:

This packed configuration can be considered when planning event logistics, storage, rental transportation, and touring production requirements.

Installation & Operation

For a professional event installation, the following workflow can be used as a general reference:

1. Position the Stand

Place the stand on a suitable, stable surface.

2. Inspect the Structure

Check the base, telescopic sections, crank mechanism, top bar, and connection components.

3. Install Equipment

Attach compatible equipment according to its mounting requirements.

4. Verify the Load

Confirm that the complete mounted load remains within the applicable rated capacity.

5. Raise the Stand

Operate the crank mechanism gradually and monitor the structure during lifting.

6. Set the Working Height

Adjust the stand to the required height between 1.9m and 6m.

7. Final Inspection

Inspect the complete installation before allowing the equipment to operate.

The actual operating and locking procedures should follow the manufacturer's instructions.

Safety Considerations

Because the stand can reach a maximum height of 6m, correct installation and operating conditions are important.

Before use, operators should check:

• Ground stability

• Base positioning

• Total equipment load

• Load distribution

• Equipment center of gravity

• Crank mechanism condition

• Telescopic tube condition

• Connection security

• Working height

• Environmental conditions

For outdoor applications, wind exposure should also be considered.

The supplied product information does not specify a maximum wind speed, ballast requirement, or outdoor wind-rating table. Therefore, these parameters should be confirmed with the manufacturer for any outdoor installation.

Product Images & Structure Details

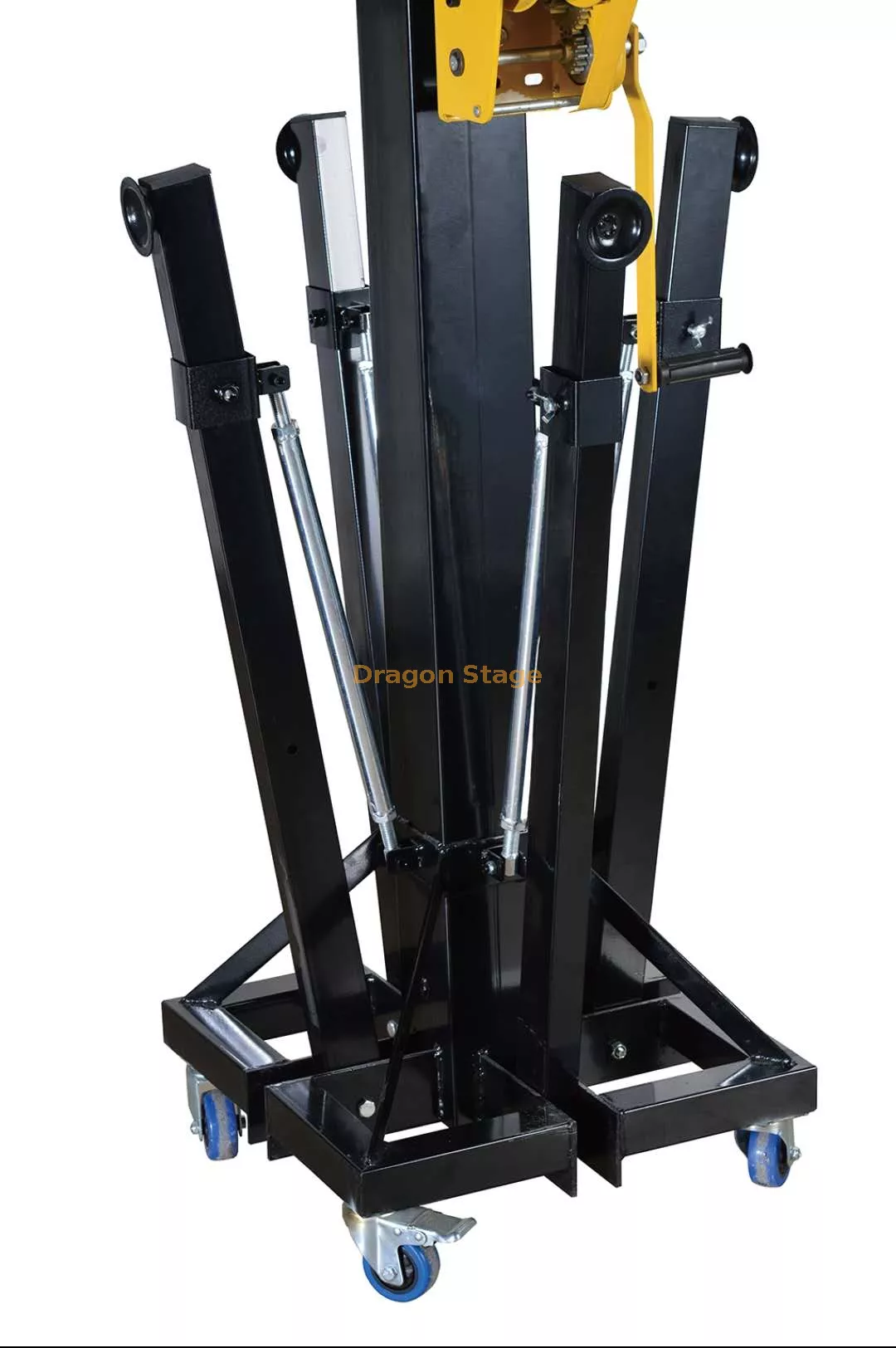

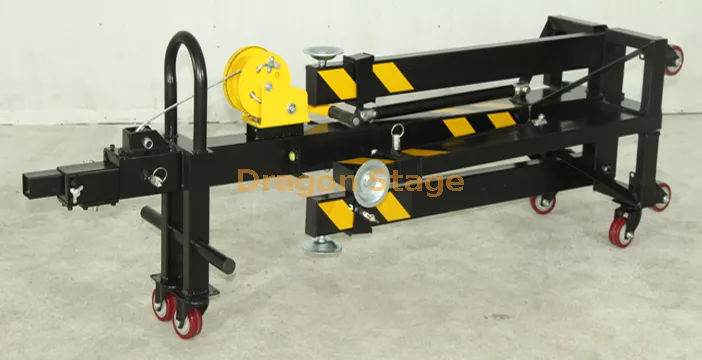

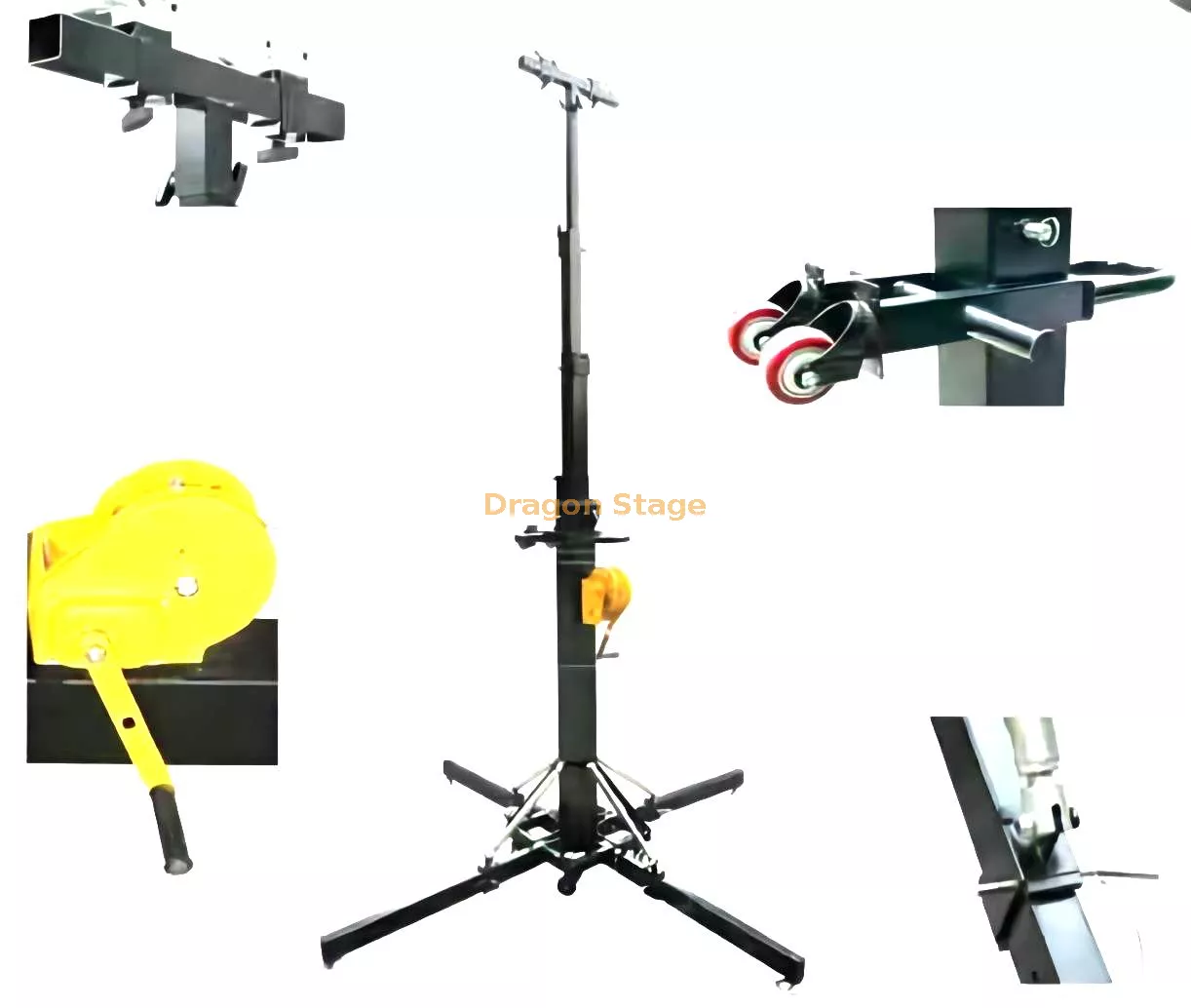

The supplied product page includes images showing the HD-007B crank stand, its component details, horizontal crank stand structure, and crank stand feet.

These visuals can be used on the product page to show:

• Complete crank stand

• Telescopic lifting structure

• Crank mechanism

• Top support

• Horizontal support components

• Base and feet

What is the lifting height of this crank stand?

The adjustable lifting height is 1.9m to 6m.

What is the load capacity?

The stated load capacity is 250kg.

What is the model number?

The model is HD-007B.

What is the stand's net weight?

The listed net weight is 70kg.

What is the packing size?

The packing size is 1900 × 460 × 460mm.

What is the top bar length?

The top bar length is 0.5m.

What is the base length?

The base length is 1.8m.

What are the tube sizes?

The listed square-tube sizes are 100 / 80 / 60 / 40mm.

What is the material thickness?

The stated material thickness is 2.5mm.

Is it suitable for event production?

Yes. The product is positioned as a typical crank stand and is suitable for compatible event-production, lighting, entertainment, and temporary support applications.
