Dragon Stage

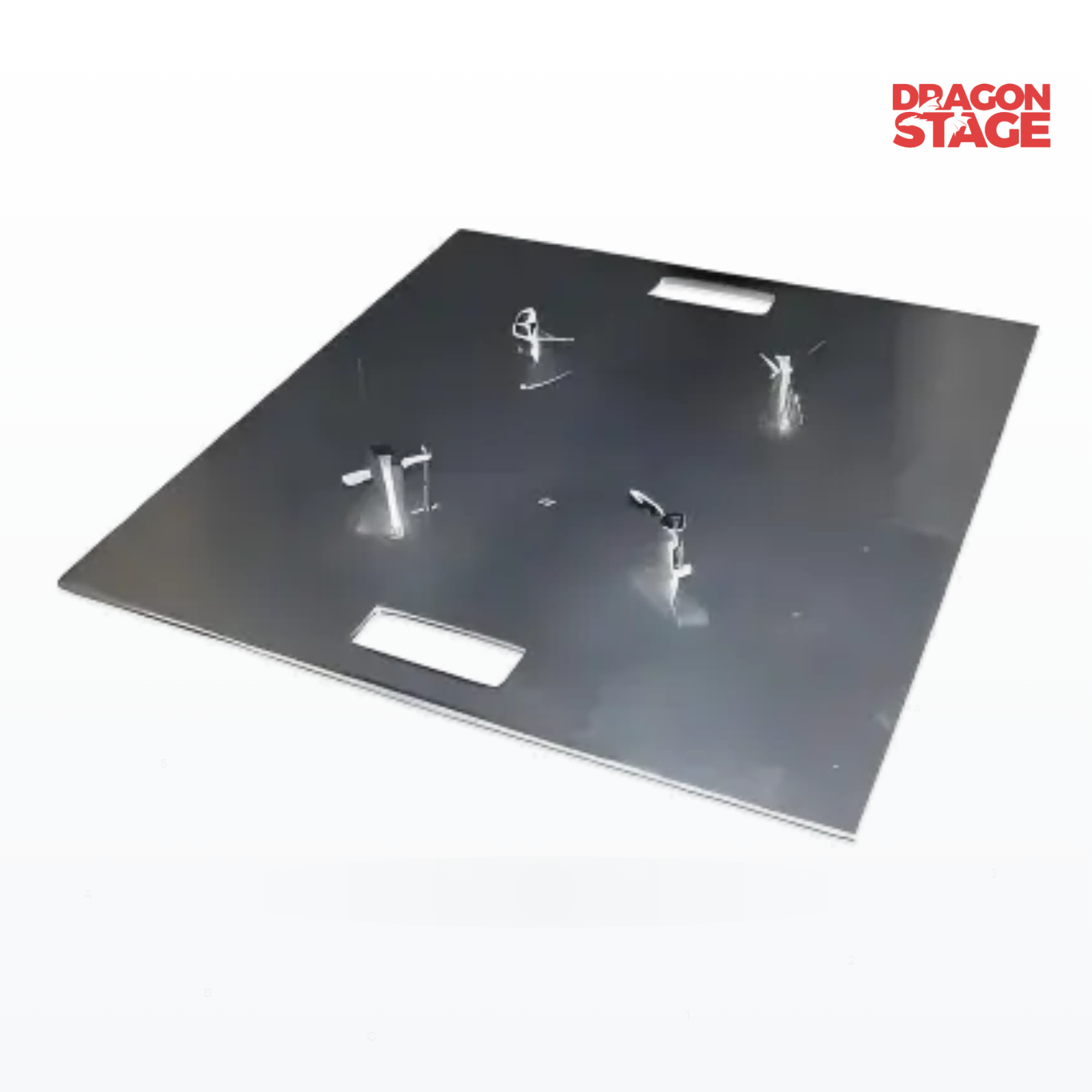

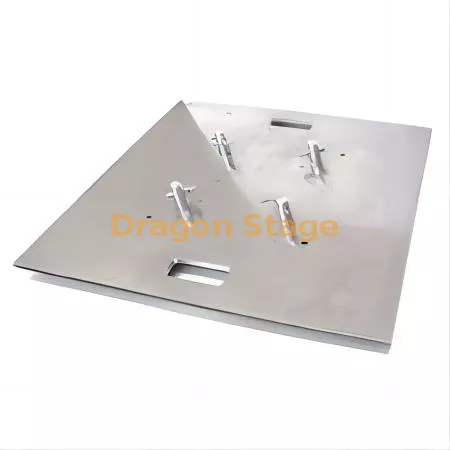

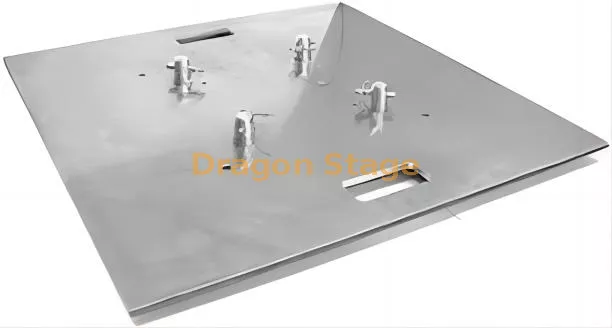

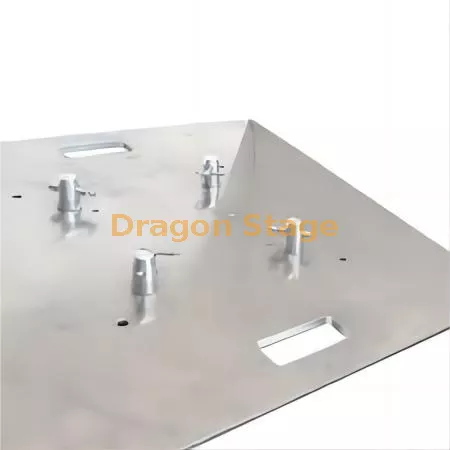

The Steel Truss Base 1×1m is a heavy-duty ground support component designed to provide a stable foundation for stage truss, lighting truss towers, roof truss structures, and temporary event support systems.
With a 1×1m base footprint, the steel truss base helps distribute the load from a vertical truss structure over a larger ground area. It is designed as an essential support component for truss systems used in events, construction, and temporary installations. The supplied product page identifies it as a Typical Truss System Accessory and describes its primary function as supporting and stabilizing truss structures on the ground.
The 1×1m base provides a broad support area for vertical truss structures, helping distribute loads and improving the stability of the overall support system.
The base is manufactured from steel, providing a rigid foundation component for repeated use in professional truss and event-production applications. The supplied product description specifically highlights steel construction for structural support, durability, and high load capacity.
This steel base can be used as a ground support component with:
Lighting truss towers
Roof truss systems
Stage truss structures
Temporary event installations
A wider base area helps distribute vertical loads toward the supporting surface rather than concentrating the load at a small contact area. The supplied product page highlights load distribution, reduced tipping risk, and improved structural stability as key benefits.
The product image data includes a range of base/connection dimensions, including 40×40mm, 60×60mm, 80×80mm, 105×105mm, 120×120mm, 160×160mm, 200×200mm, 240×240mm, 300×300mm, and 460×460mm configurations. This indicates that the base can be configured for different truss connection sizes.
Specification | Details |
|---|---|
Product Name | Steel Truss Base 1×1m |
Product Type | Steel Truss Base / Truss Ground Support |
Brand | Dragon Stage |
Overall Base Size | 1×1m |
Material | Steel |
Application | Stage & Lighting Truss Support |
System Type | Typical Truss System Accessory |
Connection Configuration | Available for different truss sizes |
Main Applications | Stage, Lighting, Roof Truss, Event Structures |
Customization | Truss connection dimensions can be discussed according to project requirements |
The 1×1m base can be used as a ground foundation for temporary stage truss structures.
Suitable for vertical lighting truss towers used to support compatible lighting equipment.
Useful for temporary event structures where truss towers need to be installed on the ground.
Can form part of the ground-support system for temporary concert and festival truss configurations.
Suitable for selected exhibition structures requiring independent truss support.
The base can be used as a foundation component in compatible temporary roof truss systems.
Its reusable steel construction makes it suitable for event production and rental companies operating modular truss equipment.
Provides a substantial support area for vertical truss structures.
Designed as a rigid support component for repeated professional use.
The supplied product data shows multiple connection-size configurations for different truss dimensions.
Can be incorporated into lighting towers, roof trusses, sleeve-block lifting systems, and other compatible ground-support structures.
Designed for event, construction, and temporary installation applications.
A general installation workflow is:
Prepare the Ground
Confirm that the installation surface is suitable for the expected loads.
Position the Steel Base
Place the 1×1m base in the required tower position.
Check the Connection
Confirm that the base connection matches the selected truss size.
Install the Vertical Truss
Connect the compatible truss section or tower assembly.
Check the Complete Structure
Inspect all connections before loading the tower.
Install Additional Support if Required
Depending on the project, ballast, guying, bracing, or other stabilization measures may be required.
The supplied product page emphasizes that the base is a foundation component for truss systems and should form part of a properly engineered support configuration.
The steel truss base is a structural support component, so its suitability cannot be determined from the base dimensions alone.
Before using the product, consider:
Truss size and geometry
Overall tower height
Total suspended load
Load distribution
Center of gravity
Ground bearing conditions
Connection method
Ballast requirements
Wind conditions for outdoor installations
Applicable engineering and safety requirements
The supplied page itself references Safety Standards & Engineering Constraints in connection with the product.
The 1×1m size should therefore not be interpreted as a universal load rating. The complete truss system should be evaluated according to its actual configuration.
The overall base size is 1×1m.
It is a steel truss base designed for structural ground support applications.
It provides a foundation and support point for vertical truss structures, helping distribute structural loads to the ground.
The supplied product information identifies applications including lighting truss towers, roof truss systems, sleeve block lifting systems, stage truss systems, and temporary event installations.
Yes. Lighting truss towers are specifically listed among the intended applications.
The supplied product data includes multiple connection-size references ranging from small configurations such as 40×40mm to larger configurations such as 460×460mm.
It can form part of a temporary outdoor truss system, but outdoor use requires consideration of wind, ground conditions, ballast, tower height, load, and complete structural engineering.
No. The 1×1m dimension describes the base footprint, not a universal load rating. The allowable load must be determined from the complete truss system and engineering configuration.
Yes. Its role as a reusable ground-support component makes it suitable for event production and rental-system configurations.
