Truss Base and Top Plates for Event Structures and Equipment Mounting

Base plates and top plates are important components for completing many event truss structures.

Base plates provide a connection point between the truss and the installation surface, while top plates provide a mounting interface at the upper part of a structure where additional components or equipment may be installed.

They are commonly used with DJ truss setups, lighting structures, exhibition displays, display towers and temporary event frameworks.

Choosing the correct plate is not only about size. The plate must match the truss system, connection method and intended application.

Base Plates: Creating a Stable Starting Point

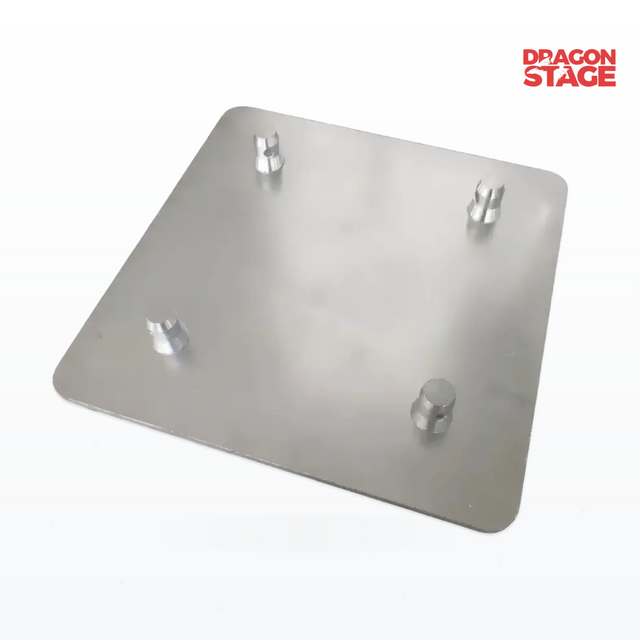

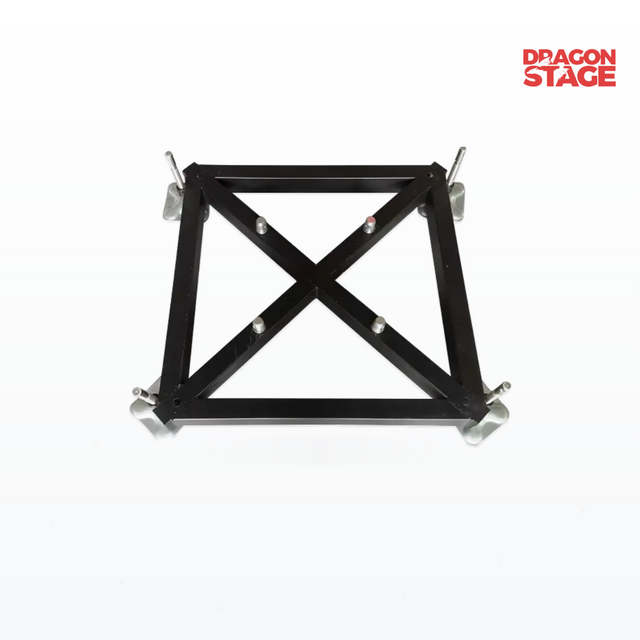

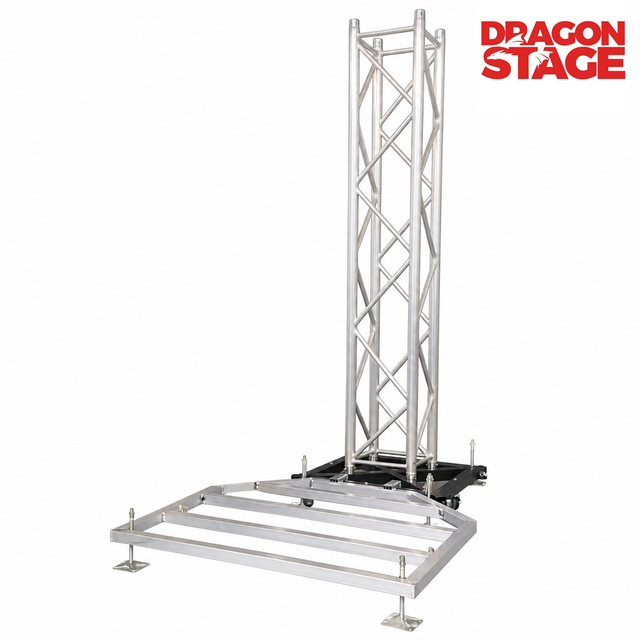

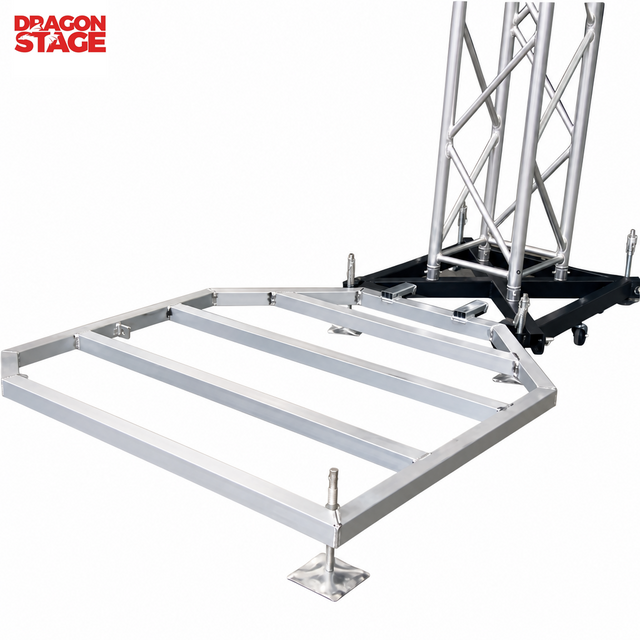

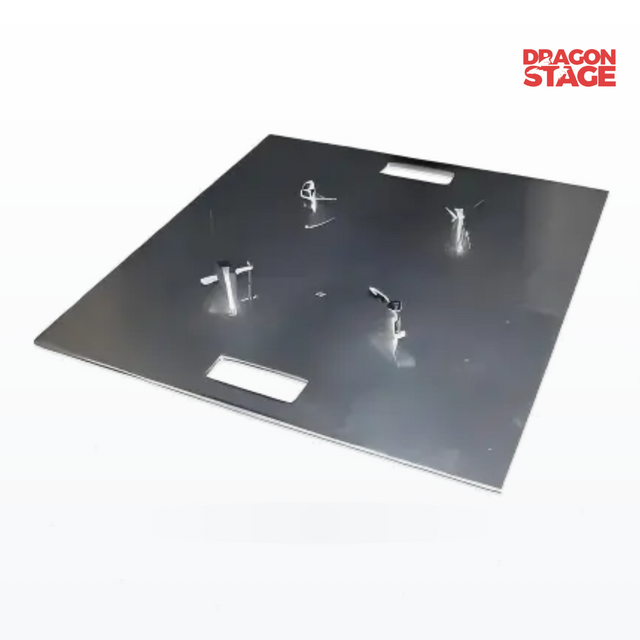

Base plates are commonly used at the bottom of a truss structure to create a connection between the vertical truss and the supporting surface.

Typical applications include:

• DJ lighting towers;

• exhibition display structures;

• portable truss frames;

• totem structures;

• temporary event supports.

When selecting a base plate, consider:

• truss size;

• connection type;

• structure height;

• required configuration;

• installation environment.

A base plate designed for one truss system may not be suitable for another system.

Top Plates: Extending the Function of a Truss Structure

Top plates are used at the upper connection point of a truss structure.

Depending on the design, they may be used to provide a mounting point or connection interface for additional event equipment.

Typical applications include:

• lighting equipment mounting;

• display structures;

• small event towers;

• equipment support configurations.

Before selecting a top plate, confirm what will be installed above the structure and whether the connection method matches the equipment requirements.

Check Compatibility Before Ordering

Base and top plates are connection components, which means compatibility is critical.

Before purchase, confirm:

• truss dimension;

• truss connection system;

• plate connection method;

• required accessories;

• intended use.

Do not choose a plate only because it appears to have the same size.

Different manufacturers or truss series may use different connection details.

If you are expanding an existing truss inventory, provide:

• photos of the current truss connection;

• truss dimensions;

• existing plate information.

This helps confirm whether the new components will work with your current system.

Complete Your Truss Setup

Base and top plates are usually selected together with other truss components.

Depending on your application, you may also need:

• straight truss sections;

• corners and junctions;

• clamps and mounting accessories;

• lifting equipment;

• display or lighting accessories.

Planning the complete structure first helps avoid purchasing individual components that cannot be combined later.

Need a Complete Truss Solution?

DragonEvent is designed for standard truss components and smaller event equipment purchases.

For professional aluminum truss systems, customized structures and larger event applications, explore Dragon Stage's Aluminum Truss Systems.

If you are unsure which base or top plate matches your truss, provide:

• truss size;

• connection type;

• structure purpose;

• required quantity;

• photos of existing components.

We can help identify a suitable option before purchase.
