Dragon Stage

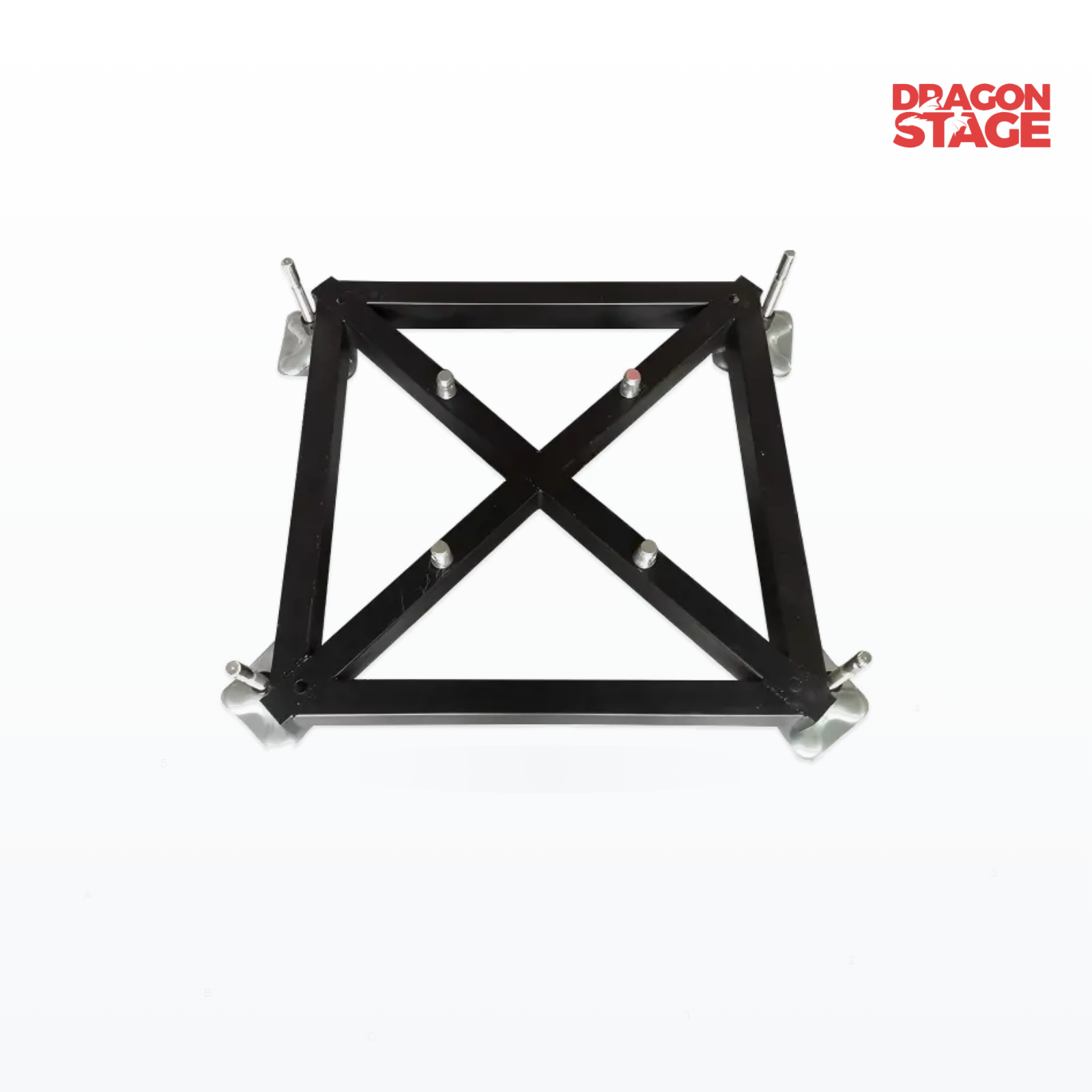

The Steel Black Truss Base Plate for Aluminum Spigot Truss is a heavy-duty steel foundation component designed to provide a stable base for compatible aluminum spigot truss systems.
Made from steel and finished in black, the base plate provides a strong and durable support point for modular truss structures. It is designed to connect with compatible aluminum spigot truss pillars, helping create a secure foundation for temporary or permanent display and event structures.
Available in different configurations for various pillar sizes, the base plate can be used with truss systems including 290/289 mm, 390/400 mm, 500 × 600 mm configurations, subject to the corresponding base plate model and actual truss compatibility.
Its practical design makes it suitable for modular displays, exhibitions, trade shows, concerts, corporate events, and other truss-based structures.
For complete truss solutions, explore Truss & Rigging.
The base plate is made from steel, providing a strong and durable foundation for compatible aluminum spigot truss pillars.
The steel construction is intended to provide a solid support point at the bottom of the truss structure.
The black finish provides a clean and professional appearance that integrates well with event, exhibition, and display environments.
It is particularly suitable for structures where the base component remains visible to visitors.
The base plate is specifically described as being compatible with aluminum spigot trusses.
The connection between the base plate and truss pillar provides the foundation for the vertical truss framework.
The supplied specifications include several base plate models for different pillar sizes:
CS20
CS30
CS35
CS40
The actual base plate should be selected according to the compatible truss pillar and connection configuration.
The base plate can be incorporated into modular truss frameworks that are repeatedly assembled and dismantled.
This makes it suitable for:
Exhibition displays
Trade show structures
Modular display systems
Corporate event structures
Concert structures
Temporary event frameworks
Model | Pillar Size / Model | Weight | Length | Width | Height | Volume | Packing |
|---|---|---|---|---|---|---|---|
CS35 | CS35 | 32.1 kg | 0.71 m | 0.71 m | 0.38 m | 0.191558 m³ | 1 pc/package |
CS30 | CS30 | 27.7 kg | 0.71 m | 0.71 m | 0.38 m | 0.191558 m³ | 1 pc/package |
CS40 | CS40 | 29.6 kg | 0.81 m | 0.81 m | 0.32 m | 0.209952 m³ | 1 pc/package |
CS20 | CS20 | 10.4 kg | 0.34 m | 0.34 m | 0.24 m | 0.027744 m³ | 1 pc/package |
Material: Steel
Finish: Black
Application: Aluminum spigot truss base support
The steel base plate can be used as part of compatible aluminum spigot truss frameworks for exhibition booths.
It provides a defined foundation for vertical truss pillars while allowing the modular framework to be assembled and dismantled.
For exhibition applications, explore Exhibition Booth Solutions.
The black steel base can be integrated into trade show frameworks where a professional appearance and modular construction are required.
For corporate presentations, promotional events, and branded displays, the base plate can form part of a freestanding truss framework.
The base plate is also suitable for compatible event truss systems used in concert and production environments.
For professional concert applications, the complete structure and loads should be evaluated rather than relying on the base plate alone.
A typical installation process is:
Select the base plate corresponding to the truss pillar.
Position the steel base plate on the intended supporting surface.
Align the aluminum spigot truss pillar with the base connection.
Install the required connection hardware.
Check that the truss pillar is correctly seated.
Continue assembling the remaining truss structure.
Inspect the complete framework before use.
The exact connection procedure depends on the compatible spigot truss system.
Do not force a connection if the pillar and base interface do not align correctly.
The supplied product information describes the steel base plate as providing excellent stability and load-bearing capacity and as supporting truss structures under heavy loads.
However, no numerical load rating is provided in the supplied information.
Therefore, this product page does not assign a specific:
Maximum load
Safe Working Load (SWL)
Wind load
Maximum truss height
Maximum span
Point load
The allowable capacity of the completed truss structure depends on the complete system, including:
Truss dimensions
Truss profile
Base plate model
Connection method
Structure height
Span
Equipment loads
Environmental conditions
Installation configuration
For load-bearing or professional rigging applications, the complete structure should be evaluated according to the applicable engineering requirements.
The black finish gives the base plate a clean appearance and helps it integrate into professional event environments.
This is particularly useful for:
Concert stages
Exhibition booths
Corporate displays
Trade show structures
Promotional installations
Modular display frameworks
Where the base plate remains visible, the black finish can provide a more consistent visual appearance with event production equipment.
This product is a base support component, not a complete truss system.
A typical modular display structure may also require:
Compatible aluminum spigot truss
Matching spigot connection hardware
Corner connectors
Straight truss sections
Additional base plates
Structural support components
Lighting or display accessories
For a complete truss system, visit Truss & Rigging.
The number of base plates generally depends on the number of vertical truss pillars requiring ground support.
For a structure with multiple vertical pillars, each supported pillar should be matched with the appropriate base configuration.
However, the exact quantity and arrangement should be determined from the actual structural layout.
Do not calculate base plate quantity from total truss length alone.
A booth drawing or truss layout is recommended when determining the required quantity.
Confirm whether your system uses:
290 / 289 mm
390 / 400 mm
500 × 600 mm
520 × 760 mm
600 × 760 mm
or another truss configuration.
Match the truss pillar to the appropriate base plate model:
CS20
CS30
CS35
CS40
Confirm that the base plate connection matches the spigot truss pillar.
Consider the number and position of vertical pillars and the overall framework configuration.
For larger structures or structures carrying significant equipment, confirm the complete structural requirements before selecting the base plate.
Nominal truss dimensions do not necessarily identify the correct base plate.
Always check the pillar and base connection.
Different truss profiles can require different base configurations.
The supplied product data identifies CS20, CS30, CS35, and CS40 as different configurations.
The correct model should be confirmed before ordering.
For example, the CS35 weighs 32.1 kg, but this does not mean its allowable structural load is 32.1 kg or any other particular value.
Product weight and structural load capacity are different specifications.
The base plate is only one component of the complete system.
Overall stability also depends on the truss, connections, structure geometry, support conditions, and applied loads.
The supplied packaging information specifies:
1 piece/package for each listed model.
Model | Packing |
|---|---|
CS20 | 1 pc/package |
CS30 | 1 pc/package |
CS35 | 1 pc/package |
CS40 | 1 pc/package |
Because these are steel base plates, the product weight can be significant, particularly for CS30, CS35, and CS40.
The listed product volumes can also be used when planning transportation and shipment space.
A truss base plate is a foundation component used to support the bottom of a compatible vertical truss pillar.
The product is made from steel and specified with a black finish.
It is designed for compatible aluminum spigot truss systems.
The product information references 290/289 mm, 390/400 mm, 500 × 600 mm, 520 × 760 mm, and 600 × 760 mm truss configurations.
The supplied specification lists:
CS20, CS30, CS35, and CS40.
Among the four listed models, CS35 weighs 32.1 kg.
CS40 has the largest listed footprint at 0.81 × 0.81 m.
Each listed model is specified as 1 piece/package.
Yes. The product is suitable for compatible modular display and exhibition truss structures.
It can be used as part of a compatible concert/event truss system. However, the complete structure must be evaluated for the specific application.
The supplied information describes excellent stability and load-bearing capacity but does not provide a numerical load rating. A specific SWL or maximum load should therefore not be assumed.
Need a steel base plate for an aluminum spigot truss modular display system?
Tell us your:
Truss size
Truss pillar model
Required base plate quantity
Booth or structure dimensions
Application
We can help identify the appropriate CS20 / CS30 / CS35 / CS40 configuration.
For complete truss and event production systems, explore Truss & Rigging.
