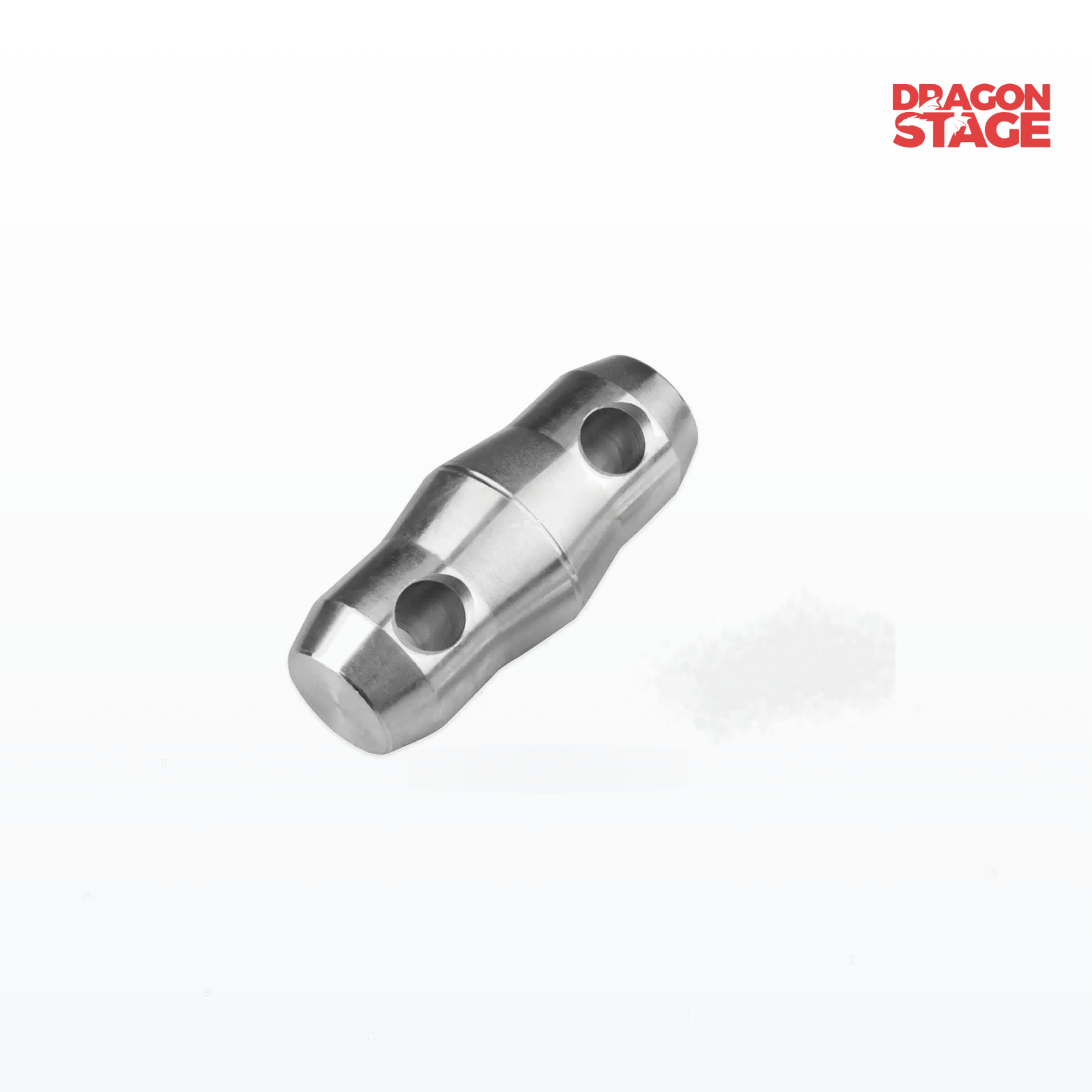

Aluminum Connector F34 290mm Truss Conical Connector for Concert Riggin

• F34 290mm system
  Designed for use with the F34 290mm truss system.

• Conical connection component
  Provides the connection interface required for compatible truss assembly.

• Lightweight aluminum construction
  The source product information identifies the connector as high-grade and lightweight aluminum, supporting easier handling during transportation and setup.

• Useful for replacement and maintenance
  Suitable when a compatible connector needs to be replaced or when additional connection components are required.

• For custom truss configurations
  The original product description states that it is compatible with the corresponding truss sticks for creating custom presentations.

Technical Specifications

The F34 290mm Truss Conical Connector can be considered for:

• Event and entertainment truss setups

• Lighting truss assemblies

• Stage-related truss structures

• Replacement of missing or damaged compatible connectors

• Maintenance of an existing F34 290mm truss inventory

• Expansion or reconfiguration of compatible truss assemblies

For buyers starting from scratch, the connector should be considered as part of a complete compatible truss system rather than as a standalone rigging solution.

For larger structures, suspended loads, unusual spans or heights, or other structurally significant concert applications, project-specific requirements should be confirmed before purchase.

Compatibility: Check This Before Ordering

This is the most important buying point for this product.

Before ordering, confirm:

1. Truss system: Your truss is an F34 system.

2. System size: Your truss is the 290mm system.

3. Connector type: Your existing truss uses the matching conical connection arrangement.

4. Existing component: If this is a replacement, compare the existing connector with the product images and available dimensions.

5. Complete setup: If you are building a new structure, confirm all required connection components rather than ordering connectors based only on the total truss length.

If you are unsure about compatibility, send the truss model, connector dimensions, drawing, or clear photos of the existing connection before ordering.

Required / Usually Needed

For a replacement

The minimum purchase is the number of compatible connectors that actually need replacement.

Do not automatically purchase a full set if only individual connectors are missing or damaged.

For a new truss setup

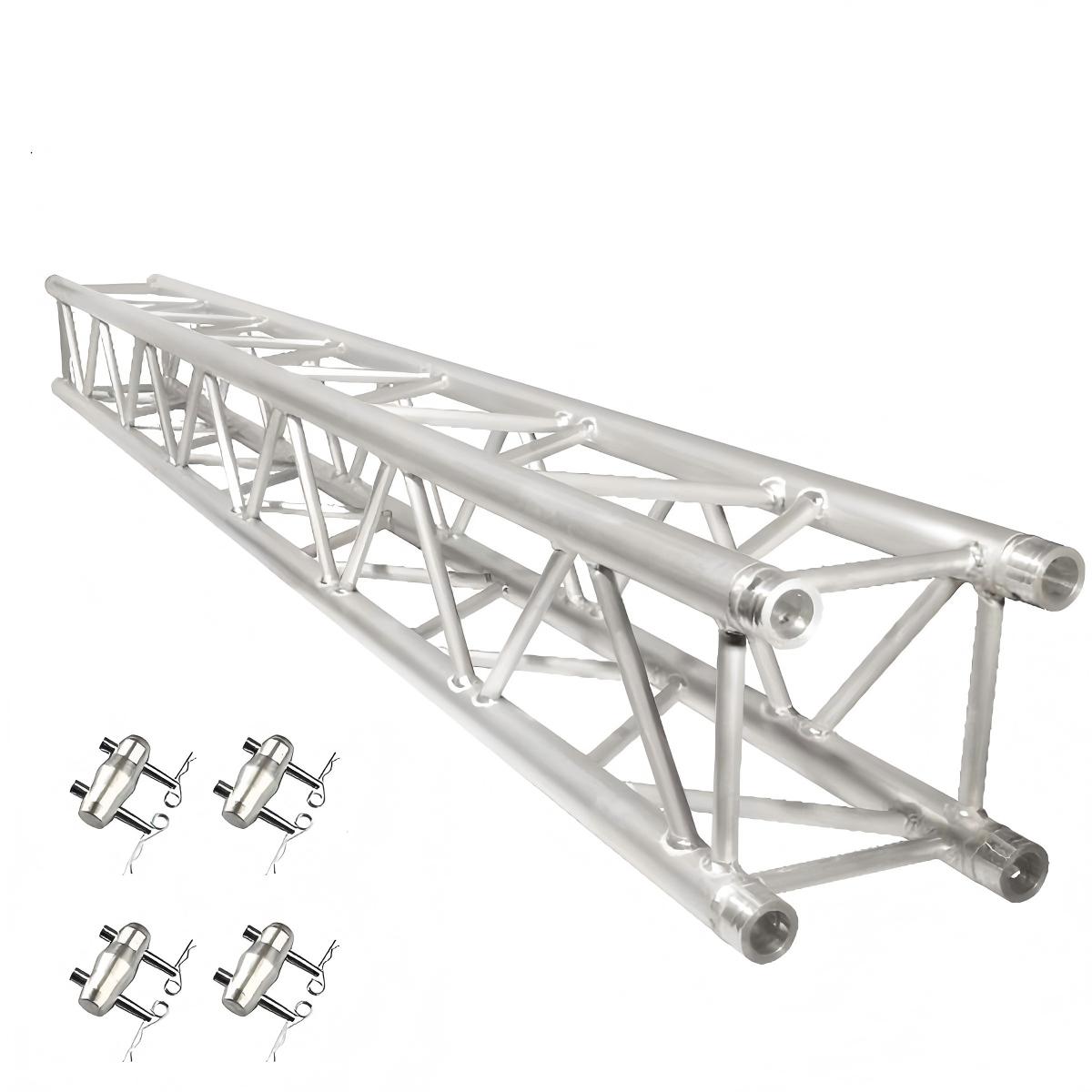

The connector must be used with compatible F34 290mm truss sections and the other connection components required by the selected configuration.

If you are still selecting the truss system, browse Truss & Rigging first rather than choosing the connector independently.

Optional / Upgrade

For buyers maintaining or expanding a truss inventory, additional compatible components can be considered according to the actual setup.

Truss & Rigging Accessories is the appropriate starting point when you need other truss connection or support accessories.

Avoid buying unrelated accessories simply because they appear in the same product category. The right quantity depends on your actual truss configuration.

Quantity Guide

There is no universal connector quantity based only on the total length of a truss structure.

For a replacement order:

Required quantity = number of connectors that need replacement.

For a new or expanded system, determine the number of connection points from the actual truss configuration and confirm which connection components are required at each point.

If you provide the number of truss sections and your planned configuration, the required quantity can be checked before ordering.

Common Buying Mistakes

Buying by appearance

Similar-looking truss connectors can belong to different systems. Confirm the truss model and connection interface before purchase.

Assuming every 290mm connector is interchangeable

The 290mm dimension alone does not establish compatibility. The F34 system and matching conical interface must also be confirmed.

Ordering only by the total truss length

Connector quantity depends on the actual connection arrangement, not simply on how many metres or feet of truss you have.

Treating the connector as an engineered rigging solution

This product is a connection component. The supplied information does not provide a load rating or engineering approval for a particular suspended concert configuration.

For large roofs, tall towers, suspended loads, unusual spans or heights, or other significant structures, provide the project layout and requirements for project-specific consultation.

Use & Setup Notes

Use the connector only with a confirmed compatible F34 290mm truss system.

During assembly:

• Confirm the connector matches the mating truss components.

• Make sure the connection interfaces correctly before continuing assembly.

• Do not force a connector into an incompatible truss.

• Check replacement components against the existing system before ordering when compatibility is uncertain.

For structurally significant applications, follow the requirements applicable to the complete truss system and project. Product-level compatibility should not be treated as project-level engineering approval.

1. What truss system is this connector for?

It is identified as an F34 290mm Truss Conical Connector and is intended for the compatible F34 290mm truss system.

2. Is this connector made from aluminum?

Yes. The supplied product information describes it as high-grade, lightweight aluminum.

The specific aluminum alloy grade is not confirmed in the supplied information.

3. Is it suitable for concert rigging?

It may be used as a component within a compatible event or entertainment truss system. However, the supplied product information does not provide a load rating, certification, or engineering approval for suspended concert applications.

For suspended loads, large spans, tall structures, or unusual configurations, project-specific requirements must be confirmed.

4. How can I confirm whether it fits my truss?

Confirm that your system is F34 290mm and that its connection interface matches this conical connector.

If you cannot confirm this from your existing product information, send the truss model, connector dimensions, drawing, or clear photos for compatibility checking.

5. How many connectors do I need?

For a replacement, purchase the number of compatible connectors that need to be replaced.

For a new structure, the required quantity depends on the actual truss configuration and connection points. Provide the planned layout if you need help determining the quantity.

CTA

Need a replacement or additional F34 290mm truss connector?

First confirm your truss model, 290mm system size, and conical connection interface.

If you are unsure, send us a photo, drawing, or the dimensions of your existing truss connection before ordering. For a complete truss setup or a larger concert configuration, provide the planned layout and requirements so the appropriate components can be reviewed together.
