When Should You Replace Truss Connection Hardware?
Do not judge a pin only by whether it is still physically present.
Before installation, connection hardware should be checked for obvious problems such as:
If connection hardware is visibly damaged or no longer fits the connection correctly, it should not simply be forced into place.
Check the connector and replace the appropriate component.
For occasional personal use, losing one small clip is inconvenient.
For a rental company or event crew working against an installation deadline, it can become a much bigger problem.
This is why pins and R-clips make sense as maintenance and spare inventory, rather than something to search for only after one has gone missing.
Keep them together with the corresponding truss system so that hardware from different connector systems does not become mixed.
Other Parts You May Need

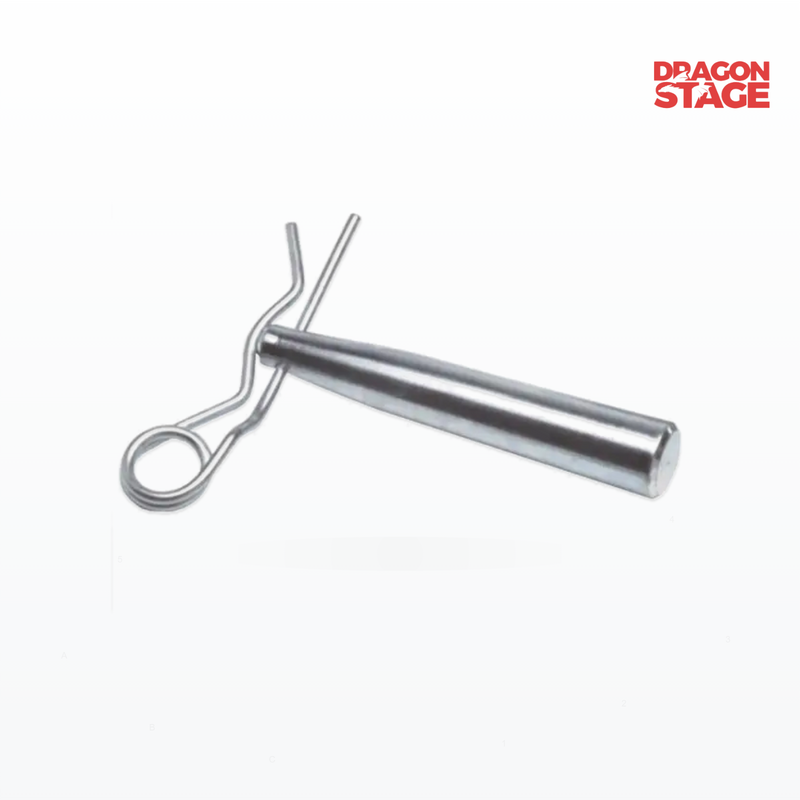

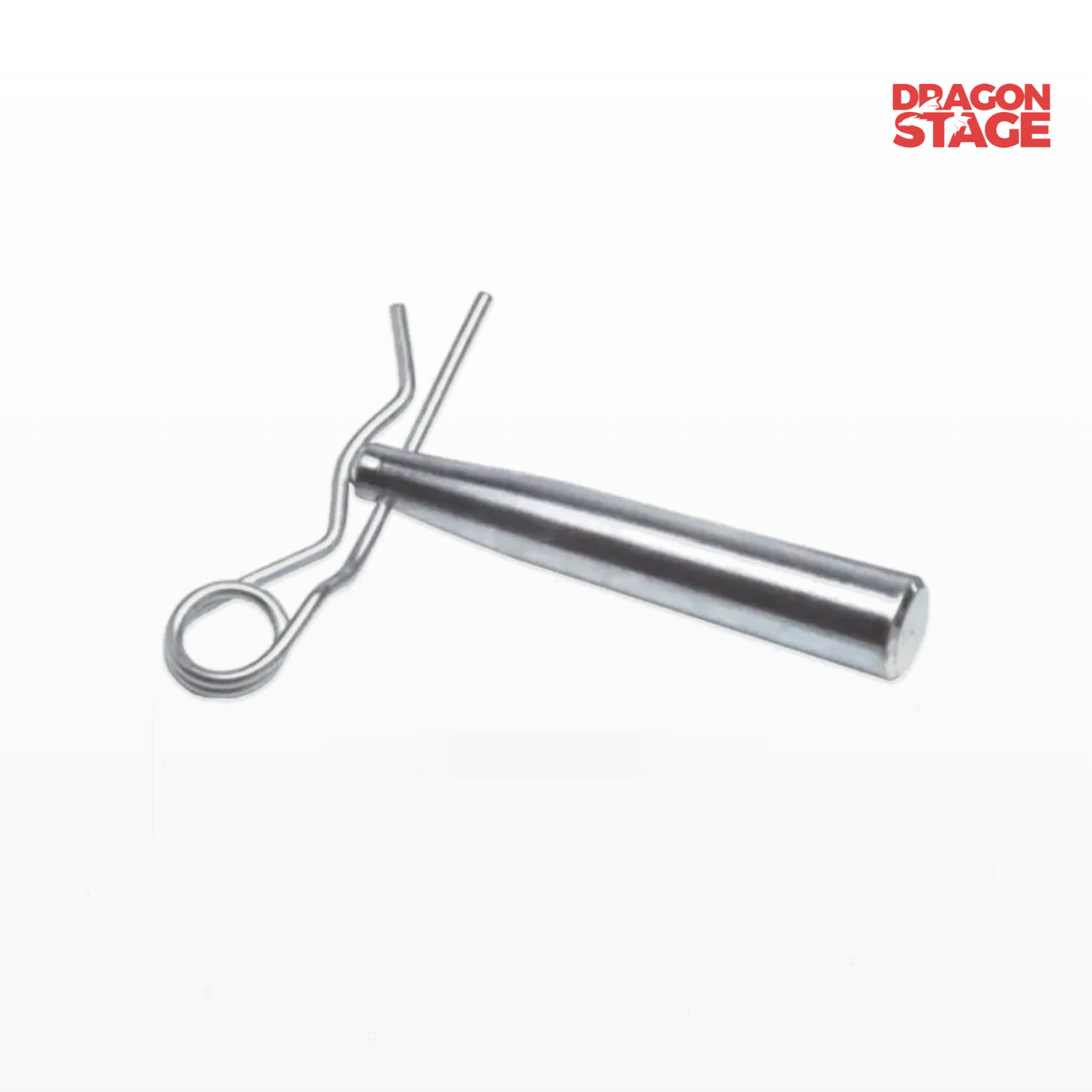

A coupler pin and R-clip are only part of a complete modular truss connection system.

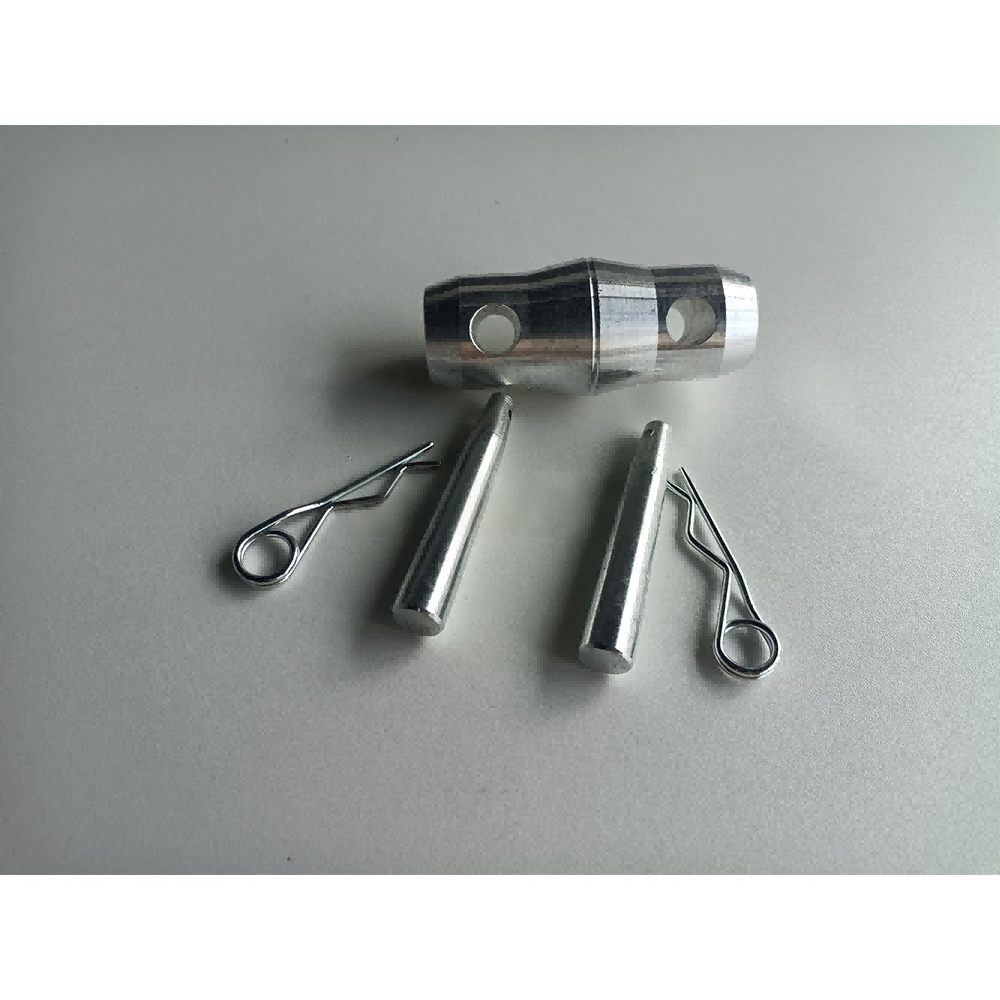

Depending on what you are replacing or building, you may also need conical couplers, connectors, clamps, base components or other truss hardware.
You can browse our Truss & Rigging Accessories for related replacement and setup components, or return to Truss & Rigging if you also need straight truss, corners, bases or other components for a complete event setup.
Do not purchase additional accessories simply because they are commonly used with truss. Start with the structure you already own or intend to build, then identify the components that are actually necessary.
Buying Mistakes to Avoid
Buying by “F34” name alone

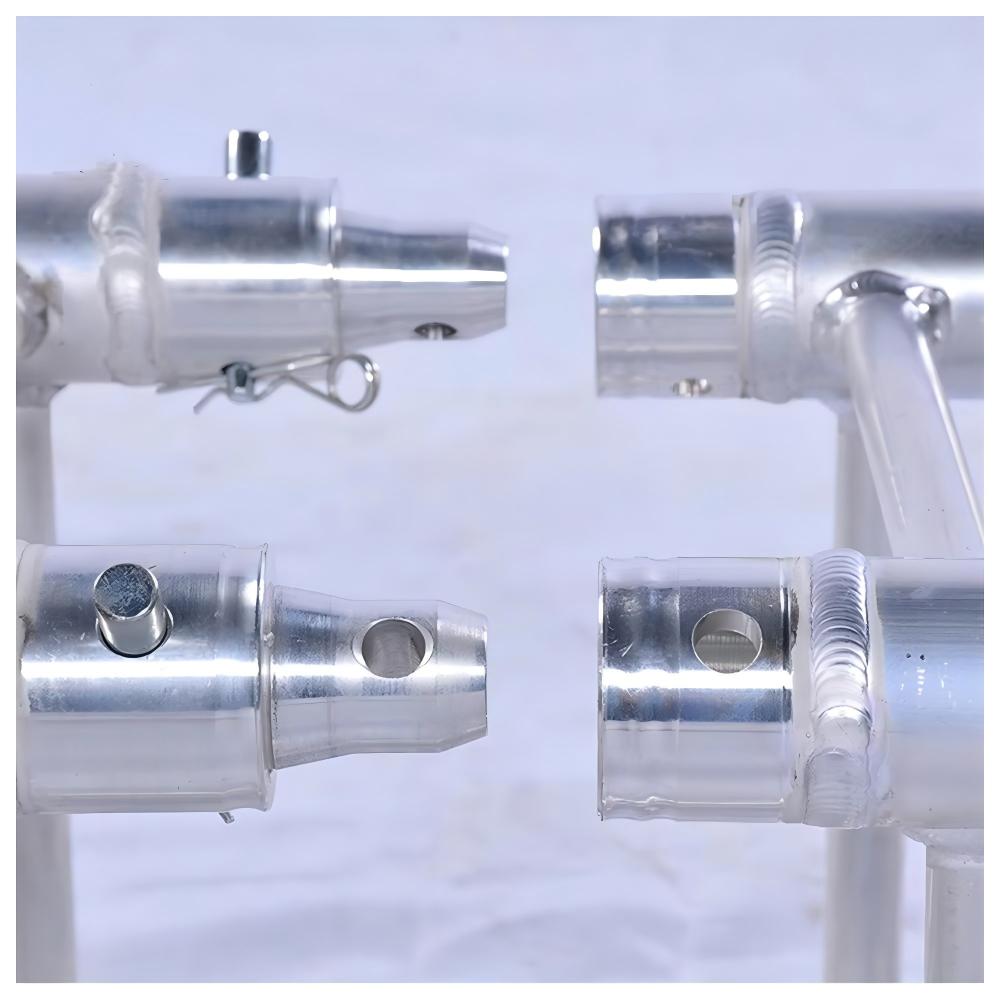

F34 is useful for identifying the general truss family, but it should not be treated as proof of cross-brand connector compatibility.
Assuming all 290mm truss hardware is interchangeable
The outside truss dimension does not determine every connector dimension.
Mixing pins from different truss systems
Similar-looking hardware can have dimensional differences. Keep replacement hardware identified with the truss system it belongs to.
Forcing a pin that does not fit
If a replacement pin cannot be inserted normally, stop and check the connector dimensions and alignment rather than forcing the connection.
FAQ
Will this fit every F34 truss?
Not necessarily. F34 describes a commonly used truss format, but connector and pin dimensions can vary between manufacturers. Compatibility should be checked before ordering.
Can I use it with truss from another manufacturer?
Possibly, but compatibility should never be assumed from the F34 name or 290mm outside dimension alone.
Connector geometry, pin diameter and hole position should be compared before mixing components from different systems. For more background on why truss connection systems differ, read Understanding Spigot, Bolt and Plate End Connections in Truss Systems.
If you are unsure, send us photos and measurements of your existing connector and pin before ordering.
What is the R-clip used for?
The R-clip retains the coupler pin after it has been inserted through the truss connection.
Is this useful as spare hardware?
Yes. Pins and retaining clips are small components that can be misplaced during transport, setup and dismantling, so compatible spares are useful for frequently used truss systems.
Can I use it with truss from another manufacturer?
Possibly, but compatibility should not be assumed. Compare the existing pin and connector dimensions first.
What should I do if I don't know whether it fits?
Send us a photo of your existing truss connector and pin together with the relevant measurements. We can help you check compatibility before ordering.
CTA
Not Sure Whether It Fits Your Truss?
For replacement connection hardware, compatibility matters more than appearance.
Send us:
Truss Size + Connector Photo + Existing Pin Dimensions
and we can help you check whether this pin and R-clip are suitable for your existing truss system.
For large-volume requirements, custom components, or items not available in the listed SKUs, please contact our customer service team directly.
