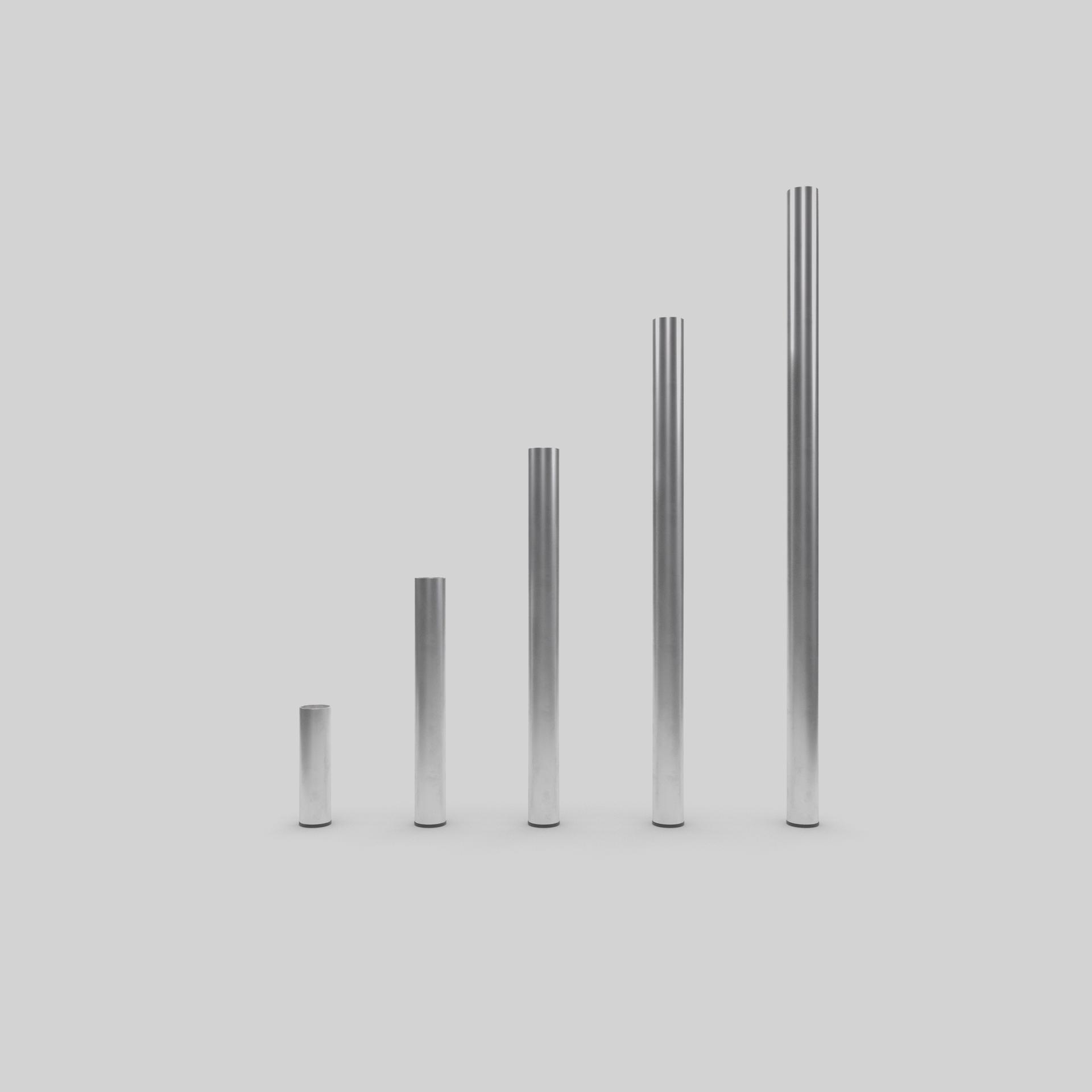

Standard Leg Lengths

We offer nine standard tube lengths:

Other custom lengths are available.

Important

These dimensions refer to the aluminum leg tube length, not automatically to the exact finished height of the stage deck surface.

The final deck height also depends on the deck and leg connection configuration.

If an exact finished stage height is required, tell us the target deck height before ordering.

Ø50 × 3mm Aluminum Tube

The main leg specification is:

Outside Diameter: Ø50mm
Wall Thickness: 3mm

The simple cylindrical construction makes this leg particularly suitable for buyers who already know which height they need.

However, a stage leg is still a system component, not simply a piece of Ø50mm aluminum tube.

Before using the leg with a stage deck from another system, compatibility must be confirmed.

Ø50mm Diameter Alone Does Not Guarantee Compatibility.

The deck receiver, insertion dimensions and fixing method must also match.

What Is the Hard Plastic End Cap For?

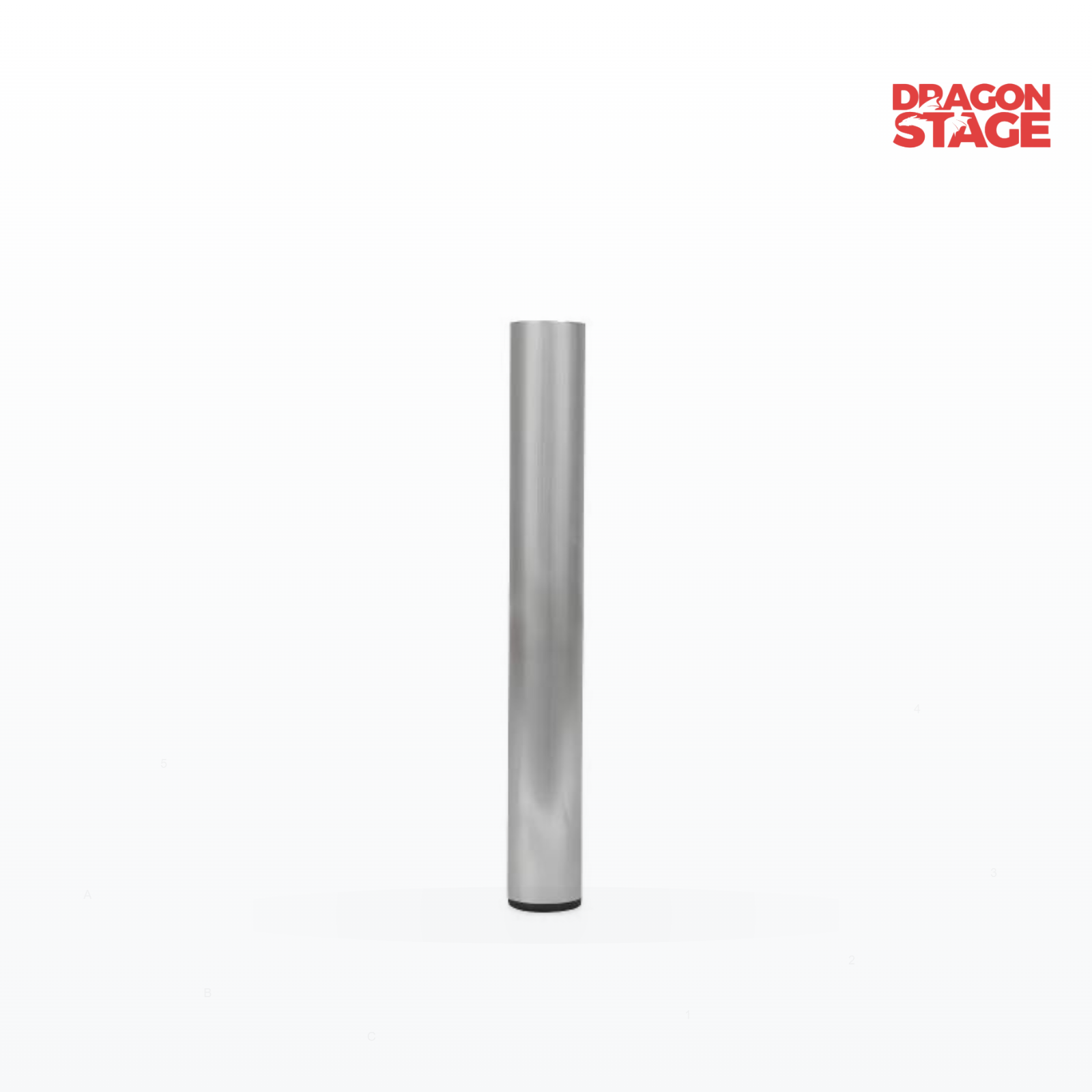

The bottom of the aluminum tube is fitted with a hard plastic end cap.

Its purpose is to cover and protect the open end of the aluminum tube and provide a finished contact surface between the leg and the supporting floor.

It also prevents the bare aluminum tube edge from contacting the floor directly.

But it is important to understand what this component does not do.

The plastic cap is:

not a swivel foot
not a screw jack
not a height adjuster
not an All-Terrain leveling system

The leg remains a completely fixed-length support.

Which Fixed Stage Leg Should You Choose?

DragonEvent offers two different fixed-height leg concepts.

Choose the Hard Plastic End Cap Version When:

• the required stage height is already known;

• the floor is reasonably flat;

• you want the simplest Quick Stage leg;

• you are replacing existing fixed legs;

• you repeatedly use the same stage height;

• you do not need individual leg leveling.

Choose the Swivel Foot Version When:

• you still want a fixed main leg;

• but the contact surface may require some local adjustment;

• you prefer a larger/movable foot interface;

• individual foot positioning is useful.

If the ground has substantial height differences, neither should automatically be treated as a substitute for an appropriate height-adjustable stage-leg system.

Minimum Practical Package

For a buyer using the stage repeatedly at one known height, we recommend starting with the simplest system that actually solves the job.

For example:

Regular 0.4m Stage

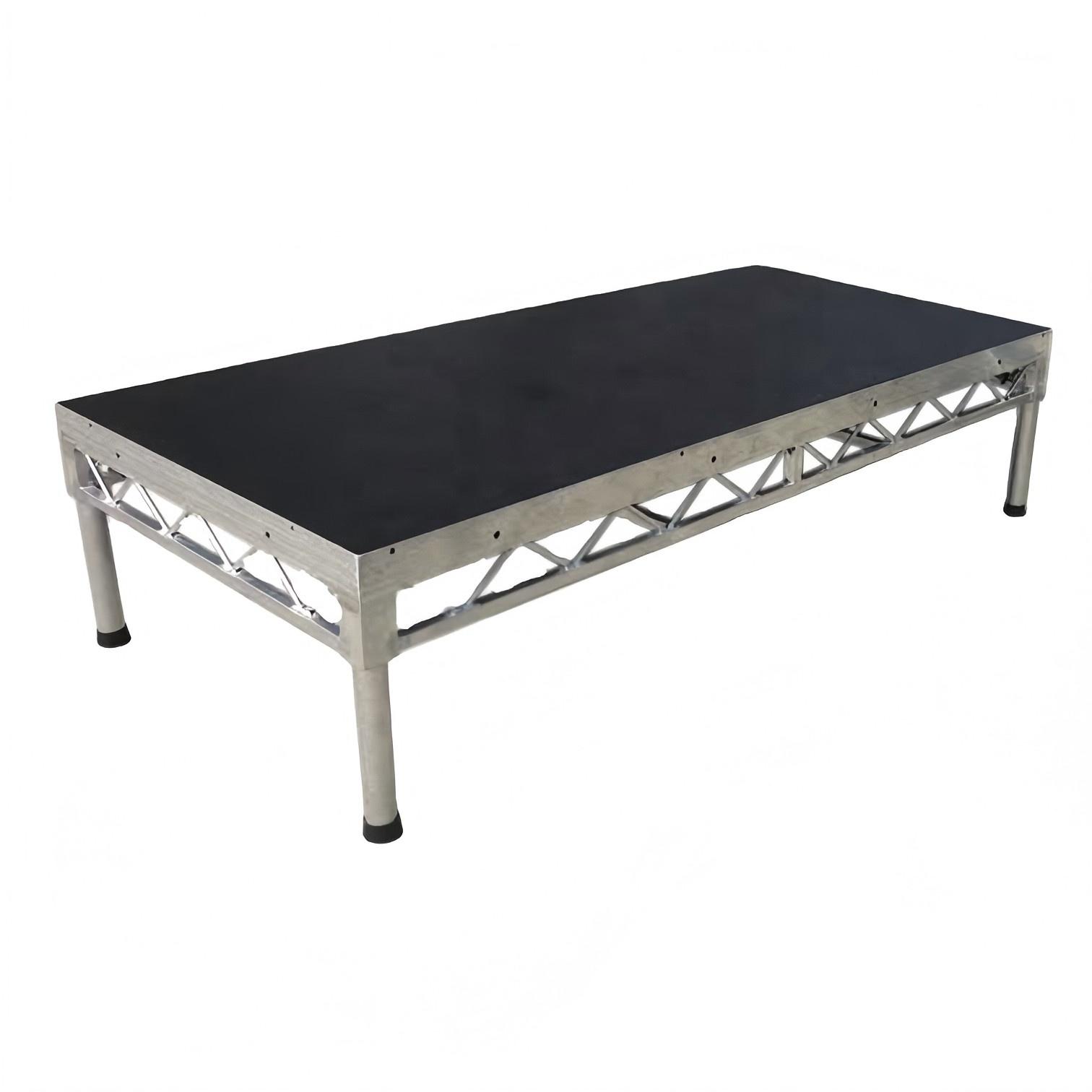

Quick Stage Decks

0.4m Fixed Legs with Plastic End Caps

Required Deck Connections

Appropriate Stage Steps / Stairs

This is normally more practical than purchasing a more complex adjustable-leg system if you never need to change the stage height.

When Should You Upgrade?

Your stage inventory may change as you take on more events.

Stage 1 — One Regular Height

Use:

Fixed Legs with Hard Plastic End Caps

↓

Stage 2 — Same General Height but More Variable Floor Conditions

Consider:

Fixed Legs with Swivel Feet

↓

Stage 3 — Different Venues and Different Stage Heights

Move to:

Height Adjustable Stage Legs

This is a better buying path than purchasing the most complicated leg system from the beginning when your actual events do not require it.

Available SKU Options

I recommend using one product page with multiple SKUs, rather than creating nine almost identical pages.

Standard Options

200mm / 0.2m Fixed Stage Leg

300mm / 0.3m Fixed Stage Leg

400mm / 0.4m Fixed Stage Leg

500mm / 0.5m Fixed Stage Leg

600mm / 0.6m Fixed Stage Leg

700mm / 0.7m Fixed Stage Leg

800mm / 0.8m Fixed Stage Leg

900mm / 0.9m Fixed Stage Leg

1000mm / 1.0m Fixed Stage Leg

Custom Length

For the SKU attribute itself, I recommend simply calling it:

Leg Length

rather than “Stage Height,” because your confirmed specification is the tube length.

These fixed legs are suitable for Quick Stage configurations used for:

• weddings;

• parties;

• DJ events;

• schools;

• churches;

• hotel functions;

• exhibitions;

• presentations;

• indoor performances;

• small event stages;

• rental stage inventory.

The real deciding factor is not the event name.

It is:

Do you already know the stage height, and is the supporting surface suitable for a fixed leg?

If yes, this is usually the simplest place to start.

Replacement Legs for Existing Quick Stage

This product is also useful when you already own Quick Stage decks and need:

• lost-leg replacements;

• damaged-leg replacements;

• additional legs for more decks;

• another fixed-height leg set;

• spare legs for rental inventory.

If you already own DragonStage Quick Stage, tell us your existing leg length or required stage configuration.

If the stage was supplied by another manufacturer, do not order solely because its old leg also measures approximately 50mm in diameter.

Compatibility Checklist

Before purchasing these legs for an existing stage system, check:

1. Leg Diameter

Required specification:

Ø50mm

2. Leg Receiver

The deck must have a compatible receiving arrangement.

3. Insertion / Connection

Confirm how far the leg enters the deck and how it is secured.

4. Required Tube Length

Measure the existing leg if purchasing a direct replacement.

5. Finished Stage Height

If building a new stage, specify the required deck height rather than guessing the leg length.

For related components:

Stage Legs & Supports
https://www.dragonevent.store/Stage-Legs-Supports-pl08154276.html

How Many Legs Do I Need?

Do not automatically calculate:

Number of Decks × 4

for every multi-deck Quick Stage configuration.

The required leg quantity depends on the actual stage system and deck layout, including whether support points are shared between adjacent decks.

For replacement orders, match the existing configuration.

For a complete new stage, send us:

Stage Length × Stage Width × Required Height

and we can match the appropriate deck and support configuration.

Necessary Related Items

Depending on your existing stage system, a complete setup may also require:

Quick Stage Decks

The leg must connect to a compatible deck.

Stage Platforms & Decks
https://www.dragonevent.store/Stage-Platforms-Decks-pl09254276.html

Stage Steps or Stairs

As stage height increases, suitable access becomes increasingly important.

Stage Steps & Stairs
https://www.dragonevent.store/Stage-Steps-Stairs-pl07154276.html

Guard Rails

Depending on the stage configuration, height, application and local requirements, appropriate edge protection may also be needed.

Stage Guard Rails
https://www.dragonevent.store/Stage-Guard-Rails-pl06154276.html

These should be selected according to the complete stage configuration rather than treated as automatic accessories for every individual leg purchase.

Common Buying Mistakes

1. Buying by Diameter Only

“My existing leg is 50mm, so this one should fit.”

Not necessarily.

The connection with the deck must also match.

2. Confusing Leg Length with Finished Stage Height

A 600mm leg tube does not automatically mean the top surface of the completed stage is exactly 600mm above the floor.

Confirm the finished height if this dimension matters to your project.

3. Using Fixed Legs to Solve an Uneven-Ground Problem

This product has:

no screw jack

and:

no swivel leveling foot

If individual support points require significant height adjustment, choose another leg system.

4. Buying Adjustable Legs When You Do Not Need Them

The opposite mistake also happens.

If your venue always uses approximately the same fixed stage configuration on a suitable floor, there may be little reason to purchase a more complicated adjustable system.

Start with the minimum practical solution.

5. Ordering Too Many Fixed Heights for a Rental Business

If your business begins requiring many different heights, continuously adding separate sets of:

0.3m
0.4m
0.5m
0.6m
0.7m
0.8m...

may eventually become inefficient.

That is the point at which adjustable legs may become the more practical inventory choice.

What size aluminum tube is used?

The leg uses a Ø50 × 3mm aluminum tube.

The outside diameter is 50mm and the wall thickness is 3mm.

What lengths are available?

Standard tube lengths are:

0.2m, 0.3m, 0.4m, 0.5m, 0.6m, 0.7m, 0.8m, 0.9m and 1.0m.

Other lengths can be customized.

Does this stage leg have a swivel foot?

No.

This version uses a hard plastic end cap directly at the bottom of the fixed aluminum tube.

If you need a swivel-foot version, choose our Fixed Height Stage Leg with Swivel Foot instead.

Is the plastic end cap rubber?

No. Based on your supplied product specification, this product should be described as using a hard plastic end cap, not a rubber foot.

Can I adjust the height?

No.

The aluminum leg is a fixed-length support.

Choose the required tube length when ordering.

Can I use it outdoors?

The more important question is the supporting surface and complete stage configuration.

This fixed-leg version does not provide individual height leveling. If the outdoor site is substantially uneven, another support system may be more appropriate.

Can I use these legs with another brand of stage deck?

Only after confirming compatibility.

A similar leg diameter does not prove that the deck socket and connection system are compatible.

Can you make a 350mm or 750mm leg?

Yes.

Other custom tube lengths are available.

When requesting a custom size, tell us whether your dimension refers to the required tube length or the required finished deck height.

Which is better: plastic end cap or swivel foot?

For a known stage height on a reasonably flat floor, the plastic-end-cap version is the simpler option.

If you still want a fixed main tube but need more flexibility at the ground-contact point, consider the swivel-foot version.

For substantial height differences between support points, consider a height-adjustable leg system.

How to Order the Correct Leg

For a simple replacement, send us:

1. Existing leg length
2. Existing leg outside diameter
3. Photo of the leg
4. Photo of the deck-to-leg connection
5. Required quantity

For a new stage, send:

Stage Length × Width × Finished Height

and tell us whether the installation is mainly:

Indoor / Outdoor

and:

Flat Floor / Uneven Surface

This allows us to recommend the appropriate Quick Stage support configuration instead of simply selling you a leg that may not solve the actual setup requirement.

For non-standard lengths, larger quantities, or replacement legs for an unconfirmed stage system, please contact us before ordering.
