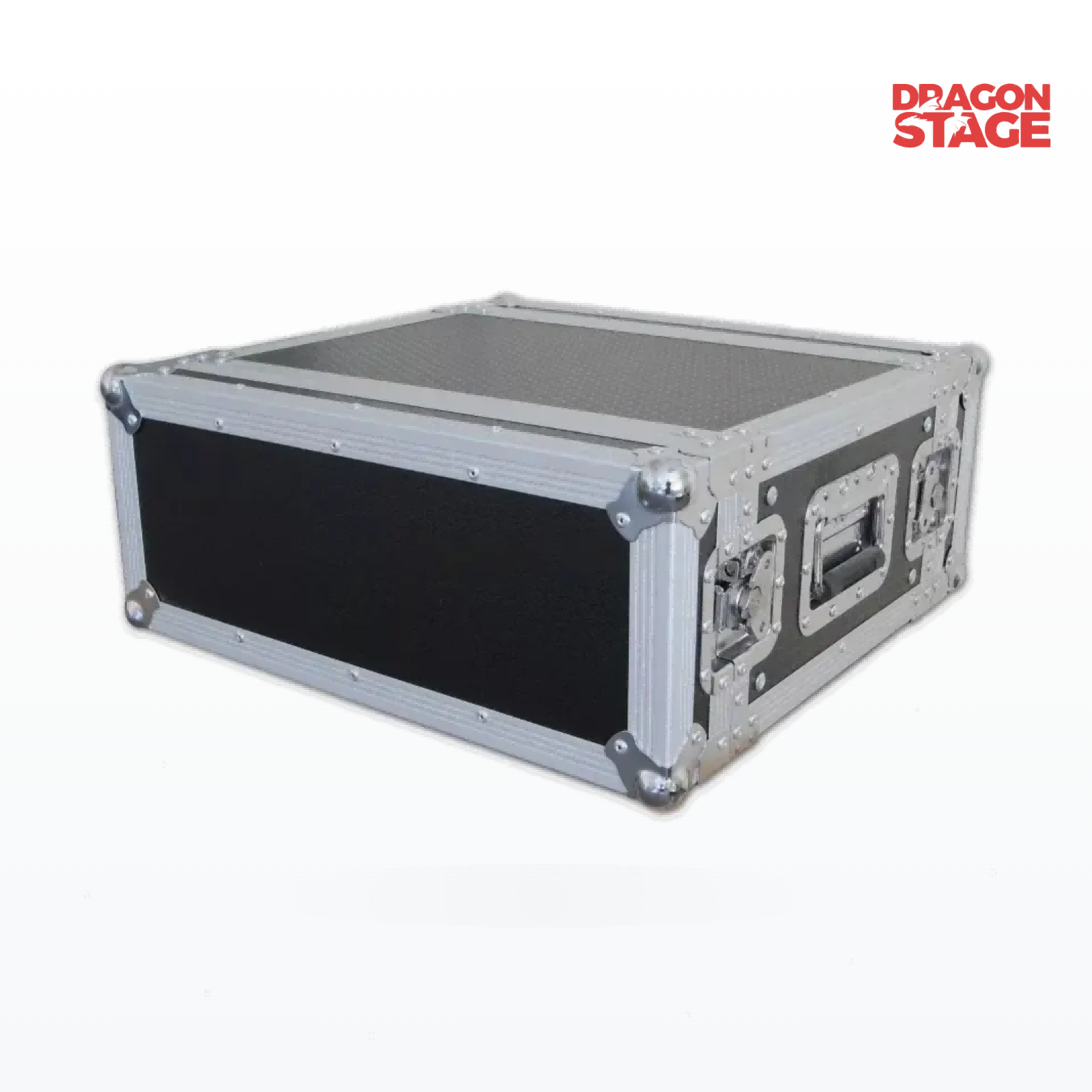

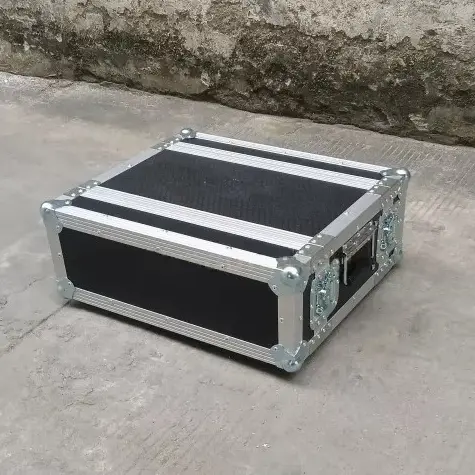

Midas DL32 DL16 & Behringer S32 S16 Silver Stage Box Rackmount Flightcase for Digital Stage Box Safeguarding

• 19-inch rackmount design
  Designed around a standard 19-inch rackmount format for compatible digital stage box equipment.

• 7 mm Finnish birch plywood construction
  Made from WBP 100% Finnish birch plywood with a 7 mm thickness for a strong and durable case structure.

• Scratch- and impact-resistant finish
  Birch melamine finishing helps protect the exterior surface during regular handling and transportation.

• Aluminum structural profiles
  The case uses 30 × 30 mm aluminum profiles together with heavy-duty aluminum profiling and closing components.

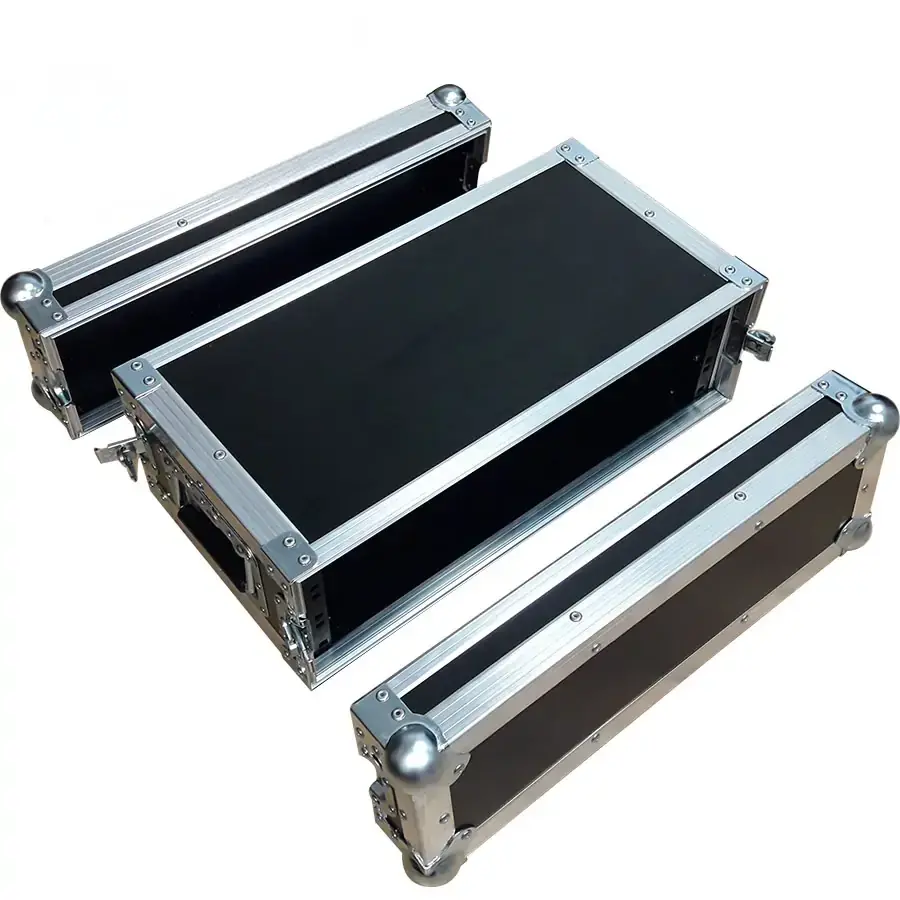

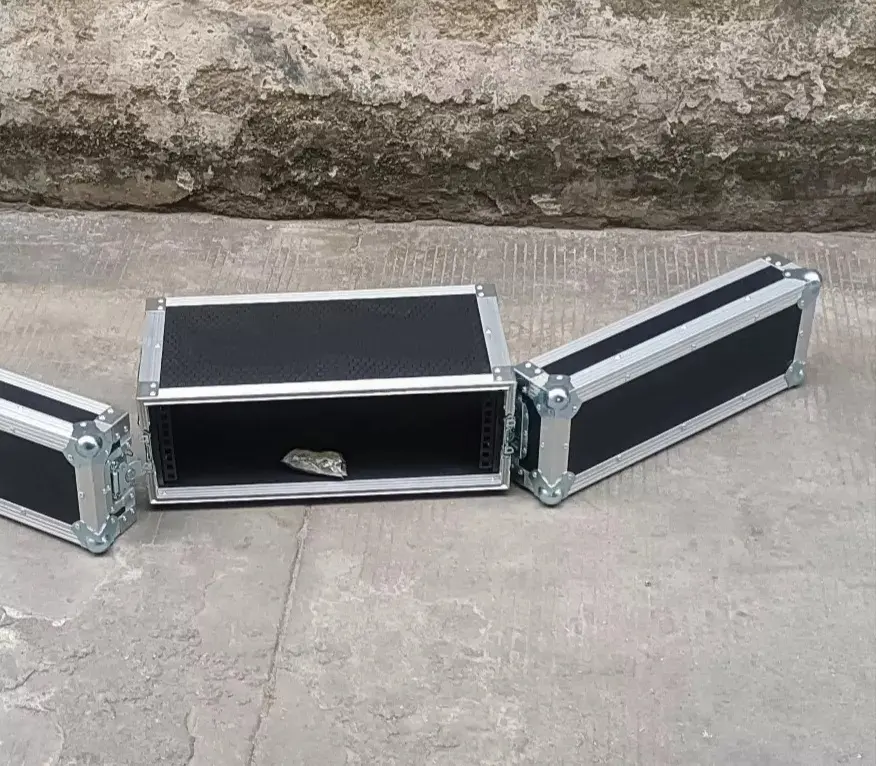

• Removable front and rear lids
  Both front and rear lids are fully removable, allowing easier access to the mounted stage box and connections.

• Professional rack mounting hardware
  Supplied with 8 × M6 captive nuts and M6 bolts for securing compatible rack-mounted equipment.

• Secure butterfly closures
  Four self-advancing butterfly closures help keep the case closed during transport and handling.

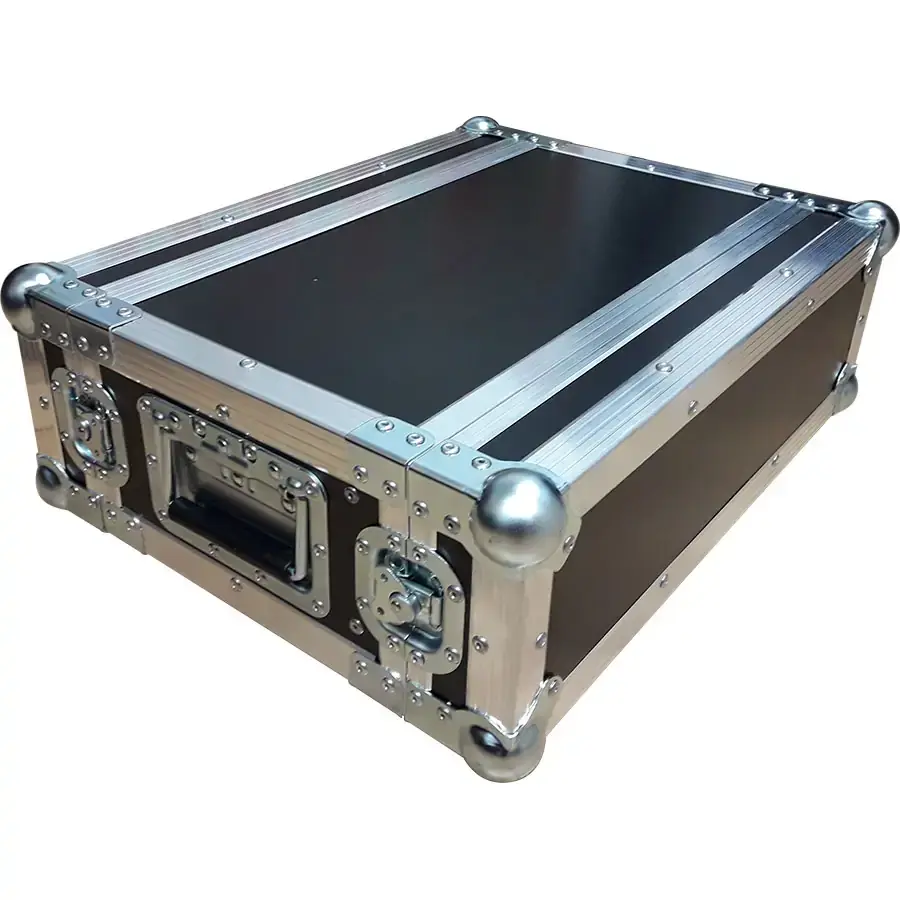

• Recessed professional handles
  Two recessed handles provide practical handling points while keeping the exterior profile compact.

• Protective rubber feet
  Four rubber feet help keep the case elevated from the floor and provide stable placement.

• Silver aluminum profile finish
  The case combines a black case surface with silver aluminum profiles for a professional touring-equipment appearance.

The dimensions, weight, material and hardware specifications above are taken from the supplied product information.

Compatibility

The supplied source information specifically lists:

• Midas DL32 Stage Box

• Behringer S32

The product title also references DL16 and S16, but their compatibility is not explicitly confirmed in the supplied technical information.

Before ordering for a DL16 or S16, confirm:

1. The equipment's external dimensions.

2. The required rack height.

3. The rack mounting-hole position.

4. The required rear connection clearance.

5. Whether the supplied internal dimensions provide sufficient clearance.

For the confirmed DL32/S32 applications, the case provides a 19-inch rackmount format with approximately 3U / 135 mm internal rack height and 260 mm internal depth.

The DragonStage Stage Box Rackmount Flightcase is suitable for professional audio equipment transportation and protection in applications such as:

• Live concert sound systems

• Touring productions

• Event production companies

• Rental audio systems

• Stage box transportation

• Corporate event sound systems

• Theater productions

• Conference and convention audio

• Portable live sound systems

• Digital stage box storage and protection

Its removable front and rear lids are particularly useful when equipment needs to remain accessible for connection, operation or system setup.

Why Use a Rackmount Flightcase for a Stage Box?

Digital stage boxes are frequently moved between venues, stages, rehearsal spaces and production sites. A dedicated rackmount flightcase provides a structured enclosure around the equipment rather than relying on loose transportation.

The 7 mm Finnish birch plywood body, aluminum profiles, reinforced hardware and protective exterior finish are intended for repeated professional handling. The rackmount format also helps keep compatible equipment positioned securely inside the case during transportation.

For production teams, the removable front and rear lids make it easier to access both sides of the mounted equipment without removing it from the case.

1. What equipment is this stage box flightcase designed for?

The supplied information specifically identifies the Midas DL32 Stage Box and Behringer S32 as compatible equipment.

2. Is it compatible with DL16 and S16?

The product title references DL16 and S16, but the supplied source specification only confirms DL32 and S32 compatibility.

For DL16 or S16, please provide the exact equipment model and dimensions so compatibility can be checked before ordering.

3. What material is the flightcase made from?

The case uses 7 mm WBP 100% Finnish birch plywood with a birch melamine exterior finish and aluminum structural profiles.

4. Does the case have removable lids?

Yes. The supplied product information specifies fully removable front and rear lids, allowing access to both sides of the mounted equipment.

5. What are the external dimensions?

The external dimensions are 535 × 425 × 210 mm (W × D × H).

6. What are the internal dimensions?

The listed internal dimensions are 488 × 135 × 260 mm (W × H × D), with the rack height specified as 3U / 135 mm. The internal lid dimensions are 500 × 150 × 60 mm.

7. How is the equipment secured?

The case is supplied with 8 M6 captive nuts and M6 bolts for rack mounting compatible equipment.

8. How much does the case weigh?

The listed case weight is 6.8 kg.

9. Is this flightcase suitable for touring?

Its rackmount construction, birch plywood body, aluminum profiles, removable lids and protective hardware make it suitable for transportation and handling in professional event and live-sound environments.

Actual transportation requirements should be evaluated according to the equipment, route and handling conditions.

Ordering & Compatibility Check

Before ordering, confirm the exact stage box model and compare its dimensions with the listed internal dimensions.

For DL32 and S32, the supplied information confirms compatibility.

For DL16 and S16, compatibility should be confirmed before purchase because the supplied source does not provide sufficient information to verify those models.

If you are unsure, provide the exact model number, equipment dimensions or a clear photo of the equipment and rack mounting points for compatibility checking.
