What Does “Fixed Height” Mean?

“Fixed height” refers primarily to the aluminum tube length.

The main support tube does not telescope from one height range to another.

For example:

0.4m Leg → 0.4m Main Tube

and

0.8m Leg → 0.8m Main Tube

You therefore choose the leg length according to the stage height you normally need.

The swivel-foot assembly shown at the bottom should not be confused with a telescopic leg system.

Its role is at the ground-contact end of the leg, whereas a telescopic stage leg changes the effective length of the main support over a much larger range.

Standard Leg Lengths

The standard tube lengths are:

Other custom lengths are available.

Important

The listed dimension refers to the leg tube length.

Do not automatically assume that the tube length equals the exact final deck-surface height, because the finished stage height also depends on the Quick Stage deck and connection configuration.

If exact finished deck height is critical, confirm the required height before ordering.

Ø50 × 3mm Aluminum Tube

The main leg uses:

Outer Diameter: Ø50mm
Wall Thickness: 3mm

This is also the tube dimension used by the fixed-leg product in the supplied reference page.

For DragonStage, this diameter is important not only as a material specification but also as a compatibility dimension.

A stage leg is not a generic aluminum tube.

It must match the corresponding leg receiver or connection arrangement of the stage deck.

Therefore:

50mm Diameter Alone ≠ Guaranteed Compatibility

Before buying these legs for a non-DragonStage deck, confirm:

• leg outside diameter;

• receiving socket dimensions;

• insertion depth;

• fixing method;

• deck connection design;

• foot clearance and intended configuration.

What Does the Swivel Foot Do?

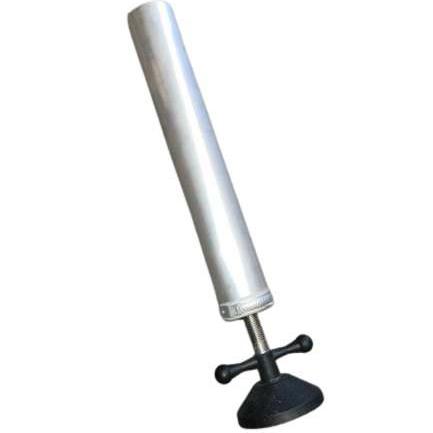

At the bottom of the leg is a swivel-foot assembly.

Unlike a simple flat rubber cap, the foot can change its contact orientation relative to the leg.

This allows the base to sit more naturally against the supporting surface when the contact condition is not perfectly identical at every leg.

The basic function is:

Vertical Aluminum Leg

↓

Swivel / Threaded Foot Assembly

↓

Ground Contact

The foot shown in the supplied product image also includes a threaded stem and operating handle.

However, this product should still be classified as a:

Fixed Height Stage Leg

rather than a:

Telescopic Height Adjustable Leg

because the aluminum support tube itself remains fixed in length.

Fixed Leg vs Height Adjustable Leg

This is the most important buying decision on this page.

Choose Fixed Height Legs If:

• you normally build the stage at one known height;

• most installation surfaces are reasonably level;

• you need replacement legs for an existing Quick Stage;

• you want a simple support system;

• you do not need a large height-adjustment range.

Choose Height Adjustable Legs If:

• your jobs regularly require different stage heights;

• outdoor ground conditions vary significantly;

• individual support heights need substantial adjustment;

• you operate a rental business with many different venues.

The smallest practical solution is usually best.

If you always use a 0.4m stage, buying a complicated leg adjustable up to 1m may provide little practical benefit.

If your jobs alternate between 0.4m, 0.8m and 1.2m, a height-adjustable system may make more operational sense.

How to Choose the Correct Leg Length

Situation 1 — You Already Own Quick Stage

If you are purchasing replacement or additional legs, first check the existing leg.

Confirm:

Tube Diameter
Tube Length
Connection with Deck
Bottom Foot Type

If you are replacing one leg in an existing set, the safest choice is to match the existing specification rather than selecting by appearance alone.

Situation 2 — You Are Building a New Fixed-Height Stage

Start from the required finished deck height.

For example:

Required Stage Height

↓

Matching Quick Stage Deck + Leg Configuration

↓

Select Corresponding Leg Length

Do not determine the leg solely from the event type.

A wedding stage, DJ stage and school stage could all require different heights depending on the venue.

Situation 3 — You Need Different Heights for Different Events

If you need:

0.4m this week

and:

0.8m next week

you have two basic choices.

Option A — Buy Two Fixed-Leg Sets

Best when the heights are predictable and used frequently.

Option B — Buy Adjustable Legs

Best when heights change often or site conditions vary significantly.

This is particularly important for rental companies: do not build a large collection of fixed legs if you actually need continuous flexibility.

Available Standard Sizes

0.2m / 200mm Fixed Stage Leg

0.3m / 300mm Fixed Stage Leg

0.4m / 400mm Fixed Stage Leg

0.5m / 500mm Fixed Stage Leg

0.6m / 600mm Fixed Stage Leg

0.7m / 700mm Fixed Stage Leg

0.8m / 800mm Fixed Stage Leg

0.9m / 900mm Fixed Stage Leg

1.0m / 1000mm Fixed Stage Leg

Custom Length Fixed Stage Leg

For buyers who already know exactly which height they use, I recommend putting these into one product with length SKUs, rather than creating ten separate product pages.

That makes comparison much easier.

Why Use Fixed Legs for Quick Stage?

1. Simple System

There are fewer height-selection decisions during installation.

If the required stage height is already determined, installers simply use the corresponding leg set.

2. Useful for Repeated Event Setups

A venue may repeatedly build the same:

• school stage;

• hotel stage;

• church platform;

• DJ platform;

• exhibition platform;

• ceremony stage.

In that situation, having a dedicated fixed-height leg set can be more convenient than readjusting every leg for every installation.

3. Easy to Add as Replacement Inventory

Stage legs are components that can be:

• separated from decks during transport;

• stored individually;

• added when the stage inventory expands;

• kept as spares.

This makes them a natural replacement and expansion product rather than something that should always be purchased as a complete new stage.

4. Multiple Lengths Use the Same Product Logic

The 0.2m and 1.0m versions solve the same problem:

supporting the compatible Quick Stage deck at a predetermined height.

That is why the correct buying decision is mostly about:

compatibility + required height

rather than choosing between fundamentally different products.

Where Are Fixed Stage Legs Most Useful?

Typical applications include:

• weddings;

• DJ events;

• parties;

• schools;

• churches;

• exhibition stands;

• hotel events;

• indoor performances;

• rental staging;

• temporary presentation platforms.

The supplied reference product similarly positions a Ø50×3mm fixed-height aluminum stage leg for concerts, events, exhibitions, schools, catwalks and modular stage configurations.

How Many Legs Do I Need?

This is one area where we should not use the competitor's “4 legs per deck” statement as a universal DragonStage rule.

Their reference stage system specifies four legs for its own deck.

DragonStage Quick Stage configurations can depend on:

• deck arrangement;

• connection method;

• whether adjoining decks share support points;

• stage size;

• specific Quick Stage system.

Therefore, do not calculate a complete multi-deck stage package simply as:

Number of Decks × 4 Legs

without first confirming the layout.

If you are buying replacement legs, order against the existing system.

If you are building a complete stage, provide the full:

Length × Width × Height

and we can identify the required support configuration.

Compatibility Is More Important Than Appearance

This product may look simple, but stage-leg compatibility should never be guessed.

Before purchasing as a replacement for another stage brand, check:

1. Tube Diameter

Our specified tube is:

Ø50mm

2. Wall Thickness

3mm

Wall thickness matters to the physical leg specification, but it does not by itself establish compatibility.

3. Deck Receiver

Confirm that the leg fits the receiving arrangement of the stage deck.

4. Retention / Locking Method

Confirm how the leg is secured to the deck.

5. Required Length

Confirm that all support legs in the intended configuration use the correct length.

For compatible DragonEvent products:

Stage Legs & Supports
https://www.dragonevent.com/Stage-Legs-Supports-pl08154276.html

Stage Platforms & Decks
https://www.dragonevent.com/Stage-Platforms-Decks-pl09254276.html

Common Buying Mistakes

Buying by Diameter Only

A buyer measures an old leg and sees:

Ø50mm

Then assumes every Ø50mm stage leg will fit.

That is not sufficient.

Check the entire deck-to-leg interface.

Confusing Fixed Height with Height Adjustable

The swivel foot does not turn the product into a telescopic leg.

If you need a large height-adjustment range, choose an adjustable-leg system instead.

Ordering the Tube Length as the Finished Deck Height

Do not automatically assume:

0.4m tube = exactly 0.4m finished stage deck height

The complete height depends on how the leg interfaces with the deck and foot assembly.

If exact final height matters, specify the required finished stage height, not only the tube length.

Buying Too Many Different Fixed Heights

For a rental company, fixed legs are practical when you repeatedly use a few standard heights.

If you need many different heights, buying:

0.2m + 0.3m + 0.4m + 0.5m + 0.6m + 0.7m + 0.8m...

may eventually create more inventory-management work than using an adjustable system.

Choose according to your real event pattern.

Ignoring the Ground Condition

A swivel foot improves the ground-contact interface, but a fixed leg should not be treated as an All-Terrain telescopic system.

For substantially uneven sites, use a stage-support system designed for the required height variation.

What size is the aluminum tube?

The stage leg uses:

Ø50 × 3mm aluminum tube

meaning a 50mm outside diameter and 3mm wall thickness.

What lengths are available?

Standard tube lengths are:

0.2m, 0.3m, 0.4m, 0.5m, 0.6m, 0.7m, 0.8m, 0.9m and 1.0m.

Other custom lengths can also be produced.

Is this an adjustable stage leg?

The main aluminum tube is fixed length.

The bottom uses a swivel-foot assembly, but this should not be confused with a telescopic height-adjustable stage leg.

If your installation requires a large change in support height, select a height-adjustable stage-leg system instead.

What is the swivel foot for?

The swivel foot creates the ground-contact interface at the bottom of the fixed leg and can change its contact orientation relative to the vertical leg.

It is particularly useful where the supporting surface is not perfectly identical at every contact point.

Can I use these legs on uneven ground?

They can accommodate limited local ground-contact differences through the foot assembly, but they are still fixed-height legs.

For significant level differences, a height-adjustable or All-Terrain stage-support system is the more appropriate choice.

Can I use these legs with any stage deck?

No.

Compatibility must be confirmed.

The fact that another deck also uses a 50mm leg does not automatically mean its receiving socket, locking arrangement and dimensions match this product.

Are these replacement legs for DragonStage Quick Stage?

Yes. They can be used as replacement or additional support components for the compatible DragonStage Quick Stage configuration.

For stage-support products:

Stage Legs & Supports
https://www.dragonevent.store/Stage-Legs-Supports-pl08154276.html

Can I order a custom length such as 350mm or 750mm?

Yes.

Lengths outside the listed standard sizes can be customized.

For a custom order, specify whether the dimension you are providing is the required leg tube length or the required finished deck height, because these are not necessarily identical measurements.

Which leg length should I buy?

If replacing an existing leg, match the original specification.

If building a new stage, start with the required finished stage height and confirm the compatible leg configuration before ordering.

Are fixed legs better than adjustable legs?

Neither is universally better.

Fixed legs are simpler when the stage height is predictable.

Adjustable legs are more useful when stage height or ground condition changes frequently.

Recommended Buying Logic

Existing Quick Stage + One Known Height

Choose the matching fixed-height leg.

↓

Existing Quick Stage + Need Another Standard Height

Add another fixed-leg set in the required length.

↓

Frequent Different Heights

Consider an adjustable stage-leg system instead of accumulating many fixed sizes.

↓

Significant Uneven Ground

Move to an appropriate height-adjustable / All-Terrain stage-support solution.

This is the more economical way to build the system because you buy only the flexibility you actually need.

Need Help Matching the Correct Quick Stage Leg?

Send us:

Existing Stage Deck Model
Required Finished Stage Height
Existing Leg Tube Diameter
Existing Leg Length
Indoor or Outdoor Use
Ground Condition
Photo of the Deck-to-Leg Connection

If you already own a stage from another supplier, a clear photo and measurements of the existing deck socket and leg connection are especially useful.

We can then determine whether this Ø50 × 3mm Fixed Height Leg with Swivel Foot is compatible or whether another support is required.

For non-standard lengths, quantities beyond the listed retail options, or replacement legs for an unconfirmed stage system, please contact us before ordering.
