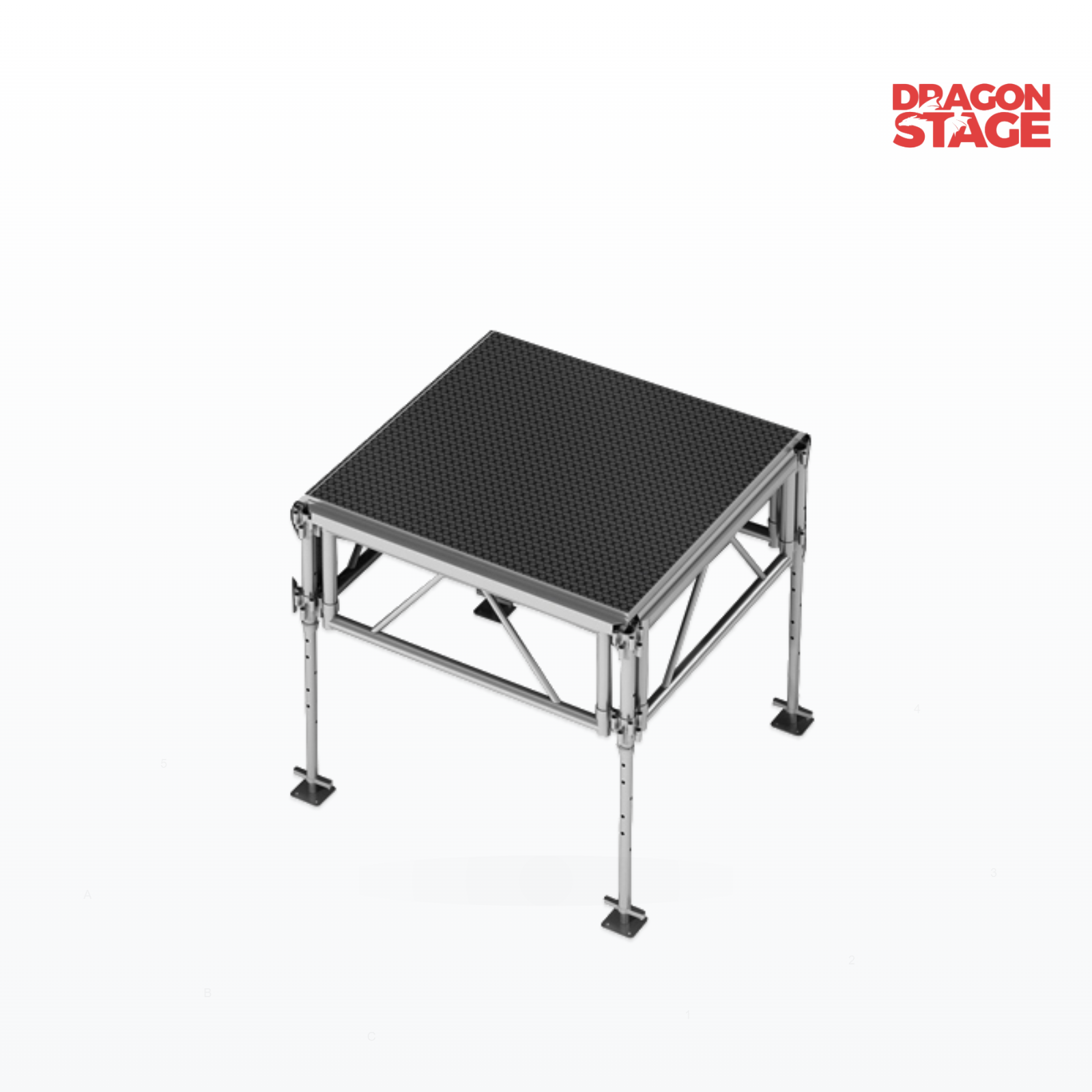

1. Standard 4' x 4' Modular Stage Deck

Each platform measures:

4' x 4'

or approximately:

1.22 x 1.22m

This standard module size provides a practical balance between usable stage area, transport, storage and future expansion.

Multiple modules can be combined to form larger stages according to the event layout.

For buyers comparing individual decks and modular platform products, see our Stage Platforms & Decks category.

2. Seven Adjustable Height Ranges

The system is available in the following configurations:

Choose the smallest practical height range that comfortably covers your required stage level and expected ground variation.

A taller range is not automatically a better choice.

3. Individually Adjustable Support Legs

Each support leg can be adjusted independently.

This is particularly useful when the ground height changes across the installation area.

For example, if one side of a lawn is 150mm lower than the other side, the supporting legs do not all need to be set to the same length.

This individual adjustment allows the stage structure to compensate for the ground difference while maintaining a level deck.

For related support components, browse Stage Legs & Supports.

4. Shared Legs and Braces Between Modules

Larger stages are not built by treating every 4' x 4' module as a completely independent platform.

Adjacent modules share:

2 support legs + 1 brace

at their connection.

This means the total number of legs and braces depends on the final stage layout rather than simply multiplying the parts required for one standalone platform.

For larger stage configurations, provide your required length × width × height so the complete support layout can be calculated correctly.

5. 6061 Aluminum Supporting Structure

The main supporting structure uses 6061 aluminum, helping provide a practical balance between structural performance, corrosion resistance, transport weight and repeated event use.

This makes the system suitable for event companies that regularly transport, assemble and dismantle stage equipment.

6. 18mm Black Anti-Slip Plywood Deck

The platform uses an 18mm black anti-slip plywood deck.

The dark surface provides a professional event appearance while the textured finish improves footing compared with a smooth untreated surface.

Note: The 750kg/m² figure refers to the rated platform load capacity supplied for this stage system. Site suitability, ground conditions, overall stage configuration and safe installation still need to be considered separately.

Outdoor Events

This system is particularly useful for outdoor temporary venues where the ground may not be perfectly flat.

Typical applications include:

• outdoor concerts;

• festival stages;

• community events;

• temporary performance areas;

• public celebrations.

Weddings & Hotel Events

Hotel gardens, lawns and outdoor wedding venues often have landscaping slopes or small changes in ground elevation.

Independent support adjustment helps create a level stage without requiring every installation point to start at the same ground height.

Schools & Churches

For organizations using the same stage system at different venues, adjustable supports provide more flexibility than a single fixed-height structure.

Typical uses include:

• graduation events;

• performances;

• ceremonies;

• outdoor gatherings;

• presentations.

Event Rental Companies

This is one of the strongest applications for the system.

Rental companies rarely control the ground conditions of every venue.

A height-adjustable modular stage provides more flexibility across different customer locations and can be expanded by adding more 4' x 4' modules as inventory grows.

Corporate & Temporary Event Installations

The system can also be used for temporary presentation areas, product launches and event platforms where a level deck must be created above an irregular installation surface.

Recommended Buying Packages

Low Outdoor Event Stage

Recommended for buyers who normally need lower stages on mildly uneven outdoor ground.

Suggested starting ranges:

0.4–0.8m or 0.6–1.0m

Typical users:

• weddings;

• DJ events;

• small performances;

• school events.

Medium Height Event Stage

For events requiring a more visible elevated platform, consider:

0.8–1.2m or 1.0–1.4m

At these heights, stage access and edge protection become increasingly important purchasing considerations.

High Adjustable Stage

For stage requirements above approximately 1.2m, available ranges include:

• 1.2–1.8m;

• 1.2–2.0m;

• 1.6–2.0m.

At these heights, do not select the system based only on the maximum height.

The complete stage size, site conditions, access, guardrails and installation requirements should be considered together.

How Many Stage Platforms Do You Need?

Because each deck is approximately 4' x 4' / 1.22 x 1.22m, common layouts include:

These figures calculate the deck modules only.

The supporting legs and braces should be calculated according to the complete layout because adjacent modules share structural components.

Necessary Related Items

A usable all-terrain stage normally requires more than the platform modules alone.

Depending on finished height and event use, you may need:

Stage Steps & Stairs

Elevated stages require practical performer or staff access.

You can browse our Stage Steps & Stairs for compatible access options.

Stage Guard Rails

Guardrails may be needed depending on stage height, venue rules and intended use.

See our Stage Guard Rails category for available options.

Stage Skirting

Skirting can hide the supporting structure and provide a cleaner appearance for weddings, corporate events and formal presentations.

Browse Stage Skirts & Covers.

Stage Ramps

Where wheeled equipment or accessible entry is required, a ramp may be more appropriate than stairs.

See Stage Ramps.

How to Choose the Right All-Terrain Stage System?

1. What Finished Stage Height Do You Need?

Start with the required deck height.

Do not immediately choose the system with the largest possible adjustment range.

If your normal target height is around 0.7m, a 0.4–0.8m system is generally a more logical starting point than a 1.2–2.0m version.

2. How Uneven Is the Ground?

This is equally important.

A buyer may say:

“I need a 0.8m-high stage.”

But if the ground changes by 200mm across the installation area, some support points may need to be significantly longer than others.

Therefore, consider:

Target Stage Height + Ground Level Difference

3. What Stage Size Do You Need?

Determine the required performance area first.

Then calculate the number of 4' x 4' modules.

Only after the deck layout is known should the complete leg and brace configuration be determined.

4. Will You Use the Stage at Different Venues?

If the stage will be used repeatedly by a rental business, adjustable height may be more valuable because different venues can have different surfaces and elevation requirements.

Common Buying Mistakes

Choosing the Tallest Version “Just in Case”

More adjustment range is not always better.

A taller supporting system normally means more structure and may be unnecessary for lower-stage applications.

Select the smallest practical range that covers your expected use.

Measuring Only the Desired Stage Height

On uneven ground, the desired finished height at one location is not enough.

The difference between the highest and lowest ground points also matters.

Calculating Every Platform as a Standalone Unit

Adjacent stage modules share legs and braces.

Do not calculate the supporting components by simply multiplying one standalone platform package by the deck quantity.

Forgetting Stairs and Guardrails

Once the stage becomes elevated, access and edge protection become part of the complete buying decision.

Treating “All-Terrain” as Meaning Any Ground Condition

Height adjustment provides useful flexibility, but it does not mean the system should automatically be used on any slope, soft ground, unstable surface or unusual site condition without assessment.

For significant slopes, unusual terrain or high-stage configurations, contact us with site information before finalizing the system.

What is an All-Terrain Height Adjustable Stage?

It is a modular stage system designed for temporary venues where ground levels may vary.

Each supporting leg can be adjusted independently so that different support points can compensate for uneven terrain while the deck surface remains level.

What size is each stage platform?

Each stage module measures approximately:

4' x 4' / 1.22 x 1.22m

What height options are available?

Seven adjustable ranges are available:

• 0.4–0.8m

• 0.6–1.0m

• 0.8–1.2m

• 1.0–1.4m

• 1.2–1.8m

• 1.2–2.0m

• 1.6–2.0m

Can each leg be adjusted separately?

Yes.

Each support leg can be independently adjusted to compensate for differences in ground elevation.

Can I use this stage on sloped ground?

The adjustable support system is designed to accommodate uneven and sloped installation conditions within an appropriate configuration.

For significant slopes or unusual terrain, please provide site dimensions, level differences and photos so the application can be reviewed before ordering.

What is the load capacity?

The rated platform load capacity is 750kg/m².

The complete stage still needs to be installed and configured correctly, and site conditions should be considered separately.

How are multiple platforms connected?

When platforms are installed next to each other, adjacent modules share 2 legs and 1 brace along the connection.

This means larger layouts use a more efficient shared support arrangement rather than completely independent platform frames.

Are stairs included?

Stairs are optional.

The correct stair configuration depends on the selected stage height and access requirement.

Are guardrails included?

Guardrails are optional.

Whether they are necessary depends on stage height, venue requirements, intended use and applicable local rules.

How do I know which height range to choose?

Send us:

• required stage size;

• desired finished stage height;

• approximate difference between the highest and lowest ground points;

• indoor or outdoor use.

We can then recommend the smallest practical height range for your application.

Upgrade Path

Step 1

Start with the stage size and height range that covers your most common events.

↓

Step 2

Add more 4' x 4' modules when you need larger stage areas.

↓

Step 3

Add Stage Steps & Stairs, Stage Guard Rails, skirting or ramps according to stage height and event use.

↓

Step 4

If your projects become significantly larger, taller or involve unusual terrain, move from a simple product selection to a complete stage-system consultation rather than continuing to add modules without reviewing the overall layout.

Final CTA

Need an All-Terrain Stage for Uneven Ground?

Send us:

Stage Length × Width
Required Finished Height
Ground Level Difference
Indoor or Outdoor Use
Stair Requirement
Guardrail Requirement

If possible, also send photos of the installation area.

We can help determine the appropriate height range, platform layout and shared leg/brace configuration for your event.

For large quantities, customized stage systems, oversized shipments or configurations not listed in the available SKUs, please contact our team for a tailored quotation.
