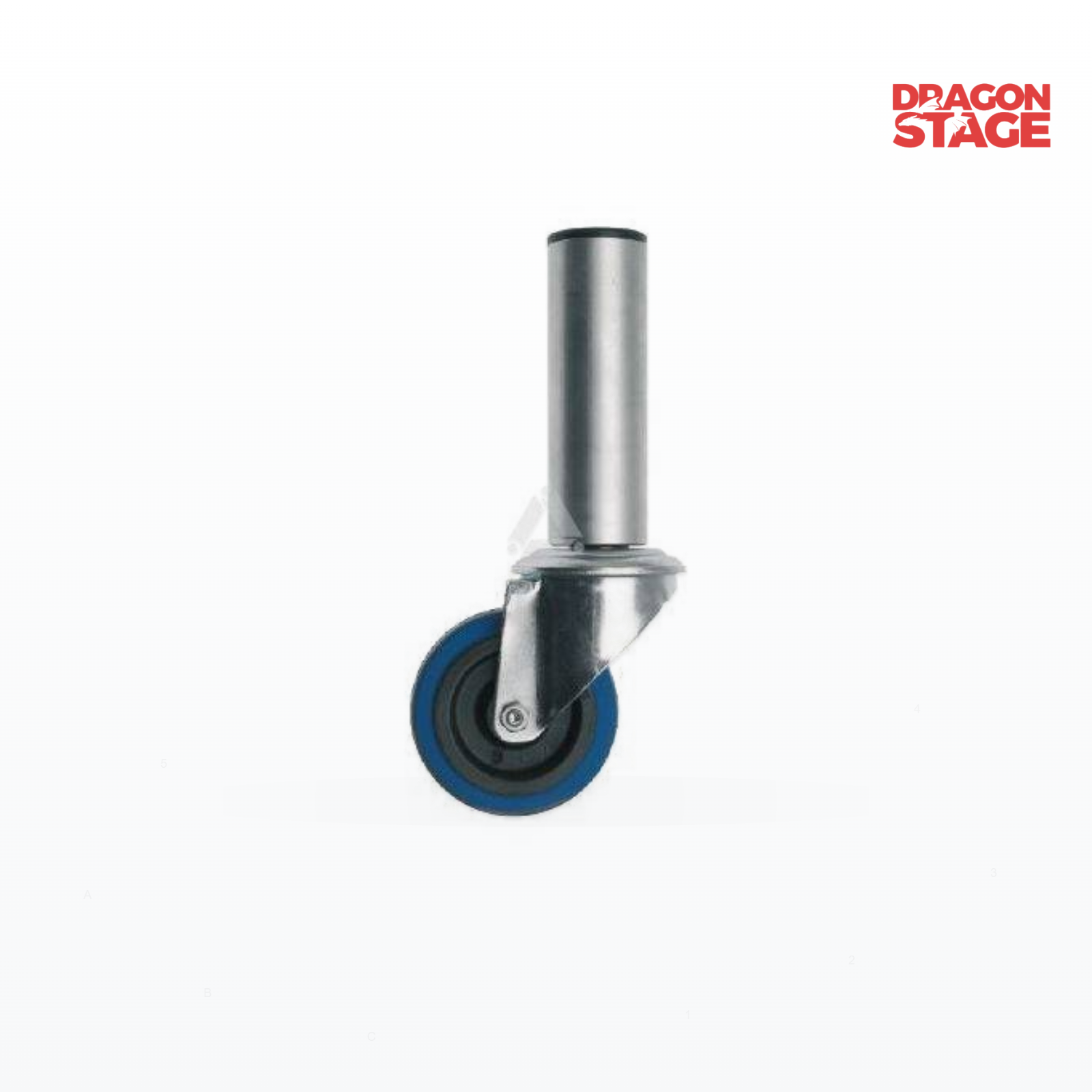

1. Integrated 3 Inch Silent Castor

The leg uses a 3 inch silent caster wheel designed for indoor event environments.

Advantages:

• lower operating noise;

• smoother movement;

• reduced floor damage risk;

• easier backstage handling.

Suitable for:

• hotels;

• convention centers;

• exhibition halls;

• theaters;

• indoor event venues.

2. 50×3mm Aluminum Tube Structure

The leg tube specification:

50×3mm aluminum tube

provides:

• reliable stage support;

• lightweight handling;

• compatibility with Quick Stage systems.

The design balances:

• strength;

• portability;

• installation efficiency.

3. Multiple Fixed Length Options

Unlike telescopic legs, caster legs are produced in fixed lengths.

This provides:

• simpler structure;

• faster installation;

• better stability.

Available standard lengths:

Custom lengths available.

Stage Leg Options Comparison

For Quick Stage systems, different leg designs solve different problems.

When Should You Choose Stage Legs with Castors?

Choose caster legs when:

1. The Stage Needs Frequent Movement

Examples:

• hotel ballrooms;

• exhibition halls;

• churches;

• multi-purpose venues.

2. You Need Faster Storage Operations

Rental companies often need to:

• move stage sections;

• reorganize inventory;

• prepare different layouts.

Caster legs reduce manual handling.

3. The Stage Height Is Fixed

Because caster legs are fixed length, they are ideal when:

• stage height is already determined;

• repeated setup uses the same configuration.

When Should You Not Choose Castor Legs?

Caster legs are not the best choice when:

Outdoor Uneven Ground

Outdoor surfaces may require:

• adjustable feet;

• larger base plates;

• additional support solutions.

Permanent Stage Installation

For permanent or semi-permanent stages:

fixed legs or structural support systems are usually more suitable.

Minimum Practical Package

For a mobile Quick Stage system:

Basic Mobile Package

• Quick Stage Decks

• Stage Legs with Castors

Suitable for:

• indoor event halls;

• temporary exhibition platforms;

• mobile presentation stages.

Rental Company Package

Recommended:

• Quick Stage Decks

• Standard Fixed Legs

• Castor Legs for selected mobile sections

• Stage Steps

• Guard Rails

This allows:

• normal event operation;

• fast backstage movement;

• flexible deployment.

Technical Specifications

Before ordering, confirm:

1. Quick Stage Connection Type

Different modular stage systems may use different:

• leg diameter;

• fixing method;

• deck frame structure.

Confirm compatibility before replacement orders.

2. Finished Stage Height

Final stage height depends on:

Leg Length + Stage Deck Thickness

Confirm complete assembled height.

3. Load Application

Caster legs are designed for mobile portable stage applications.

For:

• large performance stages;

• outdoor stages;

• heavy equipment loading;

please contact our team for configuration advice.

Necessary Related Products

Quick Stage Decks

Main platform structure.

https://www.dragonevent.store/Stage-Platforms-Decks-pl09254276.html

Stage Steps & Stairs

Required when platform height increases.

https://www.dragonevent.store/Stage-Steps-Stairs-pl07154276.html

Stage Guard Rails

Recommended for elevated mobile platforms.

https://www.dragonevent.store/Stage-Guard-Rails-pl06154276.html

Stage Accessories

Additional connection and support components.

https://www.dragonevent.store/Stage-Accessories-pl01154276.html

Common Buying Mistakes

1. Using Castor Legs on Uneven Outdoor Ground

Castors are designed mainly for smooth surfaces.

For uneven outdoor installations, consider adjustable support solutions.

2. Installing Castors on Every Stage Leg

For larger platforms, customers should evaluate:

• required mobility;

• final stability;

• stage usage.

Sometimes only selected sections need mobility.

3. Forgetting Floor Protection

Although silent castors reduce damage risk, the venue floor condition should always be considered.

What size caster is used on this stage leg?

This model uses a 3 inch silent caster.

Can I customize the leg length?

Yes.

Standard lengths are from 0.2m to 1.0m. Custom lengths are available.

Are these legs height adjustable?

No.

These are fixed-length legs with integrated castors.

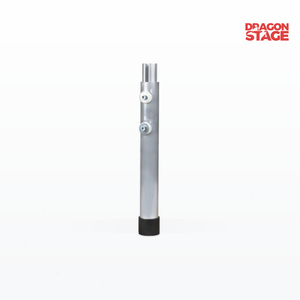

For height adjustment, consider telescopic or adjustable stage legs.

Are these suitable for rental companies?

Yes.

They are especially useful for rental companies, hotels, and venues that frequently move portable stage sections.

Can these replace normal Quick Stage legs?

They can replace compatible fixed legs when the same stage height and connection specification are required.

How to Order

Please provide:

1. Quick Stage deck model

2. Required stage height

3. Required leg length

4. Quantity

5. Application environment

For customized lengths or complete Quick Stage packages, contact DragonStage for configuration advice.
