Adjustable Range Options

The adjustable legs are available in three standard ranges.

Other customized adjustment ranges are available.

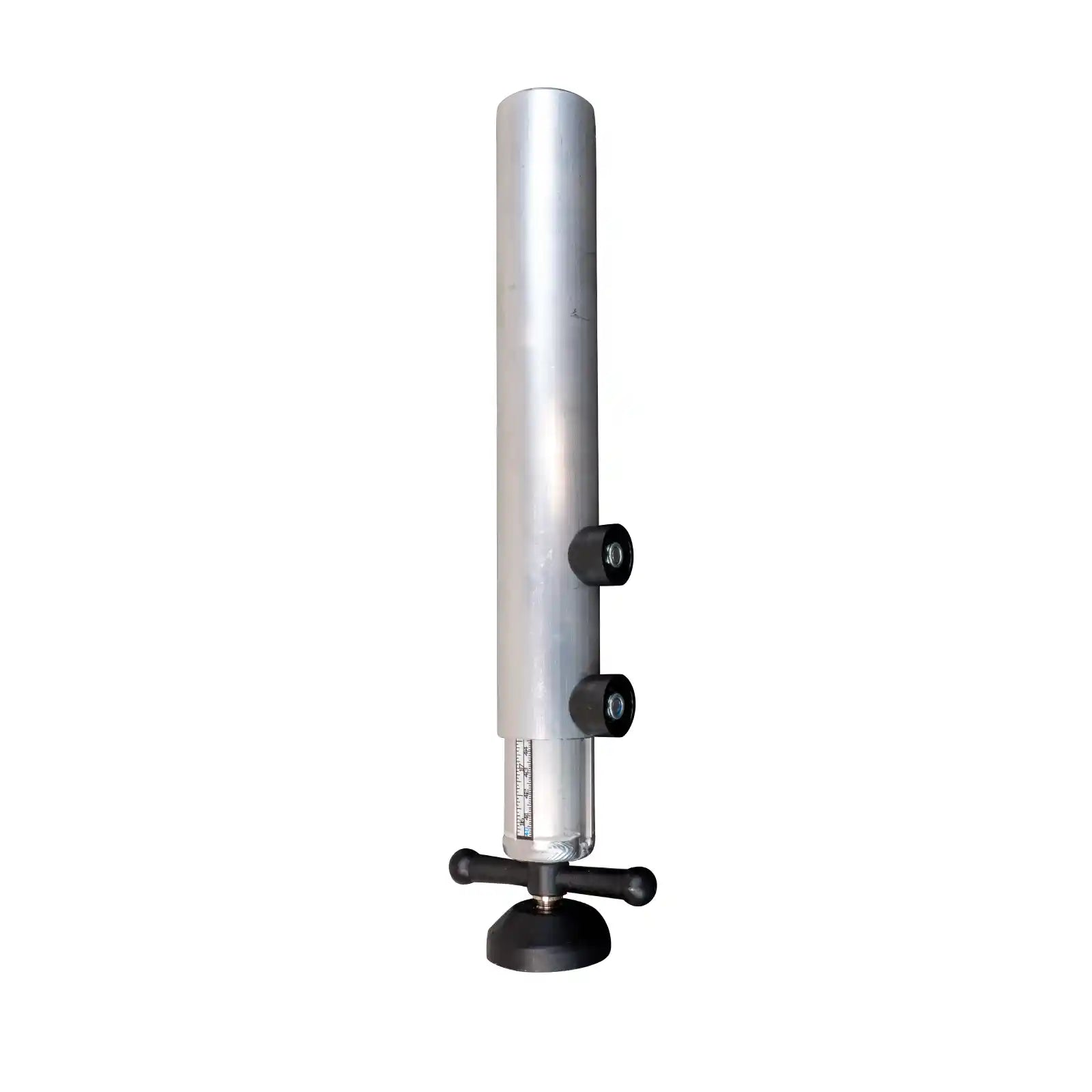

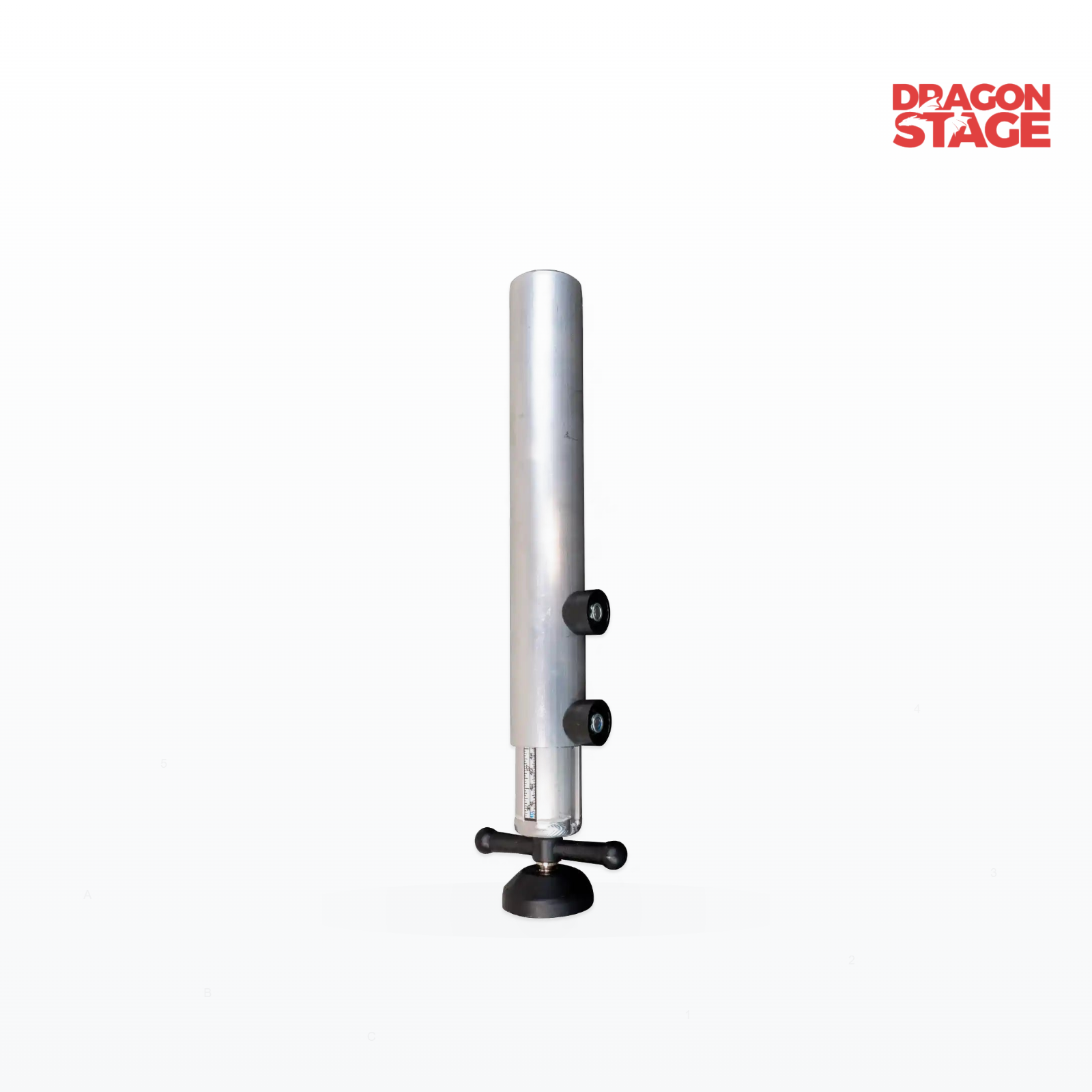

How the Adjustment Works

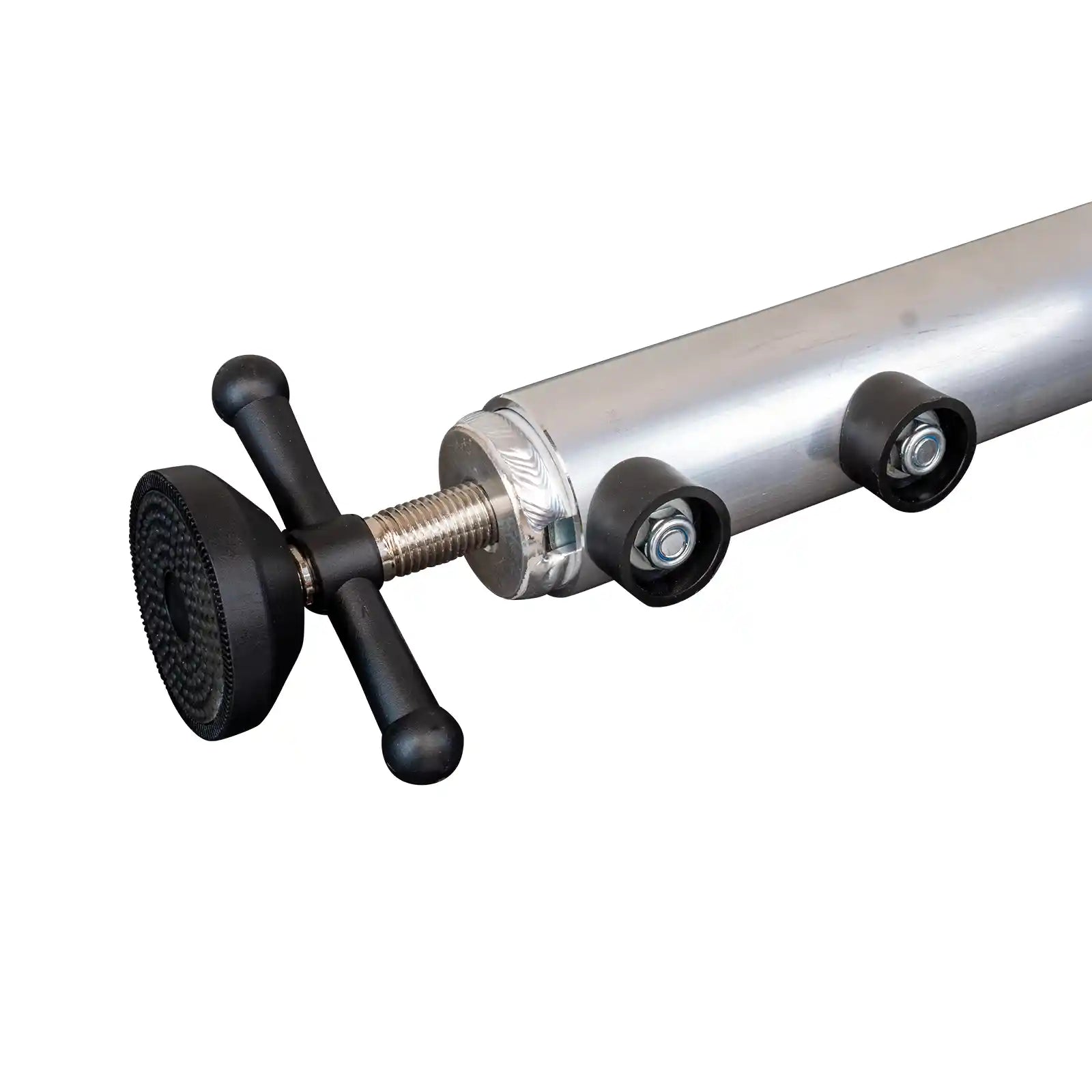

Unlike a fixed stage leg, this product uses a threaded adjustment system at the bottom.

The installer can rotate the adjustment mechanism to:

• increase the leg height;

• reduce the leg height;

• compensate for small surface differences;

• achieve better contact between the stage and floor.

The swivel foot allows the bottom support surface to adapt better to minor floor angle variations.

Important: Adjustment Purpose

This product is designed for:

✅ fine height adjustment
✅ installation tolerance compensation
✅ minor floor unevenness adjustment
✅ flexible portable stage setup

It is not designed to replace a complete engineered leveling system for severely uneven terrain.

Large ground height differences, slopes, soft soil or structural foundation problems require a different solution.

Adjustable Leg vs Fixed Leg

Choosing between fixed and adjustable legs depends on your actual usage.

Which One Should You Buy?

Choose Fixed Legs When:

• you always build the same stage height;

• the floor is flat;

• you want the simplest inventory;

• you mainly use indoor venues;

• speed and cost are the priority.

Choose Adjustable Legs When:

• you install stages in different venues;

• the same deck system is used at different heights;

• the floor condition changes;

• you need installation adjustment;

• you operate a rental business.

For small event rental companies, adjustable legs often reduce the need to maintain many different fixed-height leg sets.

Minimum Practical Package

For a first Quick Stage inventory, avoid buying every possible leg option immediately.

A practical approach:

Option A — Fixed Event Setup

For one regular stage height:

Quick Stage Decks

Fixed Height Legs

Stage Steps

Option B — Rental / Multi-Venue Setup

For different customer requirements:

Quick Stage Decks

Adjustable Stage Legs

Stage Steps

Guard Rails (when required)

This provides more flexibility without storing many different fixed-length legs.

Available SKU Options

Adjustment Range

• 0.2–0.3m Adjustable Leg

• 0.4–0.6m Adjustable Leg

• 0.6–1.0m Adjustable Leg

• Custom Adjustable Range

Suitable for:

• wedding stages;

• DJ platforms;

• hotel events;

• conference stages;

• church platforms;

• exhibition stages;

• portable performance platforms;

• event rental inventory.

Compatibility Information

Before ordering, confirm:

1. Deck Compatibility

The stage deck must have a matching leg connection system.

A similar tube diameter alone does not guarantee compatibility.

2. Required Height Range

Choose a leg range that covers your required stage height.

Do not select a 0.6–1.0m adjustable leg for a 0.2m platform simply because it has more adjustment capability.

The correct range usually provides:

• better stability;

• better adjustment position;

• more practical installation.

3. Existing Stage Systems

If replacing existing legs, provide:

• stage deck photo;

• existing leg photo;

• tube diameter;

• connection details;

• required quantity.

Necessary Related Products

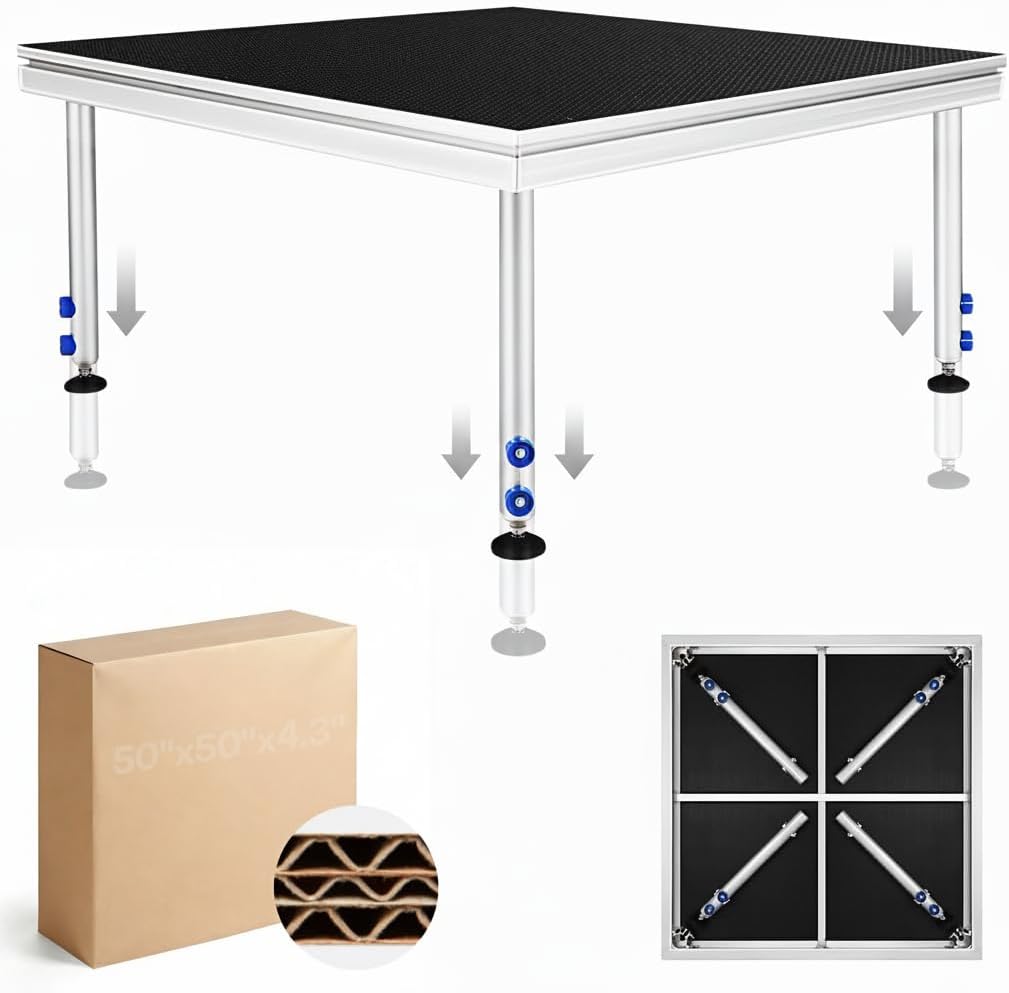

Stage Decks

The leg must match the deck connection.

Stage Platforms & Decks
https://www.dragonevent.store/Stage-Platforms-Decks-pl09254276.html

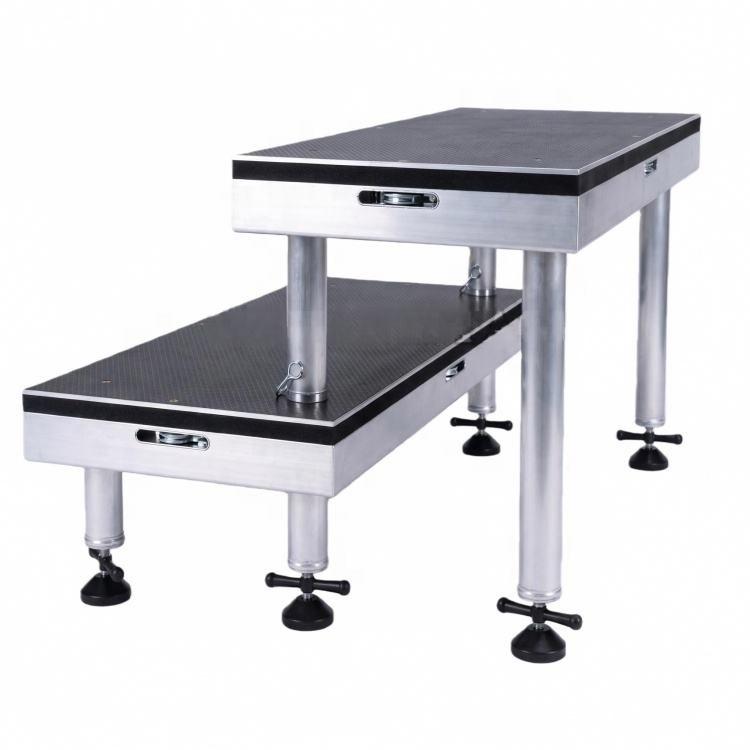

Stage Steps

Higher stage heights require proper access.

Stage Steps & Stairs
https://www.dragonevent.store/Stage-Steps-Stairs-pl07154276.html

Guard Rails

For elevated stage applications, edge protection may be required depending on the design and use.

Stage Guard Rails
https://www.dragonevent.store/Stage-Guard-Rails-pl06154276.html

Common Buying Mistakes

1. Buying Adjustable Legs When You Never Adjust

Adjustable legs provide flexibility, but they also add:

• components;

• cost;

• setup steps.

If your stage height never changes, fixed legs may be more efficient.

2. Using Adjustment to Solve Major Ground Problems

The swivel foot is designed for:

small corrections.

It is not intended for:

• steep slopes;

• unstable ground;

• major elevation differences.

3. Choosing the Wrong Adjustment Range

A common mistake is selecting the largest range “just in case.”

A closer matching range is usually better.

Example:

A 0.4m stage is better matched with:

0.2–0.3m or 0.4–0.6m range

rather than:

0.6–1.0m range

4. Forgetting Finished Stage Height

The leg adjustment range is not always equal to the final stage deck height.

The deck thickness and connection design affect the final platform height.

What adjustment ranges are available?

Standard options are:

• 0.2–0.3m

• 0.4–0.6m

• 0.6–1.0m

Custom ranges are available.

Does this leg replace fixed stage legs?

Yes, if your Quick Stage system requires adjustable support.

However, fixed legs remain a better choice when the stage height is always identical.

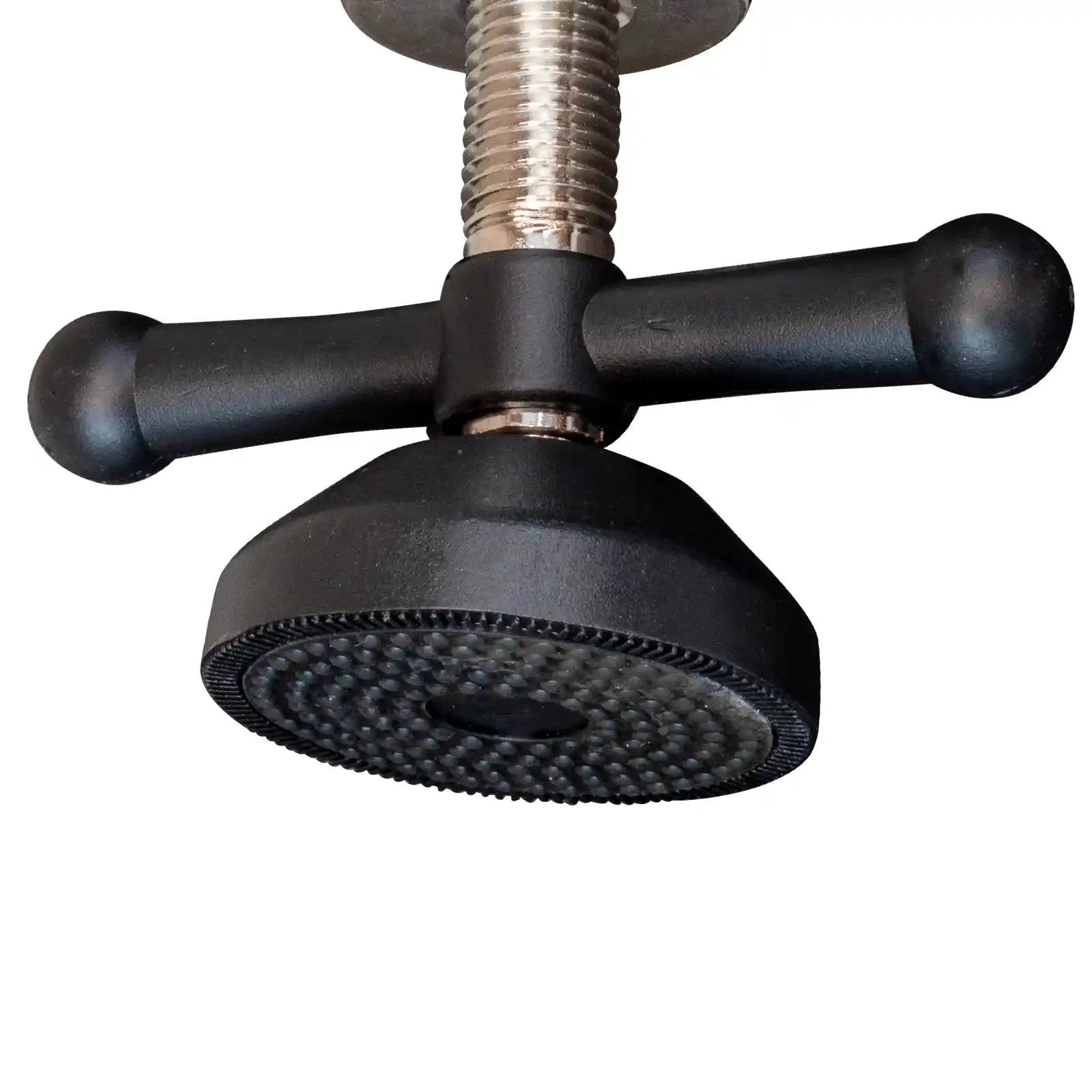

What is the swivel foot used for?

The swivel foot improves floor contact and allows the support base to adapt to small surface variations.

Can this leg level an uneven outdoor ground?

Only within a limited adjustment range.

It is not a substitute for engineered ground leveling or foundation preparation.

Is this a telescopic stage leg?

No.

This product uses a threaded adjustment mechanism rather than a telescopic tube with locking pins.

Which is better for rental companies?

For rental companies serving different venues, adjustable legs usually provide more flexibility because the same inventory can handle more installation conditions.

Can you make other adjustment ranges?

Yes.

Custom adjustment lengths and ranges can be produced depending on project requirements.

How to Order

Please provide:

1. Quick Stage deck size

2. Required finished stage height

3. Required adjustment range

4. Quantity

5. Indoor or outdoor application

For replacement orders, send:

• existing leg photo;

• connection photo;

• required quantity.

For large quantities, custom lengths, or complete stage packages, contact us for the recommended configuration.
