Dragon Stage

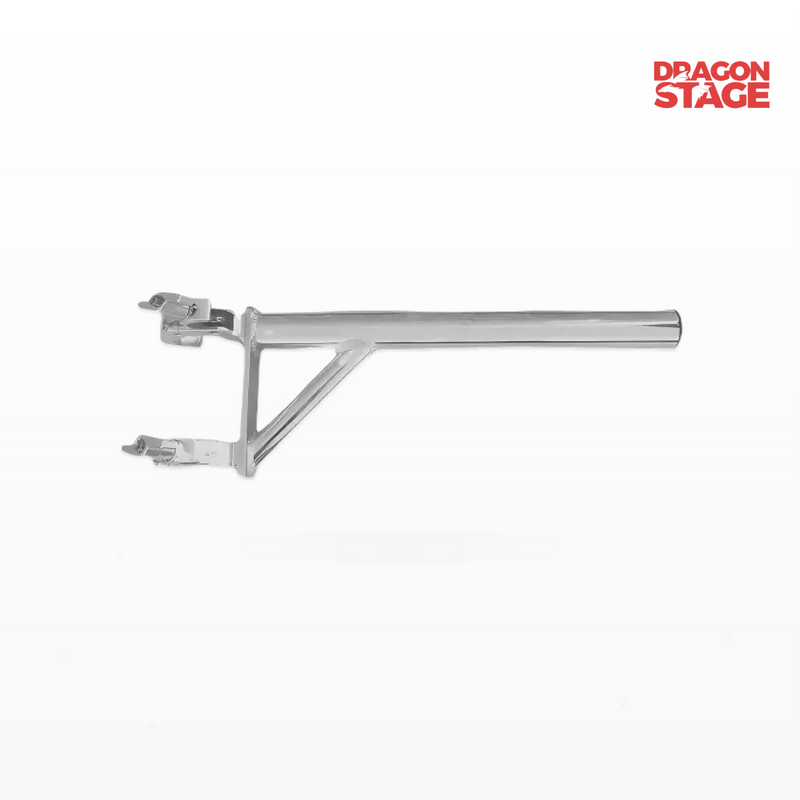

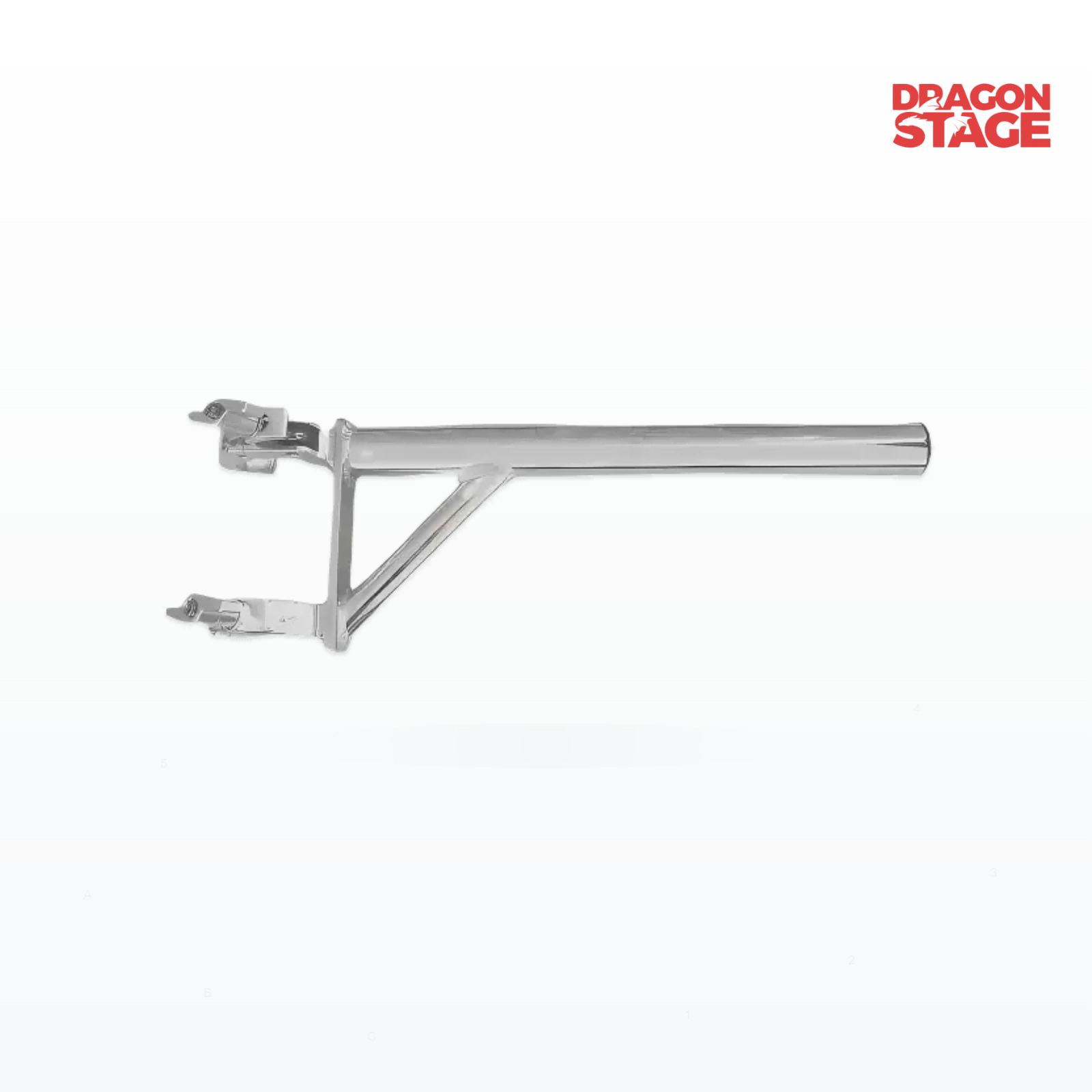

The Aluminum Post To Hang Lights On Truss is a practical stage truss accessory designed for mounting lighting fixtures and other compatible equipment to aluminum truss systems.
This product consists of a 50mm diameter long aluminum pipe with two clamps, providing a convenient mounting point outside or below the main truss structure. It is designed to fit 48–51mm truss tubing and is compatible with several professional aluminum truss systems, including F34, DT34P, DT44P, DT36, and DT-GP Truss.
With a specified maximum load capacity of 80 kg / 176 lbs, the boom arm provides additional flexibility for stage lighting layouts where fixtures need to be positioned beyond the main truss chord.
The supplied product information specifies a 24-inch arm length and approximately 4 lbs unit weight, making it a compact accessory for professional stage and event production.
The product uses a 50mm diameter long aluminum pipe designed for mounting compatible lighting equipment.
The 50mm diameter specification makes it suitable for the stated truss tubing range of 48–51mm.

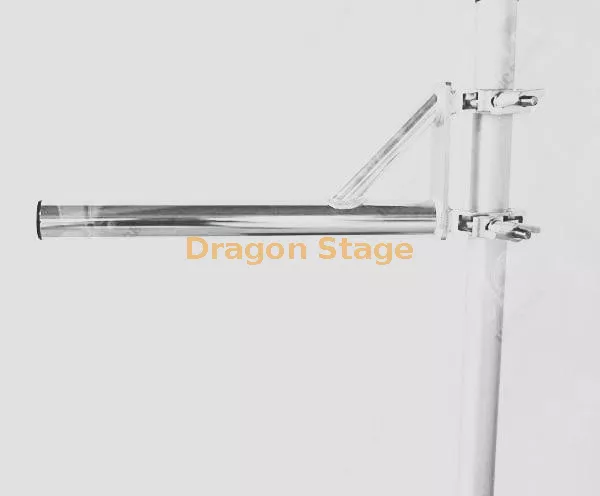

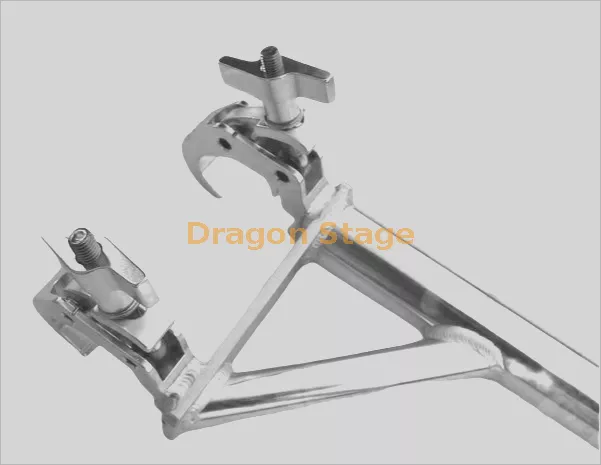

The boom arm is supplied with two clamps, allowing it to be secured to the compatible truss structure.
The two-clamp configuration provides a straightforward attachment method for professional truss lighting applications.
The product is manufactured from aluminum, making it suitable for use as a lightweight truss accessory.
The supplied specification identifies an arm length of 24 inches.
This extended position allows a lighting fixture to be mounted away from the immediate face of the main truss.
The stated maximum load capacity is:
80 kg / 176 lbs
This is the maximum load capacity specified in the supplied product information. Actual use should take into account the complete truss configuration, clamp installation, fixture weight, and applicable safety requirements.
The supplied compatibility information includes:
F34 Truss
DT34P Truss
DT44P Truss
DT36 Truss
DT-GP Truss
The product is also specified as fitting 48–51mm truss.
Specification | Details |
|---|---|
Product Name | Aluminum Post To Hang Lights On Truss |
Product Type | Aluminum Boom Arm / Truss Lighting Post |
Material | Aluminum |
Pipe Diameter | 50 mm |
Compatible Truss Tube | 48–51 mm |
Clamp Quantity | 2 clamps |
Arm Length | 24 in |
Maximum Load Capacity | 80 kg / 176 lbs |
Unit Weight | 4 lbs |
Compatible Truss | F34, DT34P, DT44P, DT36, DT-GP |
Application | Stage Lighting / Truss Accessories / Event Production |
The aluminum post is designed primarily for lighting applications on truss.
It can be used for:
Concert lighting
Event production
Theatre lighting
Exhibition lighting
Corporate event lighting
Performance structures
Professional staging systems
The extended boom position can be useful when a lighting fixture needs to be positioned outside the normal truss profile.
Use the boom arm to create additional lighting positions on concert truss structures.
The post can provide flexible fixture positioning for stage lighting arrangements.
It can be used as a truss accessory for compatible theatre lighting structures.
The compact aluminum design makes it suitable for professional event production systems.
For exhibition and display structures using compatible aluminum truss, the post can provide an additional mounting position for lighting.
For exhibition applications, explore Exhibition Booth Solutions.
The supplied product information states:
Fit for 48–51mm truss
and identifies the post itself as having a:
50mm diameter pipe
This means the accessory is intended for truss systems within the specified 48–51mm tube range.
Before installation, always verify the actual truss tube diameter and clamp compatibility.
The supplied specification states:
This value should be treated as the stated maximum capacity of the product under the specified conditions.
When using the boom arm in a real stage or rigging environment, the actual allowable load may also depend on:
Truss tube condition
Clamp installation
Fixture weight
Fixture position
Truss configuration
Dynamic loads
Complete structure design
The supplied information does not provide a separate engineering load table or detailed loading conditions.
Therefore, the 80 kg / 176 lbs value should not be interpreted as a universal structural rating for every possible installation configuration.
A typical installation sequence is:
Confirm that the truss tubing is within the specified 48–51mm diameter range.
Place the aluminum post at the required lighting position on the truss.
Secure the post to the truss using the supplied two-clamp configuration.
Ensure the clamps are correctly positioned and securely tightened according to the applicable equipment requirements.
Mount the compatible lighting fixture to the end of the post.
Check the clamps, pipe, fixture connection, and truss before operating the lighting system.
The 24-inch arm provides additional distance from the main truss.
At approximately 4 lbs, the boom arm adds relatively little accessory weight compared with many larger structural components.
The two-clamp arrangement provides a dedicated connection between the post and truss.
The product is listed for use with several truss systems, including F34, DT34P, DT44P, DT36, and DT-GP.
The aluminum material is suitable for lightweight stage and event truss accessory applications.
Item | Specification |
|---|---|
Pipe Diameter | 50 mm |
Compatible Truss Tube | 48–51 mm |
Arm Length | 24 in |
Unit Weight | 4 lbs |
Maximum Load | 80 kg / 176 lbs |
Clamps | 2 pcs |
Based on the supplied product description, the product consists of:
1 × Aluminum boom arm / long pipe
2 × Clamps
The supplied information does not specify additional hardware or lighting fixtures as included items.
Lighting fixtures and other accessories should therefore be considered separate unless confirmed in the order.
This boom arm is positioned as a professional stage accessory for compatible aluminum truss systems.
It is suitable for applications where lighting designers and event production teams need to create additional fixture positions without changing the primary truss layout.
It can be particularly useful when the lighting fixture needs to be:
Extended from the truss
Positioned outside the truss face
Moved to a specific lighting angle
Mounted at a dedicated accessory point
The product information provides an 80 kg / 176 lbs maximum load capacity, but does not provide detailed loading conditions.
For professional stage and rigging use:
Verify the actual fixture weight before installation.
Confirm the truss tube diameter is within 48–51mm.
Use both clamps correctly.
Ensure the clamps are properly secured.
Inspect the aluminum post for damage before use.
Avoid exceeding the stated maximum load.
Consider dynamic loads and movement where applicable.
Verify the complete truss structure can support the additional load.
The maximum load of the boom arm does not automatically mean that the complete truss structure can support the same load at every position.
It is designed to provide an additional mounting point for lighting fixtures on aluminum truss.
The pipe diameter is 50mm.
The supplied information specifies 48–51mm truss.
The product uses two clamps.
The supplied specification states 24 inches.
The stated maximum load capacity is 80 kg / 176 lbs.
The supplied specification lists a unit weight of 4 lbs.
The supplied compatibility list includes:
F34, DT34P, DT44P, DT36, and DT-GP Truss.
Yes. It is designed as a stage truss lighting accessory and can be used for compatible concert and event production systems.
No lighting fixture is specified as included in the supplied product information.
Need an aluminum boom arm for mounting lights on your truss?
Send us your truss model, tube diameter, lighting fixture weight, required quantity, and application, and we can help confirm whether this 50mm aluminum post with two clamps is suitable for your setup.
