• Single 18-Inch LF Driver – Equipped with one 18-inch low-frequency driver with a 100mm voice coil for strong bass reproduction.

• Wide Low-Frequency Response – Provides a frequency response of 40Hz–200Hz (±3dB) for full and powerful bass reinforcement.

• High Power Handling – Supports 600W continuous, 1200W music and 2400W peak input power.

• 100dB Sensitivity – Delivers efficient acoustic output with a sensitivity of 100dB SPL (1W/1m).

• 123dB Maximum SPL – Provides sufficient sound pressure for general entertainment and event applications.

• 8Ω Nominal Impedance – Convenient for integration with compatible professional power amplifiers.

• Dual NL4MP Inputs – Features 2 × Neutrik® NL4MP input interfaces for flexible system connection.

• Versatile Applications – Suitable for general meeting rooms, bars and event spaces with moderate low-frequency requirements.

• Compact Professional Enclosure – Measures 700 × 570 × 680mm with a net weight of approximately 45kg per unit.

Product Overview

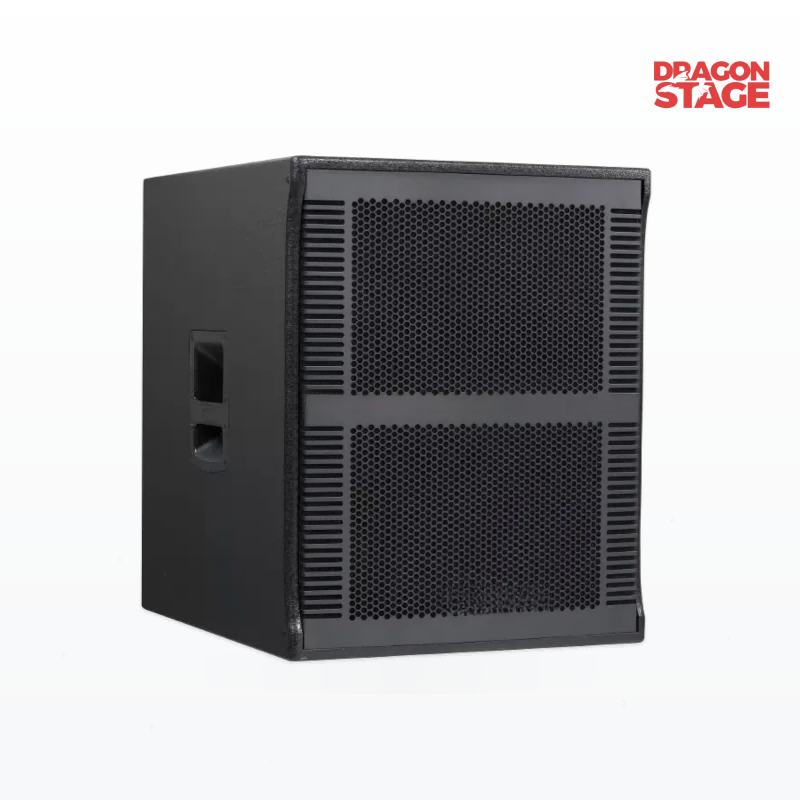

The Single 18 Inch Entertainment Subwoofer is designed for users who need dependable low-frequency reinforcement without requiring an oversized concert-grade subwoofer system.

Its 18-inch LF configuration provides the low-end foundation needed to enhance music playback, entertainment programs and event sound systems. The frequency range of 40Hz–200Hz allows the subwoofer to cover the main low-frequency range used in many general-purpose sound reinforcement applications.

This makes it a practical choice for venues where bass enhancement is important but the sound system does not need the extremely high output associated with large touring systems.

Powerful 18-Inch Bass Performance

The subwoofer incorporates a single 18-inch low-frequency driver with a 100mm voice coil.

This configuration is designed to provide:

• Strong bass reinforcement

• Solid low-frequency impact

• Extended bass response

• Reliable performance for entertainment applications

With a 100dB sensitivity and 123dB maximum sound pressure level, the subwoofer can provide effective bass reinforcement for moderate-sized event and entertainment environments.

The Single 18 Inch Entertainment Subwoofer can be used for:

Meeting Rooms

For general meeting rooms and event spaces, the subwoofer adds low-frequency reinforcement to music, presentations and entertainment programs.

Bars

The 18-inch configuration provides additional bass for background music and entertainment systems in bars where extremely high sound output is not required.

Event Sound Systems

It can be integrated into general event sound systems to provide additional low-frequency support for music and entertainment.

Small Entertainment Venues

The combination of 18-inch bass performance, flexible power handling and practical cabinet dimensions makes it suitable for general-purpose entertainment applications.

System Integration

The subwoofer can be integrated with compatible:

• Full-range speakers

• Professional amplifiers

• Digital signal processors

• Mixing consoles

• Event sound systems

• Entertainment audio systems

When building a complete sound system, the subwoofer should be matched with an appropriate amplifier and crossover/DSP configuration according to the overall system requirements.

1. What type of subwoofer is this?

It is a single 18-inch entertainment subwoofer designed for general-purpose low-frequency sound reinforcement.

2. What is the power rating?

The subwoofer has 600W continuous power, 1200W music power and 2400W peak power.

3. What is the frequency response?

The frequency response is 40Hz–200Hz ±3dB.

4. What is the impedance?

The rated impedance is 8Ω.

5. Where can this subwoofer be used?

It can be used in general meeting rooms, bars, event spaces, small entertainment venues and other applications with moderate bass reinforcement requirements.

6. What connectors does it use?

The subwoofer features 2 × Neutrik® NL4MP input interfaces.

7. How much does the subwoofer weigh?

The net weight is approximately 45kg per unit.
