Dragon Stage

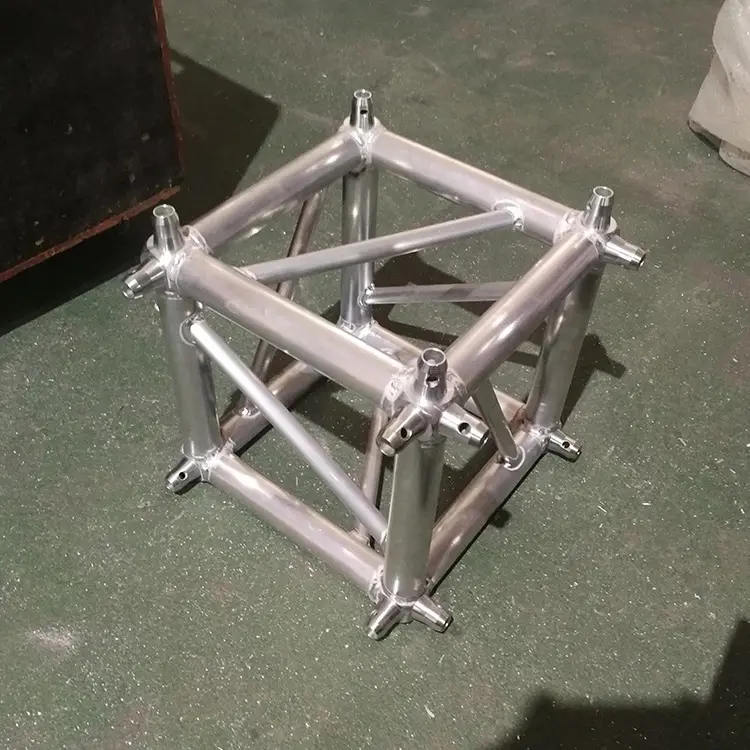

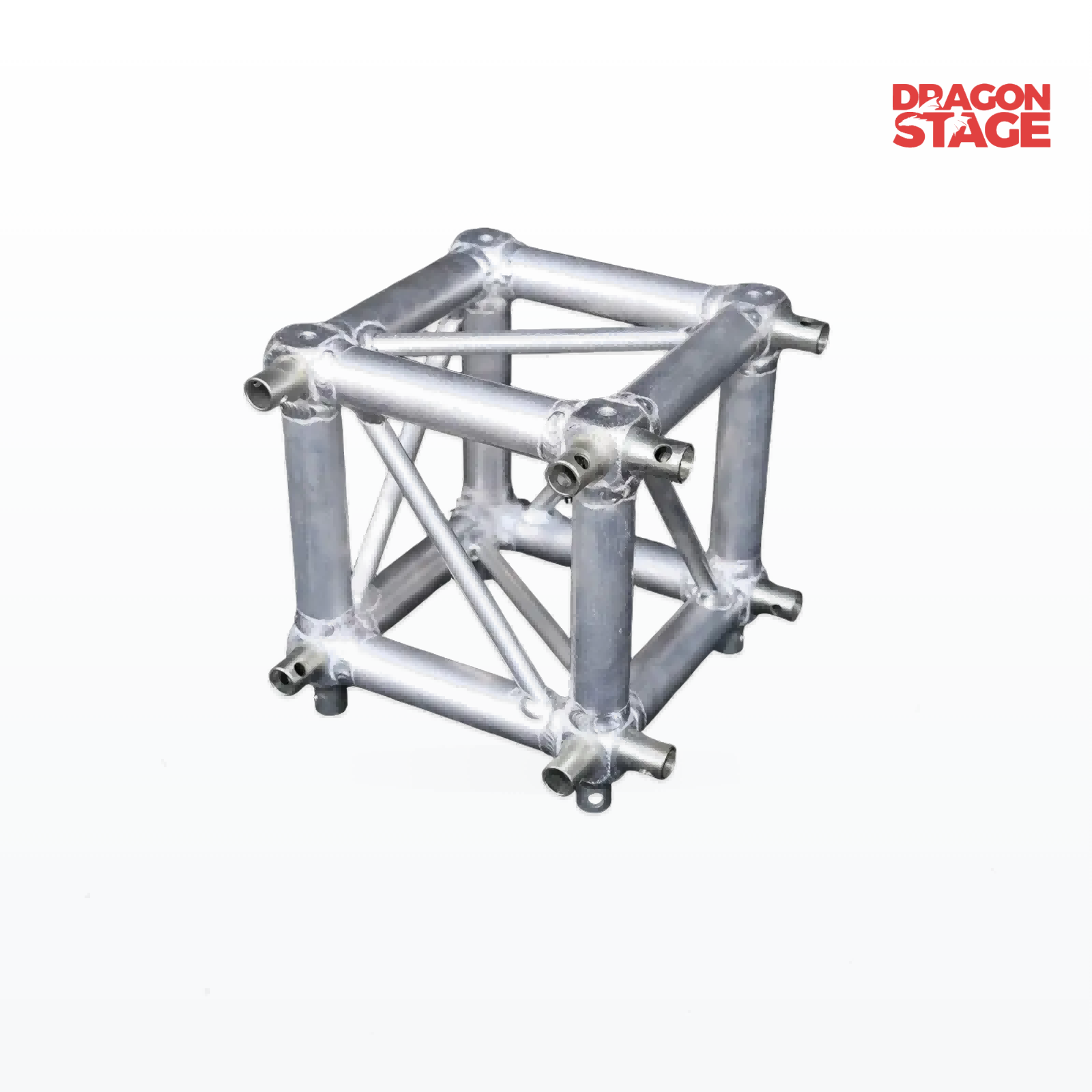

The Dragonstage Aluminum Spigot 6 Ways Corner Truss Cube Connector 400x400mm / 389x389mm is a six-way aluminum corner cube designed to connect compatible truss sections and create multi-directional junctions for event and display structures.
The connector is available with a 400 × 400 mm or 389 × 389 mm square opening and provides six connection directions. It can be used to build corner truss cube configurations for exhibitions, retail displays, parties, and other temporary event production setups.
Its multi-way design provides flexibility when several truss sections need to meet at one junction. For concert and professional event applications, compatibility with the actual truss profile and connection system should be confirmed before ordering.
For a complete truss system, explore Truss & Rigging. For related connection and support components, visit Truss & Rigging Accessories.
The cube provides six connection directions, allowing multiple compatible truss sections to meet at a single junction.
This makes it suitable for corner and multi-directional truss configurations.
The connector is specified with a 400 × 400 mm or 389 × 389 mm square opening.
Because two opening sizes are referenced in the product information, confirm the required size and the matching truss profile before ordering.
The product is described as an aluminum spigot truss cube connector, making it suitable as a lightweight connection component for compatible temporary truss structures.
The source product information specifically identifies applications including:
Exhibitions
Retail displays
Party displays
The same six-way connection concept can also be considered for compatible event production and concert truss configurations.
The connector can be used to create a corner truss cube, helping form multi-directional structural layouts where several truss sections meet.
Specification | Details |
|---|---|
Product Name | Dragonstage Aluminum Spigot 6 Ways Corner Truss Cube Connector |
Product Type | 6-Way Corner Truss Cube Connector |
Material | Aluminum |
Square Opening | 400 × 400 mm / 389 × 389 mm |
Connection Directions | 6 ways |
Connection Type | Spigot |
Main Application | Compatible truss connection |
Typical Applications | Exhibition, retail, party and event displays |
Concert Use | For compatible truss systems; compatibility must be confirmed |
The six-way cube can be used to create multi-directional truss junctions in exhibition and display structures.
It can be useful where truss members need to meet at a corner or central connection point.
The connector can be incorporated into compatible aluminum truss frameworks for retail or promotional displays.
The source product information specifically mentions party displays. The six-way configuration can provide additional flexibility when creating temporary display structures.
For compatible truss systems, the connector can be considered for event production applications where multiple truss members need to connect at a common junction.
For concert rigging, however, the connector should not be selected based on appearance or nominal dimensions alone. The complete truss system and project requirements should be checked.
Compatibility is the most important point to confirm before ordering.
The product information identifies two square opening sizes:

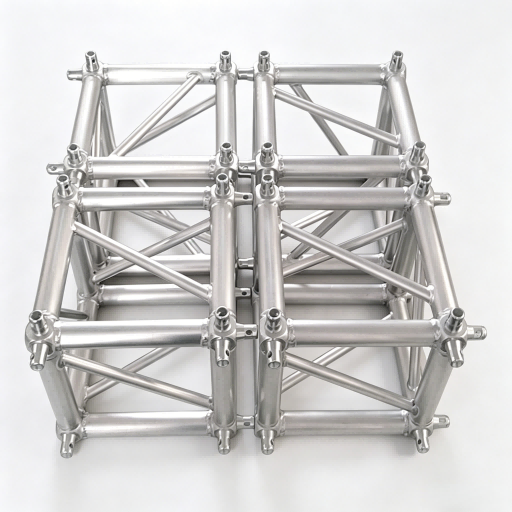

400 × 400 mm

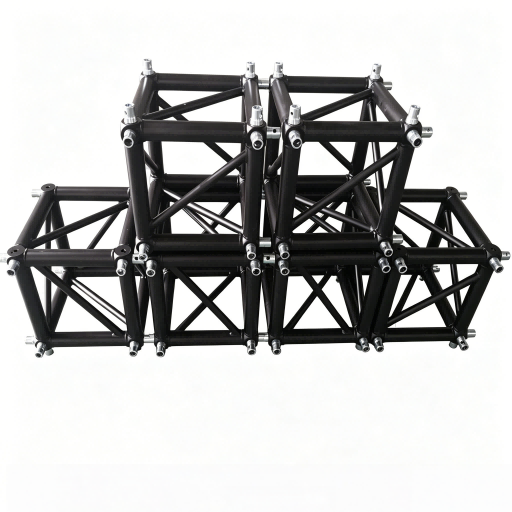

389 × 389 mm
Before purchasing, confirm:
Which opening size matches your truss.
The actual truss profile.
The spigot connection dimensions.
The connection hardware required by your truss system.
The orientation and number of connection directions required for your structure.
If you are replacing an existing cube connector, comparing the original component with the required dimensions is recommended.
If you are unsure, send us:
Truss model
Truss section drawing
Connection dimensions
Photos of the existing truss connection
This allows compatibility to be checked before ordering.
The product information lists 400 × 400 mm / 389 × 389 mm as the square opening sizes.
These dimensions should not be treated as interchangeable without checking the actual truss profile.
If your truss specification is 400 × 400 mm, confirm that the corresponding connector opening and spigot interface are correct.
If your truss specification is 389 × 389 mm, select the matching configuration.
Do not choose solely by the product title. Confirm the actual connection dimensions.
A six-way cube is installed at a junction where multiple truss sections need to connect.
A typical setup process is:
Confirm the cube matches the truss profile.
Position the cube at the required junction.
Align the compatible truss sections with the corresponding connection points.
Install the required connection hardware.
Check each connection for proper seating.
Complete the remaining truss sections according to the structure layout.
Inspect the completed junction before proceeding with the event structure.
The exact assembly method depends on the compatible truss system and its connection hardware.
This product is a corner/junction connector, not a complete truss system.
A complete structure may also require:
Compatible aluminum truss sections
Matching spigot connection hardware
Additional straight truss sections
Other corner or junction connectors
Base or support components where required
If you are selecting the complete truss system, start with Truss & Rigging.
Depending on the structure, you may also require:
Additional truss connectors
Support components
Truss transport equipment
Truss storage accessories
For related products, visit Truss & Rigging Accessories.
The number of six-way cube connectors required depends on the actual structural layout.
For example, a simple structure may require only a small number of multi-directional junctions, while a larger display or event structure may require several.
Do not calculate the quantity based only on total truss length.
Instead, identify every point where multiple truss sections need to meet and determine which type of connector is required at each location.
A nominal opening size does not guarantee that the spigot connection will fit your truss.
Confirm the complete connection interface.
The supplied product information references both 400 × 400 mm and 389 × 389 mm. Confirm which version matches your existing truss before ordering.
Different truss systems can have different profiles and connection arrangements.
The cube is one component within a larger truss system. The final structure depends on the compatible truss sections, connectors, supports, configuration, and project requirements.
The supplied product information does not provide a numerical load rating. Do not publish a specific load capacity without manufacturer-confirmed engineering data.
Although the product title includes Concert Rigging, the supplied product information only confirms general display and event applications such as exhibitions, retail, and party displays.
For concert rigging or other structurally significant applications involving:
Suspended equipment
Large spans
Tall structures
Heavy lighting or AV equipment
Public-access areas
Wind-exposed outdoor structures
the connector should be evaluated as part of the complete engineered truss system.
The six-way configuration itself does not establish the allowable load of the completed structure.
It is a Dragonstage aluminum spigot six-way corner truss cube connector for compatible truss systems.
The supplied product information specifies 400 × 400 mm and 389 × 389 mm square openings.
It is a 6-way connector, allowing multiple compatible truss sections to meet at one junction.
It is described as an aluminum spigot connector.
The source information identifies applications including exhibitions, retail, and party displays. It can also be considered for compatible event production and concert truss systems after compatibility and structural requirements are confirmed.
Do not assume they are interchangeable. Confirm the actual truss profile and connection interface before ordering.
It can be used within a compatible concert or event truss system, but the supplied product information does not provide a numerical load rating or engineering certification. For professional rigging applications, the complete structure must be evaluated.
The supplied information does not specify the package contents or included hardware. Confirm the exact package before ordering.
The quantity depends on the number of multi-directional junctions in your structure. Provide a layout or truss plan for a more accurate quantity assessment.
The supplied information does not explicitly confirm a customization service for this specific product. If you require a non-standard opening or connection configuration, provide your truss drawing and requirements for confirmation.
Need a 400 × 400 mm or 389 × 389 mm six-way truss cube connector?
Before ordering, confirm your truss profile, square opening size, spigot interface, and connection configuration.
If you are not sure whether the connector matches your truss, send us a section drawing, dimensions, or clear photos of the existing connection for compatibility checking.
For a complete event truss system, explore Truss & Rigging. For related connection components and accessories, visit Truss & Rigging Accessories.
