Dragon Stage

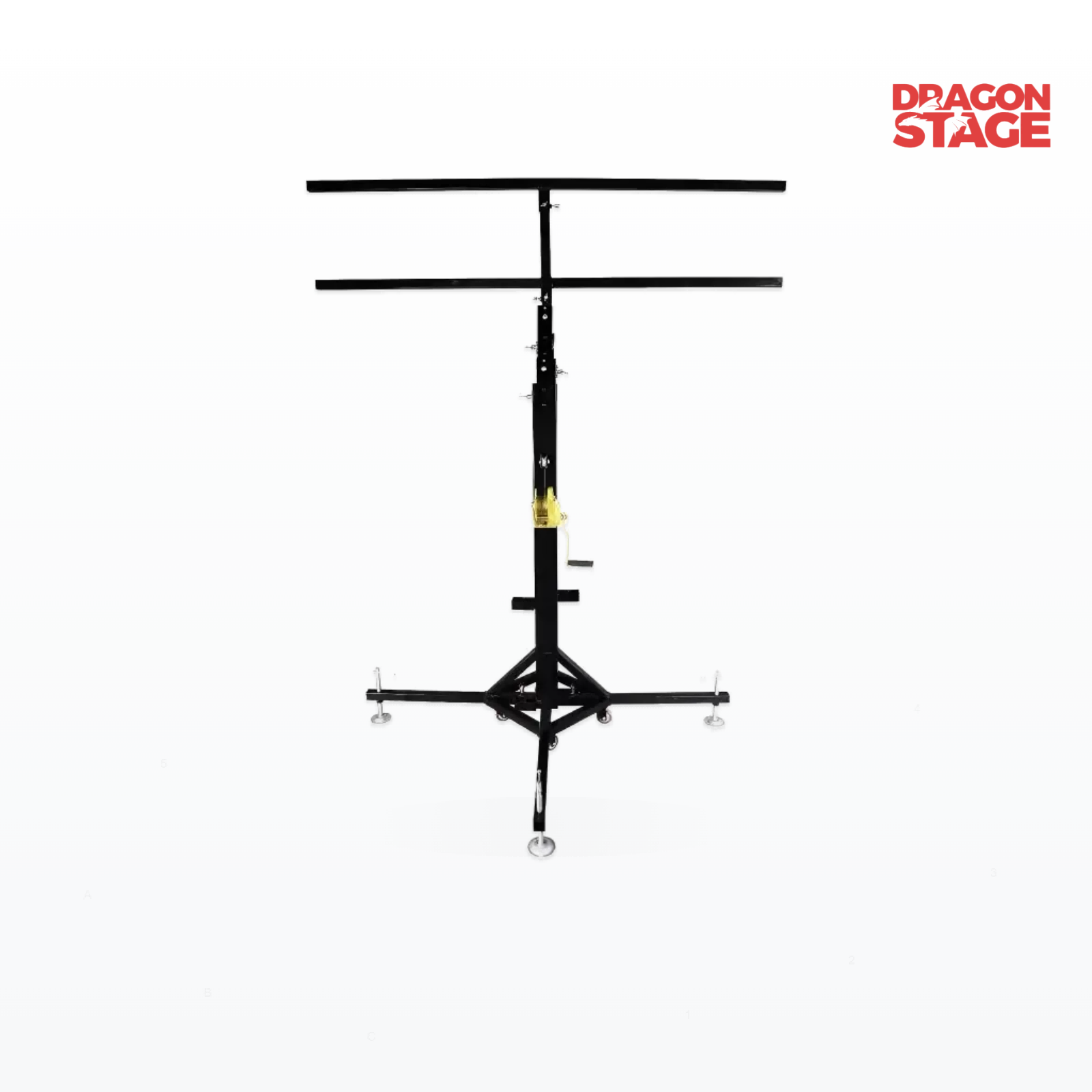

The Truss Crank Stand 1.9–6m / 250kg for Bar Lighting is a heavy-duty lifting stand designed to provide adjustable overhead support for bar lighting, stage lighting, event lighting, and professional entertainment equipment.
The stand offers a 1.9m to 6m lifting height and a stated 250kg load capacity. Its telescopic square-tube structure and crank-up mechanism allow the working height to be adjusted during installation, making it a practical solution for venues and event teams that need flexible lighting positions.
The product is identified as Model HD-007B, manufactured by Dragon Stage. The supplied product information specifies a 70kg net weight, 1900 × 460 × 460mm packing size, 1.8m base length, and a 2m top bar capable of hanging up to 16 lightings.
The stand provides a lifting range from 1.9m to 6m, allowing lighting equipment to be positioned at different heights according to the venue layout and production requirements.
The product is specified with a 250kg load capacity, making it suitable for professional lighting and event-production applications when the equipment configuration remains within the manufacturer's rated requirements.
A major feature of the HD-007B is its 2m-long top bar, which is specified to accommodate up to 16 lighting fixtures. This makes the stand particularly useful where multiple lights need to be positioned across a wider area.
The main lifting structure uses square tubes with listed sizes of:
100 / 80 / 60 / 40mm
The supplied product information also specifies a 2.5mm material thickness.
The stand has a stated 1.8m base length, providing a broad support footprint for the vertical lifting structure.
The product is categorized as a typical crank stand and uses keywords including crank up light stand, heavy duty truss crank stand, lift crank stand, line array crank stand, and hand crank lighting stand.
Specification | Details |
|---|---|
Product Name | Truss Crank Stand 1.9–6m |
Model | HD-007B |
Brand | Dragon Stage |
Product Type | Typical Crank Stand |
Lifting Height | 1.9–6m |
Load Capacity | 250kg |
Net Weight | 70kg |
Packing Size | 1900 × 460 × 460mm |
Top Bar Length | 2m |
Top Bar Capacity | Up to 16 lighting fixtures |
Base Length | 1.8m |
Material Thickness | 2.5mm |
Square Tube Sizes | 100 / 80 / 60 / 40mm |
Main Application | Bar Lighting / Event Lighting / Stage Production |
The 1.9–6m / 250kg crank stand is particularly suitable for bars and entertainment venues that need flexible overhead lighting.
The 2m top bar provides a practical position for distributing multiple lights across a bar or entertainment area.
The stand can be used to elevate compatible DJ and entertainment lighting around a DJ performance area.
Its adjustable height allows lighting positions to be adapted to different club layouts.
The stand can support compatible event lighting equipment for temporary installations.
It can also be incorporated into temporary stage and entertainment production systems.
1.9–6m provides flexibility for different ceiling heights and lighting layouts.
The 2m top bar is specified for up to 16 lighting fixtures.
The stated load capacity provides a substantial allowance for compatible lighting equipment.
The listed packing size is 1900 × 460 × 460mm, which is useful for transportation and storage planning.
The stand has a listed 70kg net weight, making it lighter than some heavier-duty crank stand configurations.
The lifting tower consists of multiple square-tube sections:
Tube Section | Size |
|---|---|
Main Section | 100mm |
Second Section | 80mm |
Third Section | 60mm |
Inner Section | 40mm |
The listed material thickness is 2.5mm.
This telescopic construction allows the stand to extend vertically while remaining more compact for transportation than a fixed 6m structure.
The stand has a specified 1.8m base length.
A properly positioned base is important for maintaining stability during operation, especially when the top bar is raised and loaded with lighting fixtures.

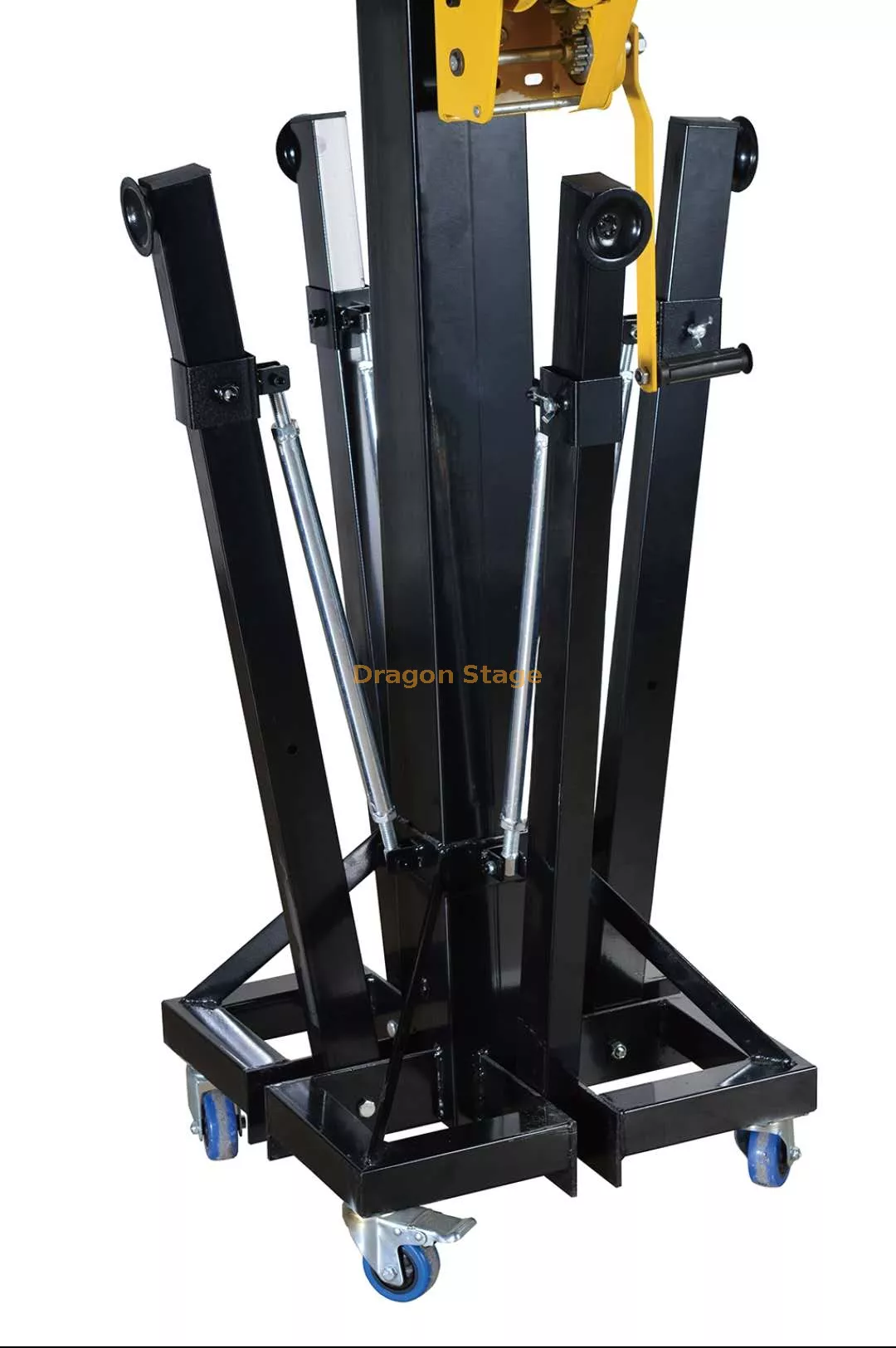

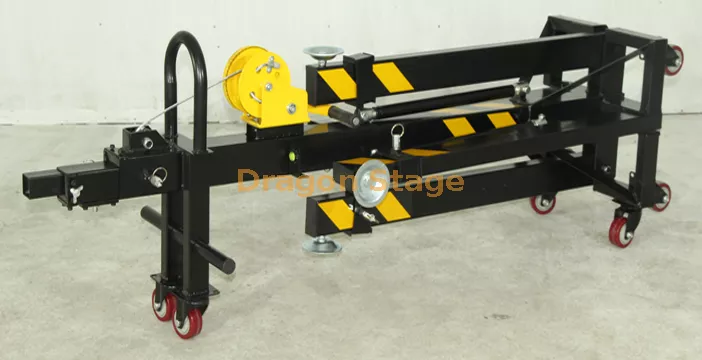

The supplied product page also includes dedicated images of the horizontal crank stand and crank stand feet, showing the base and support structure.
The listed packing specifications are:
Packing Information | Specification |
|---|---|
Packing Size | 1900 × 460 × 460mm |
Net Weight | 70kg |
This configuration can be considered when planning transportation between bars, clubs, event venues, or rental locations.
For larger quantities, final shipping dimensions and gross weight should be confirmed according to the actual packaging configuration.
Application | Suitability |
|---|---|
Bar Lighting | ✓ |
DJ Lighting | ✓ |
Club Lighting | ✓ |
Event Lighting | ✓ |
Stage Lighting | ✓ |
Concert Production | ✓ |
Entertainment Venues | ✓ |
Event Rental | ✓ |
Before using the crank stand:
Place the stand on a suitable and stable surface.
Check the base and feet before lifting.
Confirm that all lighting fixtures are securely attached.
Calculate the total equipment load.
Keep the total load within the manufacturer's rated capacity.
Raise the structure gradually using the crank mechanism.
Inspect the stand after reaching the required height.
Do not move the stand while it is raised or loaded unless specifically permitted by the manufacturer's operating procedure.
For professional installations, the complete system should be evaluated according to the actual equipment configuration and applicable safety requirements.
Although the product is specified with a 250kg load capacity, the load should not be evaluated by fixture weight alone.
The complete working load may include:
Lighting fixtures
Mounting hardware
Power and signal cables
Additional accessories
Top-bar-mounted equipment
The product page separately specifies that the 2m top bar can hang 16 lightings.
The exact fixture quantity and arrangement should therefore be confirmed according to the individual fixture weight and the manufacturer's load requirements.
This is a 6m-high lifting structure, so safe installation is essential.
For professional use, operators should consider:
Ground condition
Total equipment weight
Equipment distribution
Working height
Center of gravity
Wind exposure where applicable
Mechanical condition of the crank system
Condition of telescopic tubes
Condition of the base and feet
The supplied product information does not provide a specific wind rating, ballast requirement, or maximum allowable outdoor wind speed. These parameters should be confirmed with the manufacturer when outdoor use is required.
The lifting height is 1.9m to 6m.
The stated load capacity is 250kg.
The top bar is 2m long.
The supplied specification states that the 2m top bar can hang up to 16 lightings.
The base length is 1.8m.
The listed square-tube sizes are 100 / 80 / 60 / 40mm.
The supplied specification lists 2.5mm material thickness.
The listed net weight is 70kg.
The packing size is 1900 × 460 × 460mm.
Yes. The combination of a 2m multi-light top bar and adjustable 1.9–6m height makes it suitable for bar and entertainment lighting applications.
