Modular transparent stage deck featuring an aluminum frame with a single straight center support bar and round quick-lock stage legs. Available with tempered glass or acrylic glass decking for weddings, exhibitions, fashion shows and decorative event platforms. Deck size and leg height options are subject to the selected configuration
| Material: | |
|---|---|
| Availability: | |
| Quantity: | |
Dragon Stage
For weddings, exhibitions and event displays, a transparent stage can create a different appearance from conventional plywood stage platforms.

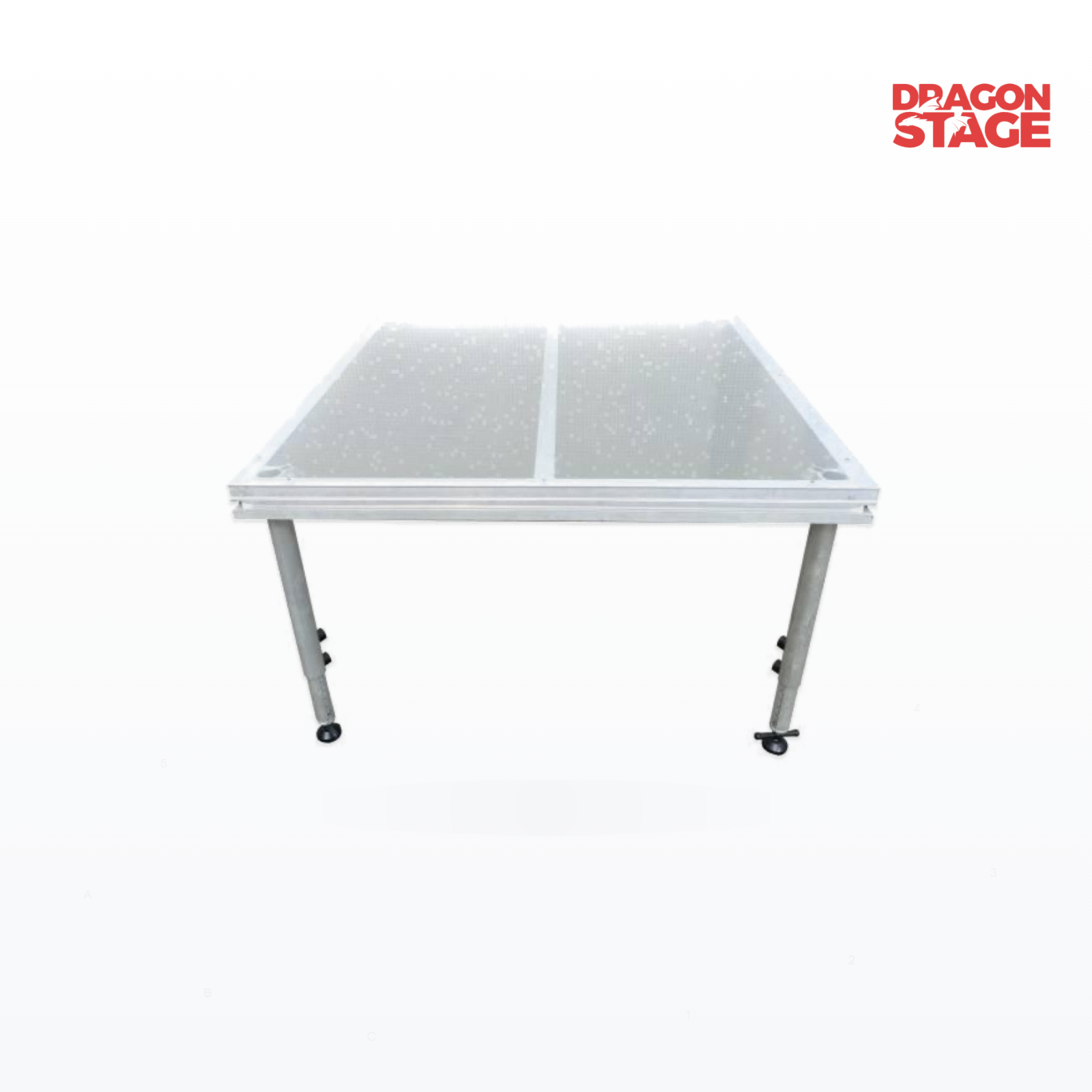

This Transparent Quick-Lock Stage Deck features an aluminum perimeter frame with one straight center support bar running across the middle of the deck.
Unlike a cross-braced frame with intersecting support members, this design divides the internal deck area into two main sections.
The stage also uses round tubular quick-lock legs, which can be detached for transportation and storage.
Two transparent surface options are available:
Tempered Glass and Acrylic Glass.
Buyers can select the deck material according to their preferred appearance, handling requirements and confirmed technical specifications.
For other modular stage options, explore Stage Platforms & Decks.
The distinguishing feature of this stage deck is its single straight internal support member.
The center bar runs across the aluminum frame and separates the transparent surface into two main supported areas.
This differs from a cross-braced stage frame, which has two intersecting support members.
The final decking material, panel thickness and allowable loads must be matched to this support arrangement.
The deck uses an aluminum frame surrounding the transparent surface.
The frame also provides connection locations for the compatible stage legs and associated stage hardware.
The stage uses round tubular legs, not square legs.
The quick-lock leg system allows the legs to be connected to and removed from the matching stage frame.
Replacement legs must match the actual tube diameter and locking interface.
The tempered glass version provides a transparent glass surface for suitable decorative event and stage applications.
Buyers should consider the glass thickness, edge support, surface treatment and handling requirements before selecting a configuration.
The acrylic version uses transparent acrylic decking.
Acrylic is generally lighter than glass at comparable thickness, although it is also more susceptible to surface scratching.
Panel thickness and structural suitability must be determined separately for this material.
The deck is intended for use as part of a compatible modular stage system.
Multiple decks may be arranged into larger platforms when the appropriate connection and support details are provided.
The detachable round stage legs allow the frame and legs to be transported separately.
Buyers should consider the dimensions and weight of the selected transparent panels when planning transport.
Specification | Details |
|---|---|
Product Type | Transparent Quick-Lock Stage Deck |
Deck Surface Options | Tempered Glass / Acrylic Glass |
Frame Material | Aluminum |
Frame Structure | Perimeter Frame |
Internal Support | Single Straight Center Support Bar |
Support Layout | Two Main Deck Areas |
Stage Leg Shape | Round Tubular |
Leg Connection | Quick-Lock |
Leg Height | According to Selected SKU |
Deck Size | According to Selected SKU |
Surface Thickness | Subject to Material Specification |
Appearance | Silver Aluminum Frame / Transparent Deck |
Applications | Weddings, Exhibitions, Fashion Shows, Event Displays |
Load Capacity | To Be Verified for Each Configuration |
Deck Material
Tempered Glass
Transparent glass decking for buyers who prefer a glass surface. Final thickness, edge details and permissible loading must be confirmed.
Acrylic Glass
Transparent acrylic decking for buyers who prefer acrylic's handling characteristics. Surface scratch protection and panel stiffness should be considered.
The deck material is the primary SKU selection. Deck dimensions and compatible leg-height choices can be added once their specifications are finalized.
Transparent stage modules can be incorporated into decorative wedding stages where the stage surface is a visible part of the event design.
Transparent decks may be used within suitable runway configurations when walking-surface performance, deck connections and structural requirements have been verified.
A transparent deck can help create a distinctive appearance for exhibition and promotional displays.
This modular stage may be considered for small performance areas when the selected decking and complete structure are verified for the intended use.
Choose Tempered Glass for a glass surface.
Choose Acrylic Glass when acrylic's weight, appearance and handling characteristics better suit your application.
Neither material should be selected solely on appearance when the platform will carry people or equipment.
This product uses one straight center support bar.

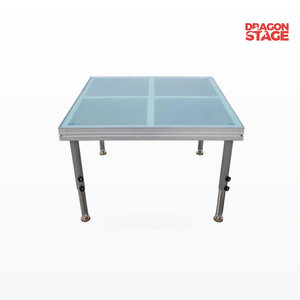

If you require the separate cross-shaped support configuration, select the Cross-Braced Stage Deck instead.
First establish the total stage width and depth, then choose a supported module size.
For example, if the available module is 1m × 1m, a 3m × 2m rectangular platform requires six modules.
This is a quantity-calculation example only; the actual available deck sizes have not yet been specified.
Confirm the required stage height and the actual leg-locking interface.
Different quick-stage systems may use round legs that look similar but are not interchangeable.
Glass and acrylic have different handling and protection requirements.
Plan suitable packaging, panel protection and transportation before selecting the final package.
For a single complete transparent stage module, the proposed package is:
1 × Aluminum Stage Deck Frame with Single Center Support
1 × Compatible Transparent Decking Set
4 × Round Quick-Lock Stage Legs
plus the matching connection hardware required by the final design.
For multi-deck stages, additional deck connectors and other supporting components may be needed.
Feature | This Product | Previous Product |
|---|---|---|
Internal Support | Single Straight Bar | Cross-Shaped Support |
Deck Area Layout | 2 Main Areas | 4 Main Areas |
Stage Legs | Round Quick-Lock | Round Quick-Lock |
Surface Options | Tempered / Acrylic | Tempered / Acrylic |
Load Capacity | Requires Verification | Requires Verification |
The single-center and cross-braced versions should be treated as different frame configurations, not as interchangeable products with an assumed difference in load rating.
The frame designs are different. Check the internal support arrangement when choosing replacement panels or extending existing stage inventory.
Tempered glass and acrylic have different mechanical properties.
The appropriate thickness and support configuration must be confirmed separately.
This model uses round quick-lock legs. Do not order square legs or incompatible round legs based on appearance alone.
Multiple stage decks should be connected using the hardware specified for the actual modular platform system.
Pedestrian loading, concentrated loads, panel behavior and surface slip characteristics must be evaluated for the intended application.
Transparent panels require suitable packing and handling. The final freight method should be determined from the actual size, weight and protective packaging.
For other modular stage platforms, browse Stage Platforms & Decks.
For compatible replacement legs and support components, visit Stage Legs & Supports.
For additional acrylic stage configurations, see Acrylic Glass Quick Stage.
It has an aluminum frame with one straight center support bar and removable round quick-lock legs.
No. This version uses a single straight support member rather than two intersecting members.
The two SKU options are Tempered Glass and Acrylic Glass.
The legs are round tubular stage legs.
Yes. They use a compatible quick-lock connection system.
Not necessarily. Each material requires its own confirmed panel specification.
Height options depend on the compatible stage-leg models offered for the selected deck.
Yes, as part of a confirmed modular stage configuration with the correct connectors and supports.
It can be considered for a wedding-stage design when the complete platform is suitable for the intended use.
Under-stage lighting is a possible design application, but the actual optical effect, clearance, equipment and electrical arrangement must be confirmed separately.
Only if the replacement material, dimensions, thickness and support details are confirmed as appropriate for the frame.
The allowable loading must be verified for the actual decking material, thickness, frame and support arrangement. No numerical load capacity is claimed here.
Select Tempered Glass or Acrylic Glass, then provide the required deck size, stage height and intended application.
For larger modular platforms, contact DragonEvent for a complete stage configuration and quotation.
