1. 3 Meter Long Loading Surface

The ramp has an overall length of:

3000mm / 3m / 9.84ft

A longer ramp can provide a more gradual transition than a short loading board when used at the same loading height.

The actual slope still depends on the loading height, so buyers should confirm their required height before ordering.

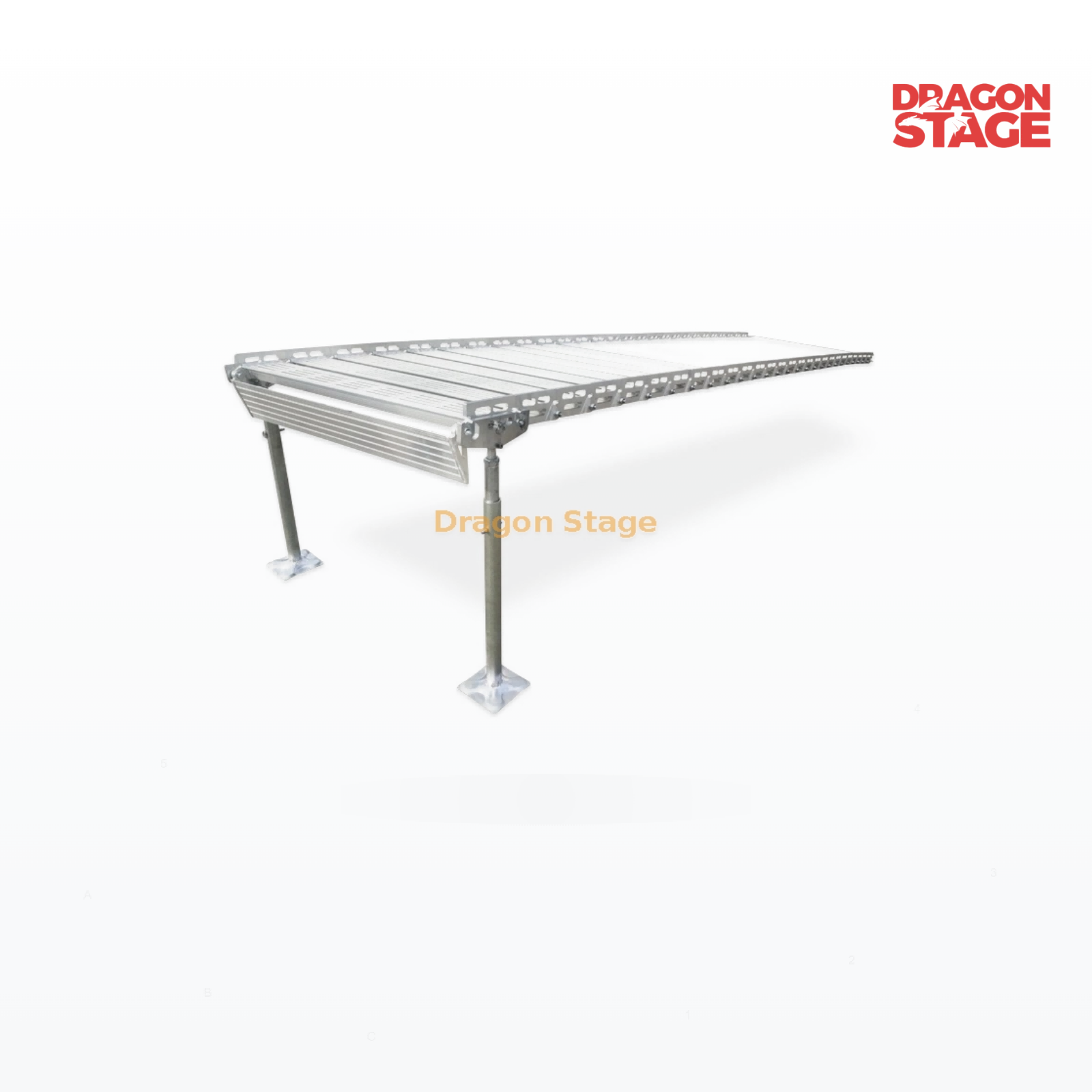

2. Wide 900mm Working Area

Overall ramp width:

950mm / 37.4 in

Working width:

900mm / 35.4 in

The wide surface makes the ramp useful for more than motorcycles. Typical applications can include:

• motorcycles;

• flight cases;

• equipment carts;

• wheeled event equipment;

• warehouse loading;

• portable AV equipment.

3. 400kg Total Loading Capacity

Confirmed total loading capacity:

400kg / approximately 882 lb

Before purchasing, compare the combined weight of the equipment being moved with the ramp's rated capacity.

For loads approaching or exceeding 400kg, contact us rather than assuming this ramp is suitable.

4. Aluminum Construction

The aluminum structure provides a practical balance between:

• portability;

• corrosion resistance;

• handling weight;

• repeated loading and unloading.

This makes the ramp particularly useful for event and rental businesses that need equipment to move between venues, vehicles and storage areas.

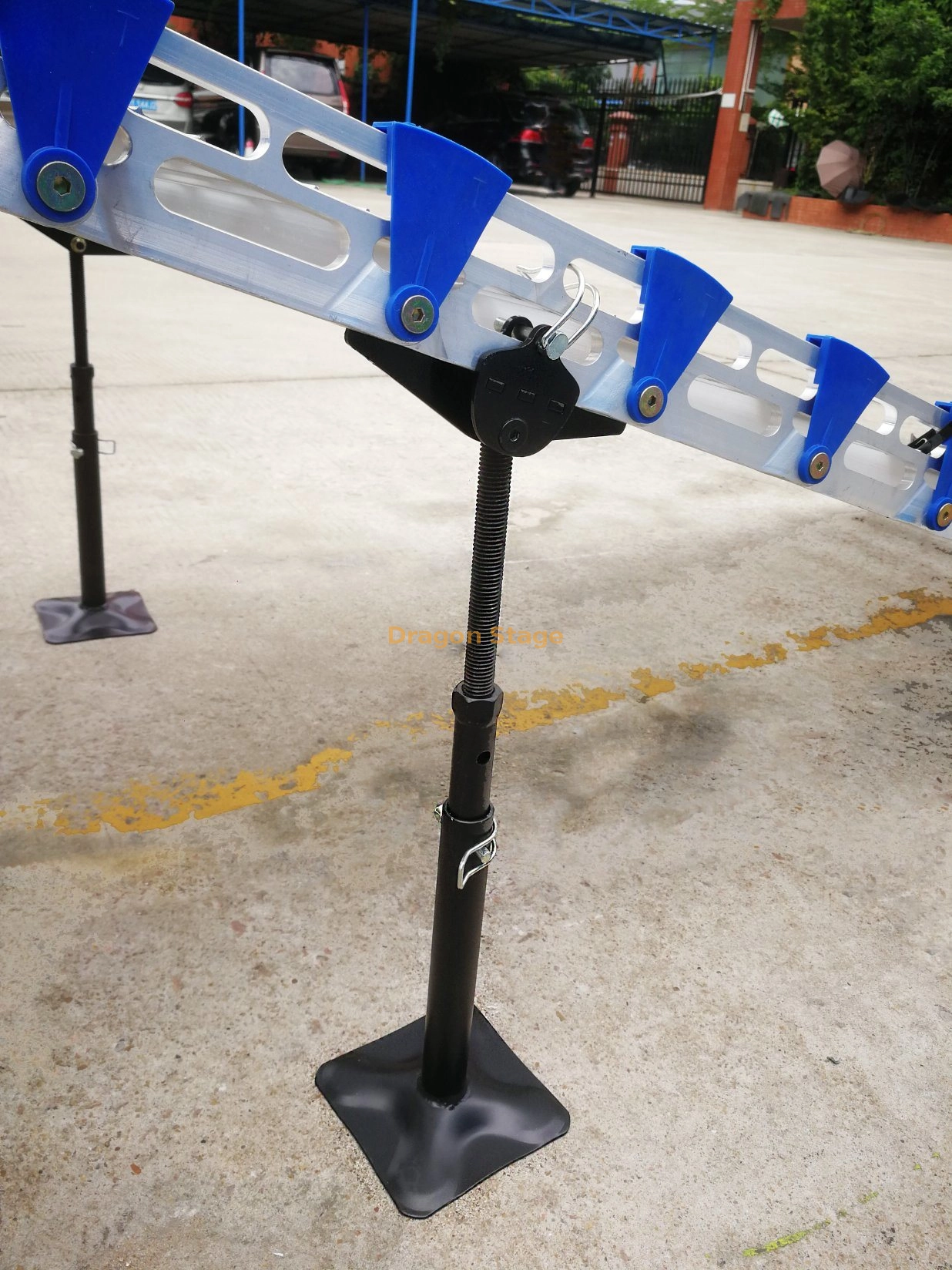

5. Supplied with One Support Leg

The ramp package includes:

1 support leg

The leg provides intermediate support as part of the intended ramp configuration.

Buyers should use the ramp with the specified support arrangement rather than removing the leg or changing the support position without confirmation.

Technical Specifications

Motorcycle Loading

The 900mm working width provides a broad surface for motorcycle loading and unloading.

Always confirm:

• motorcycle weight;

• loading height;

• ramp positioning;

• available loading space.

Event Equipment and Flight Cases

For event companies, one of the most practical uses is moving heavy wheeled equipment such as:

• flight cases;

• speaker cases;

• lighting cases;

• equipment carts;

• production equipment.

Rental Warehouse Operations

Rental companies regularly move equipment between:

warehouse → vehicle → venue → vehicle → warehouse

A portable loading ramp can reduce the need to manually lift wheeled cases and equipment across height differences.

How to Choose the Right Loading Ramp

Before ordering, check four things.

1. Load Weight

The combined load must remain within the confirmed 400kg total loading capacity.

2. Loading Height

Ramp length alone does not determine whether the ramp is suitable.

A 3m ramp installed at different heights produces different slopes.

3. Equipment Width

Usable working width is:

900mm / 35.4in

Check the width of the motorcycle, trolley, case or equipment before ordering.

4. Loading Environment

Check whether the ramp will be used between:

• ground and truck;

• warehouse and vehicle;

• different floor levels;

• temporary event loading areas.

The supporting surfaces should be suitable for stable ramp placement.

Minimum Practical Package

For most event-equipment loading applications, the minimum package is simple:

1 × 3m Aluminum Loading Ramp
1 × Support Leg

You normally do not need to buy a more complicated loading system unless your load, height or operating conditions require it.

Common Buying Mistakes

Choosing by Length Only

A buyer may say:

“I need a 3m ramp.”

But the more important question is:

“What height does the 3m ramp need to reach?”

Loading height determines the actual ramp angle.

Ignoring the Total Equipment Weight

Do not judge suitability only by whether the equipment physically fits on the ramp.

Check its weight against the 400kg total loading capacity.

Confusing Overall Width with Working Width

This ramp is:

950mm overall width

but the usable working width is:

900mm.

Use the working width when checking equipment fit.

Assuming “Car Ramp” Means Any Passenger Car

Although aluminum ramps are sometimes broadly described in the market as car or vehicle loading ramps, this model has a confirmed total loading capacity of 400kg.

Therefore, buyers should select it according to the actual load weight rather than the generic term “car ramp.”

For heavier vehicles or applications above the stated capacity, contact us for another solution.

Packing Information

The ramp and support leg have separate packing information.

Aluminum Ramp

Packing weight: 40kg
Packing volume / size provided: 0.620 × 0.620 × 0.949m

Support Leg

Packing weight: 2kg
Packing size: 0.15 × 0.15 × 0.6m

Total Packed Weight

Approximately 42kg

Because this is a long-format loading product in use, shipping should be confirmed according to the actual packed configuration and destination.

What is the working width of the ramp?

The usable working width is 900mm (35.4 in). The overall width is 950mm (37.4 in).

How long is the ramp?

The ramp is 3m (3000mm / 9.84ft) long.

What is the maximum loading capacity?

The confirmed total loading capacity is 400kg (approximately 882 lb).

Does the ramp include a support leg?

Yes. The specified package includes one support leg.

Can I use it for a motorcycle?

Yes, provided the motorcycle and loading conditions are within the ramp's specified dimensions and 400kg total loading capacity.

Can I use it for flight cases and event equipment?

Yes. This is actually a very natural DragonEvent application. The 900mm working width can be useful for moving compatible flight cases, carts and wheeled AV/event equipment.

Can I use it for a car?

Do not select this ramp simply because some suppliers describe this product type as a “car ramp.” This model has a confirmed 400kg total loading capacity. Vehicle applications must be checked against the actual load and operating configuration.

How to Order

Please provide:

1. Required quantity

2. Equipment or vehicle being loaded

3. Approximate load weight

4. Loading height

5. Delivery country and ZIP/postal code

If you are unsure whether the 3m × 900mm working area / 400kg configuration is suitable, send us your loading height and equipment weight before ordering.
