Modular transparent stage deck with an aluminum frame, cross-shaped center support and round quick-lock stage legs. Available with tempered glass or acrylic glass decking for weddings, exhibitions, fashion shows, performances and decorative event platforms. Deck dimensions and stage height options can be selected according to project requirements.
| Material: | |
|---|---|
| Availability: | |
| Quantity: | |
Dragon Stage
A transparent stage can create a different visual effect from a traditional black plywood platform.
For weddings, fashion shows, exhibitions and decorative event setups, the transparent deck allows the supporting structure and the space beneath the platform to remain visible.
This Transparent Glass Quick-Lock Stage Deck combines an aluminum deck frame with two important structural features:
Cross-Shaped Center Support
A cross-shaped aluminum support arrangement divides the inside of the deck frame into four sections, providing intermediate support positions beneath the transparent deck material.
Round Quick-Lock Stage Legs
The deck uses round tubular stage legs with quick-lock connections, allowing the legs to be installed and removed as part of the modular stage system.
Buyers can choose between two deck materials:
Tempered Glass or Acrylic Glass.
Both options share the same general stage concept, but they have different material characteristics and should not be treated as having identical load capacities or installation requirements.
For other platform options, browse Stage Platforms & Decks.

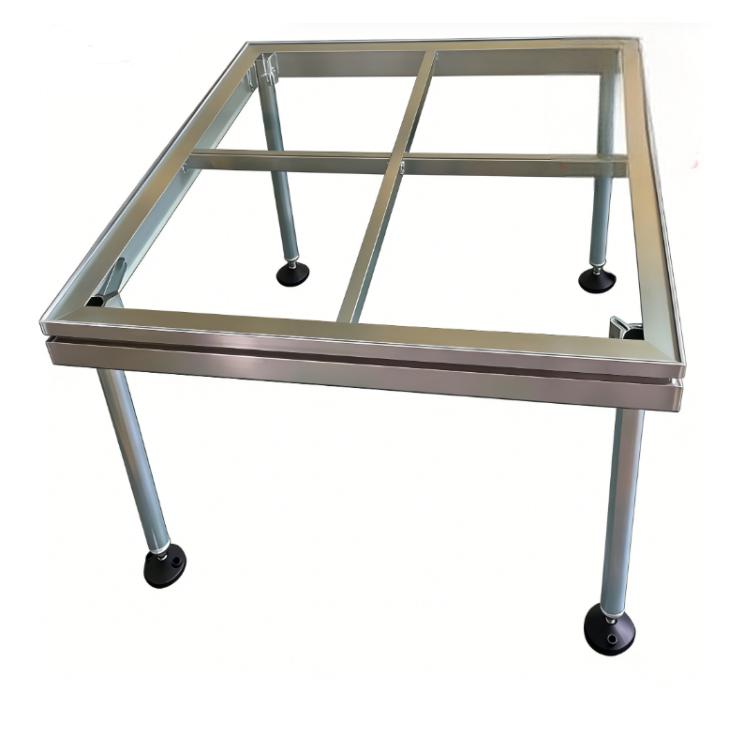

The deck frame includes a visible central cross-shaped support structure.
It consists of intersecting support members arranged across the inner opening of the aluminum frame.
This arrangement creates four supported panel areas rather than one completely open frame.
The central support is an important feature to consider when selecting transparent deck material and determining the completed platform specification.
The deck uses an aluminum perimeter frame with internal support members.
The frame forms the main structural assembly that holds the transparent panels and connects to the stage legs.
Actual aluminum section dimensions and wall thickness depend on the confirmed production specification.
The stage uses round tubular legs, not square legs.
The quick-lock mechanism is designed for connection to the matching stage frame.
Buyers ordering replacement legs should confirm:
Tube outside diameter
Leg length
Quick-lock interface
Foot configuration
Round legs from another manufacturer are not automatically compatible.
The tempered glass version uses glass decking for buyers who prefer the appearance and surface characteristics of glass.
The final glass thickness, edge treatment, support detail and rated application must be confirmed for the selected deck size.
The acrylic version uses transparent acrylic panel material.
This option may suit buyers who prioritize a different balance of handling weight, appearance and surface characteristics.
Acrylic can scratch more readily than glass, so cleaning and protection during transportation are important considerations.

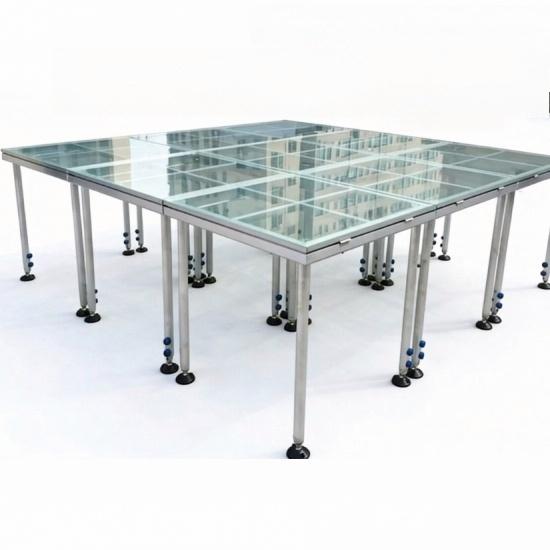

Multiple compatible decks can be arranged to create larger transparent platform layouts.
For example, depending on the selected deck dimensions and connection system, buyers can plan:
Small display platforms
Wedding stage platforms
Transparent performance areas
Exhibition displays
Decorative event flooring
The complete platform arrangement should include suitable deck connections and supporting components.

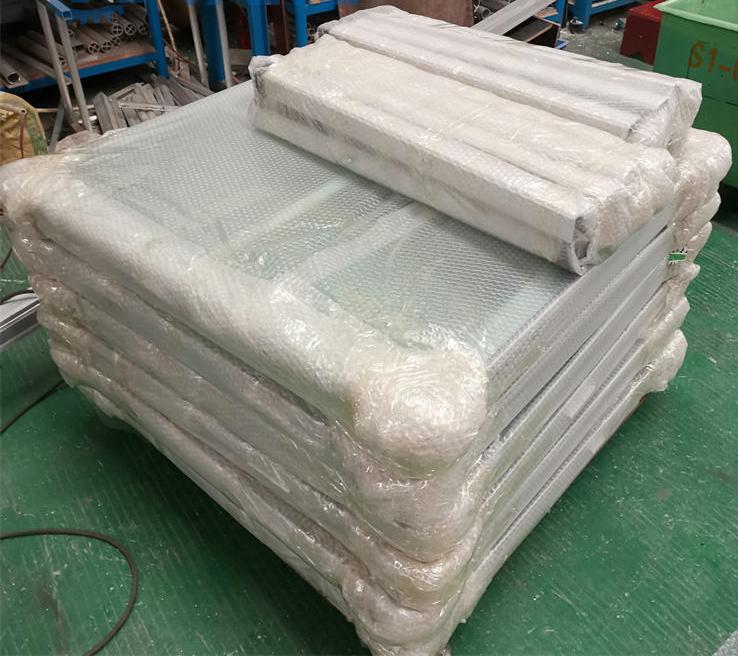

The round legs can be separated from the deck frame for transport and storage.
This allows the frame and support components to be handled as individual parts during setup and dismantling.
Specification | Details |
|---|---|
Product Type | Transparent Quick-Lock Stage Deck |
Deck Surface Options | Tempered Glass / Acrylic Glass |
Frame Material | Aluminum |
Frame Configuration | Perimeter Frame with Cross-Shaped Center Support |
Center Support | Intersecting Horizontal and Vertical Members |
Leg Shape | Round Tubular Legs |
Leg Connection | Quick-Lock System |
Deck Sizes | According to Selected SKU |
Deck Thickness | According to Confirmed Material Specification |
Stage Height | According to Compatible Leg Selection |
Finish | Silver Aluminum Appearance |
Applications | Weddings, Exhibitions, Fashion Shows, Performances, Displays |
Load Capacity | Requires Verification for Each Configuration |
Tempered Glass Deck
Transparent glass panels mounted within the cross-supported aluminum deck frame.
This version is intended for buyers who prefer a glass walking surface. Glass construction and load suitability must match the selected deck size and intended use.
Acrylic Glass Deck
Transparent acrylic panels mounted within the same general cross-supported aluminum deck concept.
This version may be appropriate when buyers prioritize different material handling characteristics, but panel thickness, stiffness and permissible loading require separate confirmation.
Copy selected SKU material
For the ecommerce backend, I recommend one product page with a mandatory Deck Material selection, followed by your actual Deck Size and Stage Height / Leg Length options where available.

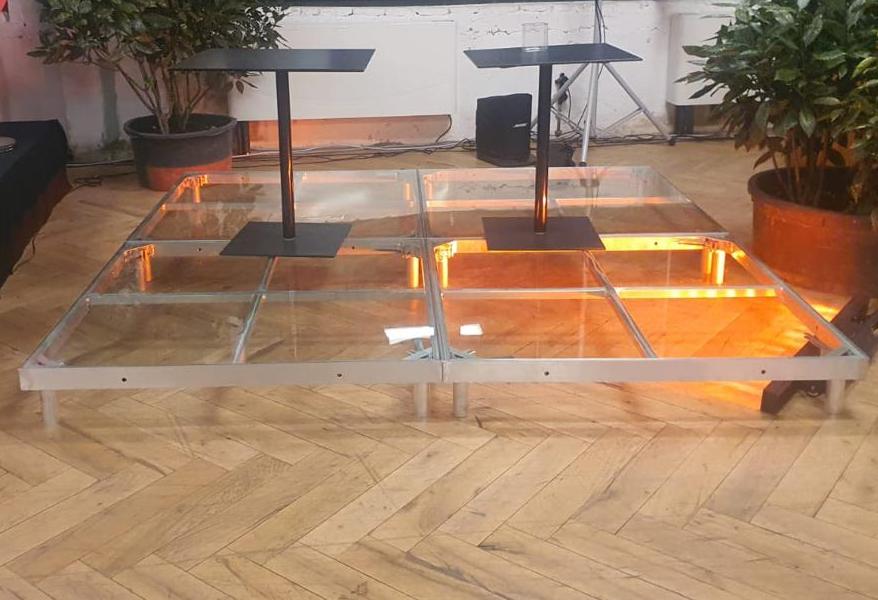

Transparent platforms can be used in suitable wedding-stage designs where the platform appearance is part of the overall decoration.
A buyer can start with a small platform and expand using additional compatible deck modules.
Transparent decking can create a distinctive runway appearance.
For raised runways, deck connection, deflection, walking surface behavior and supporting layout must be verified for the intended pedestrian use.
The transparent deck can form part of a display platform for suitable exhibits.
Buyers should first establish whether the platform will support people, products or both, because the loading requirements may differ.
The modular design may be used for small performances where the stage system is verified for the intended performers and equipment.
Select Tempered Glass when you specifically want a glass surface.
Select Acrylic Glass when acrylic's handling and material characteristics better suit your project.
Do not choose solely on appearance; each material needs its own confirmed panel specification and permissible-use limits.
Choose the module size based on the final platform dimensions, available transport space and the manufacturer's supported deck configurations.
For a rectangular platform with identical modules:
Number of Decks = Modules Across × Modules Deep
For example, if using a confirmed 1m × 1m module, a 2m × 2m platform requires four deck modules. This is only an example of quantity calculation, not a claim that this product is supplied in that size.
Choose round quick-lock legs of the correct length and compatible design.
If the stage will be elevated significantly, additional stabilizing or connecting components may be necessary according to the verified system.
For a usable stage, buyers need to confirm the deck modules, compatible legs and necessary inter-deck connection hardware.
Any stairs, edge protection or other access components should be determined from the final stage height and intended use.
For a single transparent stage module, the basic package should include:
1 × Aluminum Deck Frame with Cross-Shaped Center Support
1 × Selected Transparent Decking Set — Tempered Glass or Acrylic Glass
4 × Compatible Round Quick-Lock Stage Legs

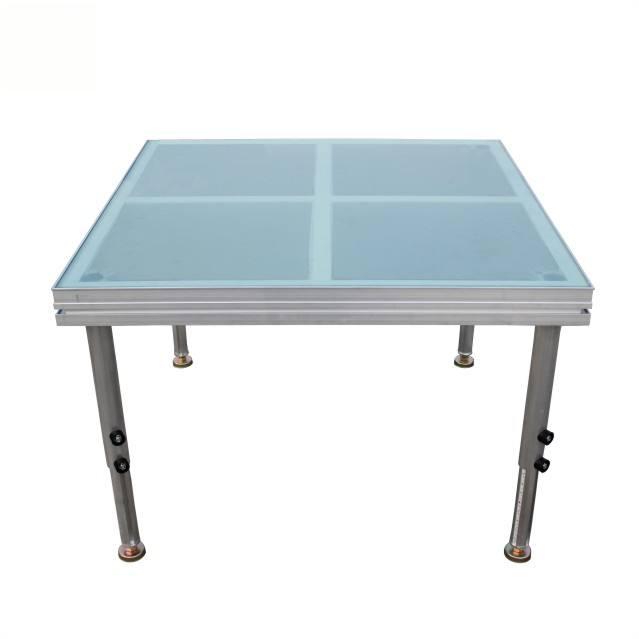

The photo shows four leg positions and a central cross support. Final component quantities, leg lengths and connection hardware should follow the confirmed SKU specification.
When multiple decks are assembled into a larger platform, matching stage connectors and any required support or stabilization components must also be considered.
Consideration | Tempered Glass | Acrylic Glass |
|---|---|---|
Appearance | Transparent glass | Transparent acrylic |
Surface Scratch Resistance | Generally better | More prone to scratching |
Material Weight | Generally heavier at comparable thickness | Generally lighter at comparable thickness |
Breakage Behavior | Can shatter into small fragments | Different cracking/fracture behavior |
Cleaning | Suitable glass-cleaning products | Acrylic-compatible cleaning products |
Load Capacity | Requires verification | Requires separate verification |
Important: Tempered glass and acrylic are not directly interchangeable solely because their outside dimensions match. Panel thickness, edge support, stiffness and allowable loading must be confirmed independently.
This deck is not a completely open aluminum frame with a single unsupported transparent panel.
The cross-shaped center support is part of the intended construction and must be retained in the product design.
The two materials may need different thicknesses or support details to meet the intended application.
Do not copy the glass thickness into the acrylic SKU without confirmation.
This model uses round quick-lock stage legs. Square-profile legs are not the correct replacement type.
Two round legs of identical length may still have incompatible locking interfaces.
Check the tube diameter and quick-lock connection before ordering replacements.
When building a stage from multiple modules, do not assume that positioning the decks next to each other is sufficient.
Use the appropriate compatible deck-connection system.
A transparent surface does not automatically make a deck suitable for dancing, jumping, heavy equipment or concentrated loads.
Each material and complete deck configuration requires an appropriate verified loading specification.
For other stage modules, browse Stage Platforms & Decks.
For round replacement legs and height options, browse Stage Legs & Supports.
For customers comparing acrylic stage systems, see Acrylic Glass Quick Stage.
For a different glass-stage configuration, compare our 4' × 4' Tempered Glass Stage Deck with Adjustable Legs.

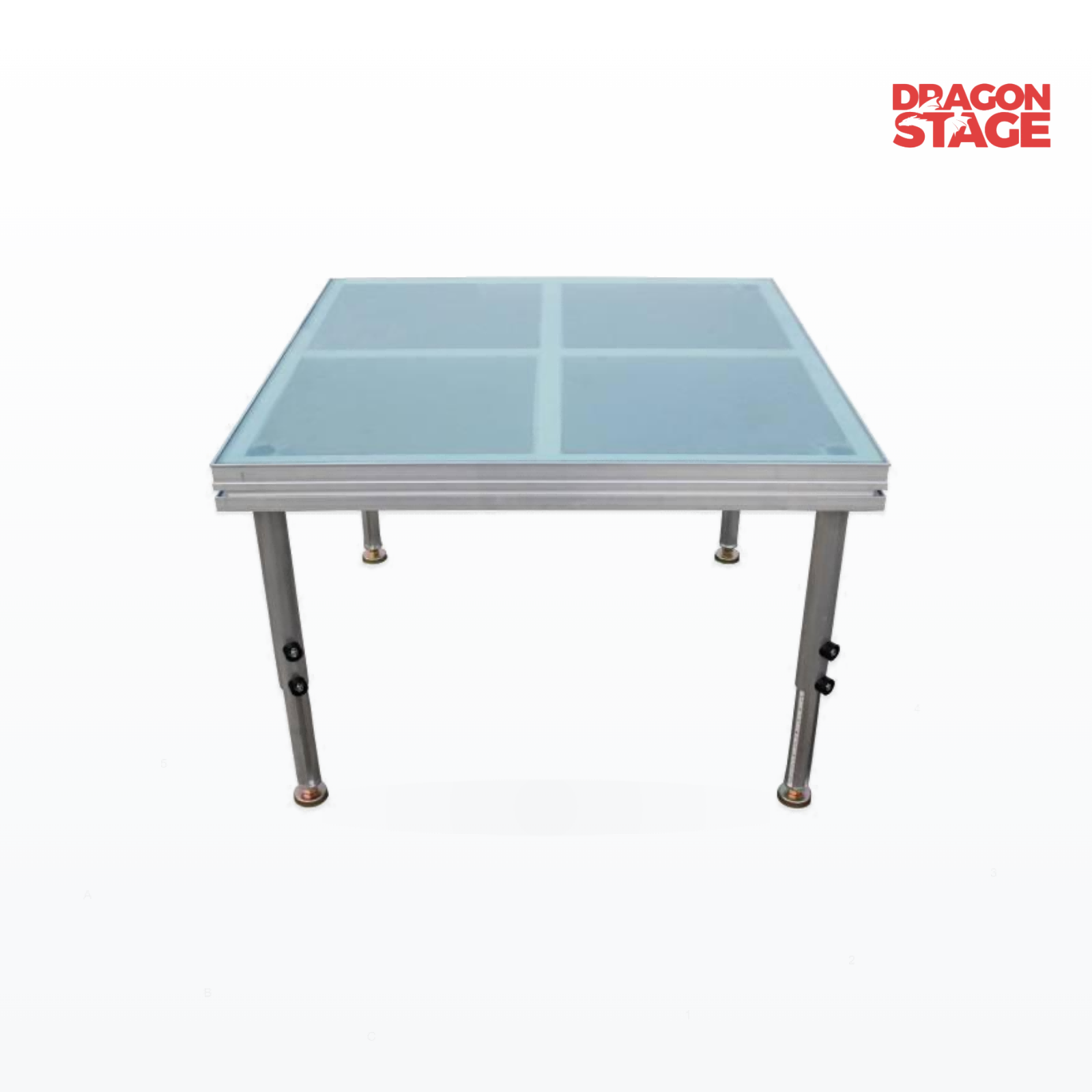

This deck has a transparent surface, an aluminum frame with a cross-shaped internal support, and round quick-lock stage legs.
Two SKU options are available: Tempered Glass and Acrylic Glass.
Yes. The internal aluminum support members form a cross-shaped arrangement beneath the transparent deck areas.
The stage uses round tubular legs with compatible quick-lock connections.
Yes. The stage is designed with detachable quick-lock legs.
Not necessarily. The correct thickness must be confirmed separately for each material and deck configuration.
Compatible deck modules can be combined into larger layouts using an appropriate connection and support system.
Different heights may be available through compatible round stage legs. Available lengths and any additional support requirements should be confirmed before ordering.
It may be suitable for a wedding runway when the deck material, support system, surface properties and complete configuration are verified for pedestrian use.
Under-stage lighting may be considered as a separate design option, subject to the transparency of the selected material, available clearance and suitable electrical installation. Lighting equipment is not included in the basic deck specification.
Only after confirming the leg diameter, locking interface, connection dimensions and suitability for the actual deck system.
A numerical loading capacity has not been provided for this product. It must be confirmed for the final frame, support arrangement, deck material, thickness, size and intended use.
Choose Tempered Glass or Acrylic Glass, then select the required deck size and compatible stage-leg height.
For multi-deck platforms, share your desired overall width, depth, height and intended application so the correct quantities and complete stage configuration can be confirmed.
