Modular transparent stage deck featuring an aluminum frame with a cross-shaped center support and square tubular quick-lock stage legs. Available with tempered glass or acrylic glass decking for weddings, fashion shows, exhibitions and event displays. Deck size, panel specification and leg height can be selected according to the available product configurations
| Material: | |
|---|---|
| Availability: | |
| Quantity: | |
Dragon Stage
A transparent stage platform can add a distinctive visual element to weddings, fashion shows, exhibitions and event displays.

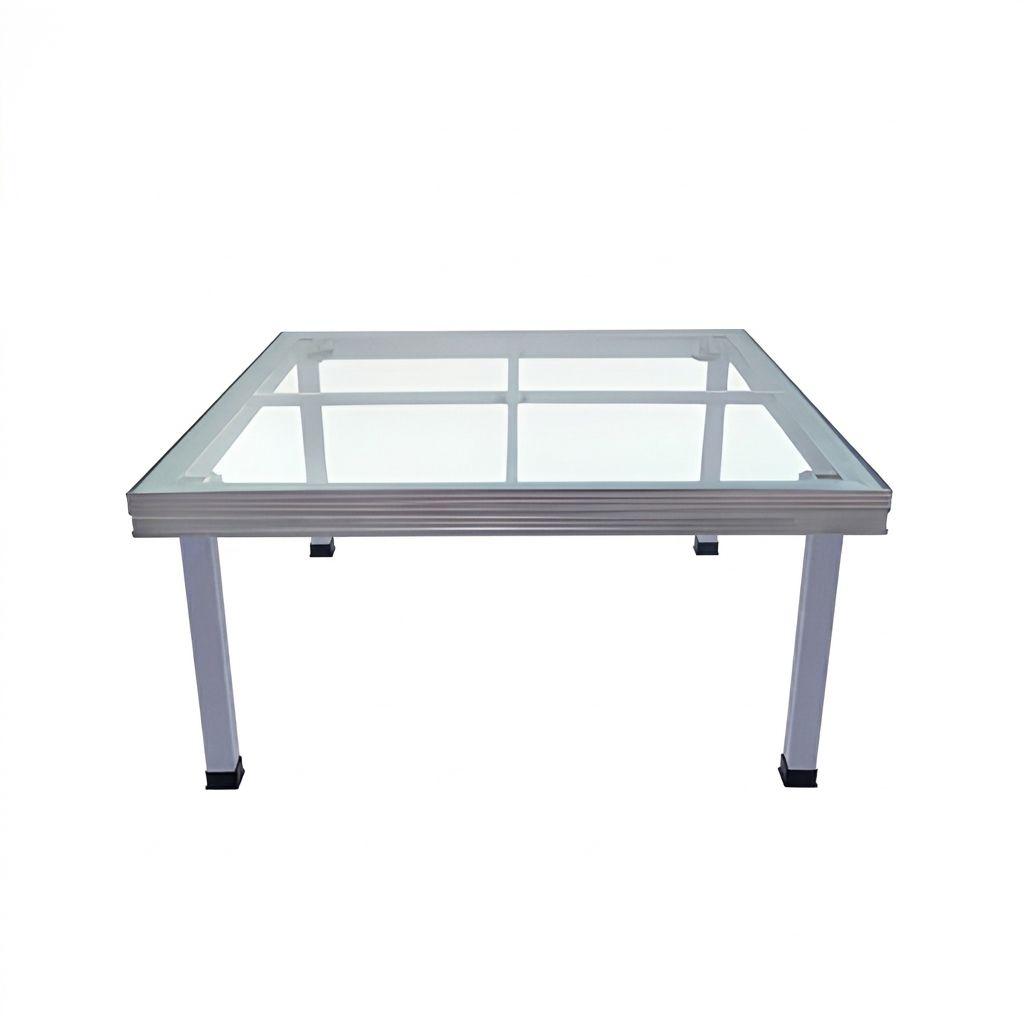

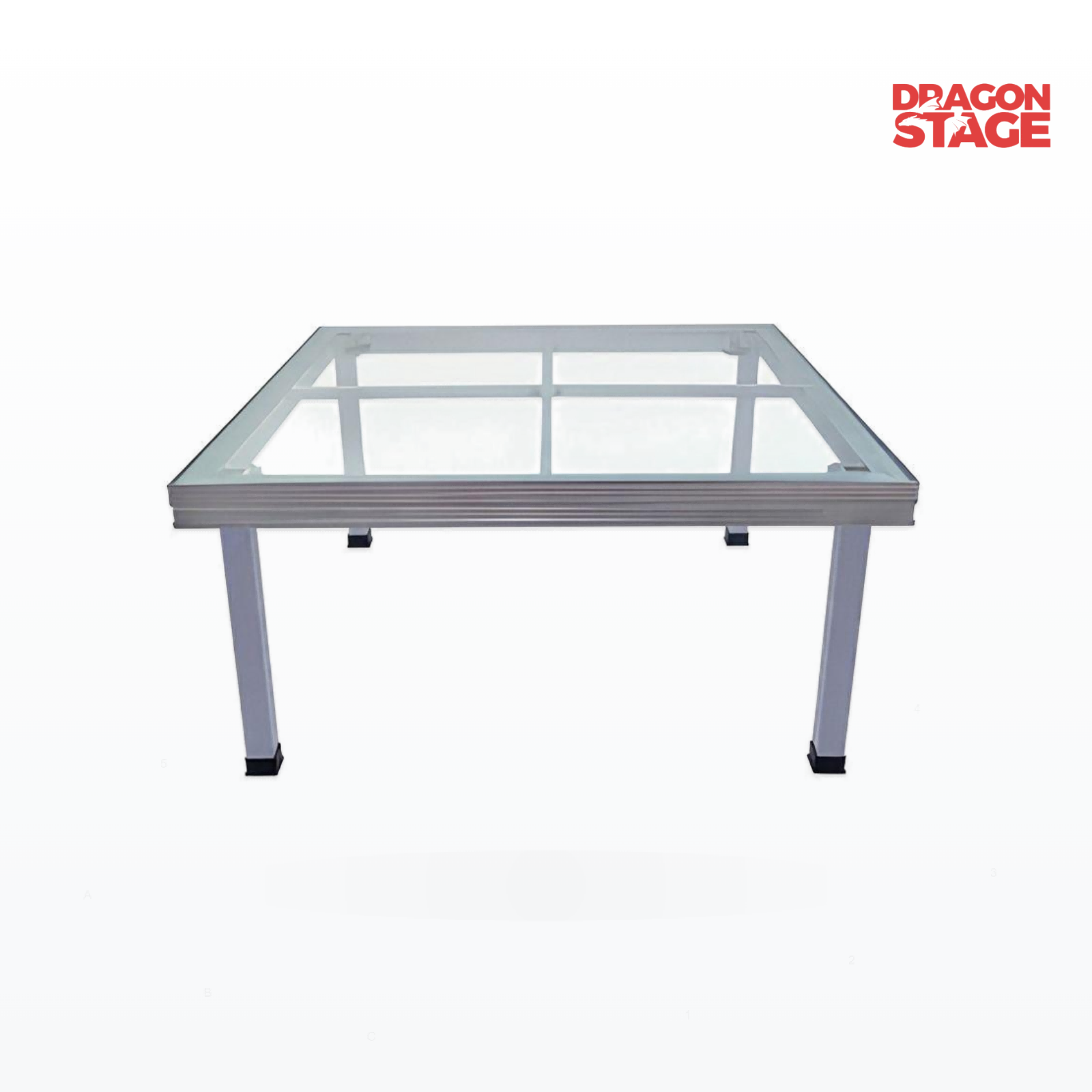

This Transparent Quick-Lock Stage Deck features an aluminum perimeter frame with a cross-shaped internal support structure and square tubular quick-lock stage legs.
Unlike a standard stage deck with a single center support bar, this frame has two intersecting support members forming four internal areas beneath the transparent decking.
The stage is available with two surface options:
Tempered Glass — for buyers who prefer a transparent glass surface.
Acrylic Glass — for buyers who prefer transparent acrylic decking and its different handling characteristics.
The square quick-lock legs can be detached from the frame for transportation and storage.
This product is particularly useful for customers planning modular wedding platforms, event display stages, fashion show platforms and small performance areas.
For other stage modules and decking options, explore Stage Platforms & Decks.

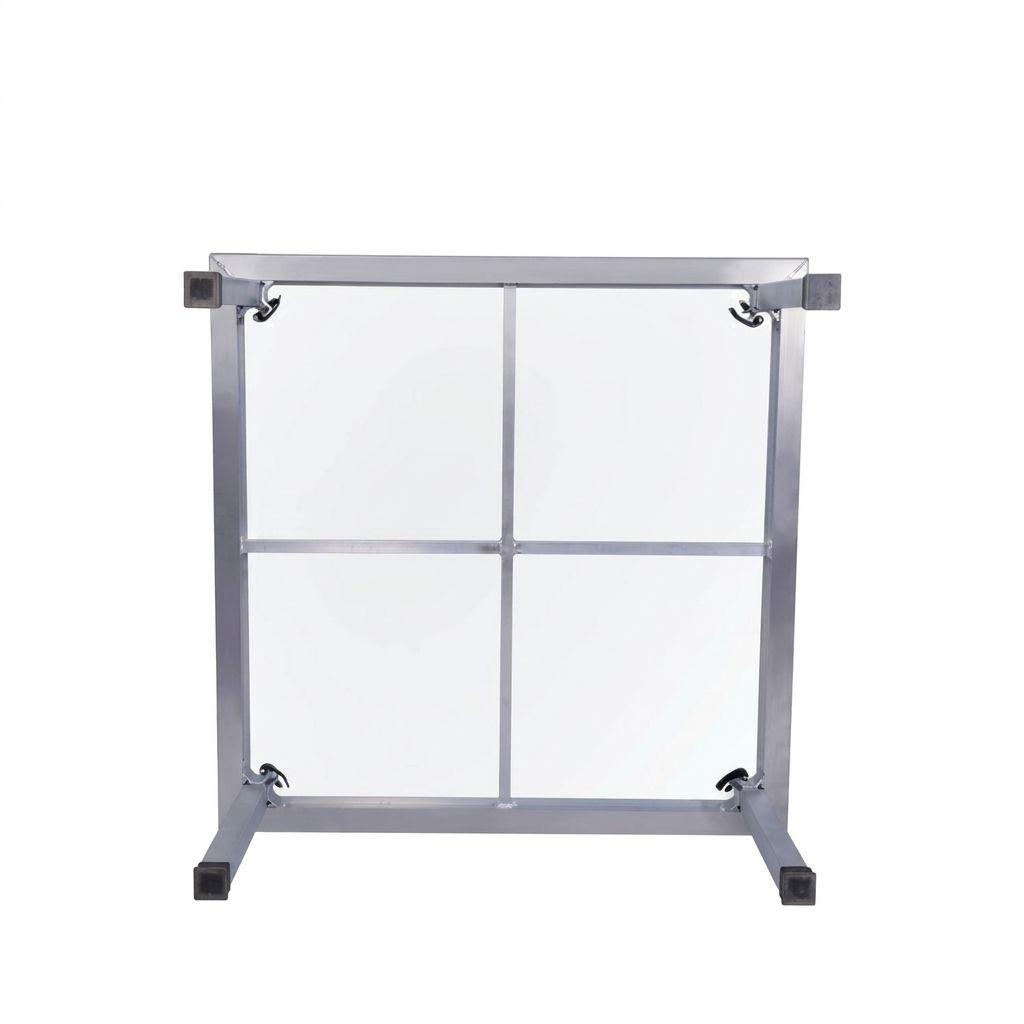

The aluminum deck frame contains two intersecting support members.
The internal structure forms a cross-shaped arrangement that divides the deck opening into four sections.
This is an important design feature when selecting transparent deck panels and planning the complete platform.
The cross-shaped support is part of the intended deck construction and should be retained in the finished product.
This version uses square-profile stage legs, rather than round tubular legs.
The leg connections are designed to work with the matching quick-lock stage frame.
For replacement legs, buyers must confirm the actual tube dimensions and locking interface.
The aluminum frame surrounds the transparent decking and contains the internal cross support.
The four corner positions provide the connection locations for the compatible stage legs.
Actual frame-section dimensions and material thickness depend on the confirmed production specifications.
The tempered glass version provides a transparent glass surface for suitable decorative and event applications.
The glass thickness, edge finish and panel support details must be selected according to the actual deck size and intended use.
The acrylic version uses transparent acrylic panels.
Acrylic generally weighs less than glass at comparable thickness, making material handling an important consideration.
However, acrylic is more susceptible to scratches and has different stiffness and deformation characteristics.
The required panel thickness and permissible loading must be confirmed independently.
The quick-lock leg arrangement allows the legs to be separated from the stage frame.
This is useful for event companies that frequently transport, install and dismantle stage platforms.

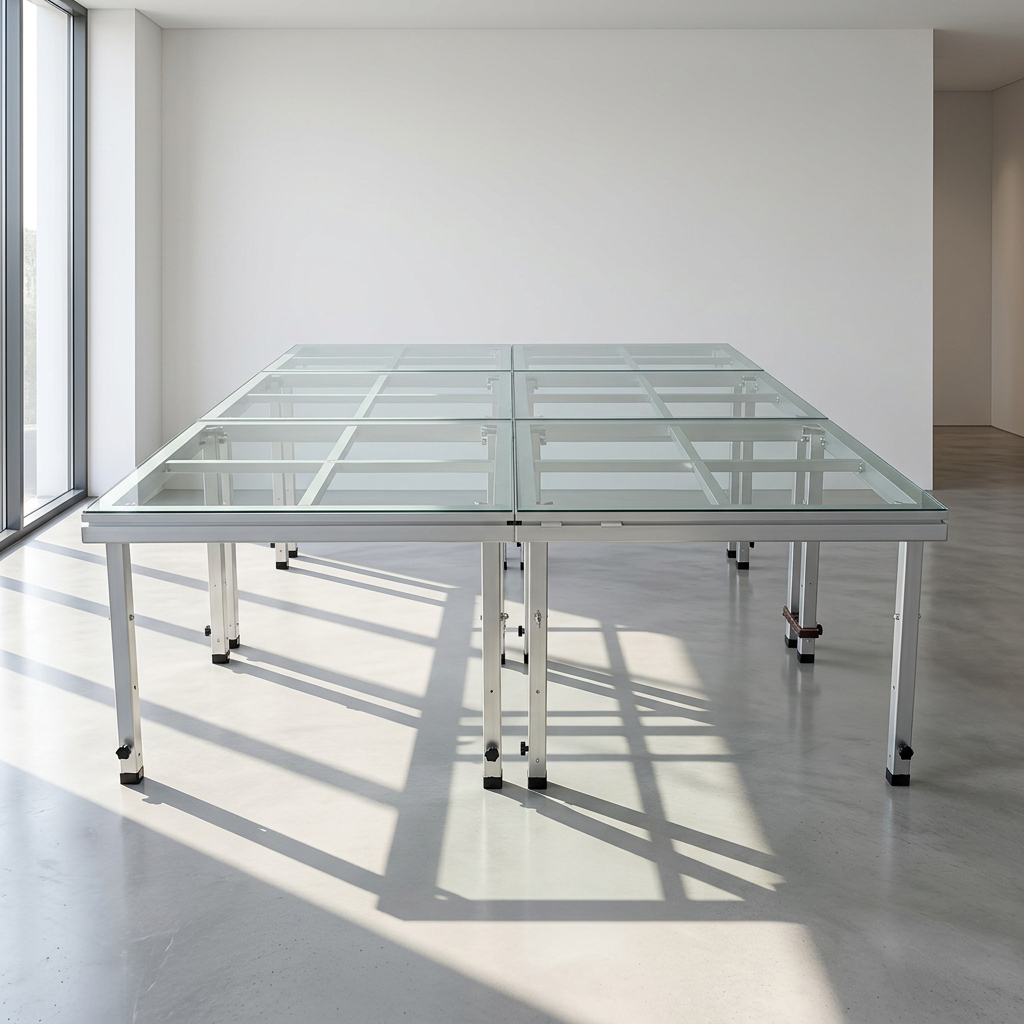

Multiple compatible stage decks may be connected to create larger platforms.
The complete arrangement should include appropriate deck connectors, supports and other components required by the selected configuration.
Specification | Details |
|---|---|
Product Type | Transparent Quick-Lock Stage Deck |
Frame Material | Aluminum |
Frame Design | Perimeter Frame with Cross-Shaped Center Support |
Internal Support | Two Intersecting Support Members |
Internal Layout | Four Panel Areas |
Decking Options | Tempered Glass / Acrylic Glass |
Stage Leg Shape | Square Tubular |
Leg Connection | Quick-Lock |
Leg Quantity | Four Corner Leg Positions per Deck |
Stage Height | According to Compatible Leg Selection |
Deck Dimensions | According to Selected SKU |
Glass / Acrylic Thickness | According to Confirmed Specification |
Frame Appearance | Silver Aluminum |
Applications | Weddings, Fashion Shows, Exhibitions, Event Platforms |
Load Capacity | Requires Verification for Each Configuration |
A transparent glass decking option combined with the cross-braced aluminum frame and square quick-lock stage legs.
Choose this option when the project specifically requires a glass appearance and the complete configuration has been verified for its intended use.
A transparent acrylic decking option using the same general cross-braced frame concept and square quick-lock leg system.
Choose this option when acrylic's material characteristics better suit the project.
The appropriate acrylic thickness and support arrangement must be confirmed separately from the tempered glass version.
Transparent decks can form part of wedding-stage designs where the platform surface is a visible element of the event decoration.
Transparent decking may be used in runway layouts when the walking surface, panel support, stage connections and complete structure are suitable for pedestrian use.
The transparent platform can be incorporated into exhibition stands and product-presentation areas.
A compatible modular arrangement may be considered for suitable small performances when the selected surface material and complete stage system meet the actual loading and use requirements.
Select the decking material according to the intended application, handling needs and confirmed product specification.
Do not assume that tempered glass and acrylic require the same panel thickness.
This model uses two intersecting support members.
If your existing stage uses only one straight center support, it is a different frame configuration.
Replacement panels should be selected according to the actual support layout.
Determine the required overall platform width and depth before choosing the modular deck size.
For example, if the selected module is 1m × 1m, a 3m × 2m platform would require six modules.
This illustrates the quantity calculation only; the actual available module dimensions must follow the confirmed product range.
Confirm the desired stage height and the matching square quick-lock leg specification.
Square tubular legs from different systems are not automatically compatible.
For a new stage, the buyer should confirm the deck modules, compatible legs, inter-deck connectors and other supporting components required for the selected layout.
For one transparent stage module, the proposed package includes:
1 × Cross-Braced Aluminum Stage Deck Frame
1 × Compatible Transparent Decking Set — Tempered Glass or Acrylic
4 × Square Quick-Lock Stage Legs
plus the connection hardware required for the final supplied configuration.
For larger modular platforms, appropriate deck connectors and any additional required components should also be included.
Both products have a cross-shaped internal support arrangement.
The main buying difference is the leg interface.
Choose this square-leg version when you are purchasing a new compatible system or expanding an existing stage that uses the same square quick-lock leg design.
Choose the round-leg version when your existing inventory uses the matching round quick-lock connections.
Do not select replacement legs solely by external appearance.
This model uses square tubular quick-lock legs.
Round stage legs should not be assumed compatible.
The support layout is an important part of the deck design.
The frame must not be treated as a completely open rectangular frame.
The two materials have different stiffness, surface and fracture characteristics.
Panel specifications must be confirmed for each material.
Leg dimensions, quick-lock geometry and attachment details must also match.
Several decks placed next to each other do not automatically form a complete connected platform.
Use the appropriate compatible connecting components.
The frame, center supports, transparent material, thickness, connections and leg configuration all affect the complete system.
Tempered glass and acrylic require suitable handling and protective packaging.
Consider transport dimensions, weight and storage before ordering.
For different modular stage surfaces and sizes, browse Stage Platforms & Decks.
For replacement stage legs and other compatible support components, explore Stage Legs & Supports.
For other acrylic stage configurations, see Acrylic Glass Quick Stage.
It features an aluminum frame with a cross-shaped center support and square quick-lock stage legs.
Two intersecting members form the cross-shaped internal support.
The cross divides the inside of the frame into four areas.
This version uses square tubular stage legs.
Yes. The legs use a matching quick-lock connection.
Tempered Glass and Acrylic Glass.
Not necessarily. Each material needs its own confirmed specification.
Yes, when using compatible modular deck connectors and an appropriate complete stage configuration.
The available height options depend on the compatible square stage legs offered for the selected SKU.
It may be suitable for a wedding-stage application when the selected deck and complete platform have been verified for the intended use.
Compatibility must not be assumed. This model is designed around a square-leg connection system.
Under-stage lighting may be considered as a separate design option, subject to the actual transparency, clearance and electrical arrangement. Lighting equipment is not included unless specified.
No numerical capacity is claimed without verified technical information for the selected decking and complete stage configuration.
Choose Tempered Glass or Acrylic Glass, then select the desired deck size and compatible square-leg height.
For complete modular stage layouts, provide your overall width, depth, stage height and intended use so the required deck quantity and supporting components can be confirmed.
