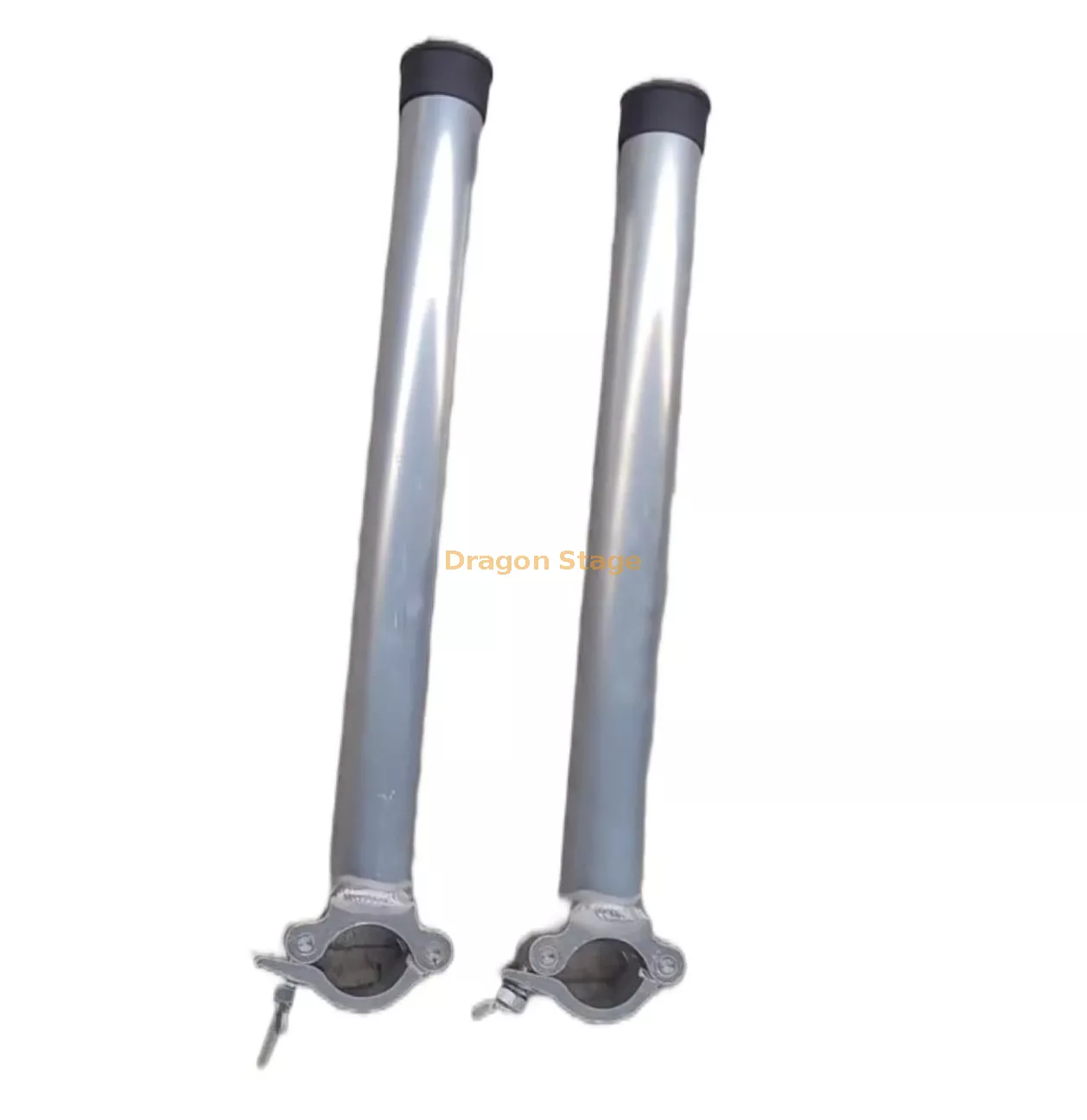

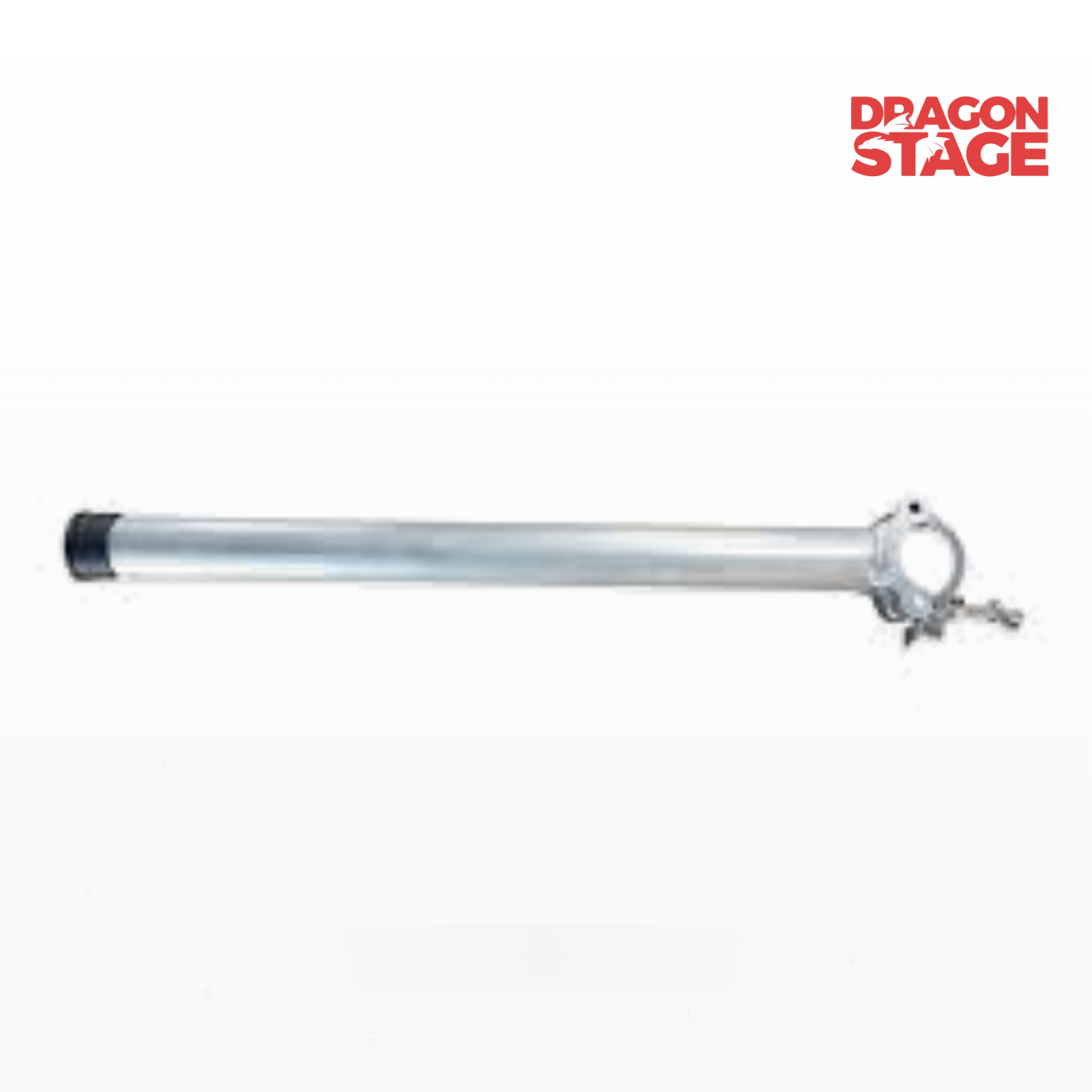

Clamp with 1000mm Boom Arm for Stage Lighting & Truss Mounting

• Designed for 48–51mm Tubes
  The clamp is specified for tubes with a diameter of 48–51mm.

• 50mm Boom Arm Diameter
  The boom arm has a specified diameter of 50mm.

• 1000mm Usable Boom Arm Length
  Provides a 1000mm usable length for positioning compatible equipment away from the supporting tube or truss.

• Extended Fixture Positioning
  The boom arm configuration allows compatible lighting equipment to be positioned outward from the main support structure.

• Suitable for Stage Lighting Applications
  Designed for compatible concert, event, entertainment and stage lighting installations.

• Approx. 2kg Product Weight
  The supplied product weight is approximately 2kg.

The DragonEvent Clamp with 1000mm Boom Arm can be considered for compatible:

• Concert stage lighting

• Festival lighting systems

• Event production

• DJ and entertainment setups

• Theatre lighting

• Performance stages

• Moving-head lighting arrangements

• Extended side-arm fixture mounting

• Truss-mounted lighting systems

• Professional event production structures

The 1000mm usable boom arm provides additional positioning flexibility where a standard clamp-mounted fixture position is not sufficient.

Compatibility & Installation Notes

Before ordering, confirm that the clamp and boom arm are suitable for the intended installation.

1. Check the tube diameter
   The supplied specification identifies compatibility with 48–51mm diameter tubes.

2. Check the fixture mounting arrangement
   Confirm that the intended lighting fixture or equipment can be securely connected to the boom arm.

3. Check the boom arm dimensions
   The specified boom arm diameter is 50mm, with a 1000mm usable length.

4. Consider the extended arm configuration
   A longer boom arm creates an offset from the supporting structure. The complete installation should therefore be evaluated according to the fixture weight, mounting position and support structure.

5. Inspect before use
   Check the clamp, boom arm and connection hardware for visible damage, deformation or excessive wear before installation.

6. Secure the complete assembly
   Ensure the clamp and fixture connection are properly secured before the lighting equipment is placed into service.

Safety Considerations

The supplied product information does not provide a safe working load or maximum fixture load for this product.

Therefore, no load rating should be inferred from the approximately 2kg product weight or from the boom arm dimensions.

Because the product uses a 1000mm extended boom arm, the complete installation should be evaluated as an assembly, including the supporting tube or truss, clamp, boom arm, fixture, fasteners and installation configuration.

For overhead or structurally significant lighting installations, the complete rigging arrangement should be reviewed according to the applicable project requirements.

1. What is the DragonEvent Clamp with 1000mm Boom Arm used for?

It is designed for mounting compatible stage lighting equipment to suitable tubular or truss structures while providing an extended fixture position through its boom arm.

2. What tube diameter is the clamp designed for?

The supplied specification states compatibility with 48–51mm diameter tubes.

3. What is the diameter of the boom arm?

The boom arm has a specified diameter of 50mm.

4. How long is the usable boom arm?

The specified usable boom arm length is 1000mm.

5. How much does the product weigh?

The supplied product weight is approximately 2kg.

6. Can it be used for stage lighting?

Yes. The product is intended for compatible stage lighting and truss mounting applications, including concert and event production environments.

7. Can it be used with a 50mm truss tube?

A 50mm tube falls within the specified 48–51mm compatible tube range. The complete fixture and mounting arrangement should still be checked before installation.

8. What is the maximum load capacity?

A maximum safe working load has not been provided in the supplied product information. This should be confirmed before using the product for load-critical applications.

9. Is the boom arm suitable for any stage light?

Not necessarily. Compatibility depends on the fixture's mounting interface, fixture weight and the complete support configuration. Confirm the mounting arrangement before ordering.
