Custom 50mm female truss spacer for compatible conical / spigot truss systems, available in 70–150mm fixed lengths and silver or black finish. Used to add a short, precise spacing section between compatible truss components when standard truss lengths or corner geometry do not match the required overall dimension.
| length: | |
|---|---|
| Availability: | |
| Quantity: | |
Dragon Stage
Standard straight truss sections are useful for building the main structure.
But sometimes the finished dimension is short by:
70mm, 90mm, 105mm, 120mm, 150mm
or another small amount.
Using another full truss section would be unnecessary.
That is where a truss spacer is useful.

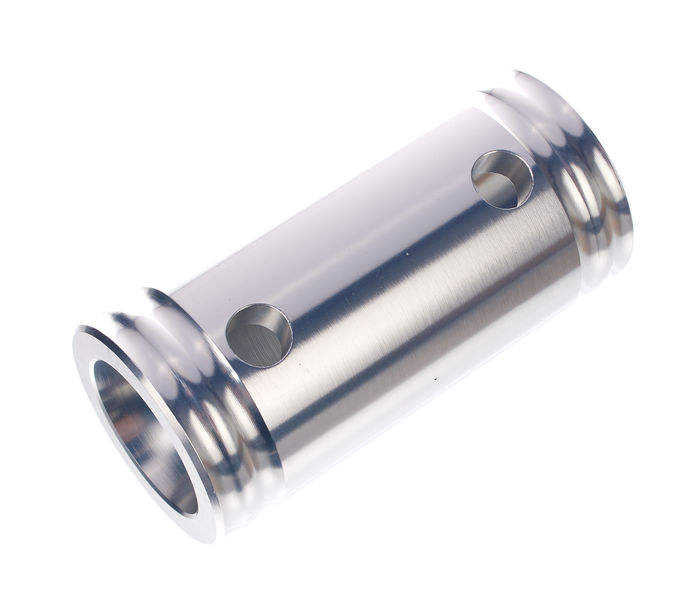

This 50mm Female Truss Spacer creates a short fixed-length extension between compatible conical truss components.
DragonEvent can customize the spacer from:
70mm to 150mm
with two finish options:
Silver / Natural Aluminum
or
Black
The spacer uses female receiver ends, so it works together with the appropriate compatible conical couplers, pins and clips rather than functioning as a complete connector by itself.
For other connection and mounting parts, browse Truss & Rigging Accessories. DragonEvent groups connectors, clamps and replacement connection parts in this section.

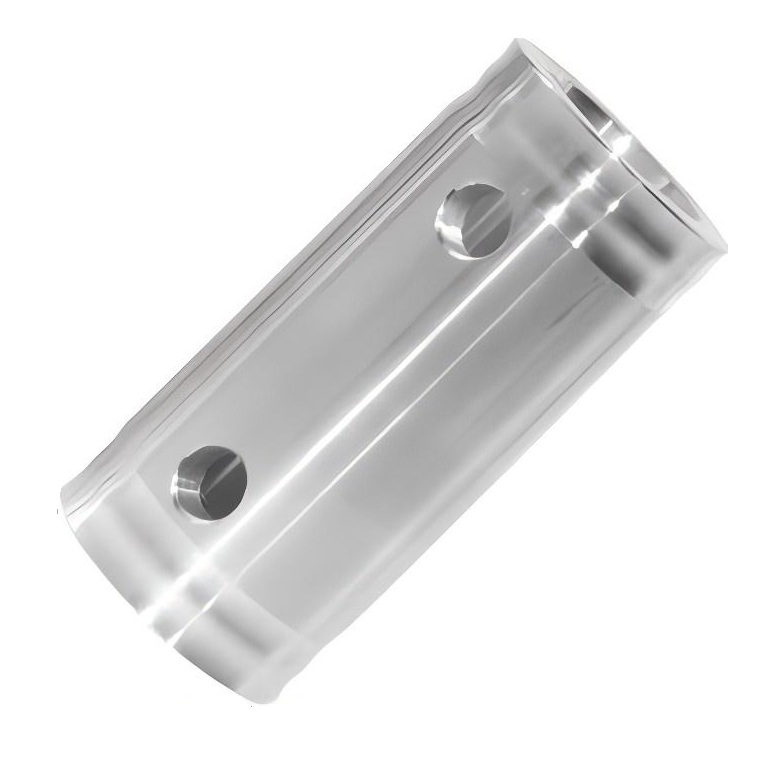

Instead of offering only one standard spacer length, DragonEvent can produce fixed lengths from:
70mm to 150mm
approximately:
2.76–5.91 in
This is useful when a customer needs to correct a relatively small dimensional difference in a truss layout.
Typical requests may include:
70mm
80mm
90mm
100mm
105mm
110mm
120mm
130mm
140mm
150mm
The selected spacer is a fixed length, not a telescopic adjustable component.
This version uses female receiver ends.
That means the spacer normally interfaces with compatible male conical couplers or the corresponding connection hardware of the truss system.
The reference product family also distinguishes clearly between:
Female Spacer
Male Spacer
and
Male / Female Spacer
so these connection types should not be treated as interchangeable. Huss Licht & Ton
The spacer body uses approximately:
50mm / 1.97 in outside diameter
matching the common tube size used in many professional conical truss systems.
The reference female spacer is also specified as Ø50mm. Huss Licht & Ton
However, 50mm tube diameter alone does not guarantee compatibility.

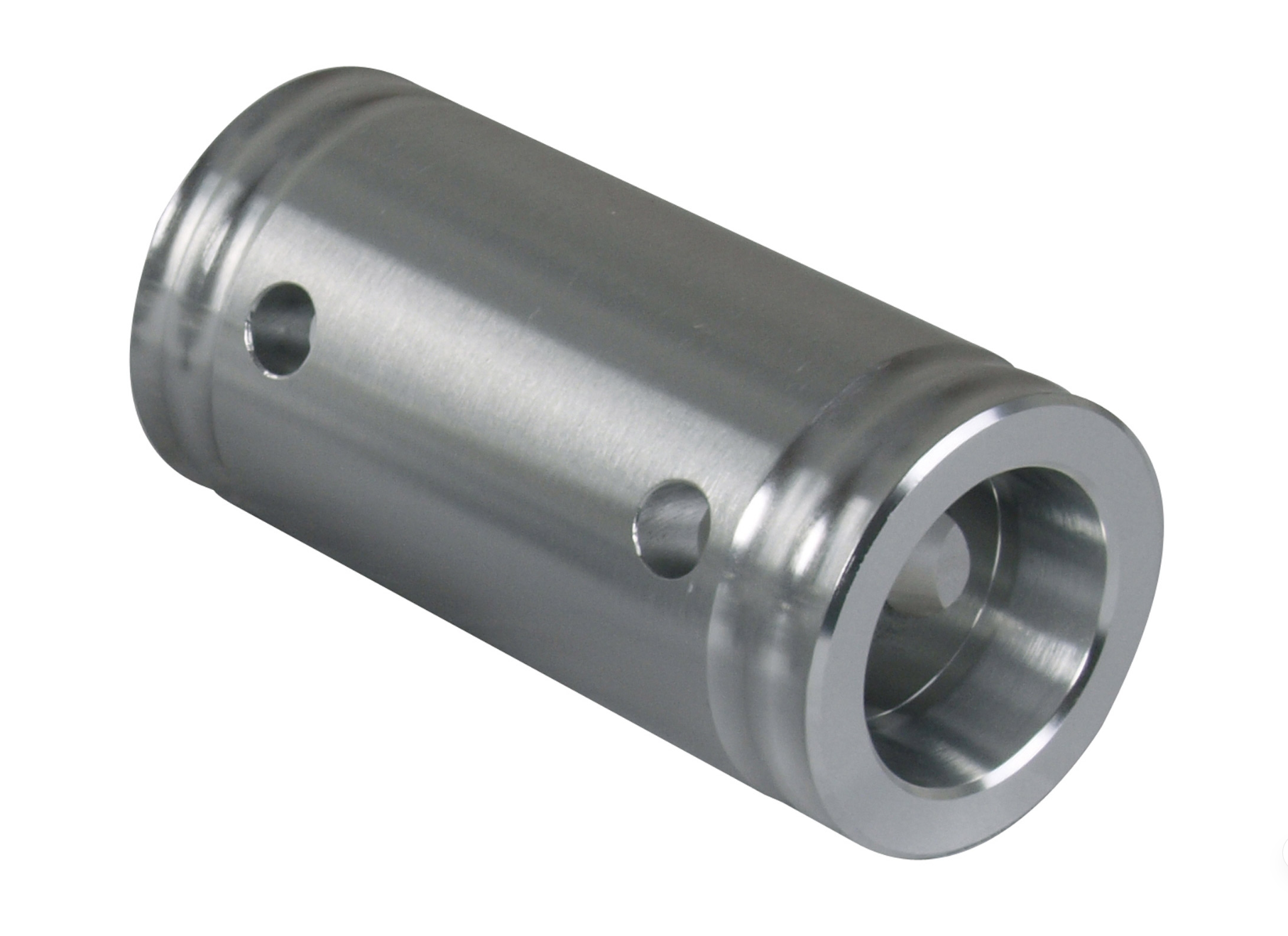

Best for:
natural aluminum truss;
exhibition structures;
visible truss layouts;
standard silver event systems.

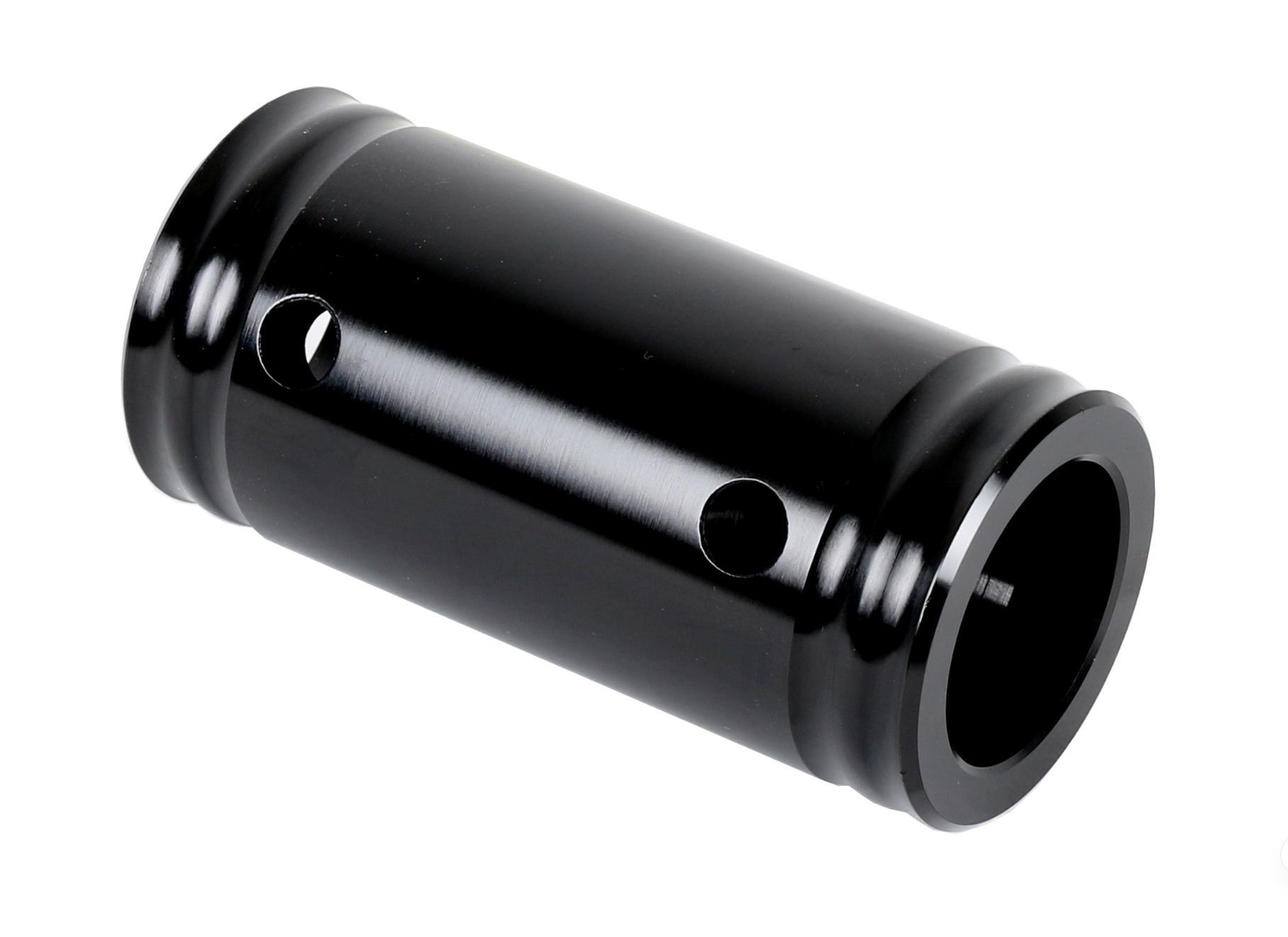

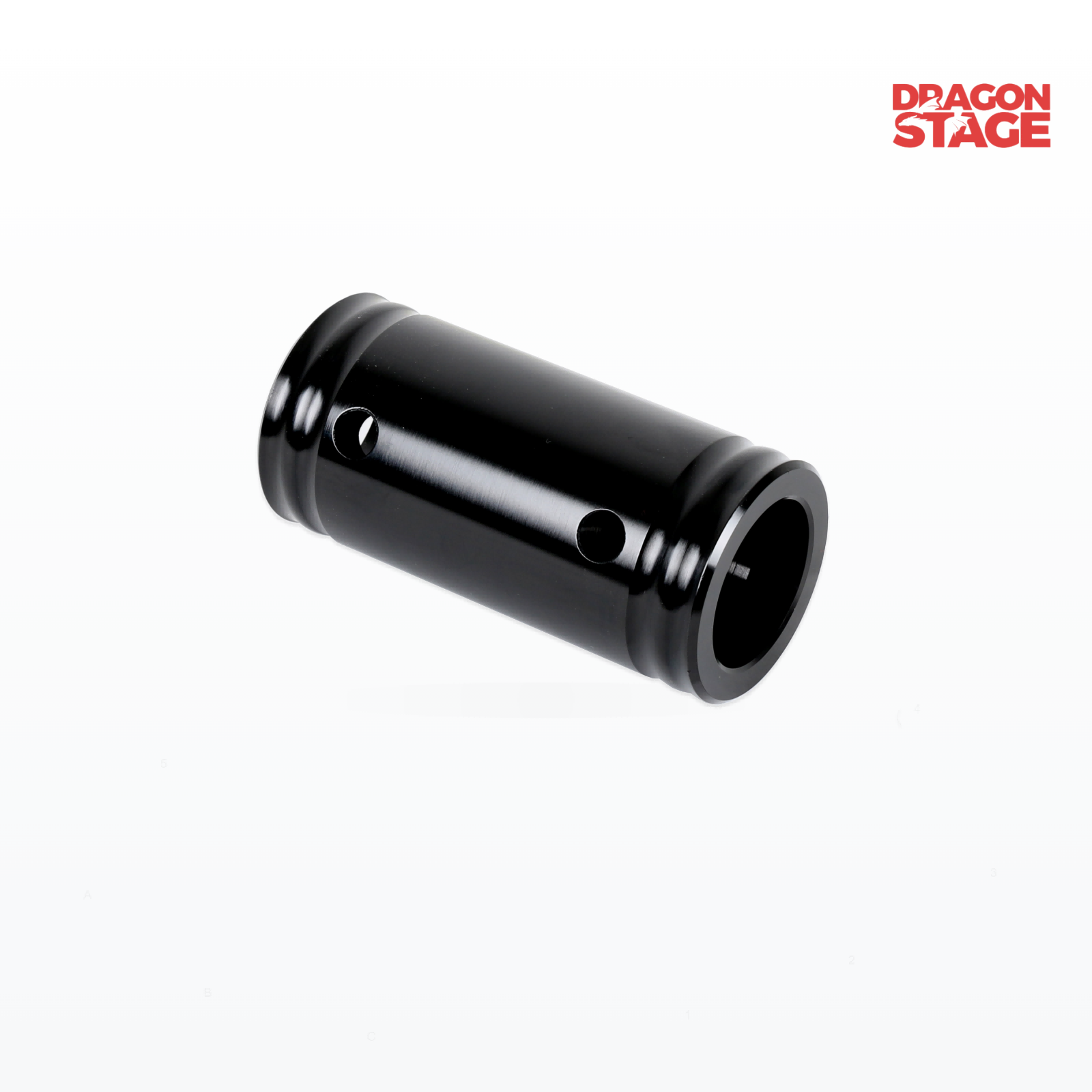

Best for:
black truss;
theatre;
clubs;
DJ setups;
dark event environments;
applications where the connector should visually blend into the structure.
The reference product family is offered in both silver and black spacer versions. Huss Licht & Ton
The main buying reason for this product is not “more truss.”
It is:
I need a small amount of extra length to make the complete structure fit.
Typical situations include:
matching a fixed venue width;
correcting the final dimension of a rectangular frame;
adjusting distance around a corner block;
completing an exhibition booth;
matching an existing truss inventory;
fine-tuning a DJ or display structure.
pecification | Details |
|---|---|
Product Type | Female Truss Spacer |
Tube Diameter | Approx. 50mm / 1.97 in |
Length Range | 70–150mm |
Imperial Length Range | Approx. 2.76–5.91 in |
Length Type | Fixed / Custom |
Connection Style | Female-to-Female |
Truss System | Compatible Conical / Spigot Truss |
Finish Option 1 | Silver / Natural Aluminum |
Finish Option 2 | Black |
Main Application | Short-Length Truss Spacing / Dimension Adjustment |
Connector Hardware | According to Selected System |
Weight | Varies by Length |
Before ordering, confirm:
Tube Diameter + Conical Coupler Size + Pin Diameter + Receiver Geometry + Existing Truss System
Do not assume all 50mm truss spacers are interchangeable.
If the total required structure length does not match available straight truss sections exactly, a short spacer can make up the missing distance.
For example:
Required final length:
4.10m
Available truss combination:
2m + 2m = 4.00m
A suitable:
100mm spacer
may provide the missing dimensional difference—provided the complete truss configuration and connection system are compatible.
Spacers are often useful around:
box corners;
junction blocks;
multi-way corners;
special truss layouts.
They allow the designer or installer to achieve the required overall dimension without replacing an entire longer section.
For corner and junction components, see Corners & Junctions. DragonEvent
Exhibition booth dimensions are often fixed by the venue.
A structure may need to fit precisely within:
3m / 4m / 6m booth dimensions
while existing truss inventory may not divide perfectly into that dimension.
A short custom spacer can help close the remaining gap.
Small DJ and display structures often use shorter total spans.
In those cases, even a 70–150mm dimensional difference can be visually noticeable or prevent the final frame from fitting properly.
Rental companies can keep several common spacer lengths to make existing truss inventory more flexible.
Rather than purchasing a completely new straight truss section for every unusual dimension, a small spacer may solve the problem.
Determine:
Required Overall Length – Existing Truss Combination = Required Spacer Length
For example:
4.12m required – 4.00m existing truss = 120mm spacer
This is the correct starting point.
DragonEvent offers:
70–150mm custom fixed lengths
Do not choose the closest size if the final dimension actually requires another length.
Measure first.
Use:
Silver spacer → silver truss
Black spacer → black truss
when visual consistency matters.
Because this is a female spacer, confirm what is connecting to both ends.
You may need:
Male Conical Coupler + Pin + R-Clip
depending on the existing truss configuration.
If the spacer will become part of a structural truss span, do not evaluate it only as a loose accessory.
The complete:
truss + spacer + coupler + pin + load condition
must be compatible.
If you already have compatible truss and only need to correct one short dimension:
1 × Female Spacer
plus the required existing connection hardware may be enough.
If you do not already have the connection parts, the practical package may be:
**1 × Female Spacer
2 × Compatible Conical Couplers
Matching Pins
Matching R-Clips**
depending on the actual truss system.
Do not automatically order extra hardware until the existing connector arrangement is confirmed.

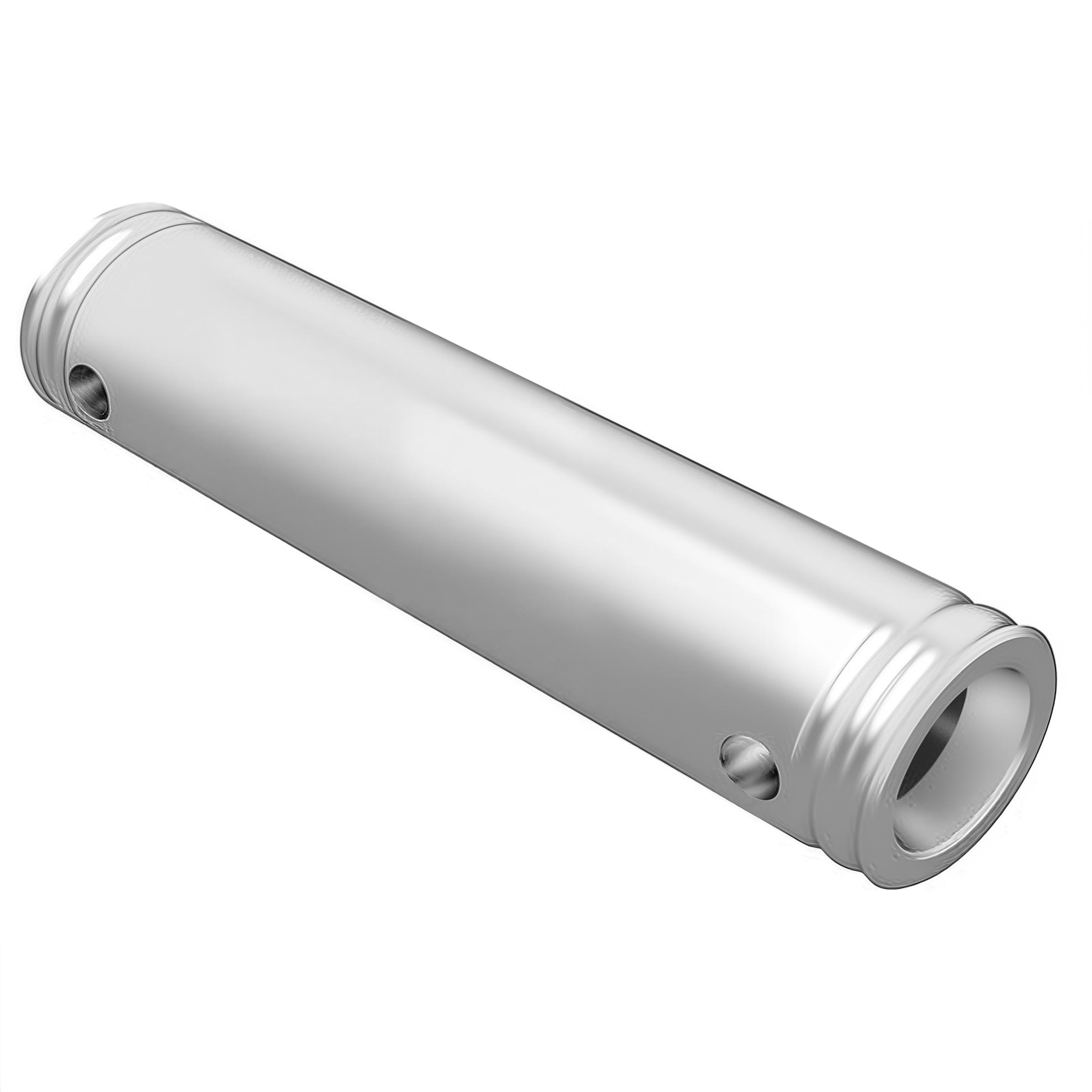

105mm is only one common spacer length.
Your actual requirement may be:
90mm, 120mm or 150mm
Measure the finished structure first.
This product is made to a specific fixed length.
It does not telescope from 70 to 150mm.
Each ordered SKU should have its own actual length.
Female, male and male/female spacers use different connector arrangements.
Choose according to the existing truss ends.
“50mm” is not enough information.
Two truss systems may both use 50mm tubes but different conical hardware.
A spacer is most useful for small dimensional corrections.
If you need several hundred millimeters or more, a suitable straight truss section may be cleaner and more practical.
Browse Straight Truss for standard truss lengths. DragonEvent
Adding a spacer changes the connection arrangement.
Do not automatically assume the original truss span retains exactly the same rated capacity without system data.
For meaningful structural or suspended loads, use verified data for the complete configuration.
For main truss sections:
For frames, corners and multi-way structures:
For conical connectors, pins, clips and other connection hardware:
It adds a short fixed distance between compatible truss components when standard truss lengths do not produce the exact required overall dimension.
DragonEvent can customize fixed spacer lengths from:
70mm to 150mm
approximately:
2.76–5.91 in
No.
105mm is only one possible length.
You can choose another length within the 70–150mm range.
No.
Each spacer is manufactured to a fixed selected length.
Two options:
Silver / Natural Aluminum
and
Black.
Both ends use female receiver-style connections.
They require compatible mating conical connection hardware.
The reference female spacer family is used across compatible F-series systems, but DragonEvent compatibility should still be confirmed by actual connector dimensions rather than relying only on the series name. Huss Licht & Ton
Normally a female-to-female connection requires the appropriate compatible male conical coupler between the two receiver ends.
Confirm your existing hardware before ordering.
That depends on the selected package.
Specify whether you need:
spacer only
or
spacer + couplers + pins + clips.
It may be physically possible in some systems, but if a larger extension is needed, using a correctly sized straight truss section is usually the cleaner solution.
Only after confirming compatibility and verified load data for the complete truss configuration.
Do not assign a structural rating from the spacer alone.
