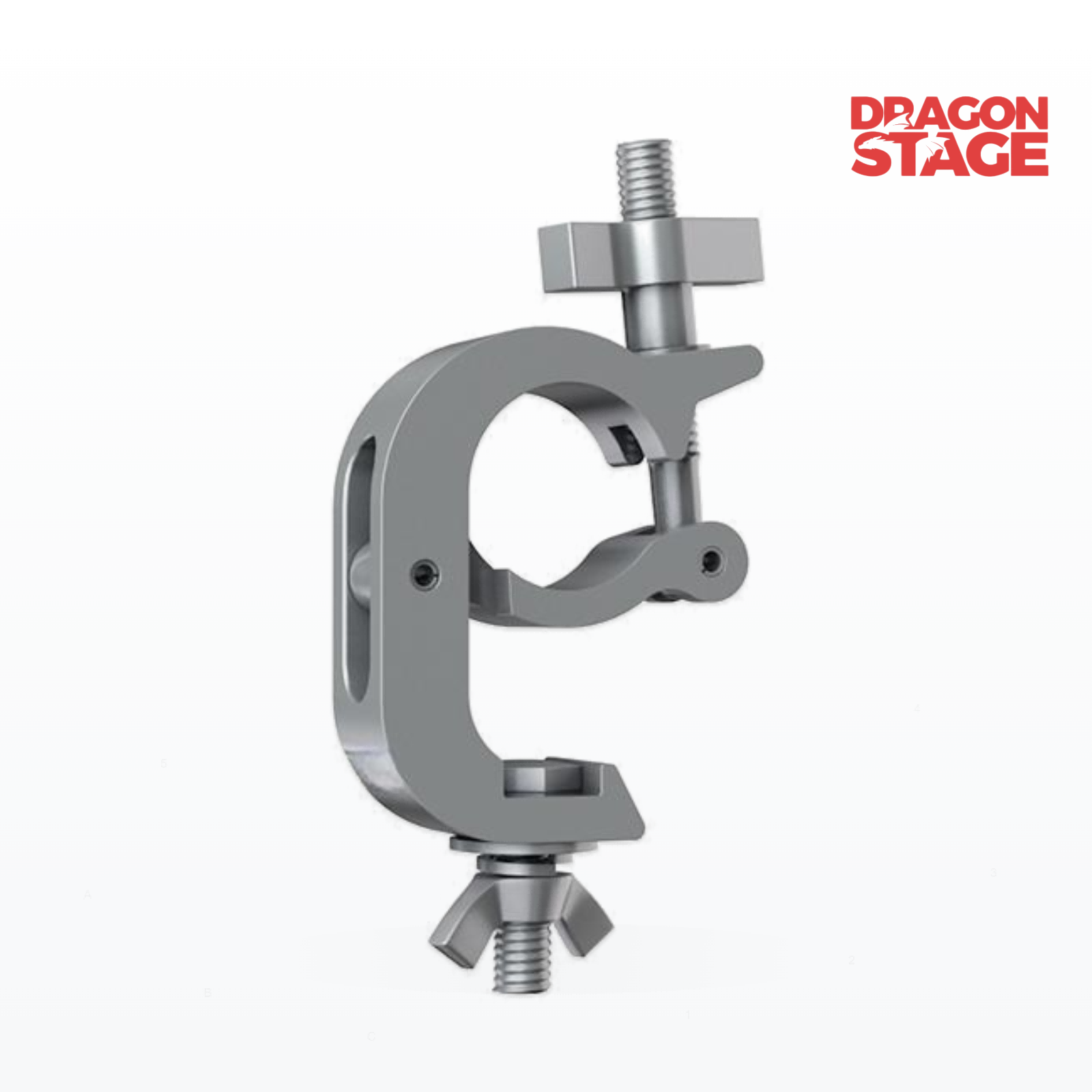

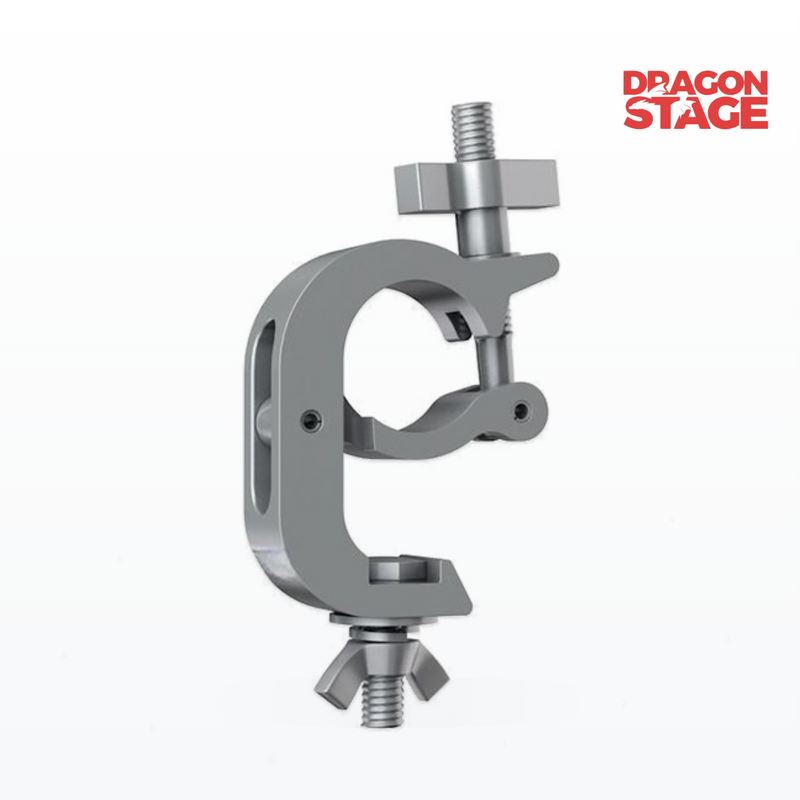

250kg Aluminum Trigger Clamp for Stage Lighting & Event Truss

• 6061-T6 Aluminum Construction
  Made from 6061-T6 aluminum according to the supplied specification.

• 250kg Safe Load Capacity
  The supplied product specification states a maximum safe load capacity of 250kg.

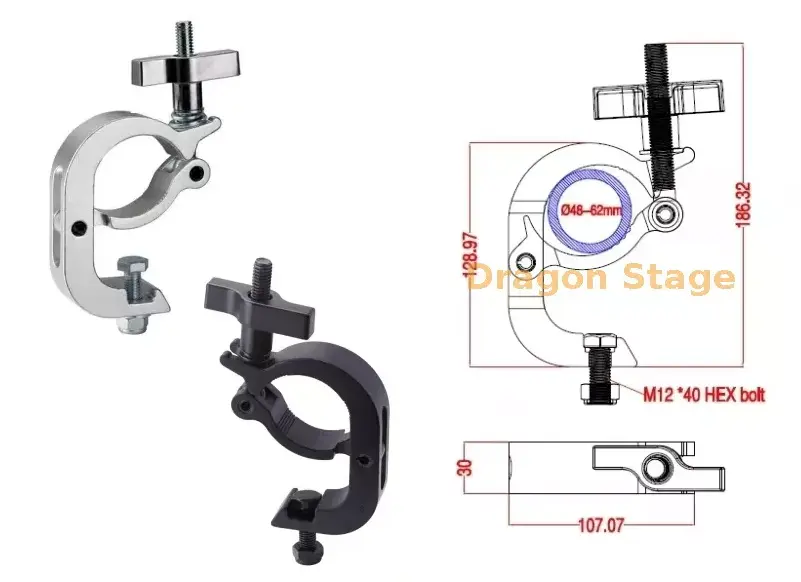

• 48–62mm Pipe Compatibility
  Designed for compatible round pipes with diameters from 48mm to 62mm according to the supplied specification.

• 30mm Profile Width
  The compact 30mm width is suitable for professional stage and event equipment mounting applications.

• Trigger-Style Mounting Design
  The open trigger configuration allows compatible equipment to be positioned and secured efficiently during installation.

• Silver or Black Finish
  Available with silver polished or black anodized surface treatment.

• Lightweight for Its Load Class
  Each clamp weighs approximately 0.53kg, making it practical for stage crews handling multiple lighting fixtures.

• Suitable for Stage & Event Production
  Designed for compatible stage lighting, concert, entertainment and event truss applications.

The DragonEvent Aluminum Trigger Clamp can be considered for compatible:

• Stage lighting fixtures

• Concert lighting systems

• Festival lighting

• DJ and entertainment production

• Event truss structures

• Exhibition lighting

• Theatre lighting

• Moving-head lighting

• LED stage fixtures

• Temporary event structures

• Professional production setups

Its 48–62mm pipe range should be checked against the actual truss tube diameter before ordering.

Installation & Compatibility

Before installation, confirm that the clamp matches the intended truss and fixture configuration.

1. Check the pipe diameter
   The supplied specification identifies a compatible range of 48–62mm.

2. Check the fixture mounting point
   Confirm that the lighting fixture or equipment can be securely connected to the clamp.

3. Confirm the load requirement
   The stated safe load capacity is 250kg. The actual installation must also remain within the limitations of the supporting truss, pipe, fixture and complete connection system.

4. Inspect the clamp before use
   Check the clamp, threaded components and contact surfaces for visible damage, deformation or excessive wear.

5. Secure the clamp completely
   The trigger mechanism should be properly engaged and the fastening hardware securely tightened before the equipment is placed into service.

6. Check the complete support system
   The clamp's stated capacity should not be treated as the capacity of the entire truss or suspended lighting system.

Safety Considerations

The supplied product information states a 250kg safe load capacity. This figure applies to the product specification provided and should not automatically be interpreted as approval for every possible installation configuration.

The supporting truss, pipe, fixture, fasteners and mounting arrangement must all be suitable for the intended load.

For overhead or structurally significant stage lighting installations, the complete rigging arrangement should be reviewed according to the applicable project requirements.

1. What is this aluminum trigger clamp used for?

It is designed for mounting compatible stage lighting fixtures and equipment to suitable round truss pipes and tubular supports.

2. What material is the clamp made from?

The supplied specification identifies the material as 6061-T6 aluminum.

3. What pipe diameter does it fit?

The supplied specification gives a suitable pipe diameter range of 48–62mm.

4. What is the safe load capacity?

The stated safe load capacity is 250kg.

5. How wide is the clamp?

The product width is 30mm.

6. What surface finishes are available?

The supplied options are silver polishing and black anodizing.

7. How much does one clamp weigh?

The supplied product weight is approximately 0.53kg per unit.

8. Is this clamp suitable for stage lighting?

Yes. It is designed as a stage lighting and truss mounting accessory for compatible applications.

9. Can it be used with a 50mm truss pipe?

A 50mm pipe falls within the supplied 48–62mm compatible diameter range. The fixture connection and complete installation should still be checked before use.

10. How is this clamp different from a conventional closed coupler?

The trigger-style configuration is intended to make hanging and securing compatible equipment more convenient during setup. The source description specifically highlights its open-face design and additional hanging security while the clamp is being positioned.
