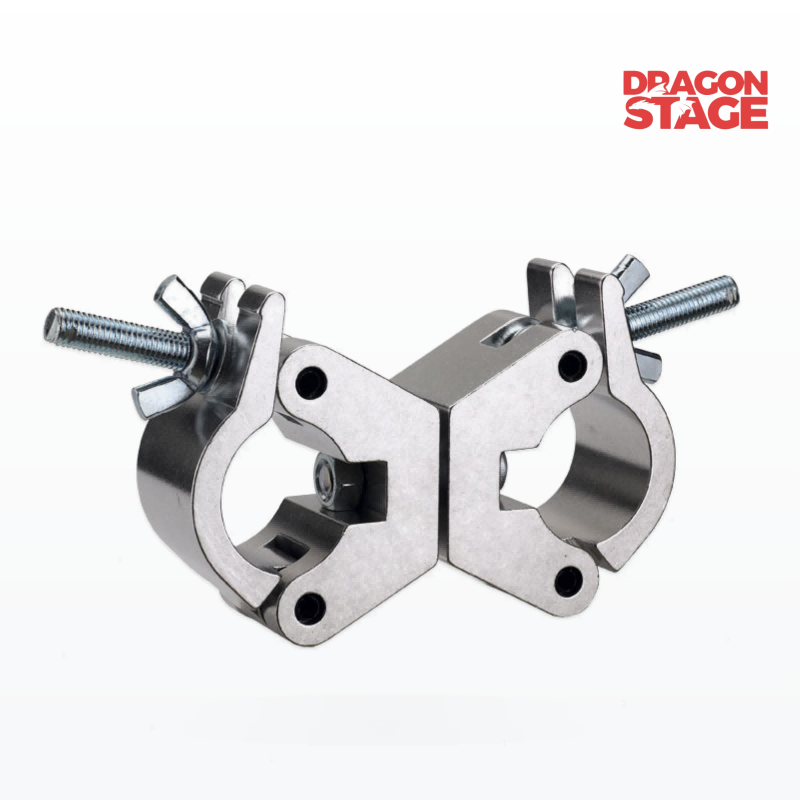

150kg Aluminum Truss Hook for Stage Lighting and 28–35mm Tube Mounting

• 150kg Maximum Safe Load-Bearing Capacity
  The supplied product specification states a maximum safe load-bearing capacity of 150kg.

• 28–35mm Round Tube Compatibility
  Designed for compatible round pipes with an outer diameter of 28–35mm.

• Aluminum Alloy Construction
  Lightweight aluminum alloy construction for compatible tube-mounting applications.

• 30mm Product Width
  A compact width for installations where mounting space is limited.

• 100mm Product Height
  The specified overall product height is 100mm.

• Lightweight 0.26kg Unit Weight
  The approximate product weight is 0.26kg per unit.

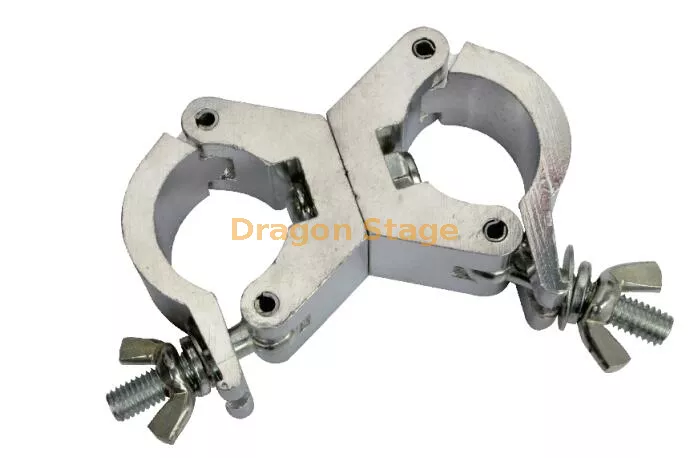

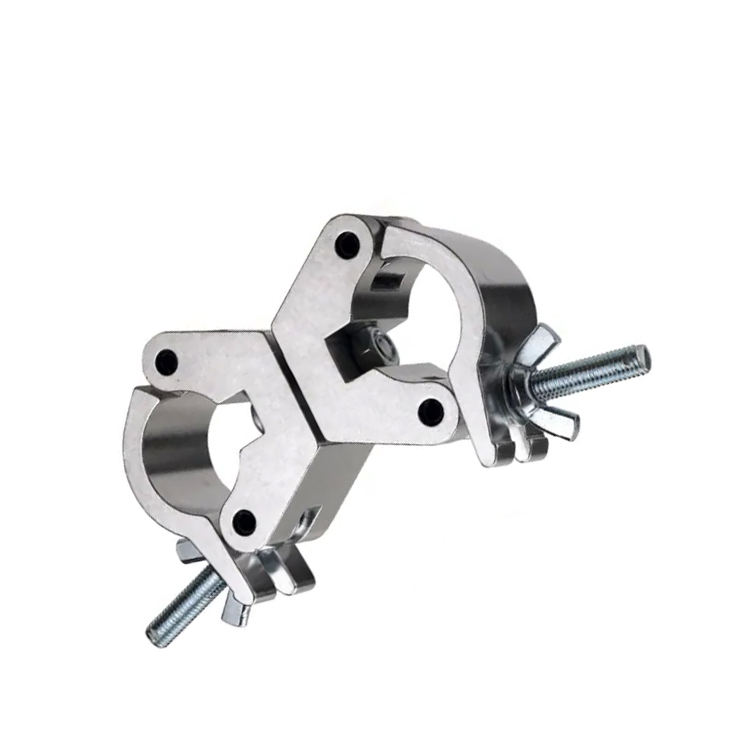

• Polished Natural Aluminum Finish
  A polished natural aluminum surface option.

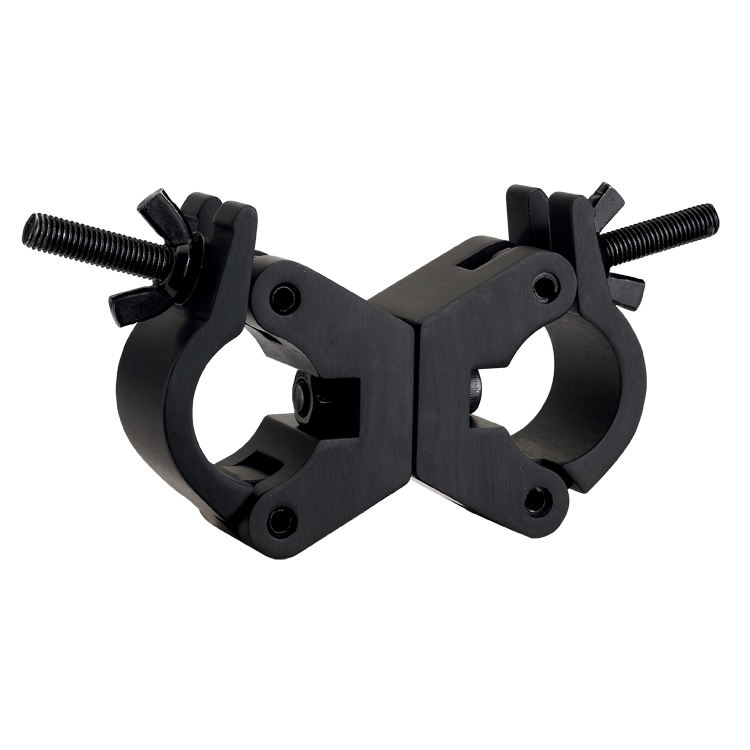

• Black Anodized Finish
  A black finish option for stage and entertainment environments.

• Custom Surface Treatment
  Other colors and surface treatment processes can be customized.

• Suitable for Event Applications
  Intended for compatible stage lighting, exhibition and tubular mounting applications.

The DragonEvent Aluminum Truss Hook can be considered for compatible installations involving:

• Stage lighting equipment

• Small-diameter tubular structures

• Exhibition booth displays

• Event production equipment

• Entertainment lighting setups

• Portable display structures

• Performance and event venues

• Promotional display frameworks

• Compatible tube-mounting applications

Compatibility depends on the actual tube dimensions and the equipment's mounting interface.

Compatibility & Installation Notes

Before ordering or installation, review the following points:

1. Check the tube diameter
   The specified compatible round pipe outer diameter is 28–35mm.

2. Confirm the equipment connection
   Ensure the hook's connection arrangement is suitable for the intended lighting fixture or equipment. The exact fastening mechanism has not been confirmed in the supplied specifications.

3. Respect the stated load limit
   The specified maximum safe load-bearing capacity is 150kg. Do not exceed the applicable product limit.

4. Verify the complete support system
   The supporting tube, truss, fixture, fasteners and installation configuration must all be suitable for the intended load.

5. Inspect before use
   Check the hook body and mounting components for cracks, deformation, damage or excessive wear before installation.

6. Confirm the required finish
   Select polished natural aluminum or black anodized finish. Confirm customized finishes before placing an order.

Load & Safety Information

The supplied product specification states a maximum safe load-bearing capacity of 150kg. This figure should not be treated as an independent approval of the complete installation.

The actual allowable load depends on the supporting structure, tube condition, equipment weight, mounting arrangement and other applicable installation requirements. For overhead lighting or equipment installed above people, verify the complete support system and applicable project requirements before use.

1. What is this aluminum truss hook used for?

It is intended for mounting compatible stage lighting and other equipment to suitable round tubular structures.

2. What pipe diameter does it fit?

The supplied specification identifies compatibility with round pipes measuring 28–35mm in outer diameter.

3. What is the maximum safe load-bearing capacity?

The specified maximum safe load-bearing capacity is 150kg.

4. What material is the product made from?

The product is specified as aluminum alloy. The exact alloy grade has not been confirmed.

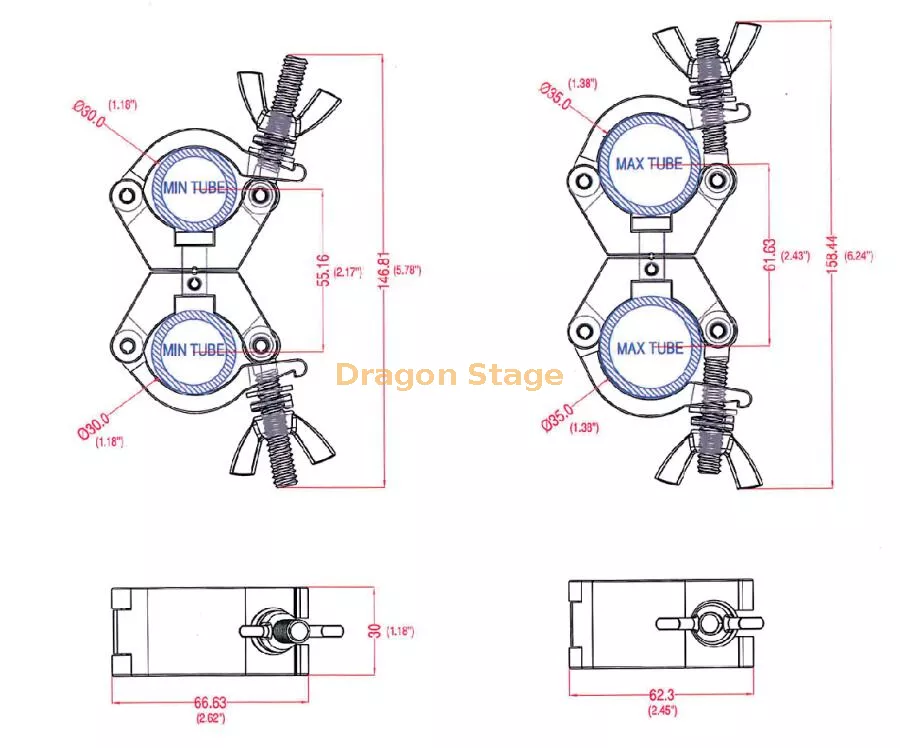

5. What are the product dimensions?

The specified product width is 30mm and the product height is 100mm.

6. How much does it weigh?

The approximate unit weight is 0.26kg.

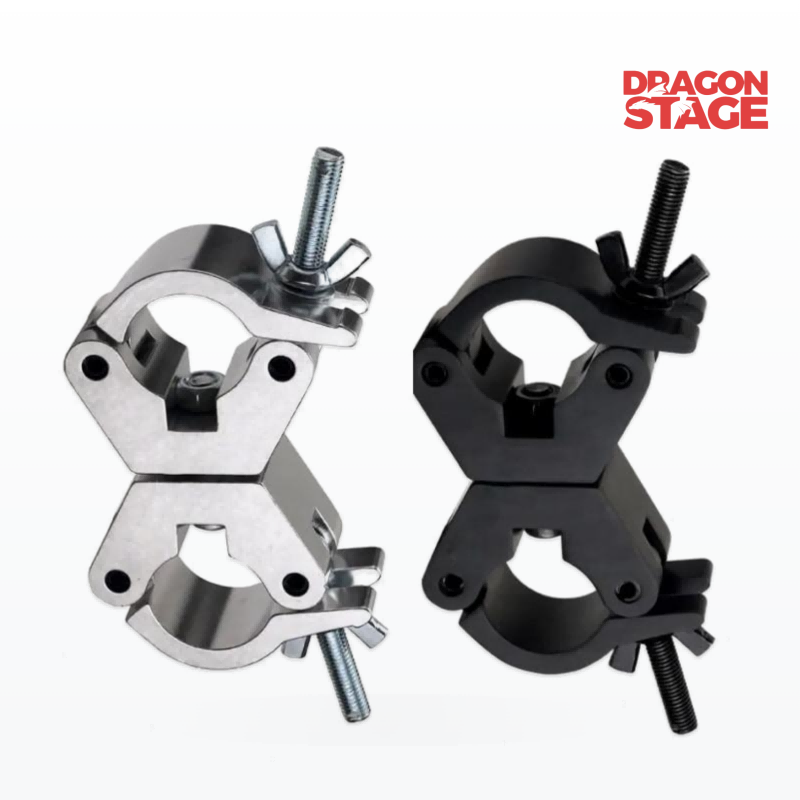

7. What finishes are available?

The standard options are polished natural aluminum and black anodized aluminum. Other colors and surface treatments can be customized.

8. Is it suitable for stage lighting?

It can be considered for compatible stage lighting applications when the tube diameter, equipment connection and complete mounting arrangement are appropriate.

9. Can it be used with every 28–35mm tube?

Not necessarily. Tube diameter alone does not guarantee compatibility. Confirm the tube profile, connection arrangement and equipment mounting requirements before ordering.

10. Can it be used for overhead lighting?

The specified 150kg capacity alone does not establish approval for overhead installation. The complete support system and applicable project requirements must be verified before use.
