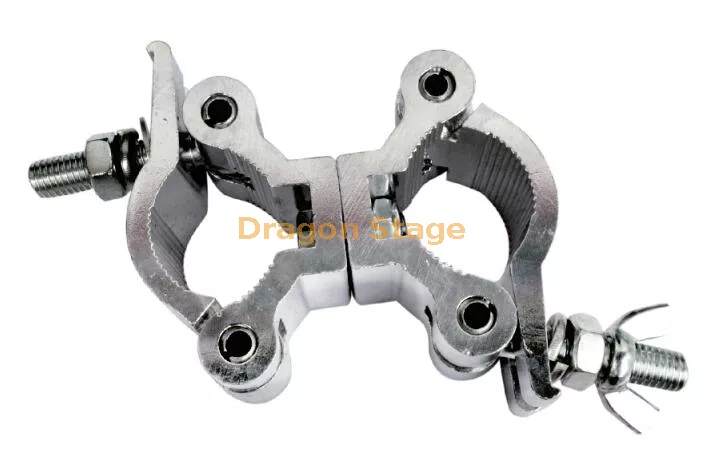

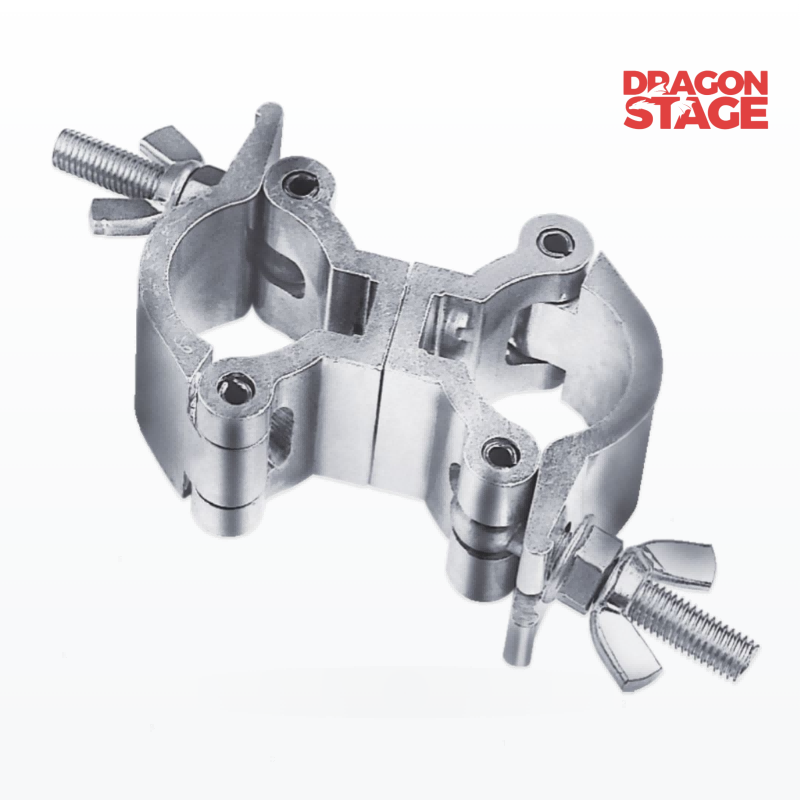

300kg Aluminum Stage Lighting Truss Clamp for 35–40mm Tubes

• 300kg Maximum Safe Load-Bearing Capacity
  The supplied product specification states a maximum safe load-bearing capacity of 300kg.

• 35–40mm Round Tube Compatibility
  Designed for compatible round pipes with diameters from 35mm to 40mm.

• Aluminum Alloy Construction
  Made from aluminum alloy for stage lighting and event mounting applications.

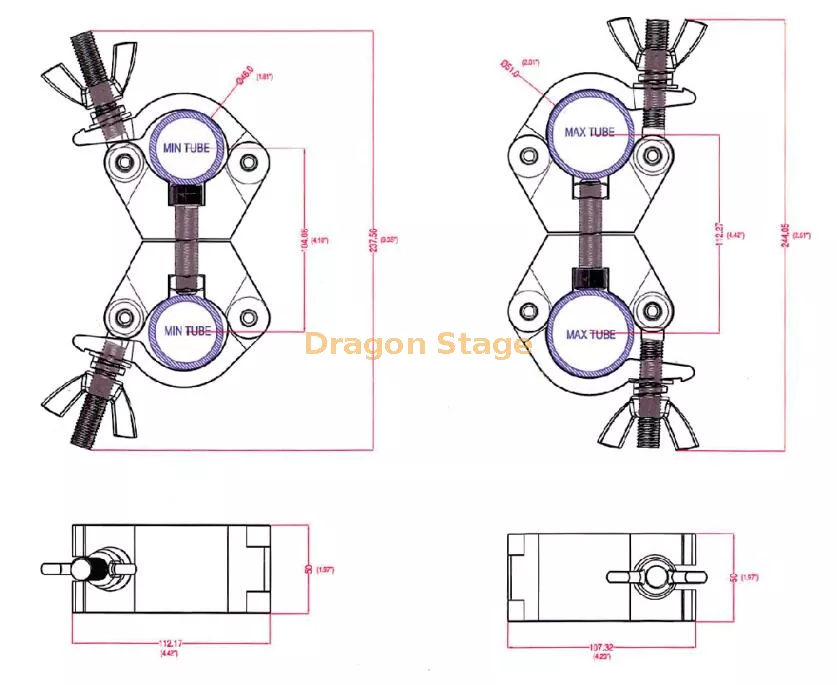

• 50mm Product Width
  The specified product width is 50mm.

• 120mm Product Height
  The specified product height is 120mm.

• Approx. 0.7kg Unit Weight
  The product weighs approximately 0.7kg per unit.

• Polished Natural Aluminum Finish
  The natural aluminum version features a polished surface.

• Black Anodized Finish
  A black anodized surface option is also available.

• Custom Surface Treatment
  Other colors and surface treatment processes can be customized.

• Suitable for Event Lighting Mounting
  Designed for compatible stage lighting fixtures and tubular support structures.

The DragonEvent Aluminum Stage Lighting Truss Clamp can be considered for compatible:

• Small stage lighting systems

• DJ lighting setups

• Club lighting

• Exhibition lighting

• Trade show structures

• Event lighting

• Theatre and performance lighting

• Portable stage structures

• Entertainment lighting

• Small truss systems

• Tubular lighting structures

The source page classifies the referenced product under lighting hooks/clamps and indicates compatibility with tubular truss applications.

Compatibility & Installation Notes

Before ordering or installation, confirm the complete mounting configuration.

1. Check the tube diameter
   This model is specified for 35–40mm round pipes.

2. Check the fixture mounting interface
   Confirm that the intended lighting fixture can be securely connected to the clamp and that the complete mounting arrangement is suitable.

3. Respect the stated load limit
   The supplied specification gives a maximum safe load-bearing capacity of 300kg. The actual installation must also remain within the limitations of the supporting truss, pipe, fixture and connection hardware.

4. Inspect before use
   Check the clamp and associated components for visible deformation, cracks, damage or excessive wear before installation.

5. Confirm the complete support system
   The clamp's stated capacity should not be interpreted as the capacity of the complete truss structure. The supporting structure, lighting fixture and connection hardware must also be suitable for the intended load.

6. Confirm customized finish requirements
   If a finish other than polished natural aluminum or black anodized is required, confirm customization availability before ordering.

Safety Considerations

The supplied specification states a maximum safe load-bearing capacity of 300kg.

This rating should be evaluated together with the complete installation. The permissible load in an actual application can depend on the supporting truss, lighting fixture, fasteners, installation orientation and overall structural configuration.

For overhead or structurally significant lighting installations, verify the complete system requirements before use.

1. What is this aluminum truss clamp used for?

It is designed to mount compatible stage lighting fixtures to compatible round truss tubes and tubular support structures.

2. What pipe diameter does it fit?

This model is specified for 35–40mm round pipe diameters.

3. What is the maximum safe load-bearing capacity?

The supplied specification states a maximum safe load-bearing capacity of 300kg.

4. What material is the clamp made from?

The clamp is made from aluminum alloy.

5. What is the width of the clamp?

The specified product width is 50mm.

6. What is the height of the product?

The specified product height is 120mm.

7. How much does the clamp weigh?

The specified product weight is approximately 0.7kg.

8. What finishes are available?

The standard options are polished natural aluminum and black anodized aluminum. Other colors or surface treatment processes can be customized.

9. Is it suitable for DJ and event lighting?

Yes. It can be considered for compatible DJ, event, exhibition and stage lighting applications where the tube diameter and fixture mounting arrangement meet the product requirements.

10. Can it be used with any stage truss?

No. The specified applicable pipe diameter is 35–40mm. Confirm the actual tube diameter and fixture mounting arrangement before ordering.

11. Does the 300kg rating mean the complete lighting installation can support 300kg?

No. The clamp's stated load-bearing capacity does not automatically establish the capacity of the complete installation. The supporting truss, lighting fixture, fasteners and overall structure must also be suitable for the intended load.
