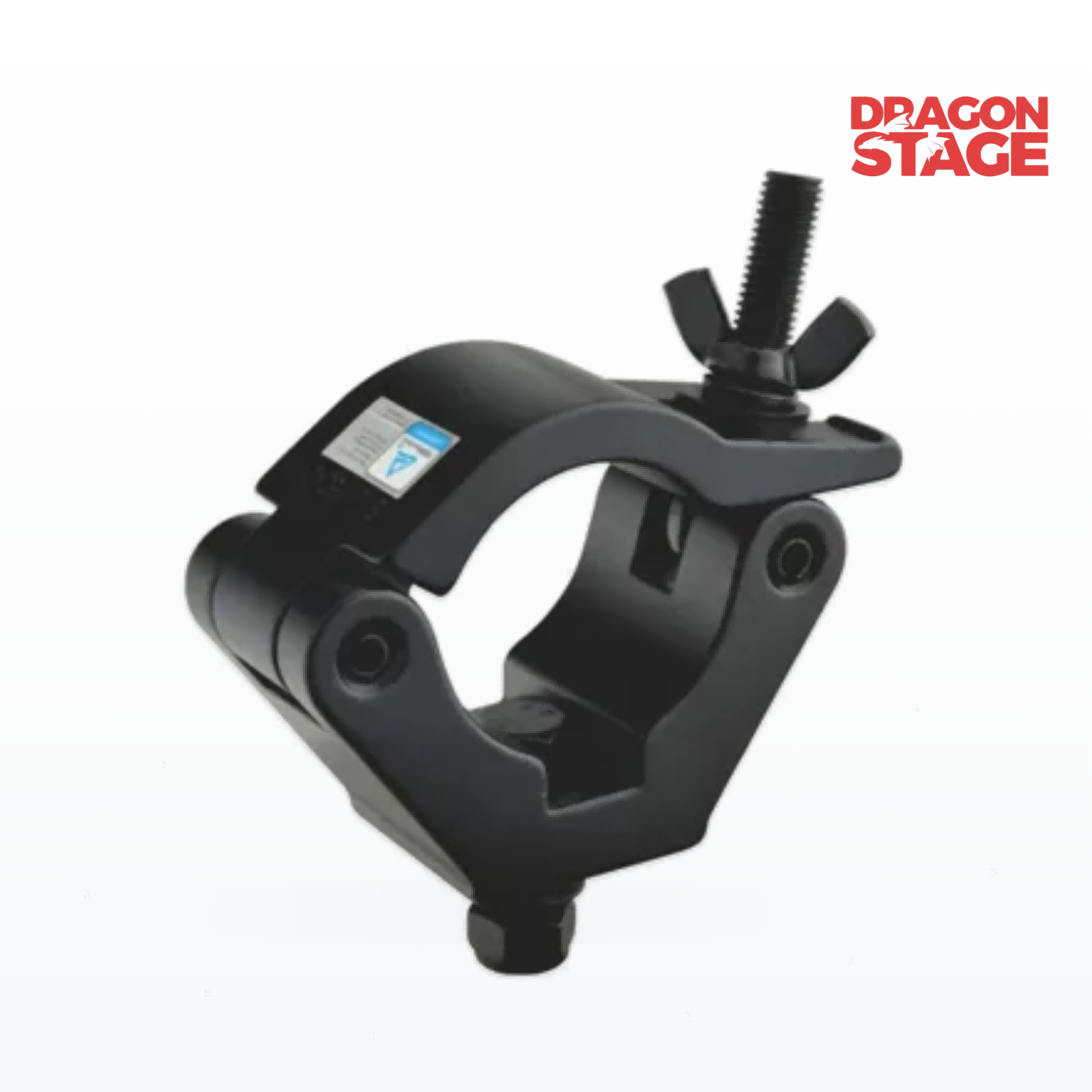

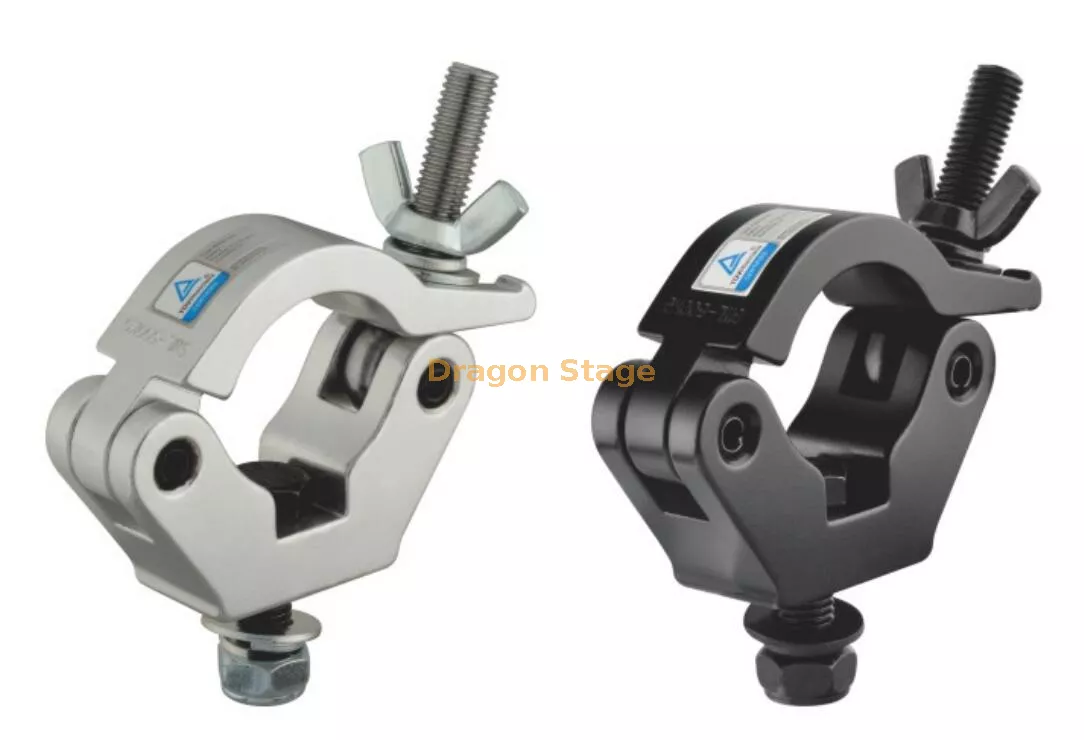

Heavy Duty Aluminum Truss Clamp for Stage Lighting & Moving Head Mounting

• 6061 Aluminum Construction
  Manufactured from 6061 aluminum for a lightweight yet robust stage lighting mounting solution.

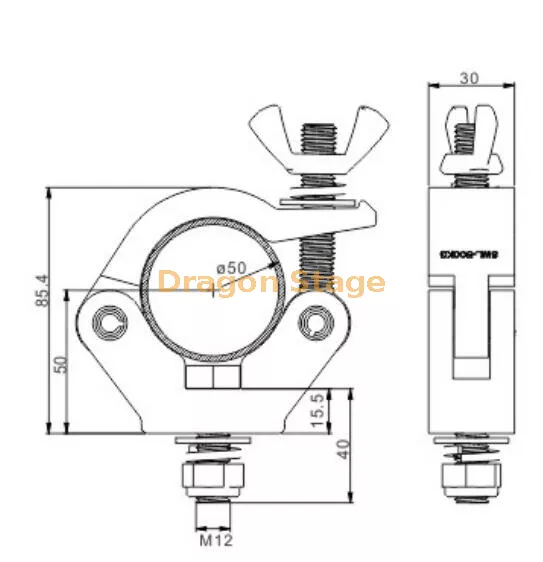

• 48–51mm Tube Compatibility
  Designed for compatible round tubes with an outer diameter of 48–51mm.

• 500kg Safe Working Load
  The supplied product specification gives an SWL of 500kg.

• Heavy-Duty Clamp Design
  Suitable for applications requiring a substantial connection between lighting equipment and a compatible truss tube.

• Approx. 0.45kg Unit Weight
  The specified product weight is approximately 0.45kg per clamp.

• Suitable for Stage Lighting
  Suitable for compatible stage lights, moving heads, PAR lights, spotlights and other event lighting equipment.

• Suitable for Event & Concert Production
  Useful for professional stage, concert, entertainment and event lighting installations.

The DragonEvent Heavy Duty Aluminum Truss Clamp can be considered for compatible:

• Concert stage lighting

• Moving-head light mounting

• PAR light installation

• Spotlight mounting

• Laser light mounting

• Theatre lighting

• Festival lighting

• DJ and entertainment lighting

• Event production

• Exhibition structures

• Stage truss lighting

• Temporary event structures

The source product specifically describes applications involving stage lights, PAR lights, spotlights, laser lights and moving-head lights.

Compatibility & Installation Notes

Before ordering or installation, confirm the complete mounting configuration.

1. Check the tube diameter
   This version is specified for compatible 48–51mm round tubes.

2. Check the fixture connection
   Confirm that the intended lighting fixture can be securely connected to the clamp and that the mounting interface is appropriate.

3. Respect the stated SWL
   The supplied product specification gives a 500kg SWL. The actual installation must also remain within the limitations of the supporting truss, tube, fixture and connection hardware.

4. Inspect before installation
   Check the clamp and associated fastening components for visible deformation, cracks, damage or excessive wear.

5. Confirm the complete support system
   The clamp's SWL should not be treated as the load capacity of the complete truss structure. The supporting tube or truss and all associated components must also be suitable for the intended load.

Safety Considerations

The specified 500kg SWL applies to the product specification supplied for this clamp.

The permissible load in an actual installation can depend on the complete assembly, including the supporting tube or truss, fixture, connection hardware, installation orientation and loading conditions.

For overhead or structurally significant lighting installations, confirm the complete system requirements before use.

1. What is this aluminum truss clamp used for?

It is designed to mount compatible stage lighting equipment to compatible round truss tubes and pipe structures.

2. What tube diameter does it fit?

This version is specified for 48–51mm diameter tubes.

3. What material is the clamp made from?

The supplied specification identifies 6061 aluminum.

4. What is the Safe Working Load?

The specified Safe Working Load is 500kg.

5. How much does the clamp weigh?

The supplied product specification gives a unit weight of approximately 0.45kg.

6. Can it be used for moving-head lights?

Yes. The source product identifies moving-head lighting among its intended applications.

7. Can it be used for PAR lights and spotlights?

Yes. The source product describes applications including PAR lights and spotlights.

8. Can it be used with any truss?

No. The clamp is specified for 48–51mm tubes. Confirm the actual tube diameter and mounting arrangement before ordering.

9. Does the 500kg SWL mean every complete lighting installation can support 500kg?

No. The complete installation must also comply with the capacity and limitations of the supporting truss, fixture, fasteners and overall mounting configuration.
