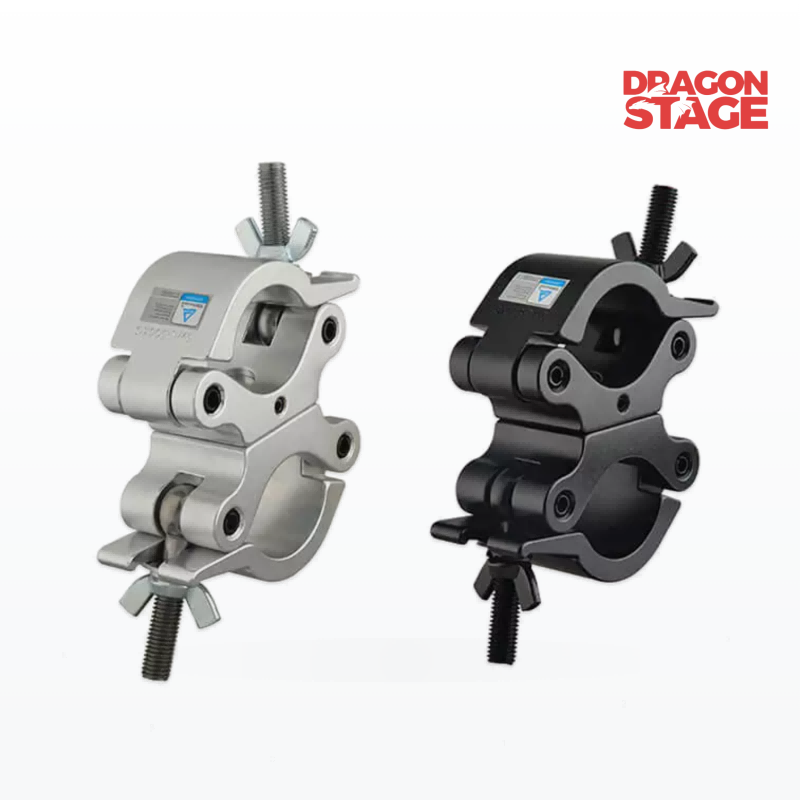

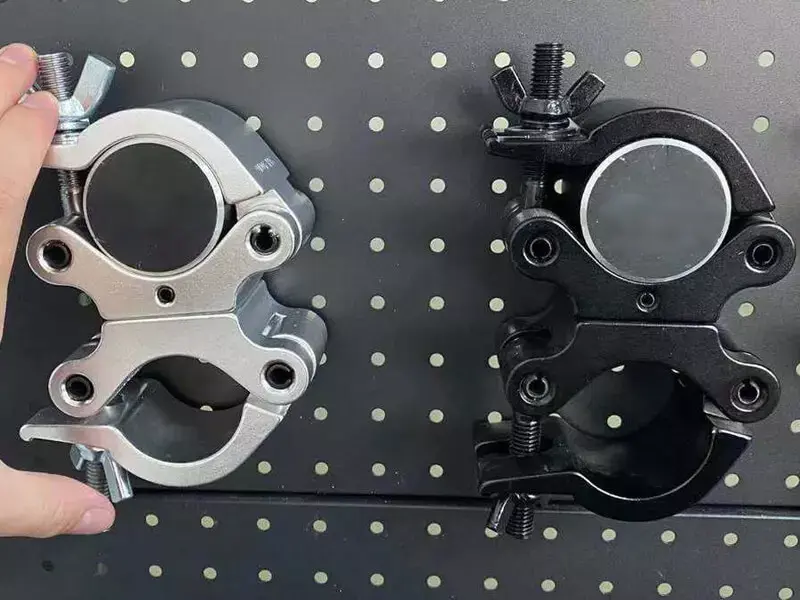

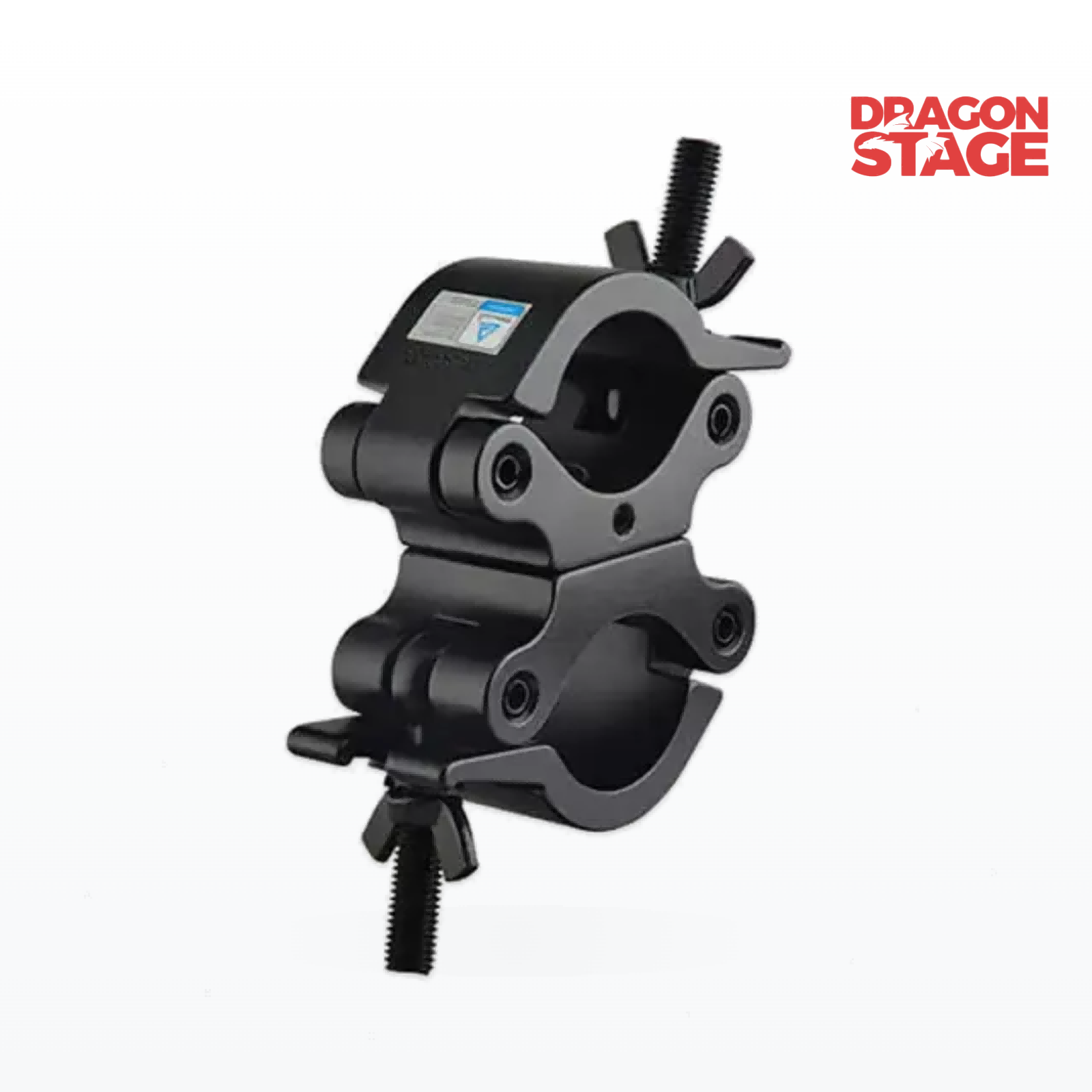

Heavy Duty 6061 Aluminum Truss Clamp for Stage Lighting & Concert Rigging

• 6061 Aluminum Construction
  Made from 6061 aluminum for a robust and practical stage lighting mounting solution.

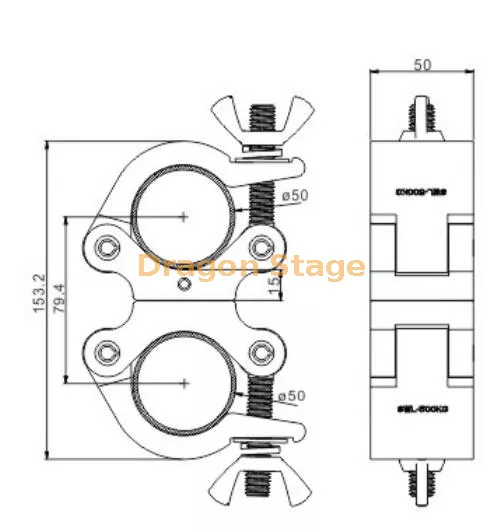

• 48–51mm Tube Compatibility
  Designed for compatible round truss tubes with an outer diameter of 48–51mm.

• 500kg Safe Working Load
  The specified maximum Safe Working Load is 500kg.

• Heavy-Duty Design
  Suitable for applications involving larger professional lighting fixtures and stage truss structures.

• 1.02kg Unit Weight
  The specified unit net weight is approximately 1.02kg.

• Professional Stage Lighting Application
  Designed for hanging stage lights and securing compatible professional lighting fixtures to truss.

• Convenient Fixture Installation
  The source product describes the clamp as convenient for fixing and installing large professional lights.

The DragonEvent Heavy Duty Aluminum Truss Clamp can be considered for compatible:

• Concert stage lighting

• Professional stage lighting

• Moving head light mounting

• Large lighting fixture installation

• Theatre lighting

• Festival lighting

• DJ and entertainment lighting

• Event production

• Exhibition truss lighting

• Stage truss installations

• Professional lighting rigging

The source product specifically identifies heavy-duty stage truss and professional lighting fixture applications, including hanging stage lights and mounting large professional lights.

Compatibility & Installation Notes

Before ordering or installation, confirm the complete mounting configuration.

1. Check the tube diameter
   This model is specified for compatible 48–51mm round tubes.

2. Check the lighting fixture connection
   Confirm that the intended fixture can be securely connected to the clamp and that the mounting arrangement is suitable.

3. Respect the stated SWL
   The specified Safe Working Load is 500kg. The actual installation must also remain within the limitations of the supporting truss, fixture and connection hardware.

4. Inspect before use
   Check the clamp and associated components for visible deformation, cracks, damage or excessive wear before installation.

5. Confirm the complete support system
   The clamp's 500kg SWL should not be interpreted as the load capacity of the complete truss structure. The supporting truss, fixture, connection hardware and installation configuration must also be suitable.

Safety Considerations

The product specification states a 500kg Safe Working Load.

This rating should be considered together with the capacity and limitations of the complete installation. The actual permissible load can depend on the supporting truss, fixture, mounting hardware, installation orientation and loading conditions.

For overhead or structurally significant lighting installations, verify the complete system requirements before use.

1. What is this truss clamp used for?

It is designed to secure compatible professional stage lighting fixtures to compatible round truss tubes.

2. What tube diameter does it fit?

This model is specified for 48–51mm diameter tubes.

3. What material is the clamp made from?

The supplied specification identifies 6061 aluminum.

4. What is the Safe Working Load?

The specified Safe Working Load is 500kg.

5. How much does the clamp weigh?

The specified unit weight is approximately 1.02kg.

6. Is it suitable for large stage lights?

Yes. The source product describes it as a heavy-duty stage truss clamp for professional lighting fixtures and for installing large professional lights.

7. Can it be used for concert lighting?

Yes. Its stage truss and professional lighting application makes it suitable for compatible concert and event lighting setups.

8. Can it be used with any truss?

No. The specified tube range is 48–51mm. Confirm the actual truss tube diameter and mounting configuration before ordering.

9. Does the 500kg SWL mean the complete lighting installation can support 500kg?

No. The clamp rating does not automatically establish the capacity of the complete installation. The supporting truss, lighting fixture, fasteners and overall structure must also be suitable for the intended load.
