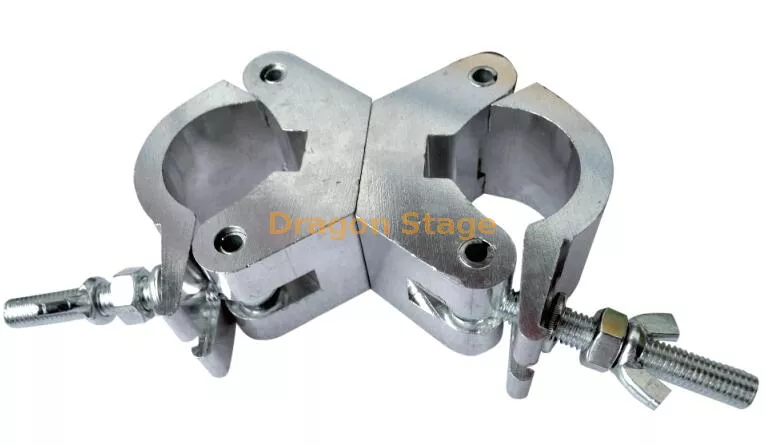

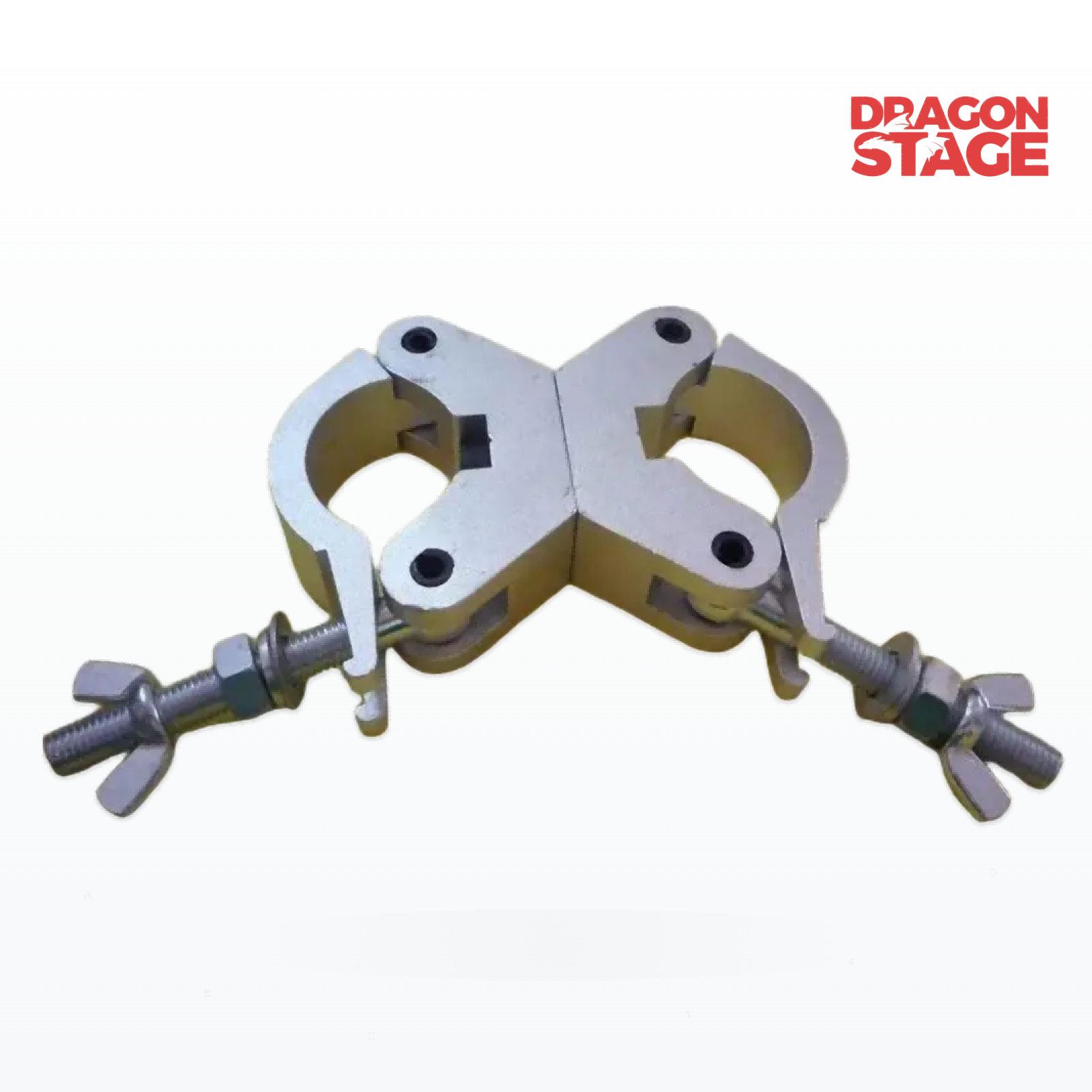

Heavy Duty Aluminum Stage Light Clamp for Concert & Truss Lighting Mounting

• Aluminum Alloy Construction
  Made from aluminum alloy for stage lighting and event truss mounting applications.

• 800kg Maximum Safe Load-Bearing Capacity
  The supplied product specification states a maximum safe load-bearing capacity of 800kg.

• 38–52mm Round Pipe Compatibility
  Designed for compatible round pipes with an outer diameter of 38–52mm.

• 30mm Product Width
  The specified product width is 30mm, providing a compact clamp profile.

• 160mm Product Height
  The specified product height is 160mm.

• Approx. 0.9kg Unit Weight
  The product weighs approximately 0.9kg per unit.

• Natural Aluminum or Black Finish
  Available with a polished natural aluminum finish or black anodized finish.

• Custom Surface Treatment Available
  Other colors and surface treatment processes can be customized.

• Suitable for Stage Lighting
  Designed for compatible lighting fixture mounting on tubular truss structures.

The DragonEvent Heavy Duty Aluminum Stage Light Clamp can be considered for compatible:

• Concert stage lighting

• Live performance lighting

• Festival lighting

• Theatre lighting

• DJ and entertainment lighting

• Event production

• Exhibition lighting structures

• Moving head light mounting

• Stage truss lighting

• Professional luminaire mounting

• Temporary event structures

The source page identifies this product as a stage lighting clamp and states that it can connect with compatible truss systems.

Compatibility & Installation Notes

Before ordering or installation, confirm the complete mounting configuration.

1. Check the pipe diameter
   This model is specified for 38–52mm round pipes.

2. Check the fixture mounting interface
   Confirm that the intended lighting fixture can be securely connected to the clamp and that the complete mounting arrangement is appropriate.

3. Respect the stated load limit
   The supplied specification gives a maximum safe load-bearing capacity of 800kg. The actual installation must also remain within the limitations of the supporting truss, pipe, fixture and connection hardware.

4. Inspect before use
   Check the clamp and associated hardware for visible deformation, cracks, damage or excessive wear before installation.

5. Confirm the complete support system
   The clamp's stated capacity should not be interpreted as the capacity of the complete truss structure. The supporting structure and all associated components must also be suitable for the intended load.

6. Confirm customized finish requirements
   If a finish other than polished natural aluminum or black anodized is required, confirm customization availability before ordering.

Safety Considerations

The supplied specification states a maximum safe load-bearing capacity of 800kg.

This rating should be evaluated together with the complete installation. The permissible load in an actual application can depend on the supporting truss, lighting fixture, fasteners, installation orientation and overall structural configuration.

For overhead or structurally significant lighting installations, verify the complete system requirements before use.

1. What is this aluminum stage light clamp used for?

It is designed to mount compatible stage lighting fixtures to compatible round truss tubes and tubular support structures.

2. What pipe diameter does it fit?

This model is specified for 38–52mm round pipe diameters.

3. What is the maximum safe load-bearing capacity?

The supplied specification states a maximum safe load-bearing capacity of 800kg.

4. What material is the clamp made from?

The clamp is made from aluminum alloy.

5. What is the width of the clamp?

The specified product width is 30mm.

6. What is the height of the product?

The specified product height is 160mm.

7. How much does the clamp weigh?

The specified product weight is approximately 0.9kg.

8. What finishes are available?

The standard finishes are polished natural aluminum and black anodized aluminum. Other colors or surface treatment processes can be customized.

9. Can it be used for concert lighting?

Yes. It is designed for compatible stage lighting and truss mounting applications, making it suitable for concert, event and live performance lighting setups.

10. Can it be used with any stage truss?

No. The applicable pipe diameter is 38–52mm. Confirm the actual truss tube diameter and fixture mounting arrangement before ordering.

11. Does the 800kg rating mean the complete lighting installation can support 800kg?

No. The clamp's stated load-bearing capacity does not automatically establish the capacity of the complete installation. The supporting truss, lighting fixture, fasteners and overall structure must also be suitable for the intended load.
