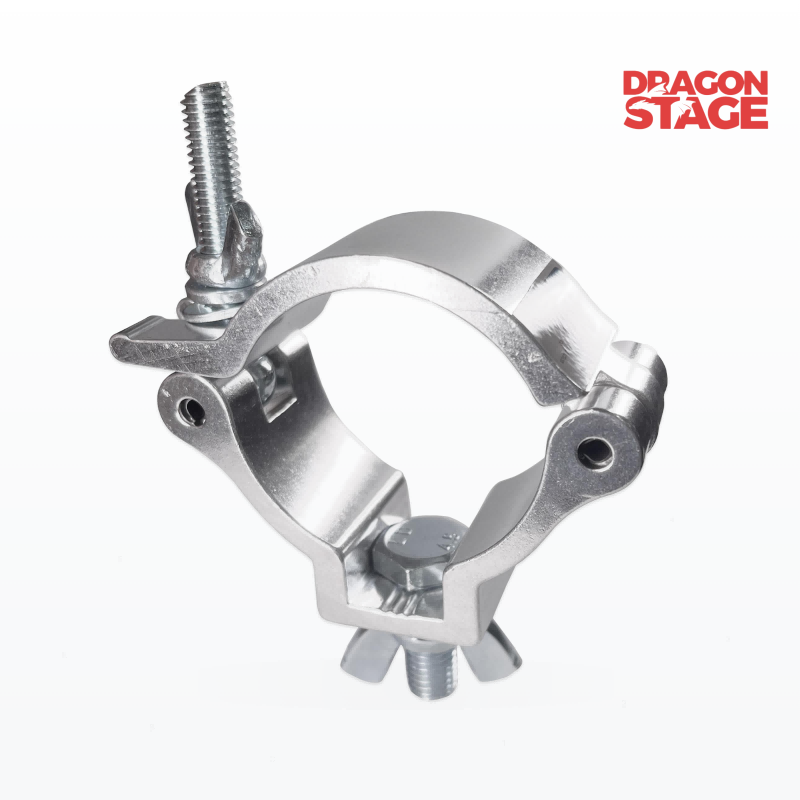

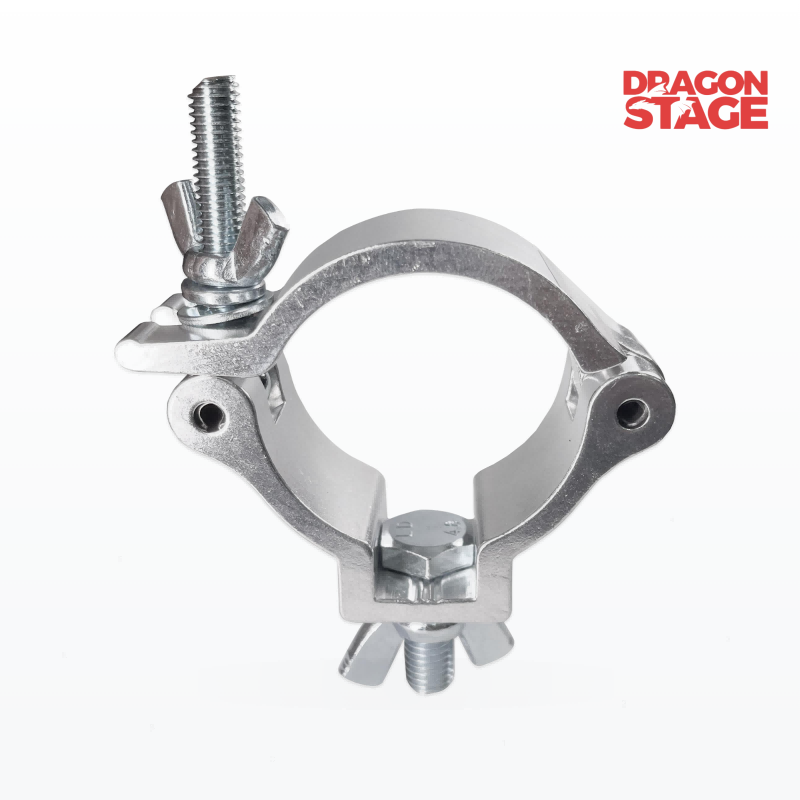

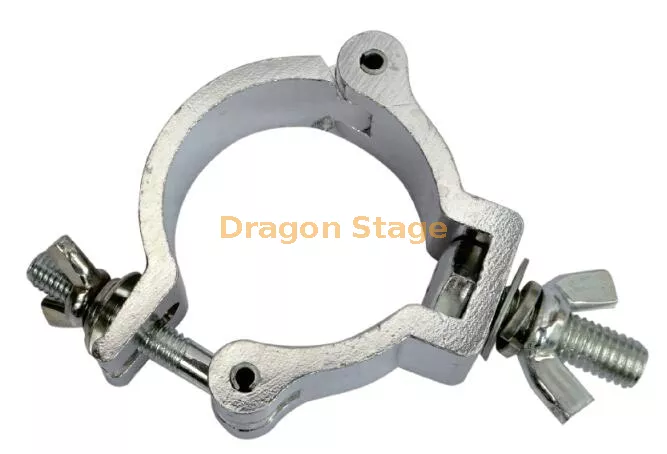

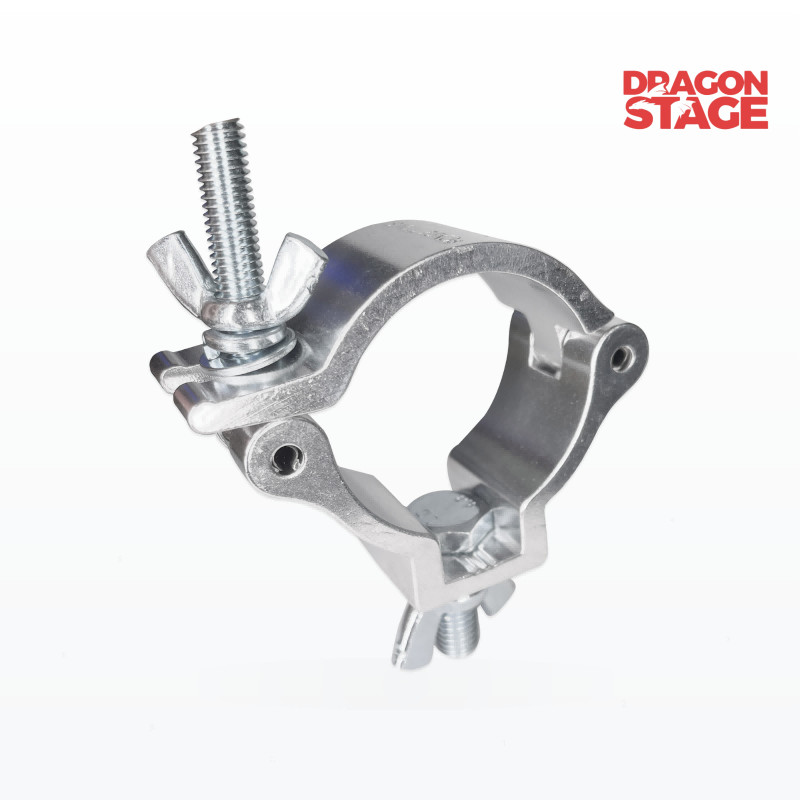

100kg Slim Aluminum O Clamp for Stage Lighting and 48–52mm Truss Tubes

• 100kg Maximum Safe Load-Bearing Capacity
  The supplied product specification states a maximum safe load-bearing capacity of 100kg.

• 48–52mm Round Tube Compatibility
  Designed for compatible round pipes with an outer diameter of 48–52mm.

• Slim O-Style Clamp Design
  The compact O-style structure provides a practical way to secure compatible equipment to tubular truss structures.

• Lightweight Aluminum Construction
  Made from aluminum with an approximate unit weight of 0.165kg.

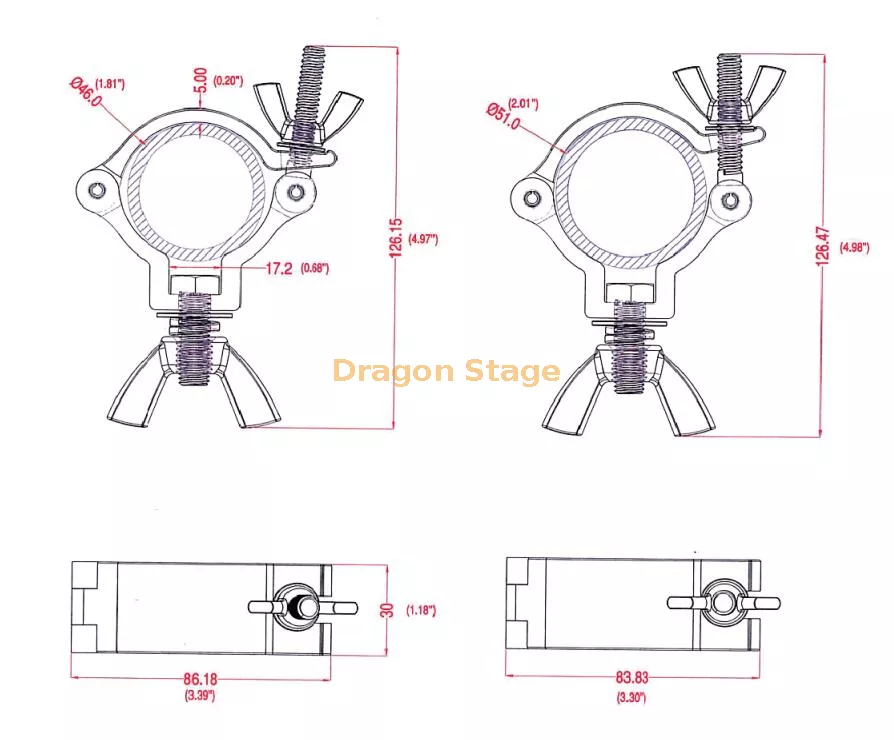

• 65mm Product Height
  The specified product height is 65mm.

• Polished Natural Aluminum Finish
  The natural aluminum version uses a polished surface treatment.

• Black Anodized Finish
  A black anodized option is available for stage and entertainment environments.

• Custom Surface Treatment
  Other colors and surface treatment processes can be customized according to project requirements.

• Suitable for Stage Lighting Applications
  Designed for compatible lighting fixtures and equipment used on tubular truss and event structures.

The DragonEvent Slim Aluminum O Clamp can be considered for compatible:

• Stage lighting fixtures

• Concert lighting installations

• Moving head lighting

• LED stage lighting

• Event production structures

• Entertainment truss systems

• Exhibition structures

• DJ and performance lighting setups

• Temporary stage structures

• Tubular equipment mounting

• Lighting equipment rigging

Its lightweight design makes it particularly suitable for mobile stage crews and production environments where clamps are frequently installed and removed.

Compatibility & Installation Notes

Before ordering or installation, confirm the complete mounting configuration.

1. Check the tube diameter
   This model is specified for 48–52mm round pipe outer diameters.

2. Check the fixture mounting connection
   Confirm that the intended lighting fixture or equipment is compatible with the clamp connection arrangement.

3. Respect the stated load limit
   The specified maximum safe load-bearing capacity is 100kg. Do not exceed the applicable product limit.

4. Confirm the complete support system
   The clamp's stated capacity should not automatically be interpreted as the capacity of the complete truss or suspended lighting system. The supporting tube, truss, fixture, fasteners and installation configuration must also be suitable.

5. Inspect before use
   Check the clamp body, threaded components, fasteners and tube contact surfaces for visible damage, deformation, cracks or excessive wear before installation.

6. Ensure secure fastening
   Tighten the mounting hardware appropriately and verify that the clamp is securely positioned before installing or operating the supported equipment.

Load & Safety Information

The supplied specification gives this clamp a 100kg maximum safe load-bearing capacity.

This rating applies to the product specification and should not be treated as a substitute for assessment of the complete support system. For overhead stage lighting, the supporting truss or tube, fixture weight, mounting hardware, installation orientation and other structural factors should also be considered.

For applications where equipment is suspended above people, verify the complete installation and applicable project requirements before use.

1. What is this aluminum O clamp used for?

It is designed for mounting compatible stage lighting fixtures and other equipment to round tubular truss and event structures.

2. What pipe diameter does it fit?

The supplied specification identifies compatibility with 48–52mm round pipe outer diameters.

3. What is the maximum safe load-bearing capacity?

The specified maximum safe load-bearing capacity is 100kg.

4. What material is the clamp made from?

The clamp is made from aluminum.

5. How much does the clamp weigh?

The specified product weight is approximately 0.165kg.

6. What is the product height?

The specified product height is 65mm.

7. What finishes are available?

The standard options are polished natural aluminum and black anodized aluminum. Other colors or surface treatment processes can be customized.

8. Is it suitable for stage lighting?

Yes. It is designed for compatible stage lighting and equipment mounting applications on suitable tubular truss structures.

9. Can it be used with any 48–52mm tube?

Not necessarily. Tube diameter is only one part of compatibility. The tube profile, clamp connection, fixture mounting arrangement and complete installation should all be checked before use.

10. Can it be used for overhead lighting?

The product has a specified 100kg maximum safe load-bearing capacity, but this should not by itself be interpreted as engineering approval for an overhead lighting installation. The complete support system must be suitable for the intended application.
