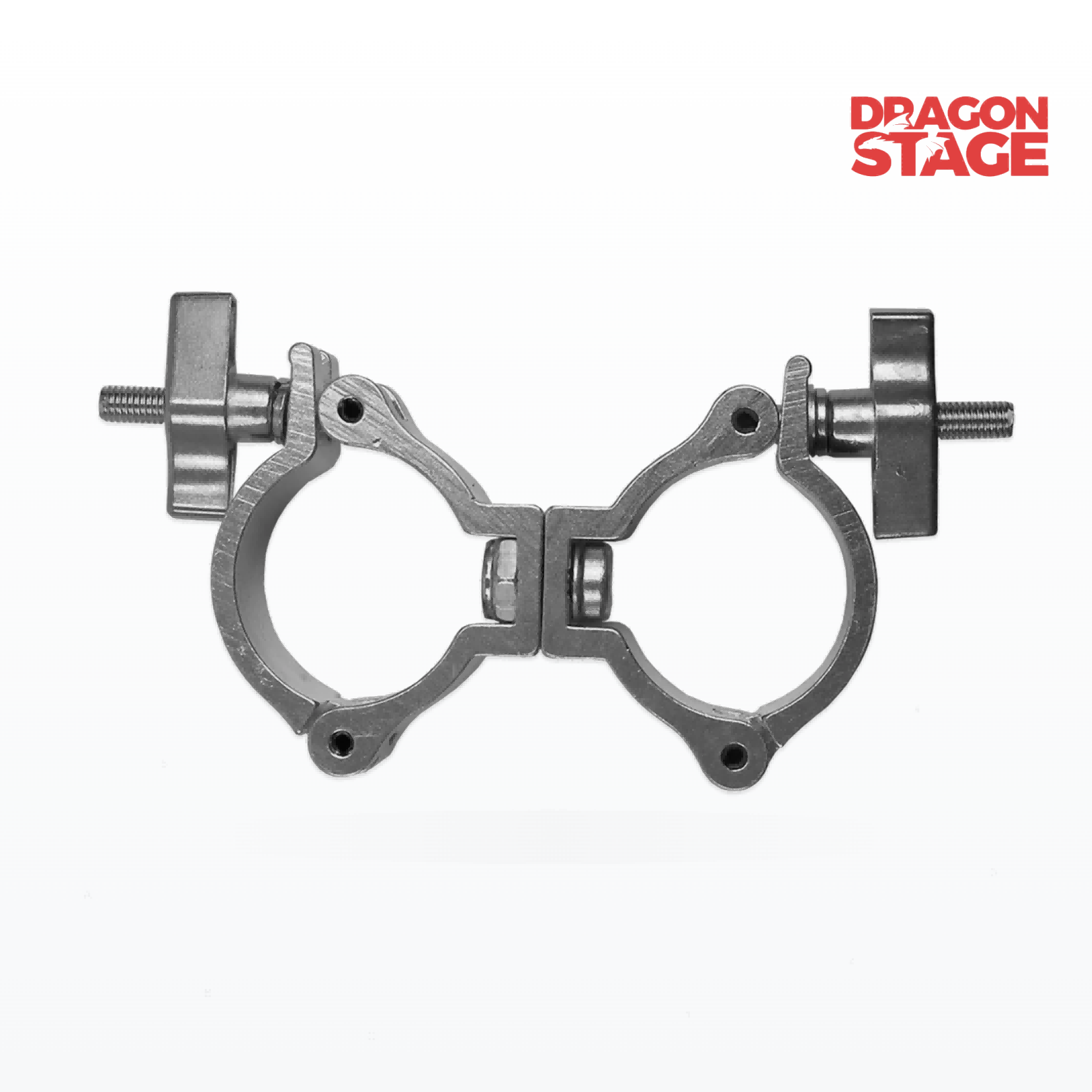

60kg Slimline Aluminum Double Clamp for 48–52mm Tubes Stage Lighting & Event Rigging

• 60kg Maximum Safe Load-Bearing Capacity
  The supplied specification states a maximum safe load-bearing capacity of 60kg.

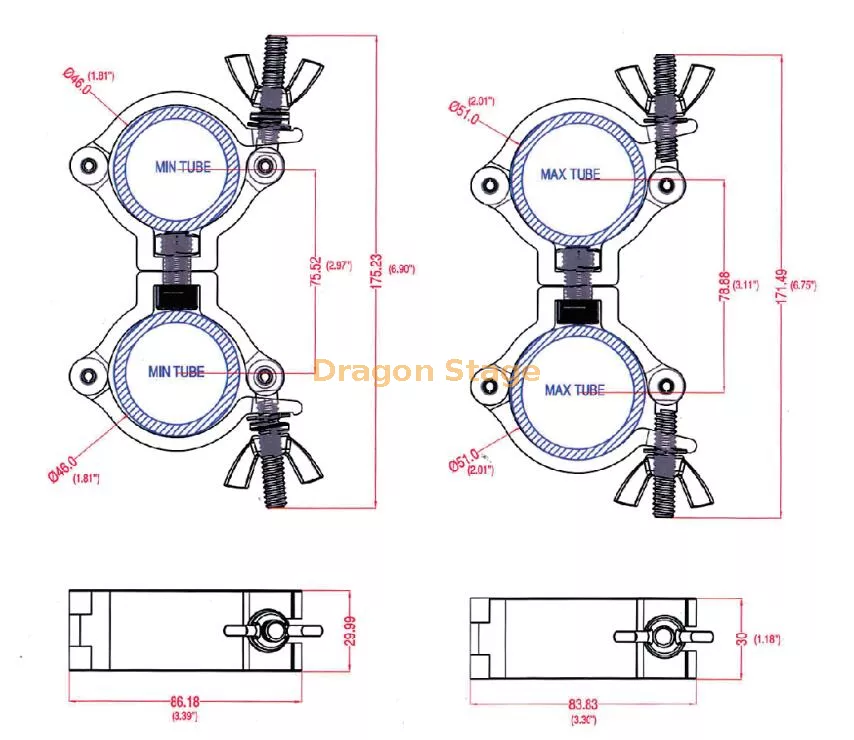

• 48–52mm Round Tube Compatibility
  Designed for round pipes with an outer diameter of 48–52mm.

• Slimline 30mm Width
  The compact 30mm product width is suitable for installations where a narrow clamp profile is preferred.

• Lightweight Aluminum Alloy Construction
  Made from aluminum alloy with an approximate product weight of only 0.165kg.

• 65mm Product Height
  The specified product height is 65mm.

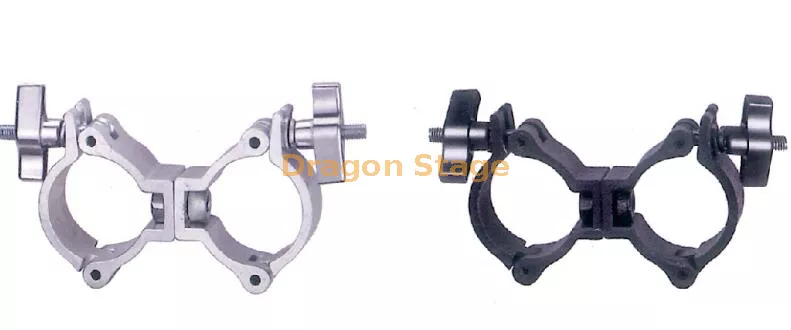

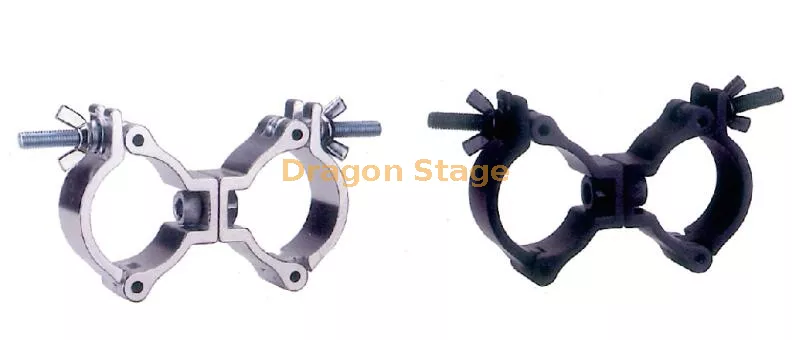

• Polished Natural Aluminum Finish
  The natural aluminum version features a polished surface treatment.

• Black Anodized Finish
  A black anodized option is available for stage and entertainment environments where a darker appearance is preferred.

• Custom Surface Treatment
  Other colors and surface treatment processes can be customized according to project requirements.

• Suitable for Stage & Event Applications
  Designed for compatible tubular mounting applications in stage lighting, event production and entertainment structures.

The DragonEvent Slimline Aluminum Double Clamp can be considered for compatible:

• Stage lighting installations

• Concert lighting structures

• Event production equipment

• Entertainment lighting setups

• Exhibition booth structures

• Display and promotional structures

• Tubular event frameworks

• Lighting support accessories

• Temporary stage structures

• Compatible 48–52mm tubular mounting systems

Its lightweight and narrow construction makes it particularly useful where a compact mounting accessory is required for professional event and entertainment setups.

Compatibility & Installation Notes

Before ordering or installation, confirm the complete mounting configuration.

1. Check the tube diameter
   This model is specified for 48–52mm round pipes.

2. Check the fixture connection
   Confirm that the intended lighting fixture, equipment or accessory can be securely connected to the clamp.

3. Respect the stated load limit
   The specified maximum safe load-bearing capacity is 60kg. Do not exceed the applicable product limit.

4. Check the complete support system
   The clamp's rating does not establish the capacity of the complete truss or lighting system. The supporting tube, truss, fixture and fasteners must also be suitable.

5. Inspect before installation
   Check the aluminum body, fastening components and tube contact surfaces for deformation, cracking, damage or excessive wear before use.

6. Confirm surface treatment requirements
   The standard finishes are polished natural aluminum and black anodized. Confirm customized colors or other surface treatments before ordering.

Load & Safety Information

The supplied product specification identifies a 60kg maximum safe load-bearing capacity.

For applications involving suspended lighting or other loads above people, the product capacity should be considered together with the complete structural system. Supporting tubes, truss sections, mounting hardware, fixture weight and installation orientation can all affect the allowable working load.

For structurally significant installations, project-specific requirements should be reviewed before use.

1. What is this aluminum clamp used for?

It is designed for mounting compatible lighting equipment and accessories to 48–52mm round tubes in stage, event, exhibition and entertainment applications.

2. What pipe diameter does it fit?

The specified applicable pipe diameter is 48–52mm outer diameter.

3. What is the maximum safe load-bearing capacity?

The supplied product specification states a maximum safe load-bearing capacity of 60kg.

4. What material is the clamp made from?

The clamp is made from aluminum alloy.

5. What is the width of the clamp?

The specified product width is 30mm.

6. What is the height of the product?

The specified product height is 65mm.

7. How much does the clamp weigh?

The specified product weight is approximately 0.165kg.

8. What finishes are available?

The standard surface treatments are polished natural aluminum and black anodized aluminum. Other colors or surface treatment processes can be customized.

9. Is this clamp suitable for stage lighting?

Yes, it is intended for compatible stage lighting and tubular mounting applications, provided the tube diameter, fixture connection and loading requirements are suitable.

10. Can it be used with any 48–52mm tube?

Not necessarily. The tube diameter is only one part of compatibility. Confirm the tube geometry, fixture mounting interface and complete installation configuration before ordering.

11. Can it be used for overhead lighting?

The product has a specified 60kg maximum safe load-bearing capacity, but this should not by itself be treated as engineering approval for an overhead lighting installation. The complete support system should be verified for the intended application.
