300kg Compact Aluminum Tube Clamp for Event Lighting and 35–40mm Pipe Mounting

• 300kg Maximum Safe Load-Bearing Capacity
  The supplied product specification states a maximum safe load-bearing capacity of 300kg.

• 35–40mm Round Pipe Compatibility
  Designed for compatible round pipes with an outer diameter of 35–40mm.

• Aluminum Alloy Construction
  Made from aluminum alloy for compatible stage and event mounting applications.

• 50mm Product Width
  The specified product width is 50mm.

• 60mm Product Height
  The specified product height is 60mm.

• Lightweight 0.37kg Unit Weight
  The approximate product weight is 0.37kg per unit.

• Polished Natural Aluminum Finish
  A polished natural aluminum surface option for a clean metallic appearance.

• Black Anodized Finish
  A black finish option for stage and entertainment environments.

• Custom Surface Treatment
  Other colors and surface treatment processes can be customized.

• Suitable for Event Lighting Applications
  Intended for compatible event lighting and tubular mounting applications where the dimensions and mounting arrangement are appropriate.

The DragonEvent Compact Aluminum Tube Clamp can be considered for compatible installations involving:

• Event lighting equipment

• Stage and performance lighting

• Concert production setups

• Exhibition and display structures

• Entertainment venues

• Temporary event installations

• Compatible round tubular supports

• Lighting equipment mounting

• Portable event structures

• Production equipment requiring suitable tube mounting

Actual suitability depends on the supporting tube dimensions, fixture connection and complete mounting configuration.

Compatibility & Installation Notes

Before ordering or installation, review the following points:

1. Check the tube diameter
   The specified compatible round pipe outer diameter is 35–40mm.

2. Confirm fixture compatibility
   Ensure that the clamp's connection arrangement matches the intended lighting fixture or equipment. The exact fastening mechanism has not been confirmed in the supplied specifications.

3. Respect the stated load limit
   The supplied maximum safe load-bearing capacity is 300kg. Do not exceed the applicable product rating.

4. Verify the complete support structure
   The supporting pipe, truss, fixture, fasteners and mounting arrangement must all be suitable for the intended load.

5. Inspect before use
   Check the clamp body, contact surfaces and mounting components for cracks, deformation, damage or excessive wear.

6. Secure the installation
   Ensure the clamp is correctly positioned and securely fastened before mounting or operating equipment.

7. Confirm the required finish
   Select polished natural aluminum or black anodized aluminum. Confirm customized finishes before placing an order.

Load & Safety Information

The supplied specification states a 300kg maximum safe load-bearing capacity. This value must be interpreted according to the applicable product rating and installation conditions.

It does not independently establish the allowable load of the complete lighting or truss system. The supporting structure, tube condition, equipment weight, fasteners, mounting orientation and installation requirements must also be considered.

For overhead lighting or equipment installed above people, verify the complete support system and applicable project requirements before use. The stated product capacity is not a substitute for project-specific approval.

1. What is this compact aluminum tube clamp used for?

It is intended for mounting compatible lighting fixtures and equipment to suitable round tubular structures used in stage and event production.

2. What pipe diameter does it fit?

The supplied specification identifies compatibility with round pipes measuring 35–40mm in outer diameter.

3. What is the maximum safe load-bearing capacity?

The stated maximum safe load-bearing capacity is 300kg.

4. What material is the clamp made from?

The product is specified as aluminum alloy. The exact alloy grade has not been confirmed.

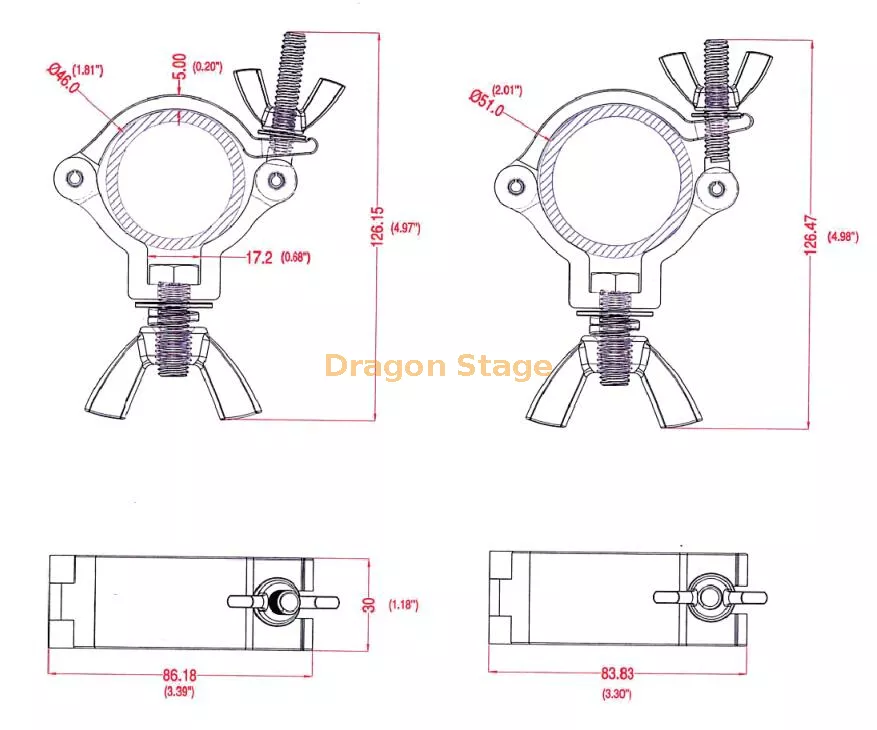

5. What are the product dimensions?

The specified product width is 50mm and the product height is 60mm.

6. How much does it weigh?

The approximate unit weight is 0.37kg.

7. What finishes are available?

The specified standard finishes are polished natural aluminum and black anodized aluminum. Other colors and surface treatment processes can be customized.

8. Is it suitable for event lighting?

It can be considered for compatible event lighting applications when the tube diameter, fixture connection and complete mounting arrangement are appropriate.

9. Can it fit every tube within the 35–40mm range?

Not necessarily. Tube diameter alone does not guarantee compatibility. Confirm the tube profile, fastening arrangement and equipment connection before ordering.

10. Can it be used for overhead lighting?

The stated 300kg capacity alone does not establish approval for an overhead installation. The complete support system and applicable project requirements must be verified before use.
