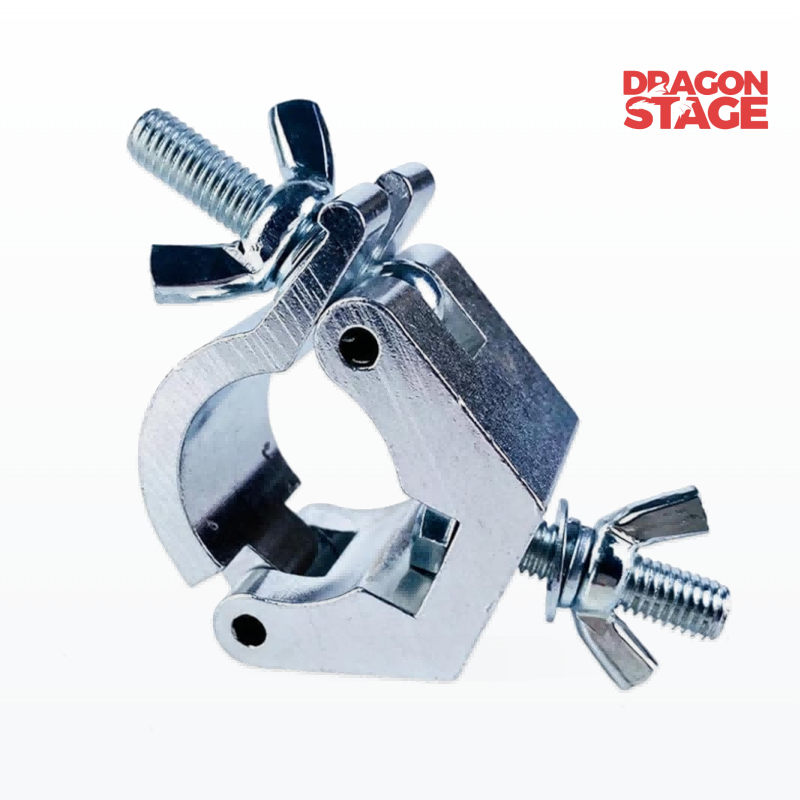

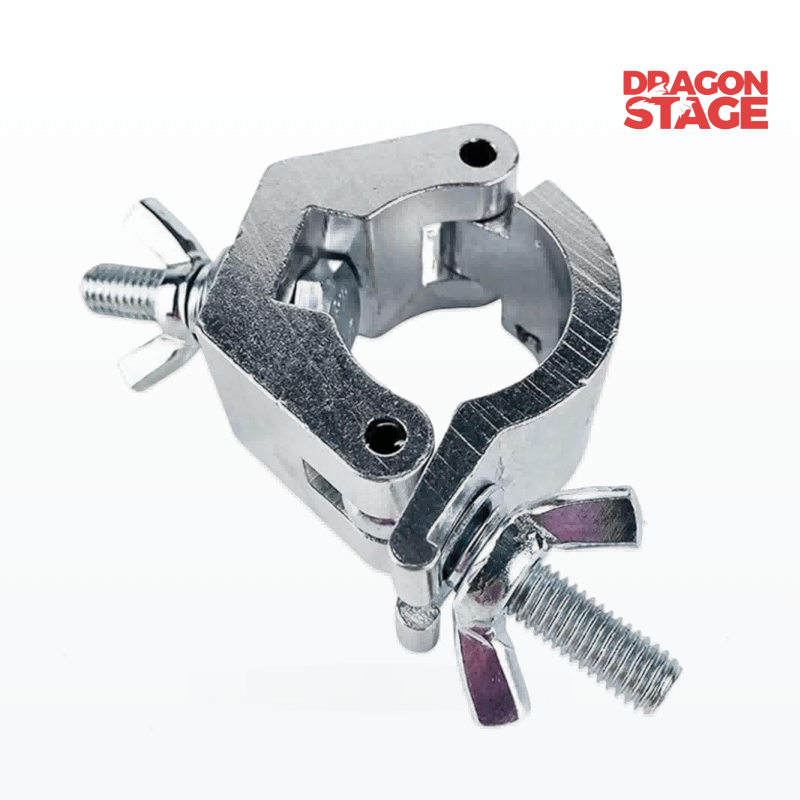

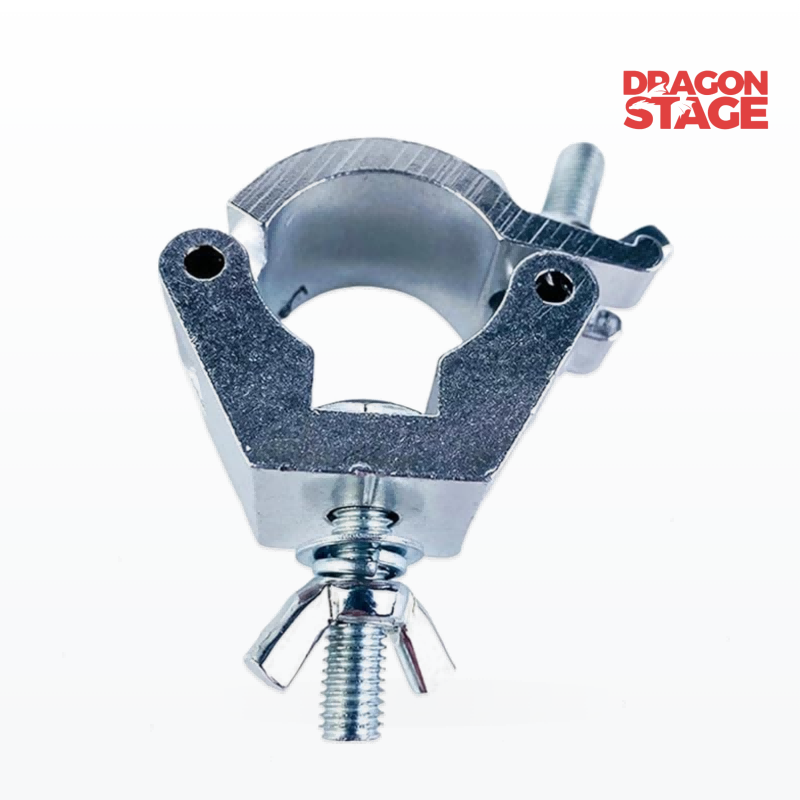

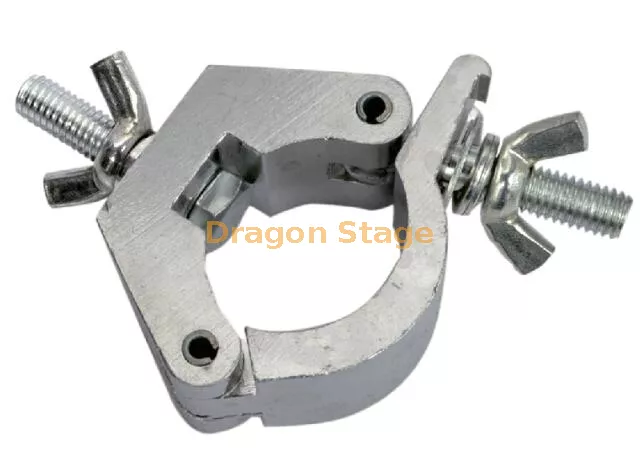

100kg Compact Aluminium Pipe Clamp for Exhibition Stands and Event Lighting

• Aluminium Alloy Construction
  Made from aluminium alloy for a lightweight mounting accessory suited to compatible event and tubular support applications.

• 100kg Maximum Safe Load-Bearing Capacity
  The supplied product specification states a maximum safe load-bearing capacity of 100kg. Confirm the applicable rating conditions and the capacity of the complete installation before use.

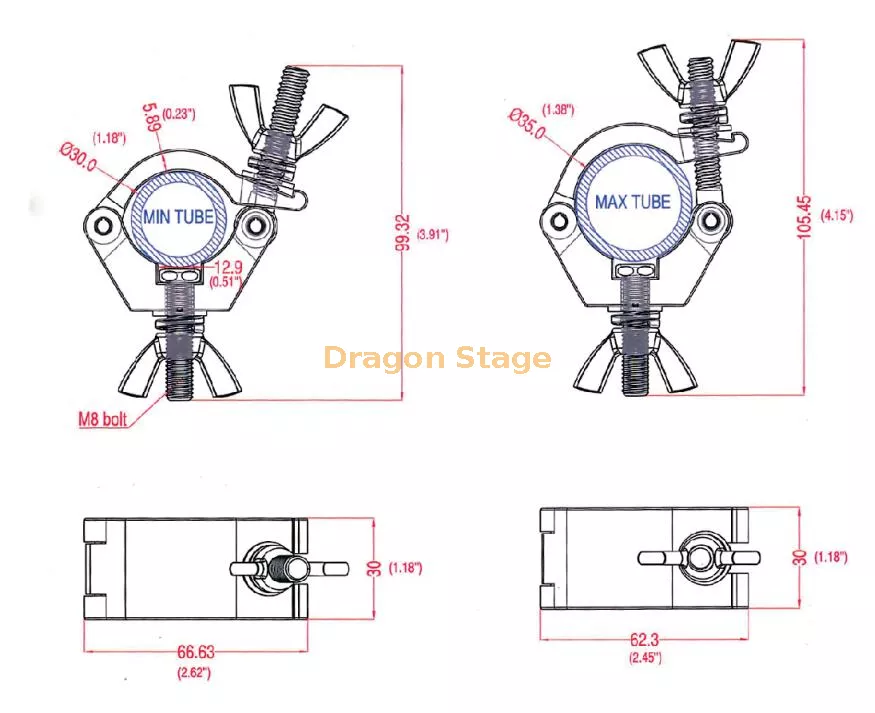

• Compatible with 28–35mm Round Pipes
  Designed for round pipes with an outer diameter between 28mm and 35mm, subject to correct fit and mounting-interface compatibility.

• Compact 30mm Width
  The 30mm product width provides a compact profile for suitable pipe-mounting applications.

• 50mm Product Height
  Its stated height is 50mm. Check the full mounting geometry against your intended setup before ordering.

• Lightweight 0.15kg Design
  With a stated product weight of approximately 0.15kg, the clamp is easy to handle during equipment preparation and transport.

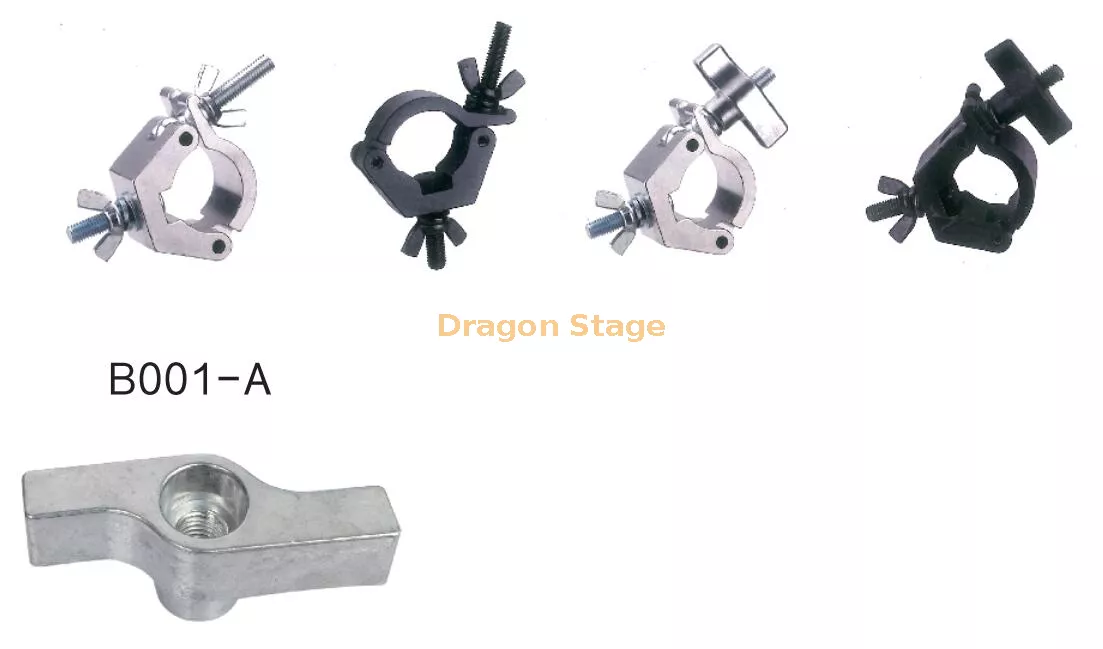

• Two Standard Finish Options
  Available in polished natural aluminium or oxidized black to suit different installation appearances.

• Custom Finishes Available
  Other colours and surface treatments can be requested for projects with specific finish requirements.

The DragonEvent Compact Aluminium Pipe Clamp can be considered for compatible mounting applications in:

• Exhibition stands and display structures

• Event lighting setups

• Temporary event installations

• Tubular support structures

• Event equipment mounting

• Stage and event production preparation

• Maintenance and replacement of compatible pipe clamps

Application suitability depends on the actual pipe dimensions, the mounting interface and the requirements of the complete installation. The product's stated load capacity alone does not establish suitability for every application.

For related structural components, browse DragonEvent Truss & Rigging.

Compatibility & Installation Notes

Before ordering or installing the clamp, review the following points:

1. Confirm the pipe outer diameter
   The specified range is 28–35mm for round pipes. Measure the actual pipe rather than relying on its nominal size.

2. Check the mounting interface
   Confirm that the clamp's connection arrangement matches the equipment or component you intend to mount. The exact clamping mechanism and connection details have not been confirmed in the supplied specifications.

3. Verify the load requirements
   The stated maximum safe load-bearing capacity is 100kg. Confirm the applicable loading conditions and do not assume this figure applies to every mounting direction or installation configuration.

4. Inspect the components
   Before use, check the clamp, fasteners and contact surfaces for visible damage, deformation or excessive wear.

5. Assess the complete support system
   The pipe, supporting structure, mounting hardware, attached equipment and installation method must all be suitable for the intended load. For overhead or structurally significant applications, obtain the required project-specific verification before use.

6. Select the appropriate finish
   Choose polished natural aluminium or oxidized black as appropriate. Confirm availability and specifications for any custom colour or surface treatment.

Load & Safety Information

The supplied product specification lists a 100kg maximum safe load-bearing capacity. This value should be treated as a product specification, not as automatic approval for a complete suspended or load-bearing system.

The available information does not establish the conditions under which the capacity was determined, including loading direction, mounting arrangement, safety factors or applicable test standards. Do not use the stated figure as a substitute for verifying the complete installation.

For overhead equipment or other safety-critical applications, confirm the product's approved use, loading conditions and compatibility with the supporting structure before installation.

1. What is this aluminium pipe clamp used for?

It is a compact mounting accessory for compatible round-pipe applications, including suitable event lighting and exhibition stand setups.

2. What pipe diameter does it fit?

The supplied specification identifies round pipes with an outer diameter of 28–35mm. Confirm the actual pipe measurement and mounting-interface compatibility before ordering.

3. What is the maximum safe load-bearing capacity?

The stated maximum safe load-bearing capacity is 100kg. The applicable loading conditions and the capacity of the complete installation must also be verified.

4. What material is the clamp made from?

The product is specified as being made from aluminium alloy. The exact alloy grade has not been provided.

5. What are the product dimensions and weight?

The supplied specifications list a width of 30mm, a height of 50mm, and a weight of approximately 0.15kg. Other dimensions have not been confirmed.

6. What finishes are available?

The standard options are polished natural aluminium and oxidized black. Other colours and surface treatments can be customized on request.

7. Can I use it with any event lighting fixture?

Not necessarily. Compatibility depends on the pipe diameter, the fixture's mounting arrangement and the complete installation requirements. Confirm these details before purchase.

8. Is the clamp suitable for overhead installations?

The supplied specifications do not establish approval for a particular overhead installation. Before using it to support suspended equipment, confirm its permitted loading conditions and verify the complete support system.

9. Can I request a custom finish?

Yes. The supplied product information states that other colours and surface treatments can be customized. Confirm the available options, lead time and order requirements with the supplier.
