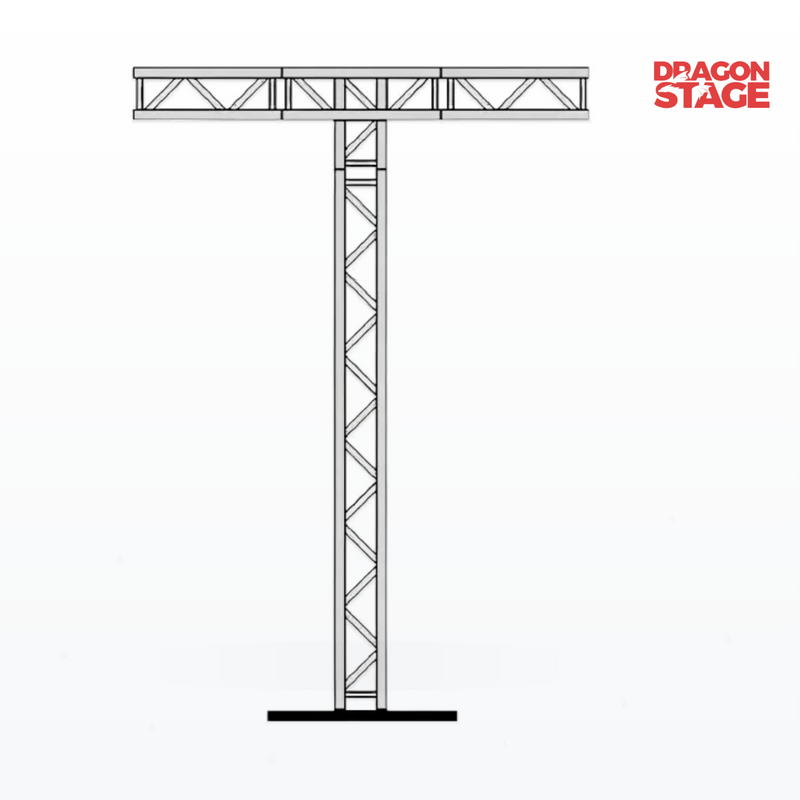

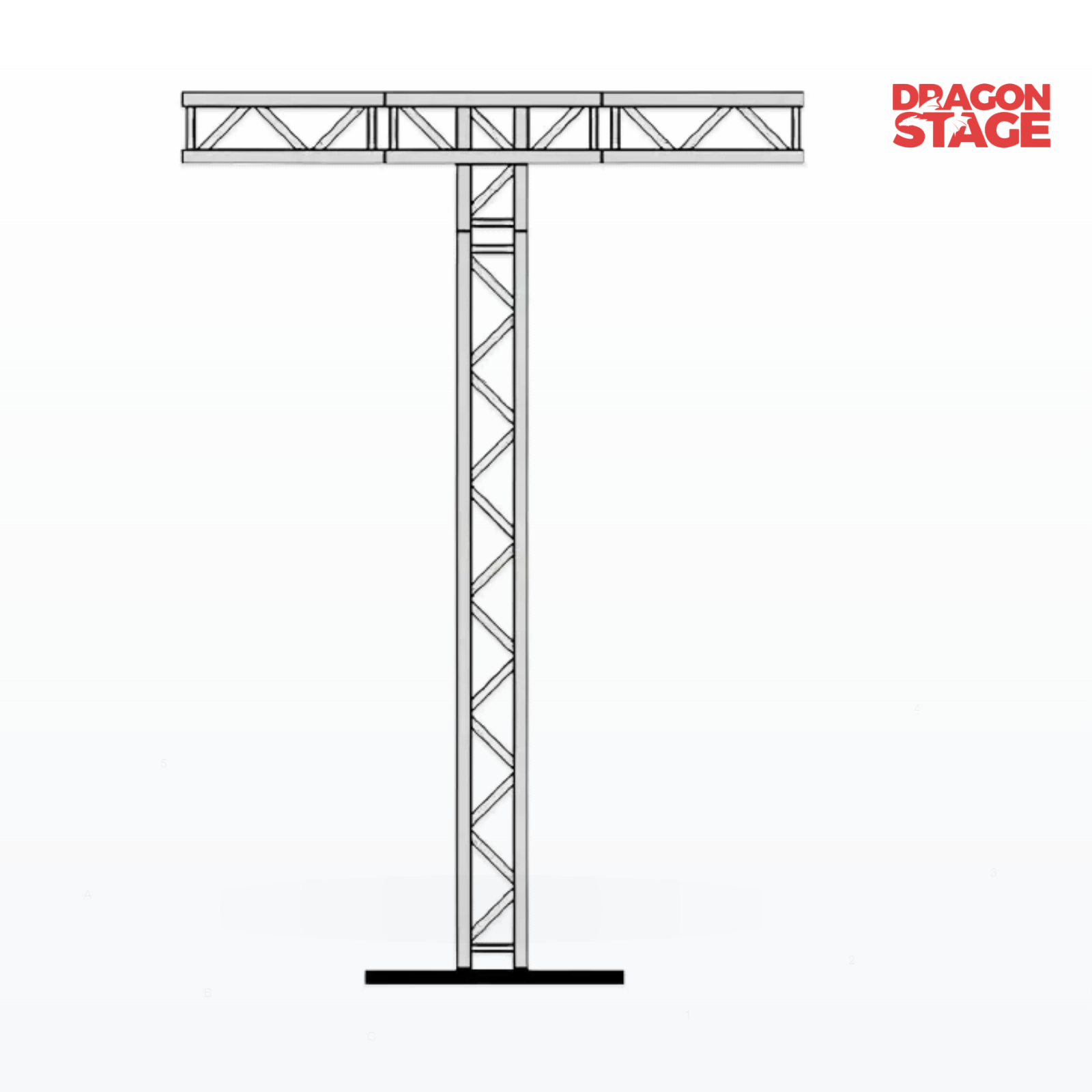

6m High Custom T Structure

The custom truss pole reaches an overall height of approximately 6m, providing a prominent elevated position for lighting and exhibition elements.

3m Wide Horizontal Span

The T-shaped configuration has an overall width of approximately 3m, creating a horizontal mounting area across the top of the structure.

400×400mm Spigot Truss

The main structure uses 400×400mm spigot trussing, providing a modular connection system for the custom T-shaped configuration.

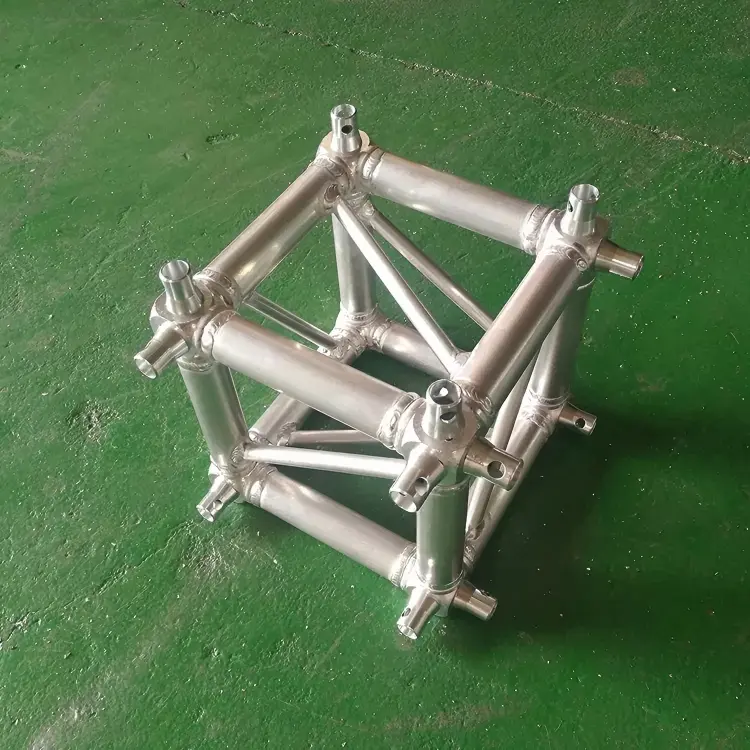

Cube Connector

A cube connector is included to connect the truss sections and create the required T configuration.

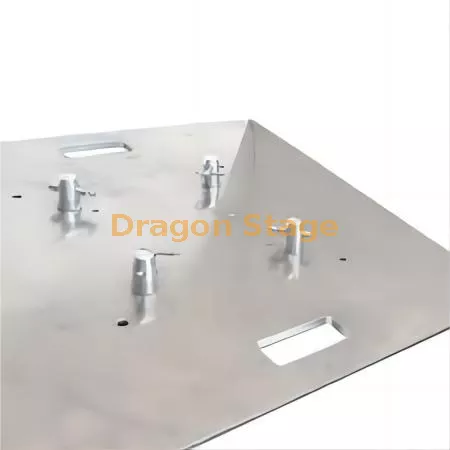

1×1m Base Plate

The structure is supported by a 1×1m base plate, providing the ground-level foundation for the vertical truss pole.

Custom Configuration

The system is configured according to the supplied project requirements rather than being a simple standard straight truss tower. The combination of 400mm truss sections and cube connector allows the structure to form a customized T-shaped display and lighting system.

Exhibition Display Applications

The 400mm Custom T Lighting Truss Pole is particularly suitable for exhibition and display environments where a tall, visually prominent structure is required.

Potential applications include:

Exhibition Booths

Create a high-level display framework above an exhibition booth.

Product Displays

Use the elevated horizontal truss to position compatible lighting or display elements.

Brand Signage

The T-shaped structure can provide an elevated location for compatible signs or branding elements.

Exhibition Lighting

Compatible lighting fixtures can be positioned along the horizontal truss according to the approved mounting and load requirements.

Trade Shows

The 6m-high structure can help create a strong visual presence within a trade-show environment.

Event Production Applications

In addition to exhibitions, this custom T truss system can be used in suitable:

• Event production

• Stage lighting

• Corporate events

• Product launches

• Promotional displays

• Temporary installations

• Entertainment environments

The exact application should be determined according to the final structural configuration and equipment load.

Advantages of the Custom T Configuration

High Visibility

The 6m height provides a strong vertical presence within an exhibition or event environment.

3m Horizontal Reach

The 3m width provides space for compatible lighting, signage, or display components.

Modular Construction

The structure is assembled from separate 400mm spigot truss sections.

Cube Connection

The cube connector allows the truss sections to form the required T-shaped configuration.

Transportable Components

The supplied configuration uses separate 1.5m and 3m truss sections, making the structure easier to transport and assemble than a single permanently fabricated frame.

Custom Engineering Potential

The 400mm truss and cube connection system can be configured for specific exhibition and event layouts.

Installation Overview

A general assembly workflow for the supplied configuration is:

1. Prepare the Installation Area

Select a suitable level surface for the 1×1m base plate.

2. Position the Base

Install the base plate at the required location.

3. Assemble the Vertical Truss

Connect the 400×400mm spigot truss sections to form the approximately 6m vertical element.

4. Install the Cube Connector

Position the cube connector at the required junction point.

5. Assemble the Horizontal Truss

Connect the 400mm truss sections to the cube connector to create the approximately 3m-wide horizontal element.

6. Secure All Connections

Check the spigot connections and cube connector before loading any equipment.

7. Install Lighting or Display Components

Add compatible equipment according to its mounting requirements and the approved structural configuration.

8. Final Inspection

Inspect the complete structure before opening the exhibition or event area.

Packing & Transportation

The supplied project information specifies:

Total Packing Volume: Approximately 1 CBM

Packing Weight: Approximately 100kg

The system is divided into multiple truss sections and accessories rather than being transported as one permanently assembled structure.

This configuration is useful for exhibition and event-production companies that need to move the structure between venues.

Safety Considerations

This is a 6m-high custom truss structure, so the stability and allowable loading of the complete assembly should be assessed as a system.

Before installation, consider:

• Overall 6m height

• 3m horizontal span

• Total equipment weight

• Lighting fixture weight

• Display/signage weight

• Center of gravity

• Base stability

• Ground conditions

• Spigot connections

• Cube connector configuration

• Outdoor wind exposure, if applicable

• Additional stabilization or ballast, where required

How high is the custom T lighting truss pole?

The supplied configuration is designed to be approximately 6m high.

How wide is the T structure?

The horizontal section has an overall width of approximately 3m.

What size truss is used?

The structure uses 400×400mm spigot truss.

What connector is used?

The supplied project configuration includes 1 cube connector.

What size is the base plate?

The base plate measures 1×1m.

How many truss sections are included?

The supplied configuration includes:

• 2 × 1.5m 400mm spigot truss

• 2 × 3m 400mm spigot truss

• 1 × cube connector

• 1 × 1m base plate

What is the packing volume?

The total packing volume is approximately 1 CBM.

What is the packing weight?

The supplied packing weight is approximately 100kg.

What can the T truss structure be used for?

It is primarily intended for exhibition displays and lighting applications, and can also be adapted for suitable event-production, promotional, corporate, and temporary display applications.

Can lighting equipment be mounted on it?

Compatible lighting equipment can be mounted when the equipment weight, mounting method, truss configuration, and complete system load are within the approved requirements.
