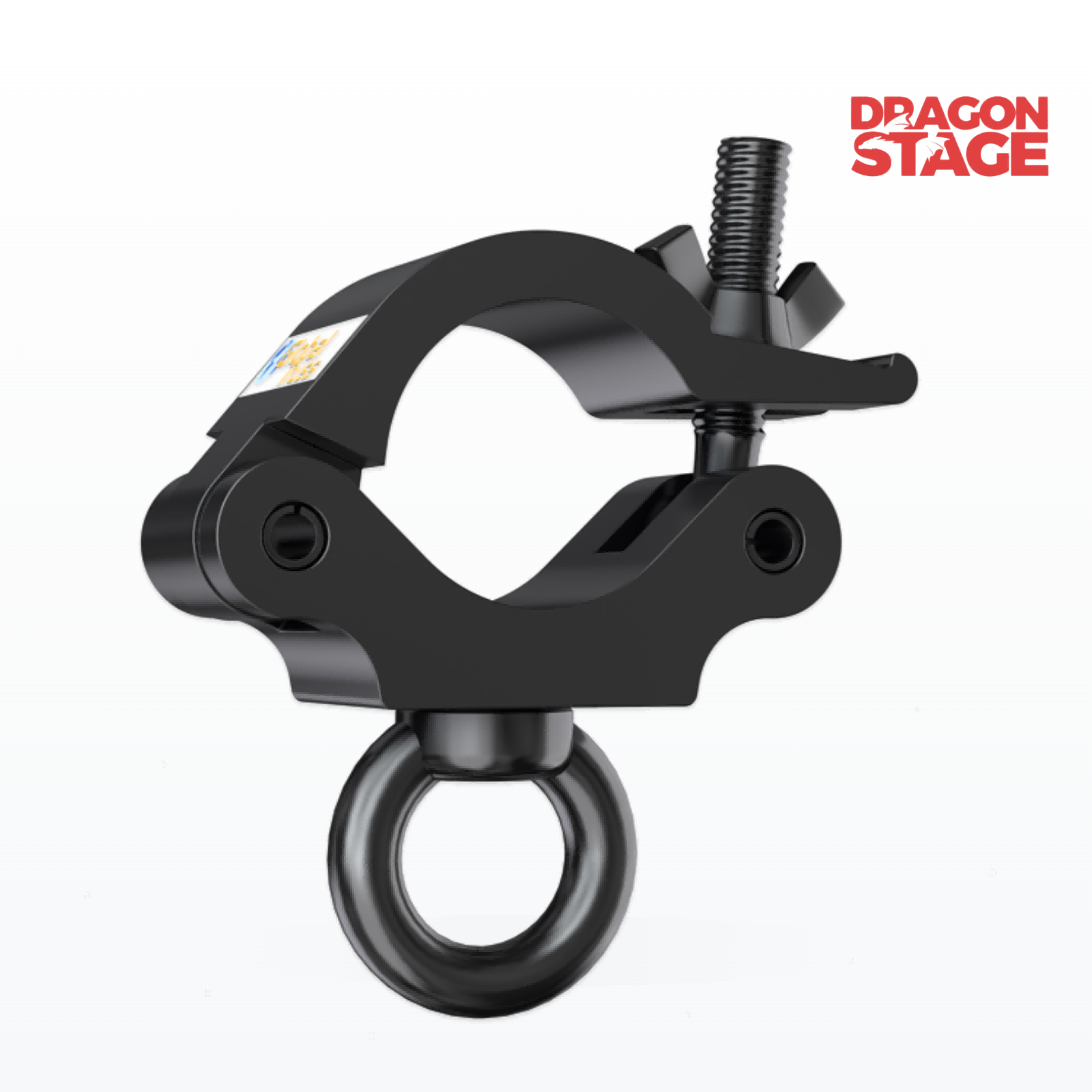

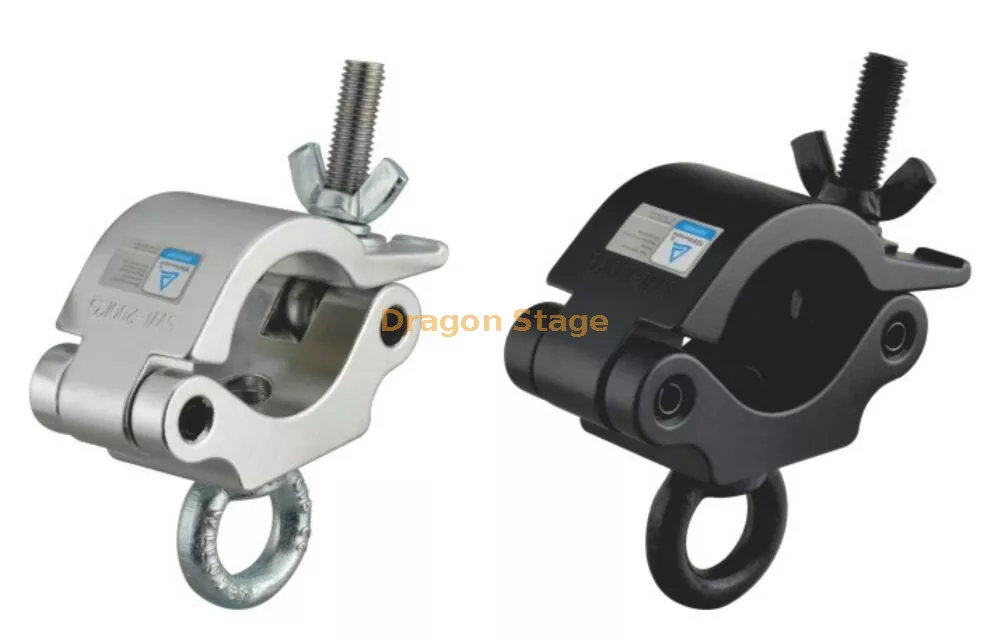

Black Eye Bolt Half-Coupler for Stage Lighting Suspension, Cable Drops & Event Rigging

• 6061 Aluminium Construction
  Made from the specified 6061 aluminium material for compatible stage and event rigging applications.

• 200kg Safe Working Load
  The supplied specification lists an SWL of 200kg. The complete installation must also comply with the limitations of all connected components and the supporting structure.

• 48–51mm Tube Compatibility
  Designed for compatible tubes within the specified 48–51mm diameter range.

• Integrated Eye Bolt
  Provides an attachment point for suitable rigging connections. The reference product information identifies an M10 eye bolt; confirm the exact hardware specification before use.

• Black Finish
  The reference product description specifies a matte black finish for a discreet appearance in professional stage and event environments.

• 0.59kg Product Weight
  The supplied specification lists a weight of 0.59kg for equipment inventory and handling calculations.

• Multiple Event Rigging Applications
  Can be considered for stage lighting suspension, cable drops and lightweight equipment rigging when the complete connection arrangement is suitable.

The DragonEvent Black Eye Bolt Half-Coupler can be considered for suitable installations such as:

• Stage lighting suspension

• Concert and live-event rigging

• Cable drops from compatible tubular structures

• Lightweight equipment rigging

• Entertainment venue installations

• Temporary event production setups

• Compatible truss and pipe mounting arrangements

For related structure components and rigging accessories, explore DragonEvent Truss & Rigging and Truss & Rigging Accessories.

Compatibility & Installation Notes

Before ordering or installing this eye bolt half-coupler, verify the following:

1. Check the tube diameter
   Confirm that the mounting tube falls within the specified 48–51mm diameter range.

2. Verify the eye bolt connection
   Confirm the eye bolt size, thread and connection requirements against the mating hardware. The reference product information identifies an M10 eye bolt, but this should be verified for the supplied item.

3. Check the intended loading arrangement
   Ensure that the eye bolt and connecting hardware are suitable for the intended loading direction and application. Do not assume that every direction of loading is permitted.

4. Respect the stated SWL
   The supplied specification lists a 200kg SWL. Do not exceed the applicable limit or assume that this rating automatically applies to the complete installation.

5. Inspect before use
   Check the coupler body, eye bolt, threads and connected hardware for damage, deformation, wear or other visible defects before installation.

6. Assess the complete rigging system
   The supporting pipe or truss, half-coupler, eye bolt, connecting hardware and installation method must all be suitable for the intended load.

1. What is the DragonEvent Black Eye Bolt Half-Coupler used for?

It is designed to attach compatible rigging components to tubular truss or pipe systems. The reference product information identifies stage lighting suspension, cable drops and lightweight equipment rigging as typical applications.

2. What is the safe working load?

The supplied specification lists an SWL of 200kg. The complete installation must also comply with the limits of the supporting structure, eye bolt and connected hardware.

3. What material is the half-coupler made from?

The specified material is 6061 aluminium.

4. What tube diameter does it fit?

The specified compatible tube diameter is 48–51mm.

5. Does it have an integrated eye bolt?

Yes. The reference product information describes an integrated eye bolt and identifies it as M10. Confirm the exact dimensions and connection details before ordering.

6. What finish does the product have?

The reference product page describes a matte black finish.

7. How much does the product weigh?

The supplied specification lists a product weight of 0.59kg.

8. Can it be used for suspended lighting?

It may be considered for suitable applications only after verifying the eye bolt, connecting hardware, loading direction, supporting structure and complete rigging configuration. The stated SWL alone does not certify the entire suspended system.

9. Does the product include all connecting hardware?

The supplied information does not confirm the complete package contents. Verify which components are included before placing an order.
