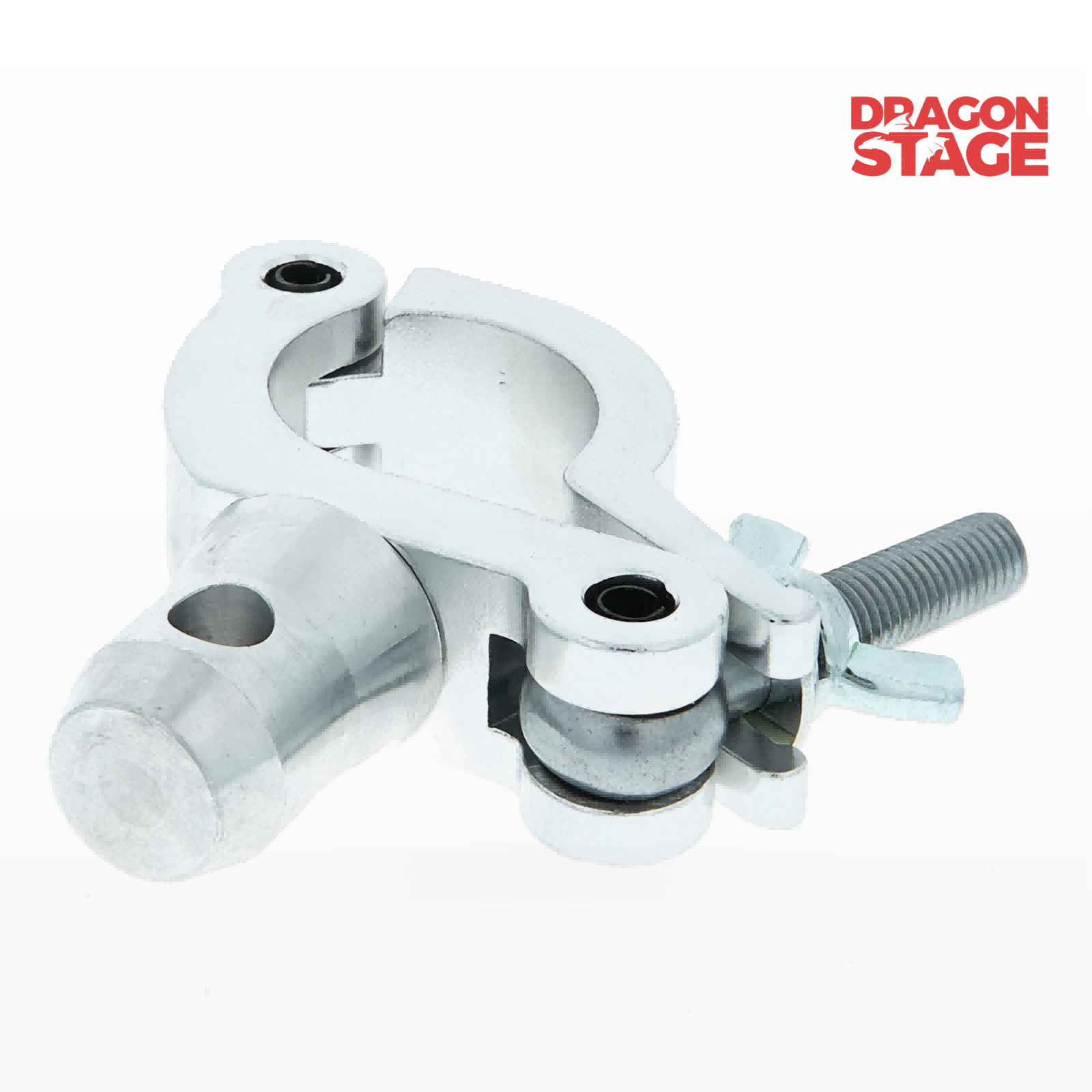

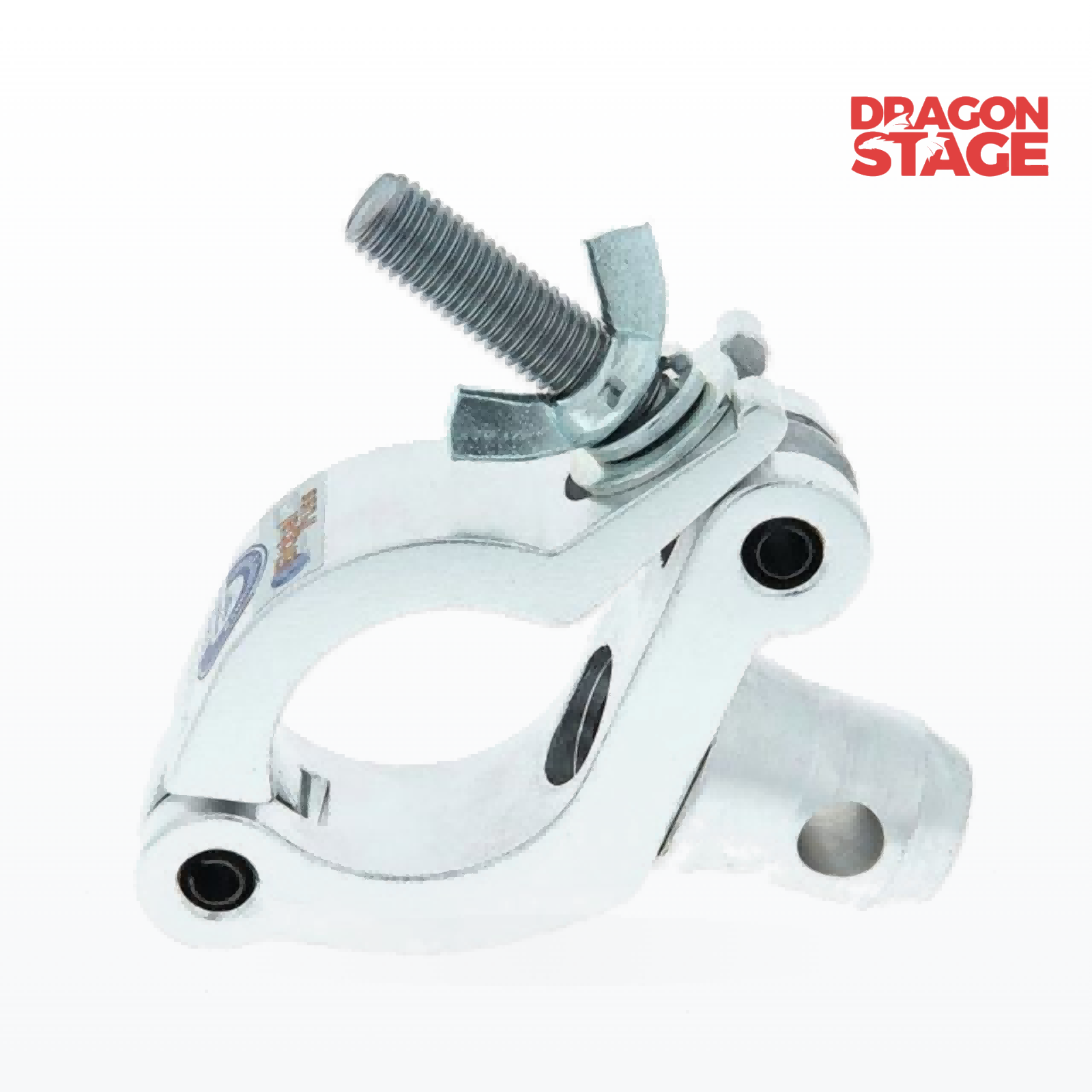

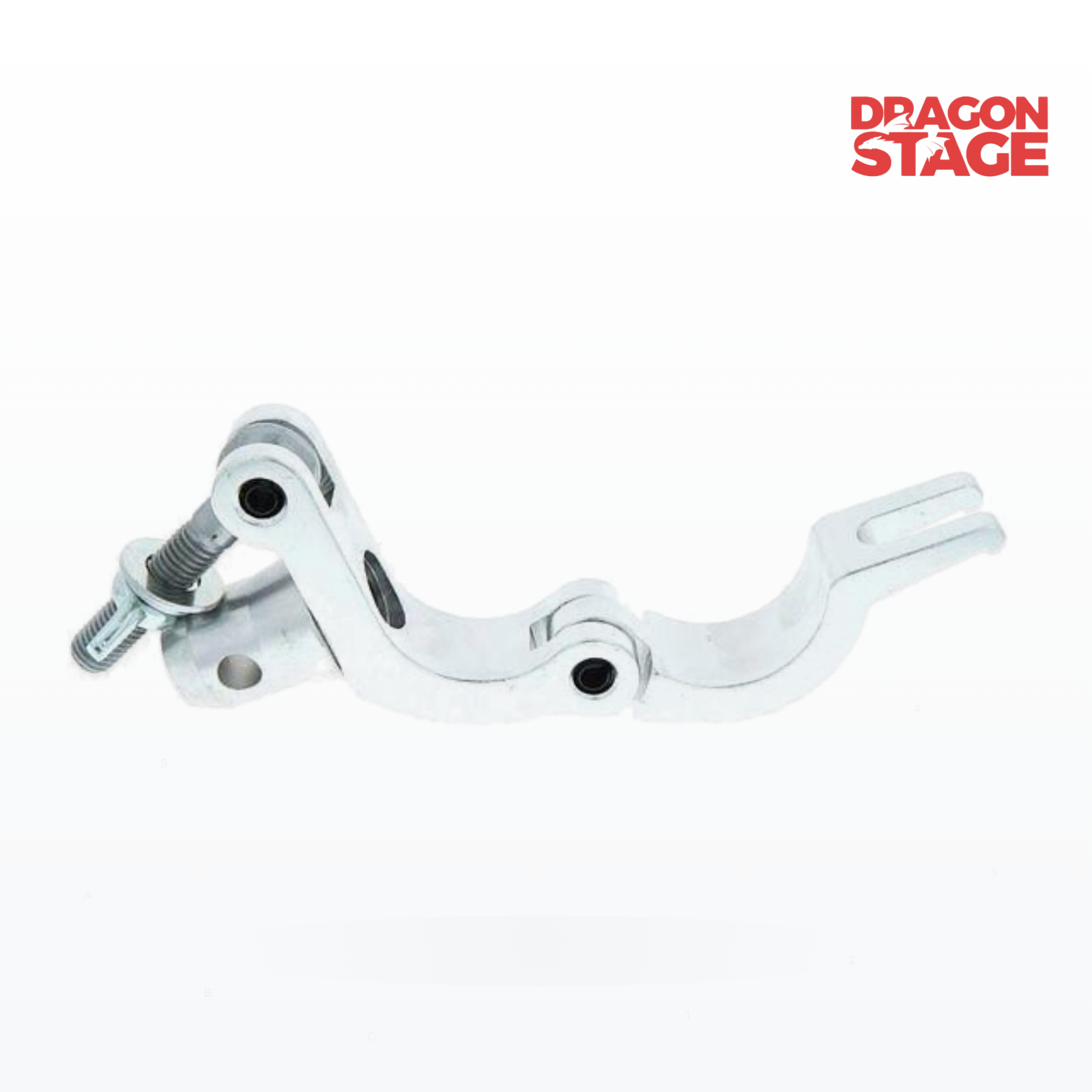

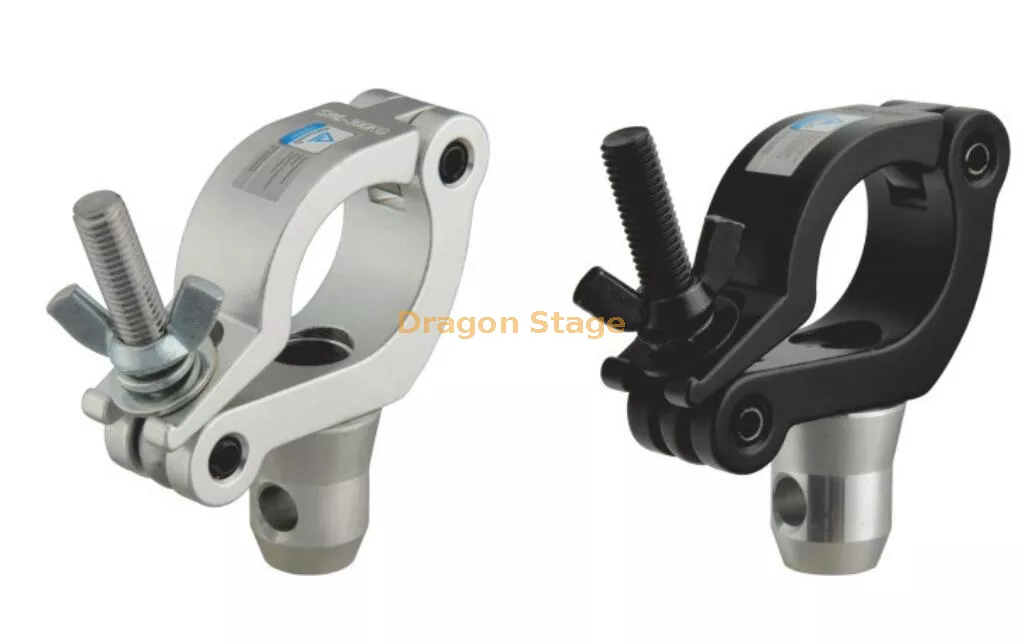

30mm Slim Half-Cone Truss Coupler for Concert Structures, Stage Towers & Event Rigging

• 6061 Aluminium Construction
  Made from the specified 6061 aluminium material. Reference technical documentation for the corresponding design identifies the alloy as 6061-T6.

• 300kg Safe Working Load
  The supplied specification lists a safe working load of 300kg. The complete installation must also comply with the limits of all connected components and the supporting structure.

• 48–51mm Tube Compatibility
  Designed for compatible tubular structures within the specified 48–51mm diameter range.

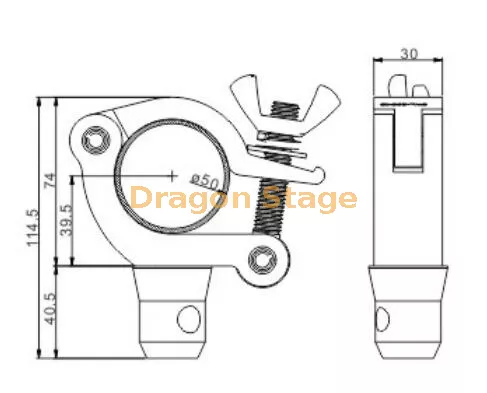

• Slim 30mm Profile
  The stated 30mm width provides a compact connection format for suitable truss arrangements.

• Half-Cone Connection Interface
  Designed for connection to a compatible half-cone receiving interface. Verify the exact truss system and connector configuration before ordering.

• Lightweight 0.398kg Design
  The supplied product weight is 0.398kg, useful for equipment inventory and handling calculations.

• Suitable for Event Truss Structures
  Can be considered for compatible concert trusses, stage towers, cross-truss arrangements and event rigging structures.

• Reference Hardware Information
  The corresponding manufacturer technical documentation identifies an M12 wing nut. Confirm the supplied hardware and final connection details before use.

The DragonEvent Slim Half-Cone Truss Coupler can be considered for suitable installations such as:

• Concert truss structures

• Stage tower construction

• Cross-truss connections

• Live event production infrastructure

• Festival and entertainment structures

• Compatible modular truss systems

• Event rigging arrangements requiring a half-cone connection

For supporting structure components and related accessories, explore DragonEvent Truss & Rigging and Truss & Rigging Accessories.

Compatibility & Installation Notes

Before ordering or installing this coupler, verify the following:

1. Check the tube diameter
   Confirm that the tube falls within the specified 48–51mm diameter range.

2. Verify the half-cone interface
   Confirm that the receiving connector is designed for this half-cone connection. A similar appearance does not guarantee mechanical compatibility.

3. Confirm the truss series
   Reference technical information identifies compatibility with certain F31–F44 truss systems, excluding PL versions. Check the exact model and connector type before purchase.

4. Check the fastening hardware
   The corresponding reference documentation lists an M12 wing nut. Confirm the supplied hardware, assembly arrangement and tightening requirements before installation.

5. Respect the stated SWL
   The supplied specification lists a 300kg SWL. Do not interpret this figure as the capacity of the complete truss structure or every possible loading configuration.

6. Inspect the complete connection
   Check the coupler, half-cone interface, fasteners and receiving connector for damage, deformation, wear or incorrect assembly before use.

7. Assess the complete structure
   The connected truss, coupler, receiving connector, fasteners and installation arrangement must all be suitable for the intended load and application.

1. What is the DragonEvent Slim Half-Cone Truss Coupler used for?

It is designed to connect compatible tubular truss structures using a half-cone interface. Potential applications include concert trusses, stage towers and event structures.

2. What is the safe working load?

The supplied specification lists an SWL of 300kg. The complete installation must also comply with the limitations of the connected truss and all other components.

3. What material is the coupler made from?

The supplied specification identifies 6061 aluminium. Reference technical documentation for the corresponding design specifies 6061-T6.

4. What tube diameter does it fit?

The specified compatible tube diameter is 48–51mm.

5. How wide is the coupler?

The reference product information specifies a width of 30mm, giving it a slim profile.

6. What is the product weight?

The supplied product specification lists a weight of 0.398kg.

7. Which truss systems are compatible with the half-cone connection?

Reference technical documentation identifies compatibility with certain F31–F44 truss systems, excluding PL versions. Compatibility must be checked against the exact truss model and receiving connector.

8. What fastening hardware is used?

The corresponding reference technical documentation lists an M12 wing nut. Confirm the hardware supplied with the actual product before installation.

9. Can the 300kg SWL be used as the capacity of the entire truss structure?

No. The coupler's stated SWL is not an approval of the entire structure. The truss, receiving connector, fasteners, loading arrangement and installation must all be suitable for the intended application.
