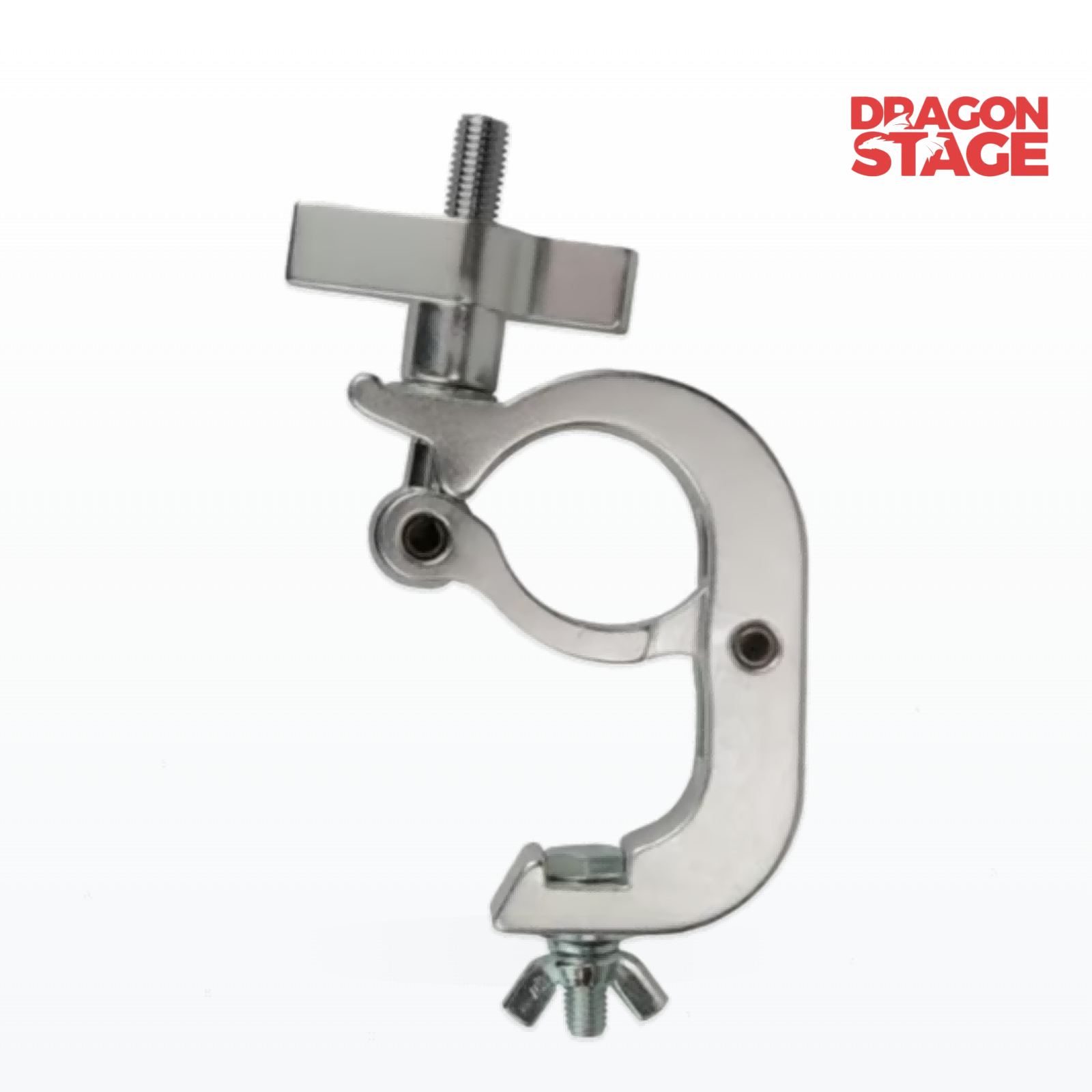

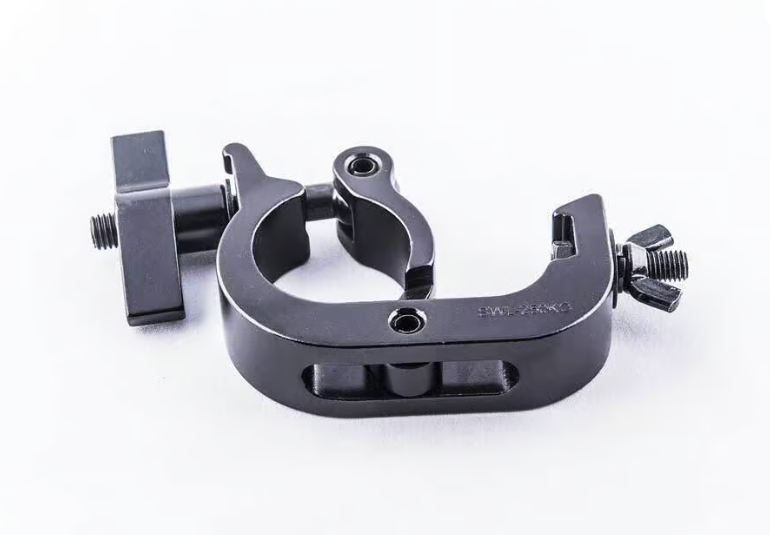

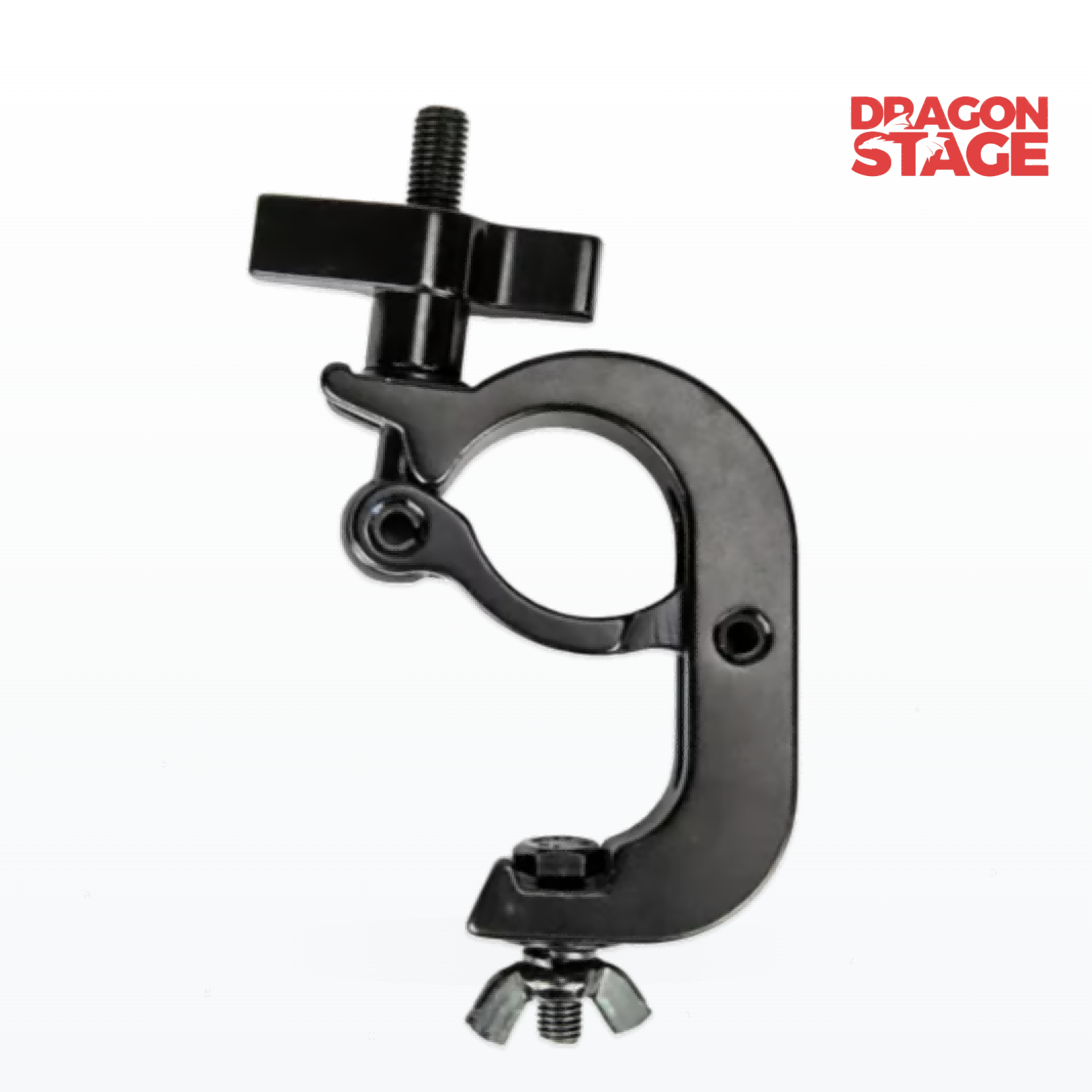

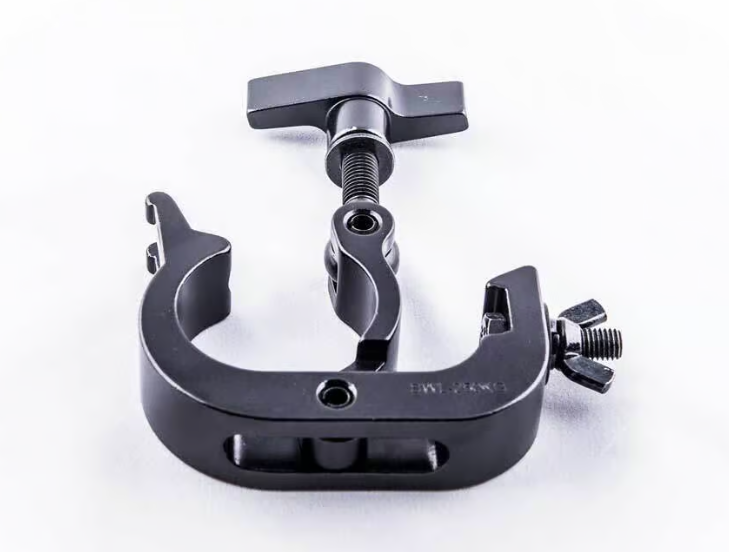

6061 Aluminium Trigger Clamp for Stage Lighting, Concert Truss & Event Rigging

• 6061 Aluminium Construction
  Manufactured from the specified 6061 aluminium material for stage lighting and event rigging applications.

• 250kg Safe Working Load
  The supplied specification lists an SWL of 250kg. The complete installation must remain within the applicable limits of all connected components and the supporting structure.

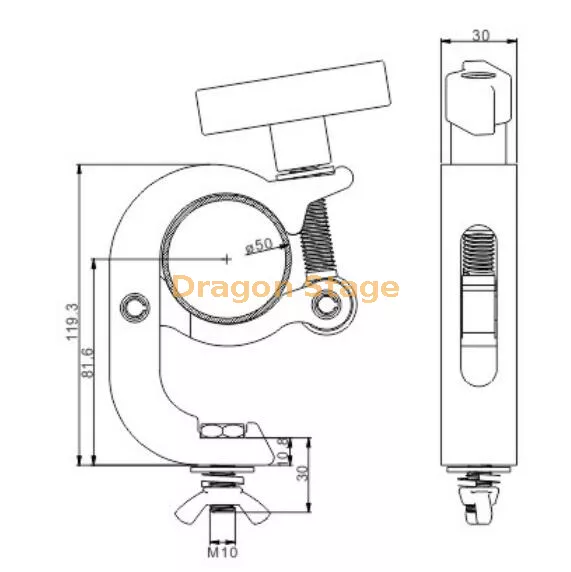

• Compatible with 48–51mm Tubes
  Designed for use with compatible tubular structures within the specified 48–51mm diameter range.

• Turning-Knob Tightening Mechanism
  The end-mounted turning knob is designed to make tightening the clamp straightforward during installation.

• Lightweight 0.47kg Design
  The specified product weight is 0.47kg, useful when planning equipment quantities and handling requirements.

• Black or Silver Colour Options
  The reference product page lists black and silver options. Confirm colour availability before placing an order.

• Suitable for Event Lighting Setups
  Can be considered for compatible stage lighting, concert truss, DJ equipment and event rigging applications after checking installation requirements.

The DragonEvent Trigger Clamp can be considered for compatible installations such as:

• Stage lighting fixture mounting

• Concert and live music lighting rigs

• DJ lighting stands and truss setups

• Event production truss structures

• Temporary stage and entertainment installations

• Lighting equipment rigging for festivals and performances

• Replacement of an existing compatible trigger clamp

For supporting event structure components, browse DragonEvent Truss & Rigging and Truss & Rigging Accessories.

Compatibility & Installation Notes

Before selecting this trigger clamp, verify the following points:

1. Confirm the tube diameter
   Check that the mounting tube falls within the specified 48–51mm diameter range.

2. Verify the fixture connection
   Confirm that the lighting fixture or equipment can connect correctly to the clamp and that the mounting arrangement is suitable for the intended application.

3. Check the load requirements
   The specified SWL is 250kg. Do not assume this rating automatically applies to every mounting orientation or complete suspended installation.

4. Tighten and inspect the clamp
   Follow the applicable installation instructions. Inspect the clamp and connected hardware for damage, wear or deformation before use.

5. Assess the complete rigging system
   The supporting truss or tube, fixture, clamp, fasteners and installation method must all be suitable for the intended load. A clamp's stated SWL alone does not certify the complete system.

6. Confirm colour and order details
   Black and silver are listed in the reference information. Confirm the required finish and package contents before purchase.

1. What is the DragonEvent Trigger Clamp used for?

It is designed for fastening compatible stage lighting equipment and other suitable fixtures to tubular truss structures.

2. What is the safe working load?

The supplied specification lists a safe working load (SWL) of 250kg. The complete installation must also comply with the limits of the supporting structure and all connected components.

3. What material is the clamp made from?

The specified material is 6061 aluminium.

4. What tube diameter does it fit?

The specified compatible tube diameter is 48–51mm. Check the actual tube dimensions and mounting interface before ordering.

5. How is the clamp tightened?

The reference product description identifies a turning knob at the end of the clamp to facilitate tightening.

6. How much does the clamp weigh?

The supplied product specification lists a weight of 0.47kg.

7. Is this trigger clamp available in different colours?

The reference product page lists black and silver options. Confirm current availability and the selected colour before placing an order.

8. Can it be used for overhead lighting installations?

It may be considered only when the clamp, fixture connection, supporting structure and complete rigging configuration are suitable for the application. The stated SWL alone is not approval of an entire suspended system.

9. Does the product include all mounting hardware?

The supplied information does not confirm the complete package contents. Contact DragonEvent to verify exactly what is included before ordering.
