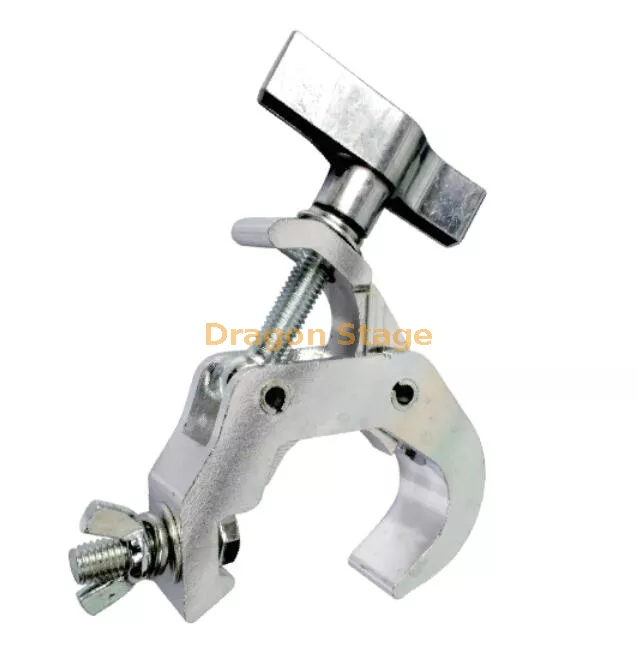

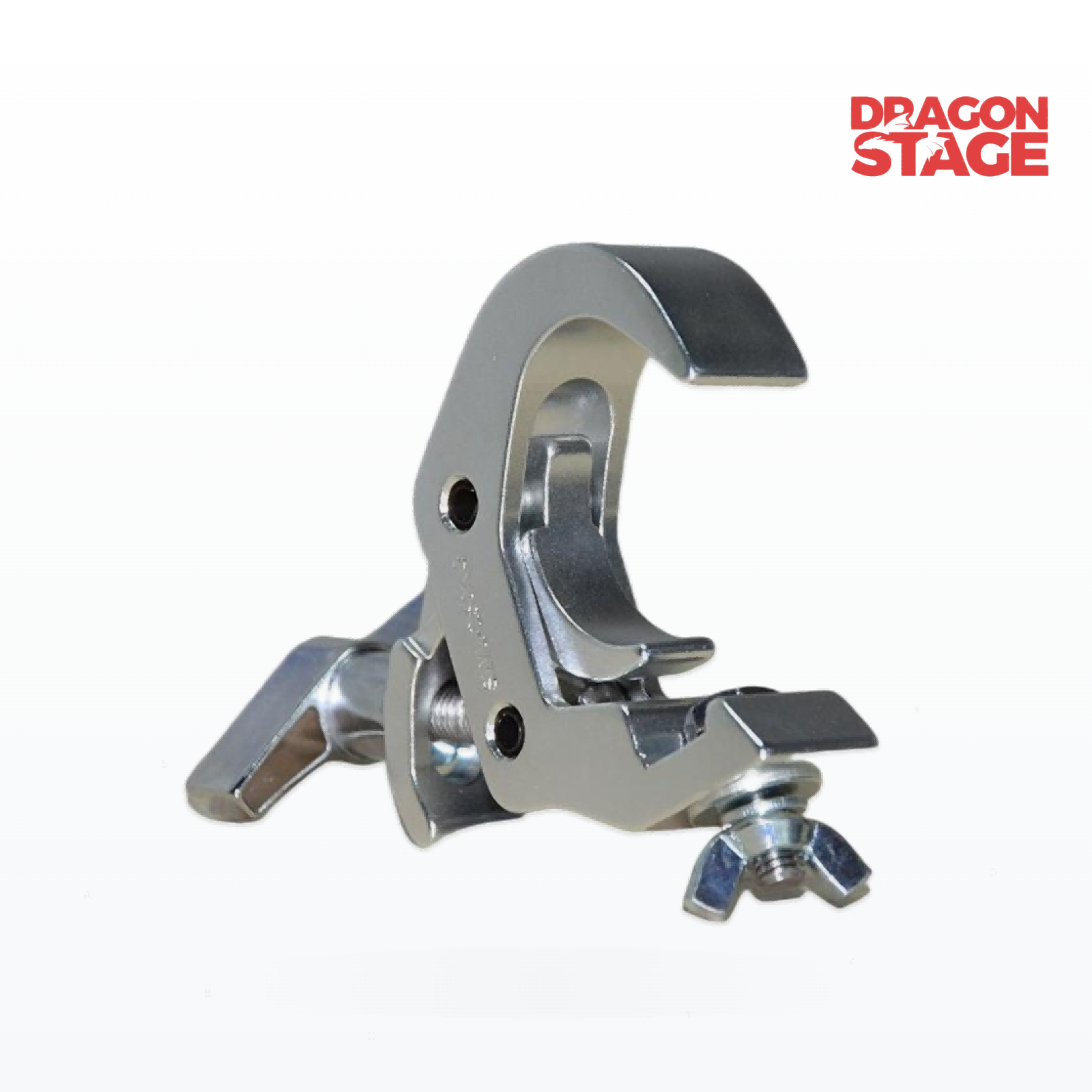

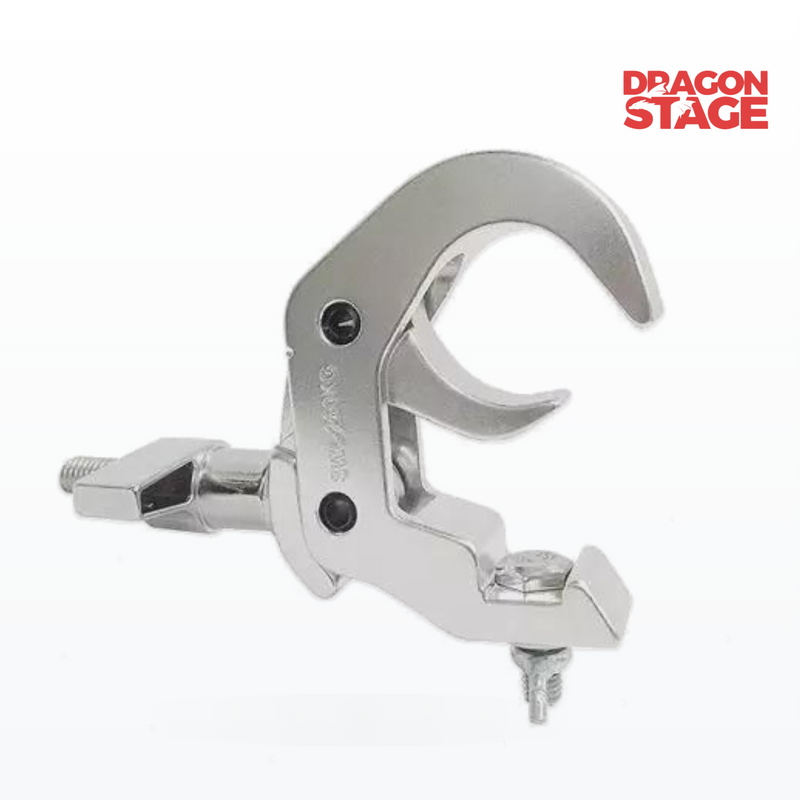

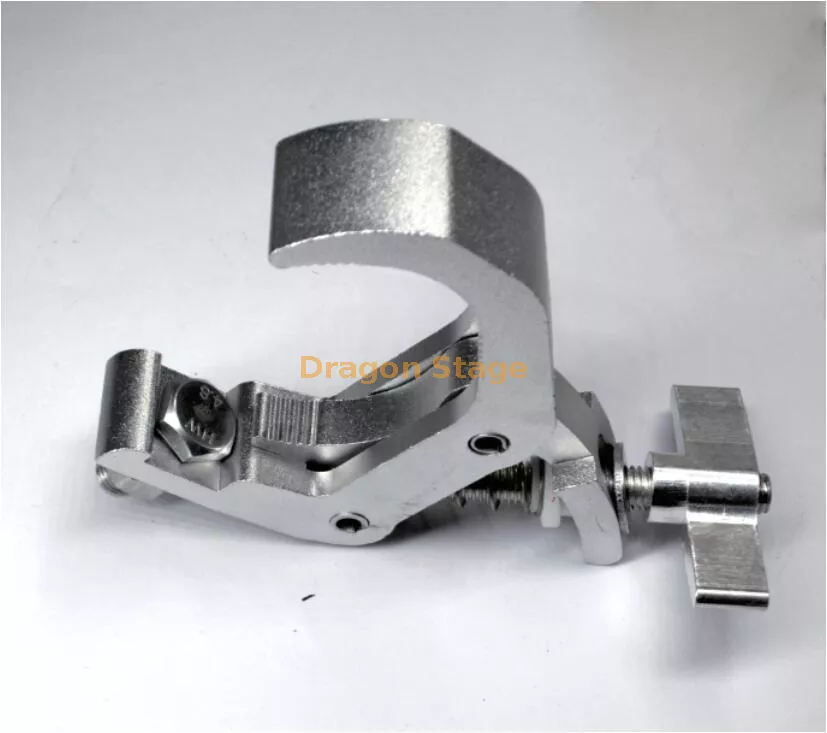

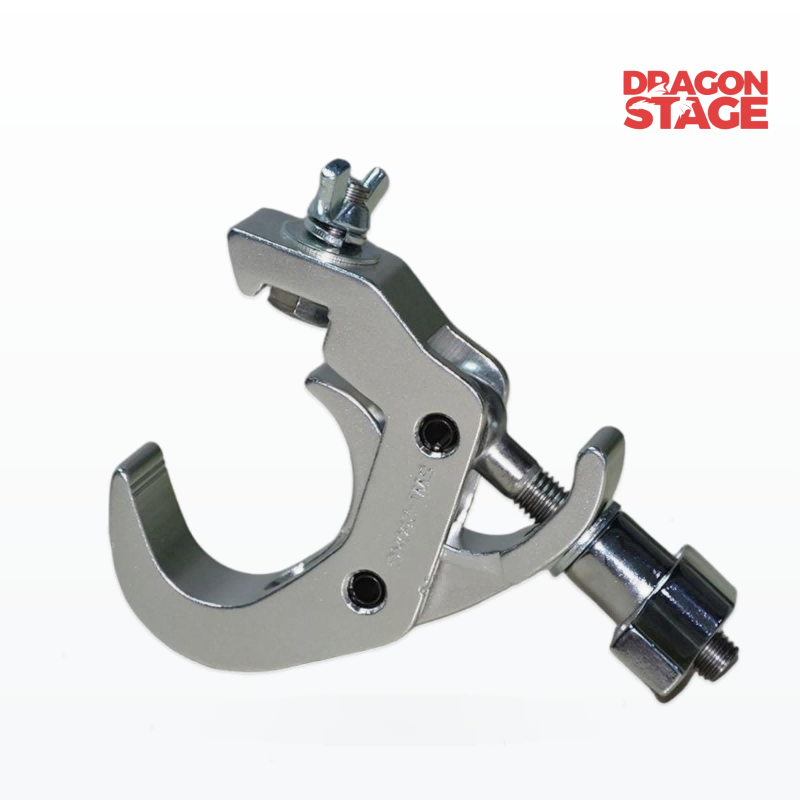

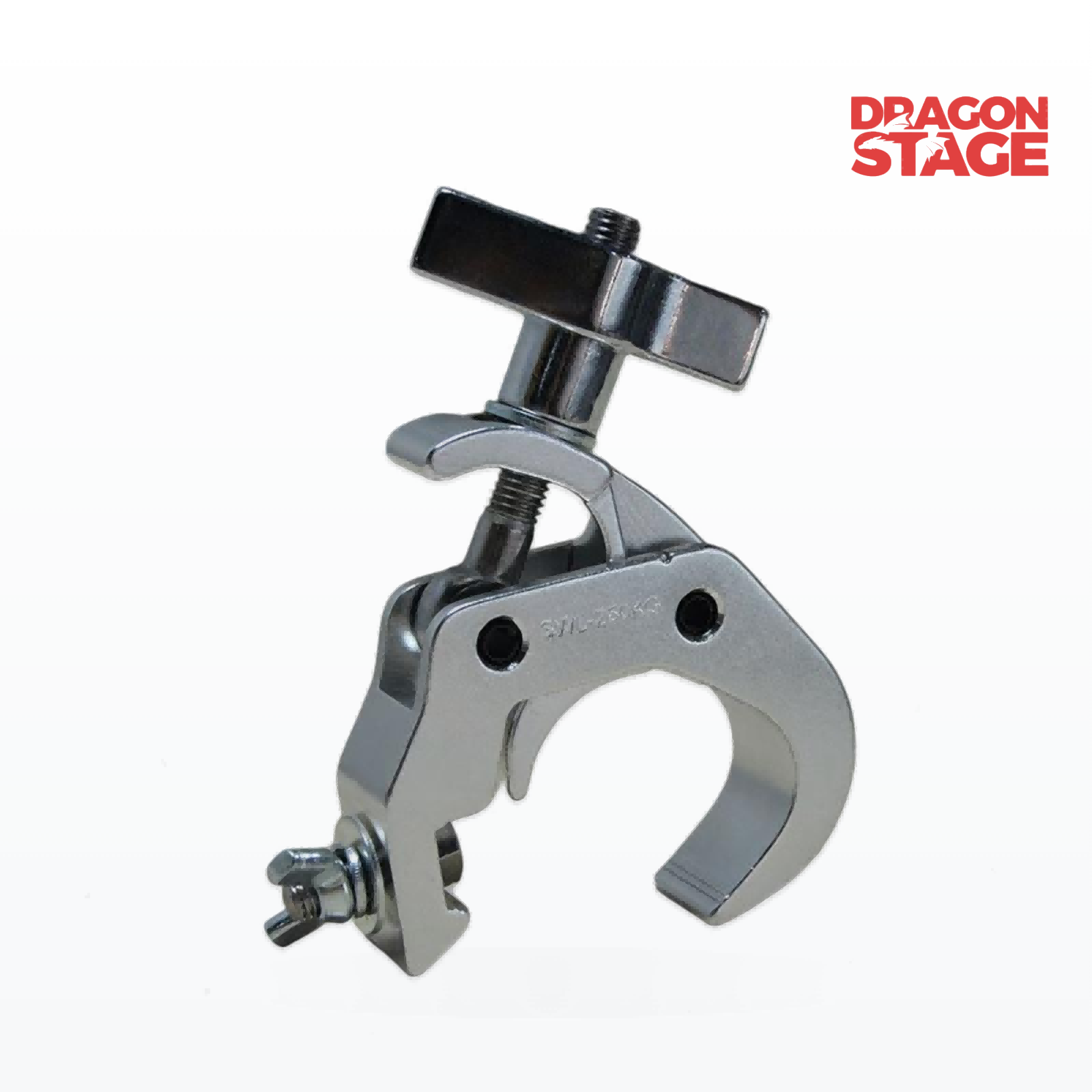

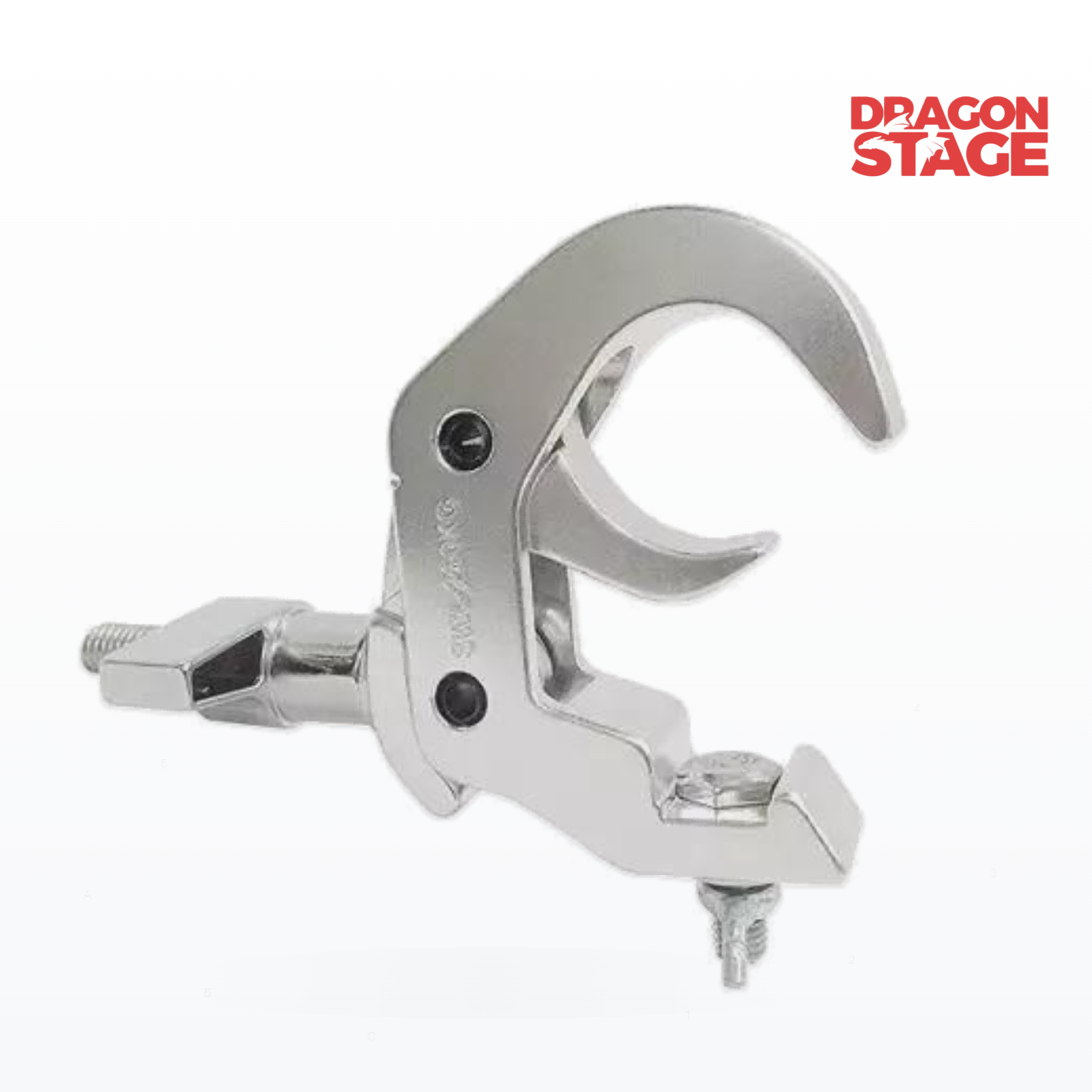

120kg Aluminium Pipe Clamp for DJ Lighting Bars and Event Stage Rigging

• Aluminium Alloy Construction
  Made from aluminium alloy for a lightweight mounting accessory suitable for compatible stage lighting and event equipment installations.

• 120kg Maximum Safe Load-Bearing Capacity
  The supplied product specification states a maximum safe load-bearing capacity of 120kg. Confirm the applicable rating definition and test conditions before relying on this figure for a specific installation.

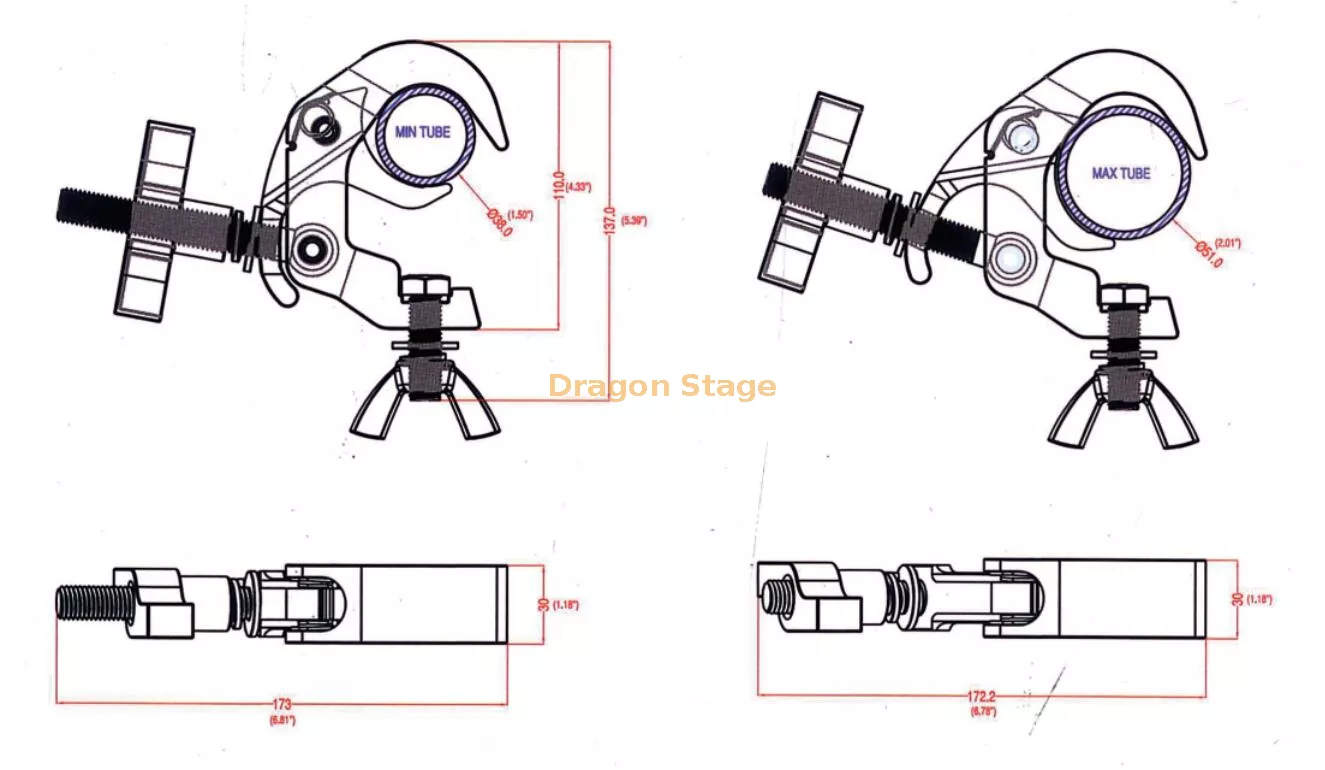

• 40–52mm Round Pipe Compatibility
  Designed for compatible round pipes with an outer diameter between 40mm and 52mm. Check the actual pipe dimensions before ordering.

• Compact 25mm Width
  The specified product width is 25mm, providing a compact profile for compatible mounting arrangements.

• 115mm Product Height
  The stated height is 115mm. Confirm the complete dimensions and mounting clearance required for your setup.

• Lightweight 0.46kg Design
  With a specified weight of approximately 0.46kg, the clamp is convenient to handle during equipment preparation and installation.

• Two Standard Finish Options
  Available in polished natural aluminium or oxidized black to suit different stage and event environments.

• Custom Finish Options
  Other colours and surface treatments can be requested, subject to supplier confirmation.

• Suitable for Compatible Event Equipment Mounting
  Can be considered for stage lighting, DJ equipment and event rigging applications when the pipe dimensions, mounting interface and complete support system are suitable.

The 120kg Aluminium Pipe Clamp can be considered for compatible mounting arrangements in:

• DJ lighting setups

• Stage lighting installations

• Concert and live event production

• Entertainment venues

• Event truss and tubular support structures

• Temporary event equipment setups

• Lighting equipment maintenance and replacement

For broader event infrastructure requirements, explore Truss & Rigging and Truss & Rigging Accessories.

Compatibility & Installation Notes

Before installation, verify that the clamp is suitable for the intended equipment and supporting structure.

1. Check the pipe diameter
   Confirm that the supporting round pipe has an outer diameter within the specified 40–52mm range. Do not assume that every truss tube or pipe will fit.

2. Verify the mounting interface
   Confirm that the equipment connection matches the clamp's mounting arrangement. The supplied information does not establish compatibility with every lighting fixture or DJ equipment type.

3. Confirm the load rating
   The supplied specification states a maximum safe load-bearing capacity of 120kg. Verify the rating definition, applicable test conditions and installation limitations before use.

4. Inspect the clamp and fasteners
   Check for visible deformation, cracks, damage or excessive wear. Ensure that all required fastening components are suitable and correctly installed.

5. Assess the complete support system
   The clamp's stated capacity does not establish the allowable load of the complete installation. The supporting pipe or truss, equipment, fasteners, connections and mounting arrangement must all be suitable for the intended load.

6. Verify project requirements
   For suspended equipment or other structurally significant installations, confirm the applicable safety requirements and supporting documentation before use.

1. What is the 120kg Aluminium Pipe Clamp used for?

It is a mounting accessory for compatible stage lighting, DJ equipment and event rigging arrangements that use suitable round pipe structures.

2. What pipe diameter does this clamp fit?

The supplied specifications identify compatible round pipes with an outer diameter of 40–52mm. Measure the supporting pipe before ordering.

3. What is the maximum safe load-bearing capacity?

The supplied product information states 120kg. Confirm the applicable rating definition and test conditions before relying on this figure for a specific installation.

4. What material is the clamp made from?

The clamp is specified as being made from aluminium alloy. The exact alloy grade has not been provided.

5. What are the product dimensions and weight?

The stated product width is 25mm, height is 115mm, and weight is approximately 0.46kg.

6. Which finishes are available?

The listed options are polished natural aluminium and oxidized black. Other colours or surface treatments may be available by customization.

7. Can this clamp be used with any stage light or DJ fixture?

No. Compatibility depends on the pipe diameter, equipment mounting interface and complete installation arrangement. Verify these details before ordering.

8. Does the 120kg rating approve the complete suspended installation?

No. The stated clamp capacity alone does not establish that the entire installation is safe for a particular load. The supporting structure, equipment, fasteners, connections and installation conditions must also be assessed.

9. Are mounting hardware and certifications included?

The supplied product information does not confirm the package contents or certification status. Contact the supplier to verify these details if required.
