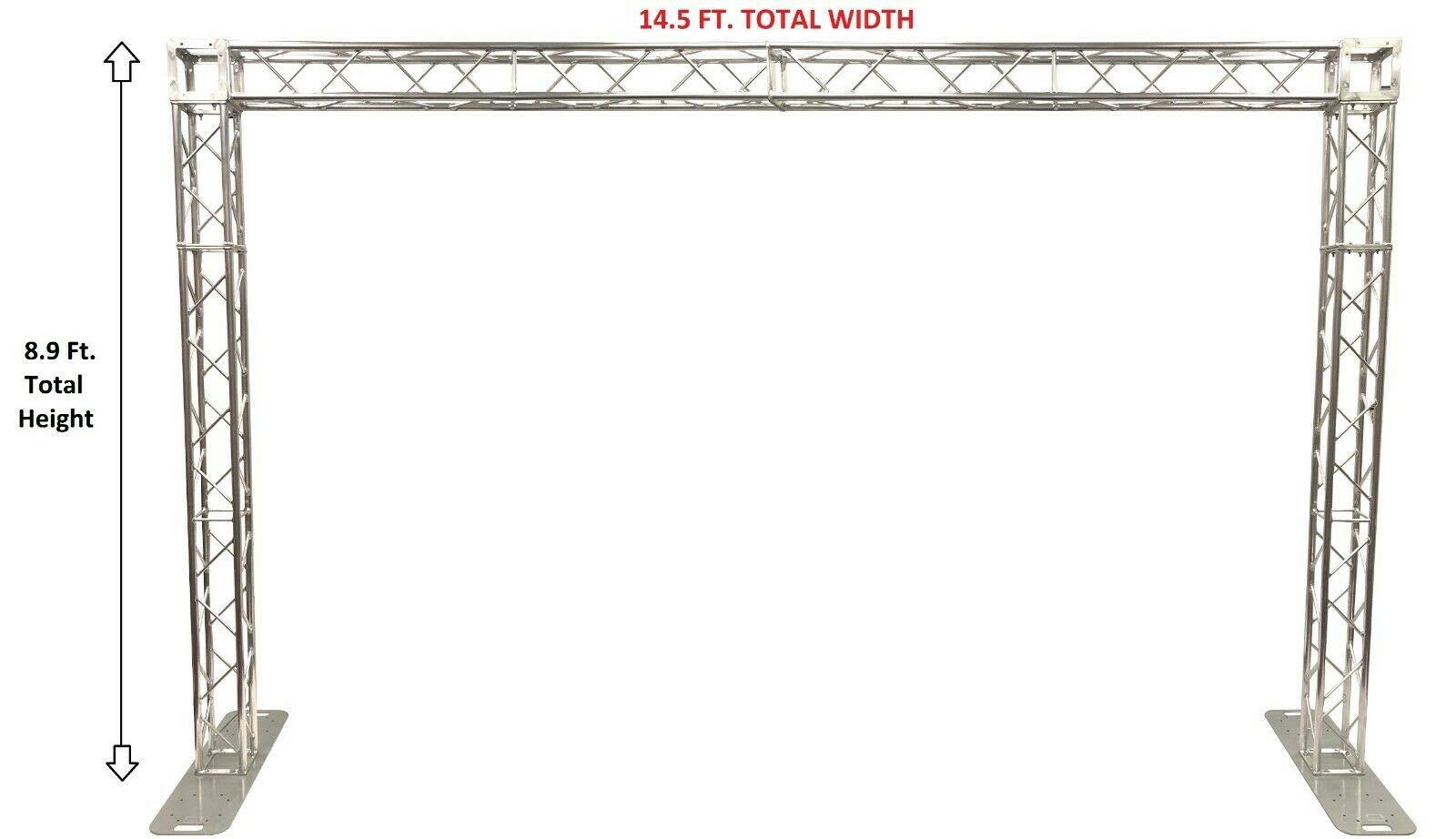

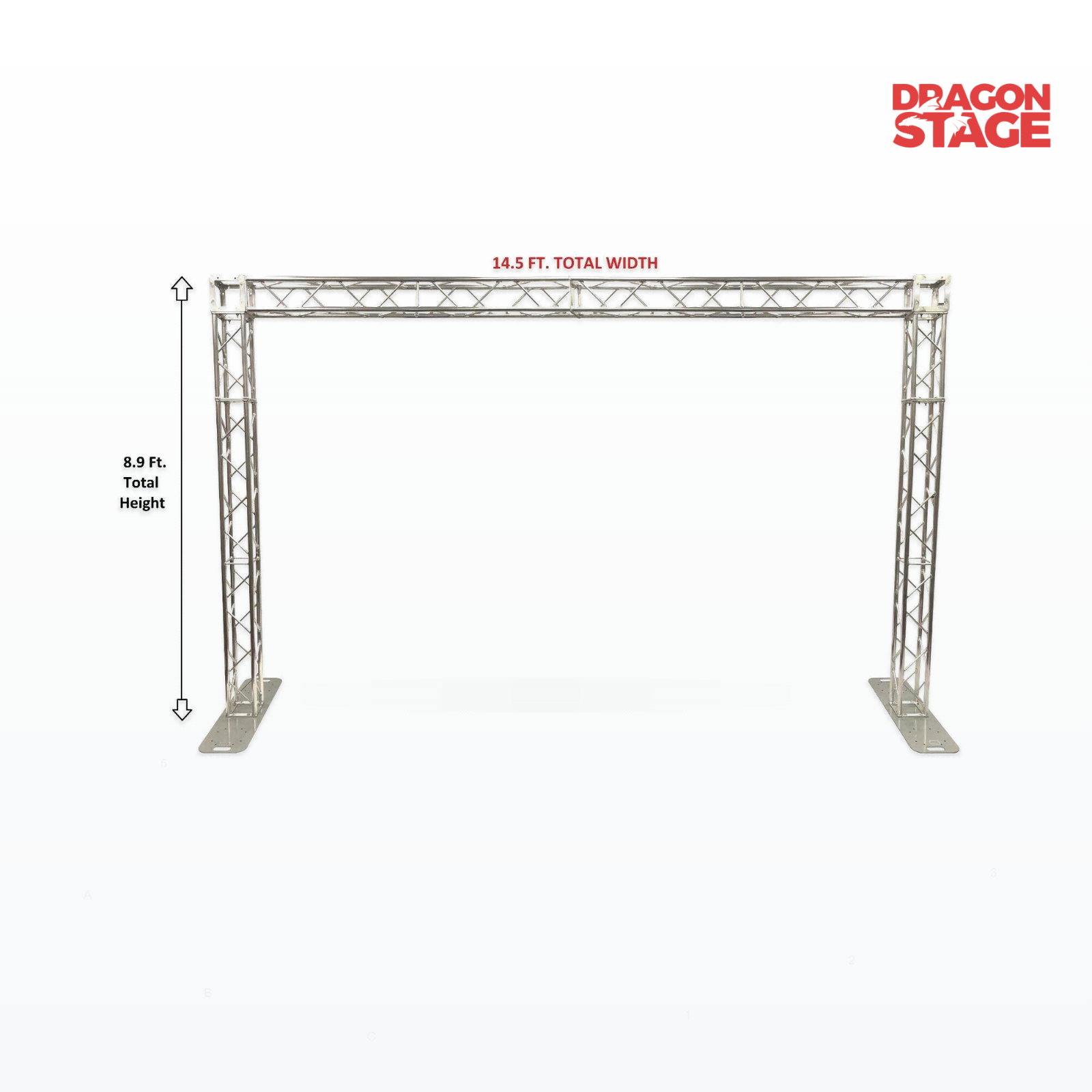

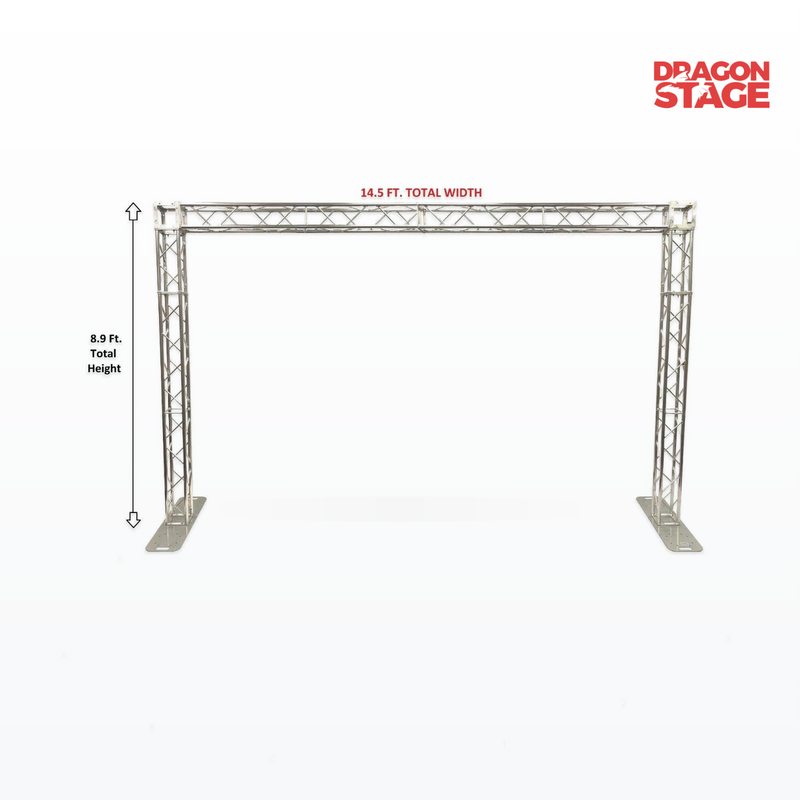

1. Wide 4.4m Goalpost Layout

The nominal overall width is approximately:

4.42m / 14.5ft

This creates a wider visual frame than a compact 3m DJ arch.

It may be useful where the DJ equipment, booth or event backdrop extends across a larger performance area.

2. Approx. 2.7m Overall Height

The nominal overall height is:

2.71m / 8.9ft

The reference modular arrangement also allows a shorter configuration by changing the installed straight sections. Any revised configuration must be confirmed against the final supplied system.

Before ordering, check venue ceiling clearance and installation space.

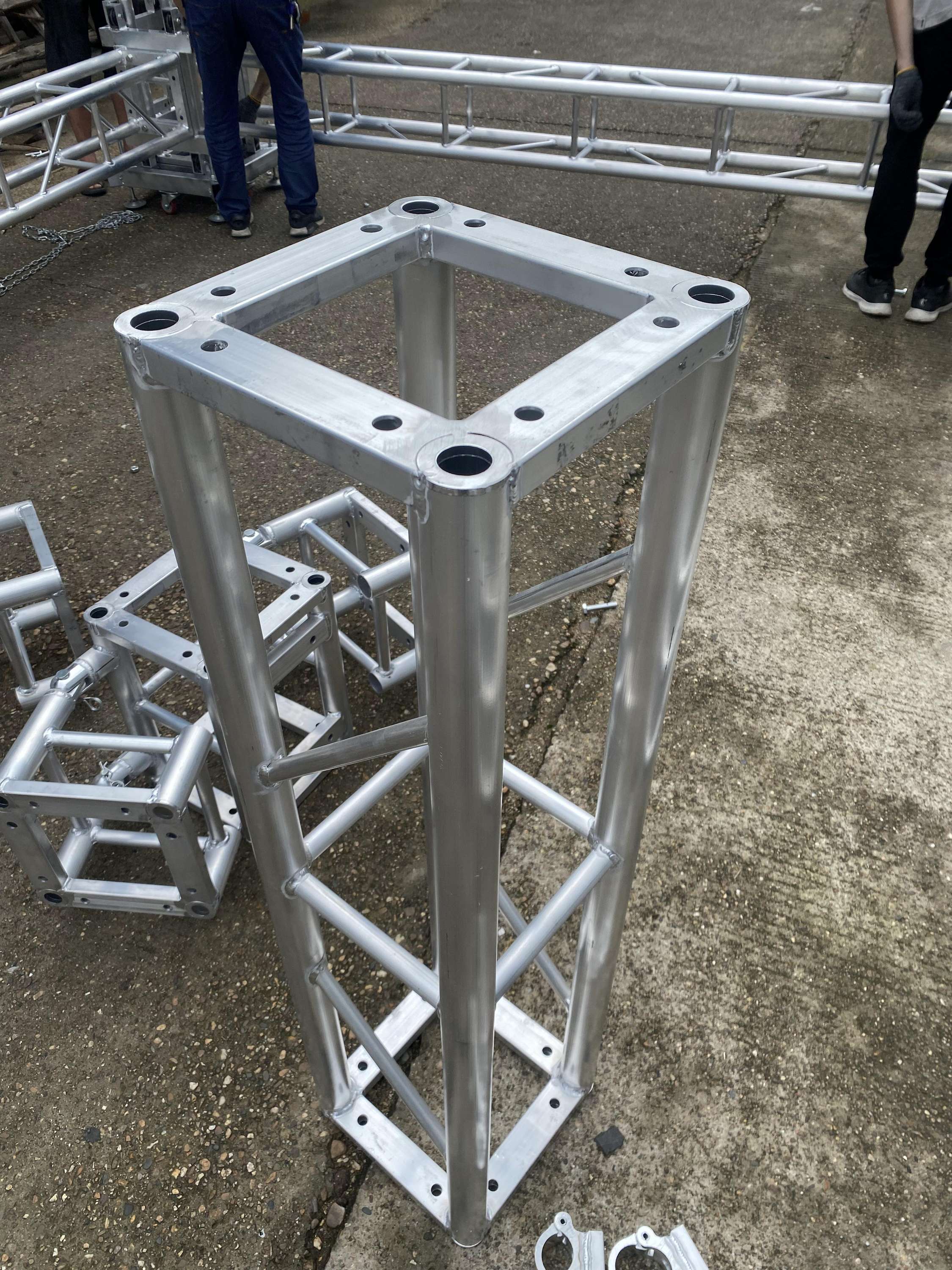

3. Compact 8 × 8in Square Truss

The reference system uses:

8 × 8in / approximately 203 × 203mm square aluminum truss

with:

1.25in / approximately 31.8mm main tubes.

The compact profile is different from larger 290mm or 300mm professional box truss.

4. Bolt-Together Connections

The straight sections are connected using compatible bolt hardware.

This makes the system different from pin-connected spigot truss.

Before mixing components from different systems, check the actual bolt-hole layout and connection geometry.

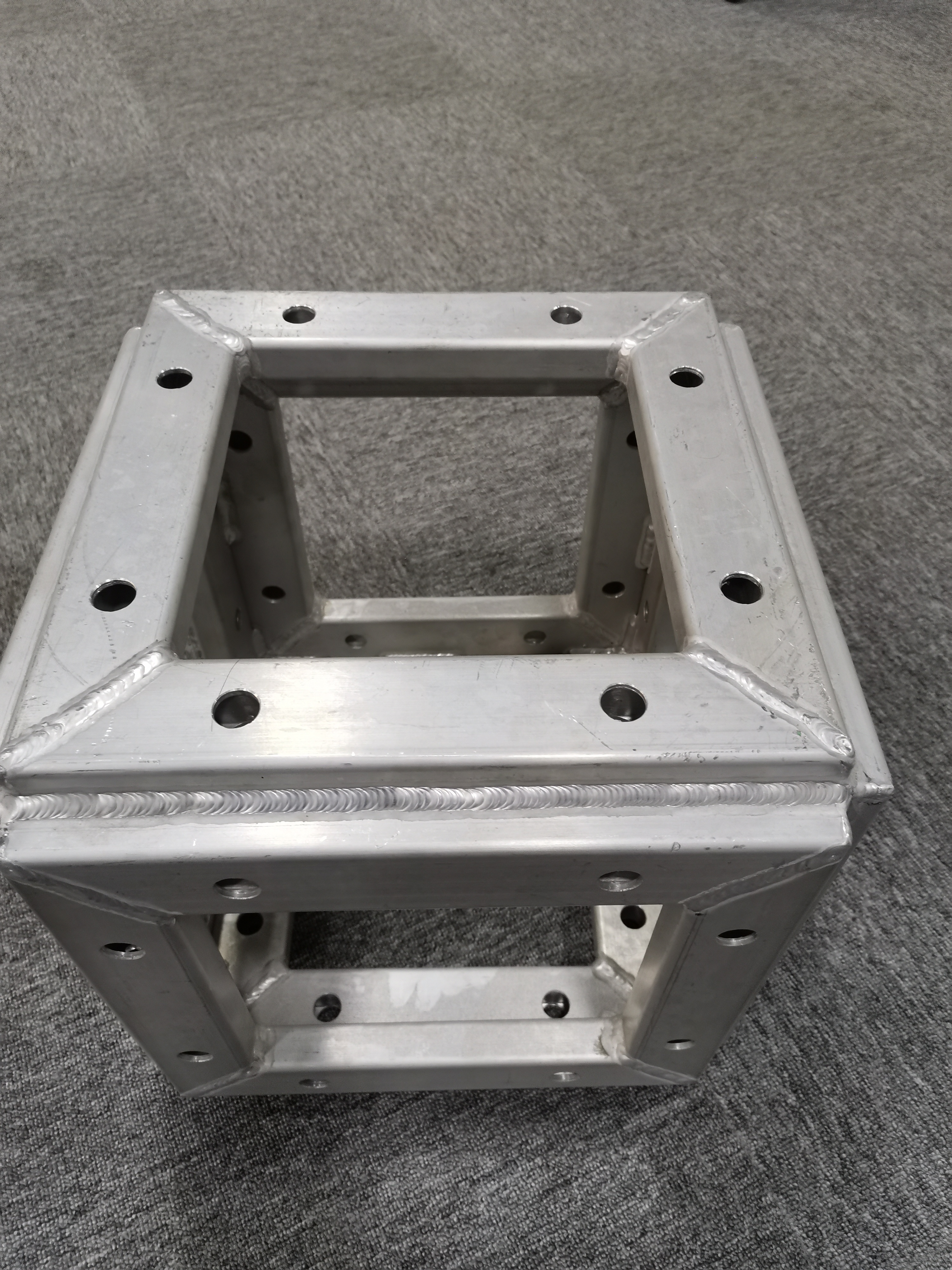

5. Two 6-Way Corner Cubes

The package uses:

2 × 6-Way Corner Cubes

to form the upper corners of the rectangular goalpost frame.

These cubes distinguish this package from a curved truss arch using rounded corner sections.

6. Modular Straight Sections

The reference package consists of:

4 × 2m Straight Truss Sections

and:

2 × 0.5m Straight Truss Sections.

The sections can be separated for transport and storage.

7. Rectangular Base Plates

Two rectangular base plates form part of the package.

The reference base plate size is approximately:

279 × 991mm / 11 × 39in.

Actual stability and suitability depend on the complete configuration, loading, floor conditions and required restraints.

8. Four Lighting Clamps

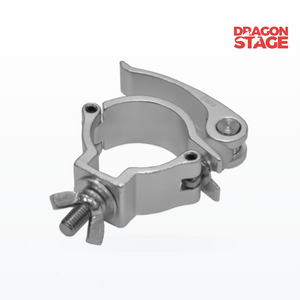

The reference configuration includes four aluminum mounting clamps.

Their suitability depends on the actual truss tube diameter, fixture mounting interface and required working load.

Package Components

Package note: Lighting fixtures, speakers, controllers and electrical cables are not included unless explicitly added to the selected package.

Mobile DJ Lighting

The wider goalpost format may suit DJs who use a larger booth or want to organize multiple lighting fixtures across a shared overhead frame.

Fixture selection and installation must remain within the verified capability of the supplied structure.

Wedding Entertainment

The rectangular frame can form part of a wedding DJ presentation where lighting and decorative effects are positioned around the performance area.

Private Parties

For suitable indoor parties, the modular package provides a repeatable layout without requiring the buyer to select every straight section and corner separately.

Corporate Events

Event companies can use a consistent frame design for suitable entertainment and lighting presentations.

Rental Company Packages

A coordinated goalpost kit can be marketed as a complete rental package rather than several unrelated truss components.

How to Choose

1. Check the Available Width

The reference configuration is approximately 4.42m wide.

Make sure there is sufficient room for the base plates, DJ booth, performers and audience circulation.

2. Check Ceiling Height

The reference height is approximately 2.71m.

Allow additional clearance for assembly and any equipment that extends beyond the frame.

3. Confirm Your Lighting Requirements

Prepare a list of the fixtures you plan to install, including their weights, mounting arrangements and positions.

A truss that physically accommodates a fixture is not automatically suitable for carrying it.

4. Check Transport Length

The longest reference straight section is 2m.

This may be convenient for some vehicles, but buyers should check packaging dimensions and local delivery restrictions.

5. Confirm the Connection System

This package uses bolt-connected square truss.

It must not be assumed compatible with other 8 × 8in truss or spigot-connected systems.

Minimum Practical Package

For the truss frame only, purchase:

1 × Complete 4.4m DJ Goalpost Truss Kit

containing the matching truss, corners, bases and connection hardware.

For a functioning lighting setup, buyers will also need suitable lighting fixtures, fixture-mounting hardware, secondary safety devices where required, and the necessary power and control equipment.

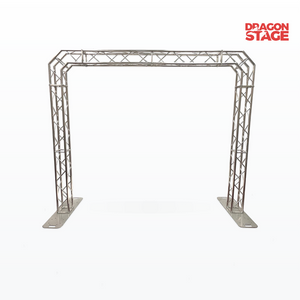

4.4m Rectangular Goalpost vs 3m Rounded Arch

Choose this 4.4m system when a wider rectangular frame is appropriate for the venue and equipment layout.

Choose the 3m rounded arch when the event benefits more from a compact footprint and curved appearance.

Buying Mistakes to Avoid

1. Assuming Speaker Suspension Is Included

Although goalpost truss may appear suitable for various types of equipment, this package must not be marketed as a speaker-suspension system without verification for that application.

2. Ignoring Base Plate Dimensions

A wide truss frame still needs sufficient floor space for its bases and any required stabilization.

3. Assuming 8 × 8in Truss Is Universally Compatible

Other compact truss systems may use different connector dimensions, tube layouts or bolt patterns.

4. Buying a Frame Without Planning Fixtures

Choose the lighting equipment and its intended positions before finalizing the complete structure.

5. Assuming It Can Be Used Outdoors

Outdoor use requires separate evaluation of wind exposure, stabilization and the complete structural arrangement.

6. Extending the Frame Without Technical Review

Adding more straight sections changes the structural configuration.

Longer beams or taller supports should not be assumed acceptable merely because compatible sections can physically connect.

Necessary Related Products

Browse Truss & Rigging Accessories for appropriate clamps and connecting components.

For a different DJ truss system or more extensive project planning, visit DragonStage DJ Truss.

How wide is the goalpost truss?

Approximately 4.42m / 14.5ft in the reference configuration.

How tall is the structure?

Approximately 2.71m / 8.9ft.

What type of truss is used?

Compact aluminum square bolt truss with an approximate 8 × 8in section.

What sections are included?

Four 2m straight sections and two 0.5m straight sections.

Does it use rounded corners?

No. This version uses two 6-way corner cubes.

Are base plates included?

Yes, the reference package includes two rectangular base plates.

Are lighting clamps included?

Yes, four clamps are included in the reference configuration. Actual supplied hardware must be confirmed for DragonEvent.

Are lights included?

No, not in the proposed basic package.

Can the height be changed?

The modular reference arrangement permits a shorter configuration, but each offered layout must be confirmed as suitable before sale.

Can I hang speakers from this system?

Speaker suspension must not be assumed. It requires verification for the specific equipment and complete structure.

Can I connect other brands of truss?

Only where actual connection compatibility and suitability of the combined system have been established.

Is it suitable for outdoor events?

Not automatically. Outdoor installations require a separate technical assessment.
