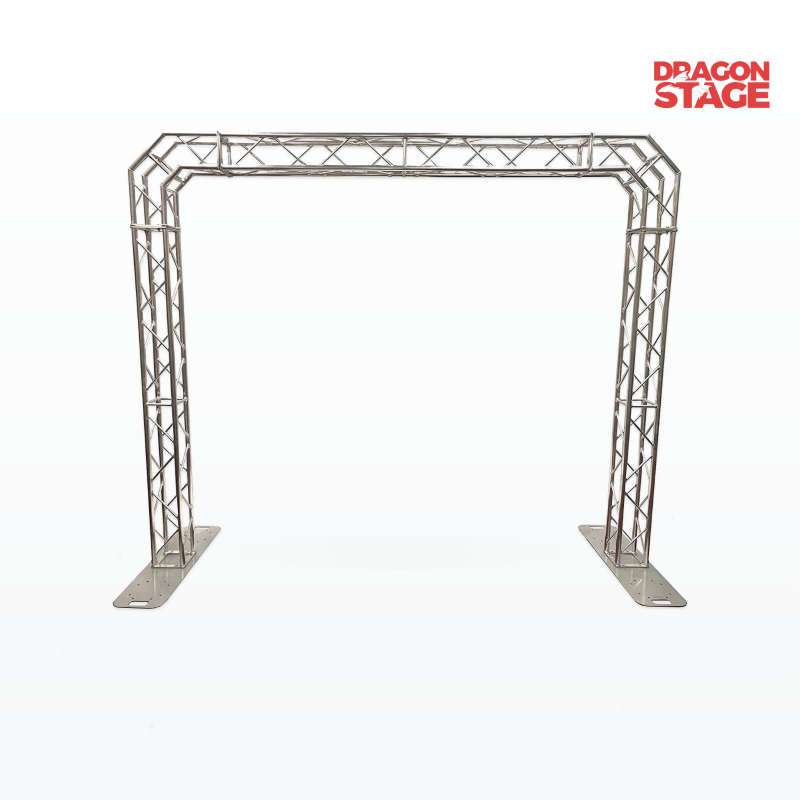

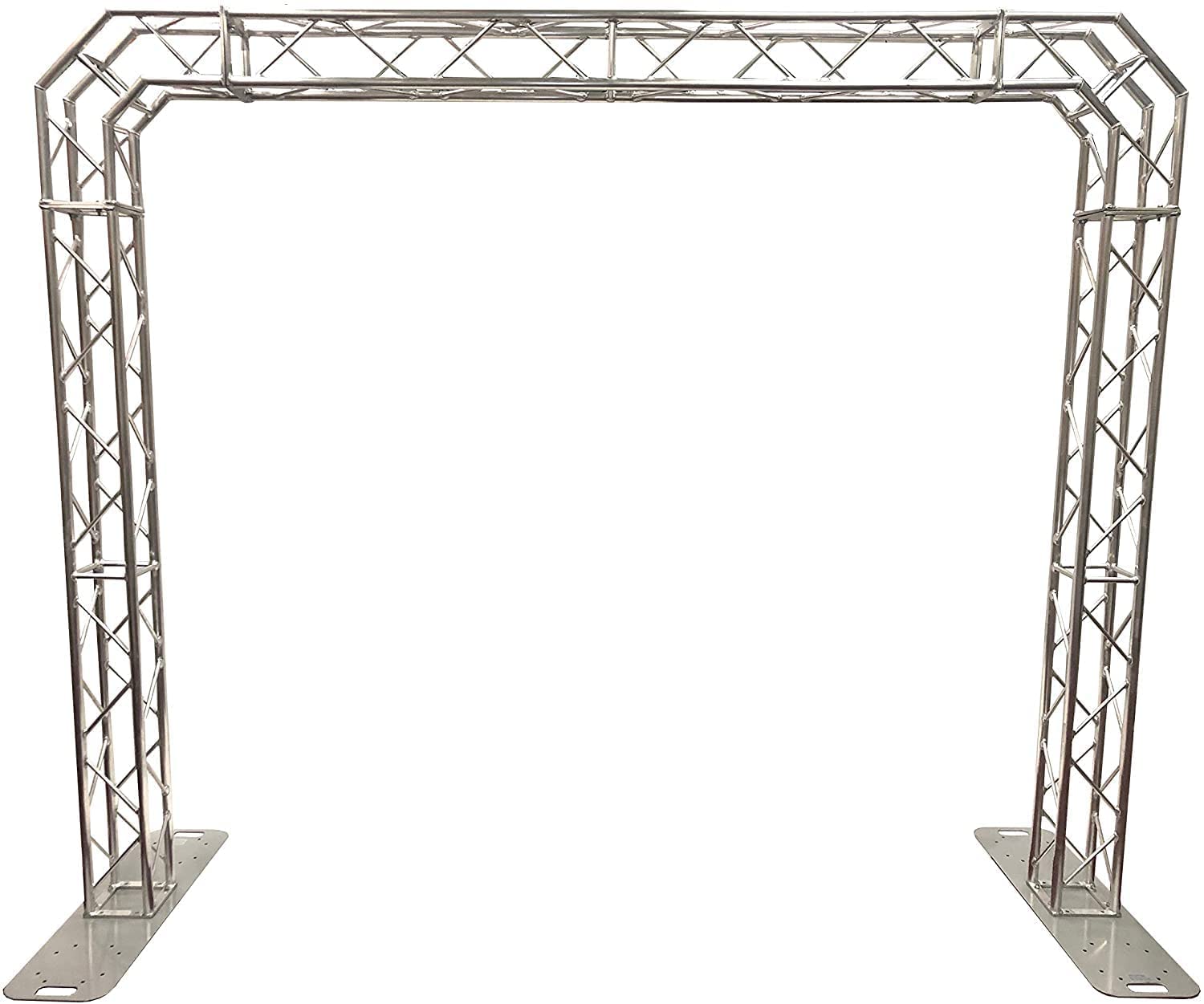

Complete portable aluminum DJ lighting truss arch kit with a goalpost-style frame, square bolt truss sections, two rounded corner connectors and two rectangular base plates. Designed for suitable mobile DJ, wedding, party and small indoor event lighting setups. Nominal assembled dimensions are approximately 3m wide × 2.5m high, subject to final configuration
| Availability: | |
|---|---|
| Quantity: | |
Dragon Stage
A mobile DJ planning a wedding or party often needs more than a single lighting stand, but may not need a large concert production structure.
A complete DJ lighting truss arch kit provides a practical starting point.
Instead of choosing individual truss sections, corner connectors and bases separately, the buyer can select a coordinated package with the components needed to assemble a freestanding goalpost-style lighting frame.
This portable aluminum truss arch is intended for suitable applications such as:
Mobile DJ performances
Wedding receptions
Birthday and private parties
Small indoor entertainment events
Compact stage lighting setups
Decorative event lighting frames

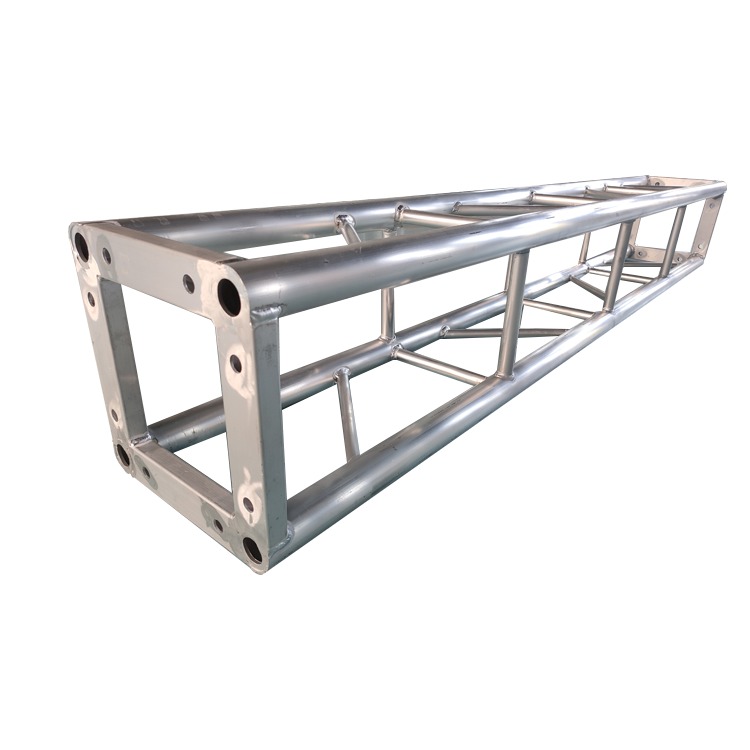

The system uses square aluminum truss sections connected with bolts and two rounded upper corner sections.
Two rectangular base plates form part of the supplied frame configuration.
For customers comparing other DJ structures, explore the DJ & Entertainment product range.
This product is supplied as a coordinated truss frame rather than an individual straight section.
The reference configuration includes straight truss sections, rounded corners, base plates and appropriate joint hardware.
It is intended to simplify the purchasing process for buyers assembling their first DJ lighting frame.
The reference configuration has an overall width of approximately:
2.96m / 9.7ft
This can provide space for a small DJ performance area and a suitable arrangement of lighting fixtures.
Actual equipment positions and allowable loads must be confirmed for the completed structure.
The reference arch stands approximately:
2.47m / 8.1ft high
Before ordering, check the venue ceiling height, assembly clearance and required lighting positions.
Unlike a standard right-angle rectangular goalpost, this package uses two rounded upper corners.
The rounded transition gives the frame a more distinctive arch-like appearance while retaining straight truss sections for the main structure.
The system uses square aluminum truss rather than steel pipe or individual lighting stands.
Its modular layout allows the straight sections and matching connectors to be separated for transportation and storage.
The truss sections use bolt connections.
This is different from a conical spigot truss system using pins and clips.
Buyers expanding an existing system should confirm the actual connection dimensions before mixing components.

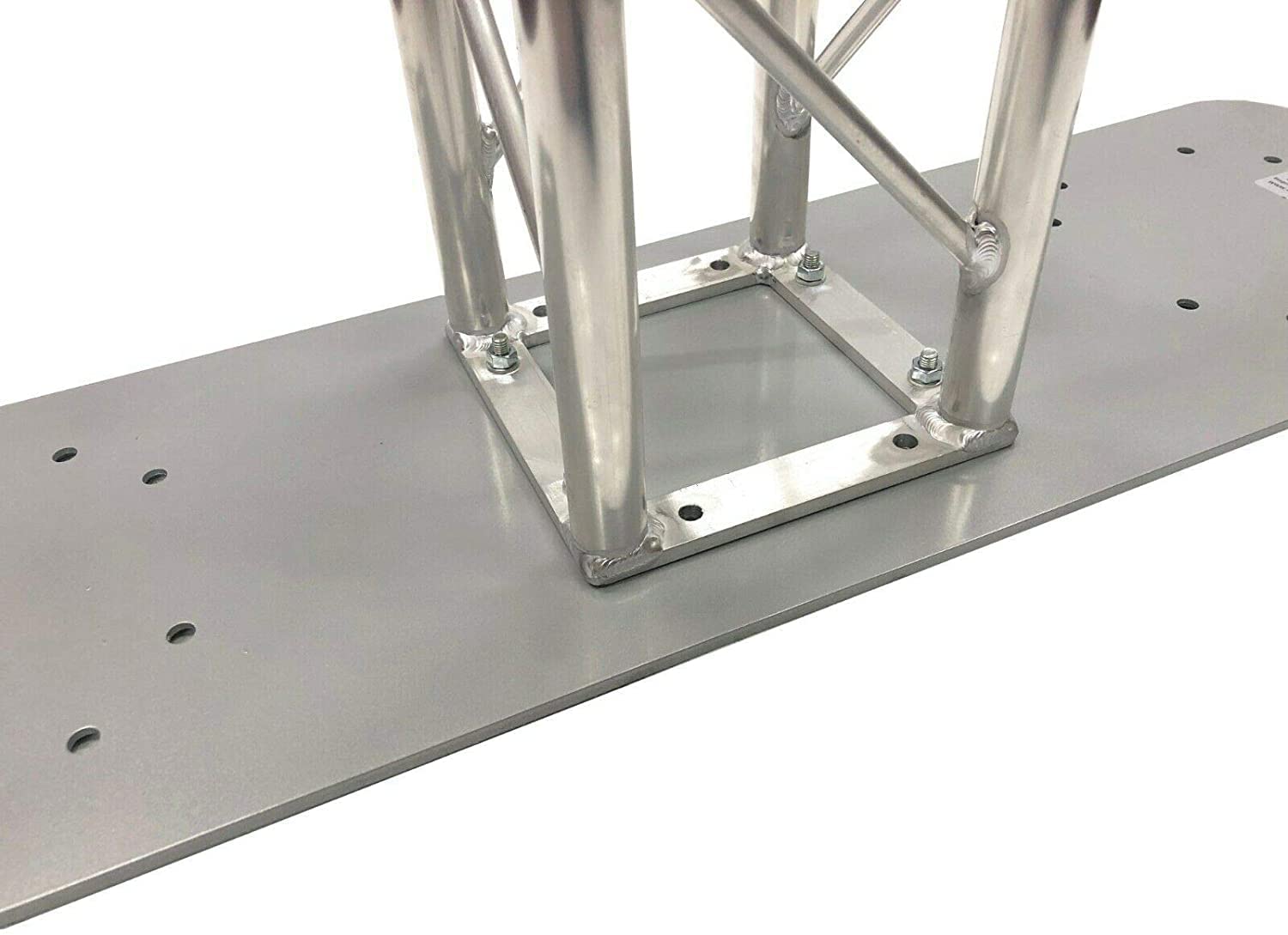

The reference configuration includes two rectangular aluminum base plates.
The bases form part of the freestanding arrangement, but the suitability of any installation depends on its actual loads, footprint, floor conditions and complete structural configuration.
Specification | Details |
|---|---|
Product Type | Portable DJ Lighting Truss Arch Kit |
Structure Style | Goalpost / Rounded Arch |
Nominal Overall Width | Approx. 2.96m / 9.7ft |
Nominal Overall Height | Approx. 2.47m / 8.1ft |
Truss Material | Aluminum |
Truss Geometry | Square Box Truss |
Connection Type | Bolt Connection |
Straight Truss Sections | 3 × 2m |
Rounded Corner Sections | 2 |
Base Plates | 2 rectangular plates |
Reference Base Plate Size | Approx. 229 × 991mm / 9 × 39in |
Connection Hardware | Compatible hardware required |
Main Applications | DJ, Weddings, Parties, Small Indoor Events |
Lighting Fixtures | Not included unless separately specified |
Finish | To be confirmed for DragonEvent package |
The overall dimensions, base footprint and component specifications should be confirmed against DragonEvent's final production drawing before listing them as guaranteed values.
Component | Quantity |
|---|---|
2m Square Aluminum Bolt Truss | 3 pcs |
Rounded Truss Corner | 2 pcs |
Rectangular Aluminum Base Plate | 2 pcs |
Compatible Bolt Connection Hardware | 1 complete set, specification to be confirmed |
This is the starting package configuration. The final bill of materials must match the actual supplied system.
For mobile DJs who want a more complete lighting presentation than two individual light stands, an arch-style frame can provide a recognizable performance setup.
The rounded corner profile can be useful where the visual presentation of the lighting structure matters.
The frame can be combined with suitable lighting and decorative elements, subject to the actual mounting requirements.
For smaller venues, a compact truss package can reduce the need to plan a separate custom frame for every event.
Rental operators can offer the truss arch as a package for recurring indoor DJ and party installations.
Any alternative layouts or expanded configurations should be confirmed before being sold as supported arrangements.
Measure the DJ setup or performance area first.
This package has a nominal overall width of approximately 3m / 9.7ft.
Allow room for the base plates and any equipment positioned around the frame.
The reference overall height is approximately 2.5m / 8.1ft.
Make sure the venue has adequate ceiling clearance not only for the assembled frame but also for the chosen installation method and any lighting fixtures.
This package uses bolt-connected square truss.
It should not be assumed compatible with a spigot truss inventory.
Buyers who already own truss should confirm the dimensions and joint hardware before ordering an expansion or replacement section.
Before ordering, identify the equipment you plan to mount.
For example, a small DJ lighting setup may use PAR lights or compact effect fixtures, but the number and weight of fixtures cannot be determined from the frame dimensions alone.
Provide the equipment list so the complete arrangement can be assessed.
This package is presented primarily for suitable indoor DJ and event applications.
Outdoor use introduces wind, stability and anchoring requirements and should be handled through project-specific evaluation rather than assumed from a standard kit description.
For a buyer who needs the truss frame only:
1 × Complete DJ Lighting Truss Arch Kit
including straight sections, matching rounded corners, base plates and required connection hardware.
For a usable lighting setup, the buyer will separately need compatible lighting fixtures, mounting clamps, secondary safety devices where required, and suitable power and control cabling.
The actual fixture plan must be checked against the supplied truss configuration.
You are starting from zero and want a coordinated package with straight sections, matching corners and bases for a specified layout.
This is generally easier for first-time buyers than assembling a shopping cart of separate truss components.
You already have a compatible truss system and only need an additional section, replacement or specific length.
For a customer with an existing system, buying another complete kit may be unnecessary.
A sensible first purchase is a complete arch that matches the current venue and lighting requirements.
As your event business grows, additional compatible truss sections or alternative frame configurations may be considered. Any enlarged span, taller structure or heavier suspended equipment requires separate technical verification.
A truss frame may appear suitable for several moving heads or speakers, but its appearance does not establish allowable loading.
Even when the top frame fits a venue, the base plates may occupy floor space needed for performers, furniture or walkways.
Different bolt truss systems may have different tube sizes, end geometry and bolt-hole arrangements.
Compatibility must be checked.
The truss kit provides the structural components identified in the package.
Lighting fixtures, cabling and controllers are separate unless explicitly included in the sales configuration.
The reference configuration uses 2m straight sections.
Buyers should check vehicle space, storage length and shipping arrangements before ordering.
Do not assume this package is suitable for outdoor wind exposure without an appropriate assessment of the entire setup.
For buyers who want to select their own truss lengths, browse Straight Truss.
For compatible clamps, bolts and mounting parts, browse Truss & Rigging Accessories.
For other small-event packages and equipment, visit DragonEvent Products.
The reference configuration includes three 2m straight truss sections, two rounded corners and two rectangular base plates. Matching connection hardware is required in the final package.
Approximately 2.96m wide and 2.47m high, subject to confirmation of the production configuration.
Yes. The reference product uses aluminum square truss sections.
No. The reference system uses bolt connections.
Lighting fixtures are not included in the proposed basic truss package.
Yes, for suitable wedding lighting applications where the complete installation requirements are met.
Yes. The package concept is aimed at mobile DJs and small-event operators who need a reusable goalpost-style lighting frame.
Potentially, but the allowable equipment arrangement must be established from verified product and installation data. No numerical loading capacity is assumed.
Do not assume the frame is suitable for speaker suspension. That use needs separate evaluation of the complete structure and suspension arrangement.
Outdoor use requires project-specific review of environmental loads, stability, support and anchoring. It is not automatically approved as an outdoor structure.
Custom configurations may be quoted, but changes to width or height are not automatically supported by the standard package specifications.
Only if the actual end connectors, bolt pattern, chord arrangement and other relevant dimensions are compatible, and the combined arrangement is suitable for the intended use.
