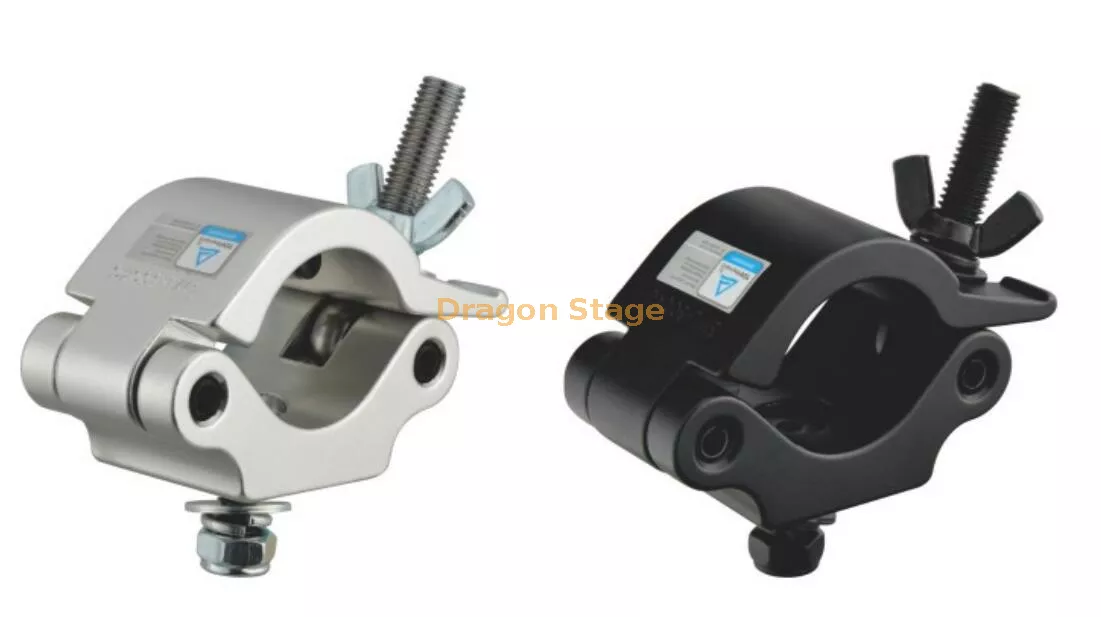

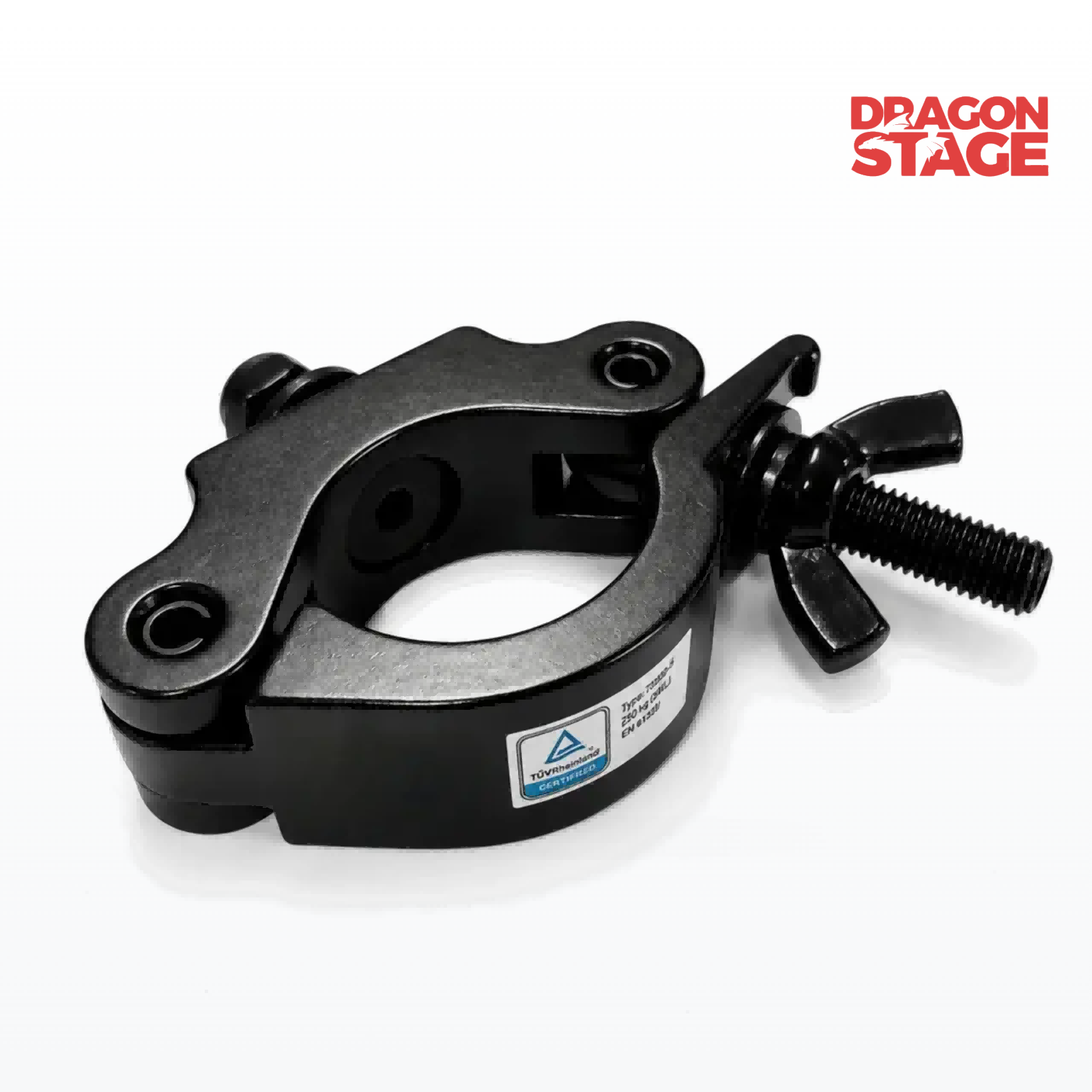

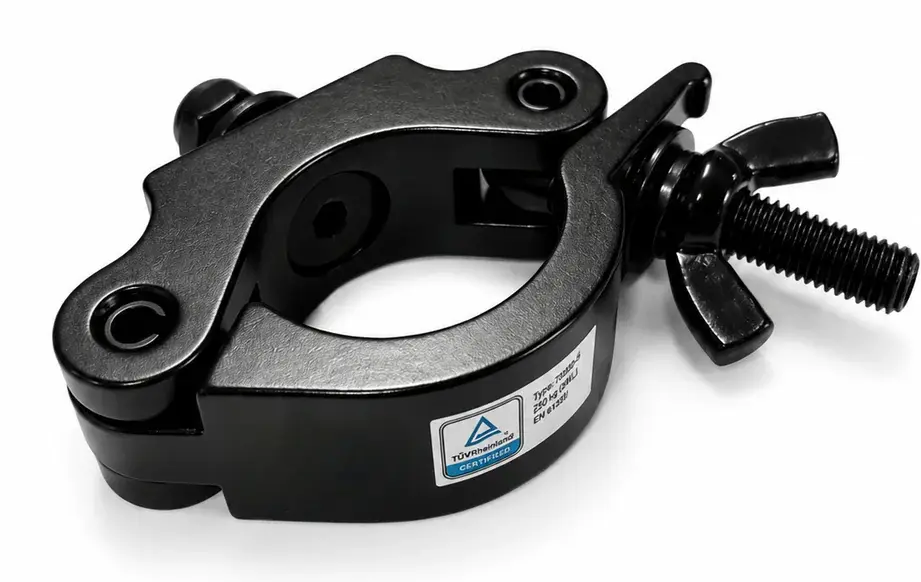

6061 Aluminium Narrow Truss Clamp for Concert Lighting, Theatre Rigs & Event Installations

• 6061 Aluminium Construction: Lightweight material for compatible truss mounting applications.

• 48–51 mm Tube Compatibility: Specified for compatible truss tubing within this diameter range.

• 500 kg Safe Working Load: Product rating supplied for assessing suitable applications; the complete installation remains subject to the limits of all connected components.

• Narrow Clamp Format: Intended for applications where a narrow clamp profile suits the mounting arrangement.

• 0.52 kg Unit Weight: Provides a stated weight for handling and equipment planning.

• 35 Pieces per Pack: Suitable for projects requiring multiple mounting points.

• Professional Event Applications: Can be considered for compatible stage lighting, theatre rigging and event installations.

Concert Lighting Installations

Suitable for consideration in compatible truss-based lighting systems used for live performances and concert production, subject to the requirements of the complete rigging system.

Theatre and Stage Rigs

Can be used in suitable stage and theatre installations where the clamp interface matches the truss and equipment mounting requirements.

Event Production

A potential mounting component for temporary event structures and production setups that use compatible 48–51 mm truss tubing.

Lighting Equipment Rental

The 35-piece pack may be useful for rental companies and production teams managing multiple lighting positions across different projects.

Exhibition and Venue Installations

Suitable for evaluating in compatible truss-based installations for exhibitions, venues and event displays.

Compatibility & Installation Notes

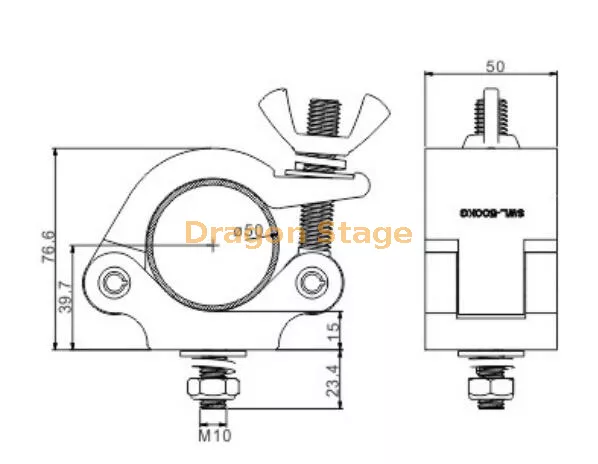

• Confirm that the truss tube diameter is within the specified 48–51 mm range.

• Verify that the clamp's actual dimensions and fastening interface are compatible with the intended equipment.

• The supplied product information specifies a 500 kg SWL. Do not exceed this rating, and account for any lower limit imposed by the truss, fixture, fasteners or other connected components.

• Do not assume that the clamp's SWL represents the allowable load of the complete assembly.

• Inspect the clamp and fastening components before use. Do not use components showing cracks, deformation, damaged threads or other signs of deterioration.

• For overhead installations, follow applicable rigging procedures and use appropriately qualified personnel.

• Confirm any required certifications or independent approvals with the supplier before specifying the product for projects that require them.

1. What material is the DragonEvent Narrow Truss Clamp made from?

The supplied specification identifies the material as 6061 aluminium.

2. What is the specified safe working load?

The specified SWL is 500 kg. The allowable load of the complete installation may be lower depending on the other components and installation conditions.

3. What truss tube diameter does it fit?

It is specified for compatible tubing with a diameter of 48–51 mm.

4. How much does one clamp weigh?

The supplied unit weight is 0.52 kg.

5. How many clamps are included in a pack?

Each pack contains 35 pieces according to the supplied product information.

6. Can this clamp be used for overhead lighting?

Only when the clamp, fixture, truss and complete rigging arrangement are confirmed suitable for the application. Follow the applicable installation procedures and load limits.

7. Does the 500 kg SWL mean the entire truss can carry 500 kg?

No. The SWL specified for an individual clamp does not establish the load capacity of the complete truss system. The limits of every connected component and the overall rigging arrangement must be considered.
