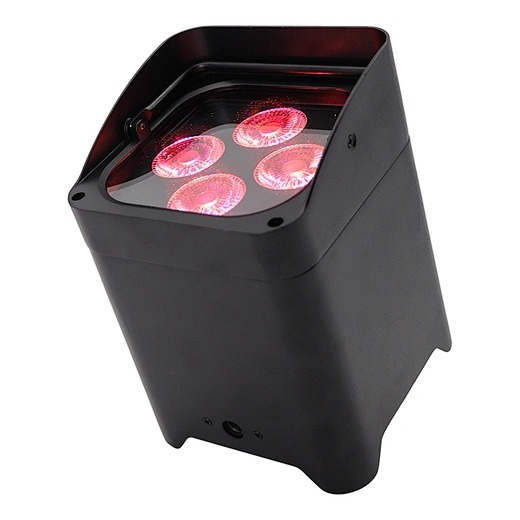

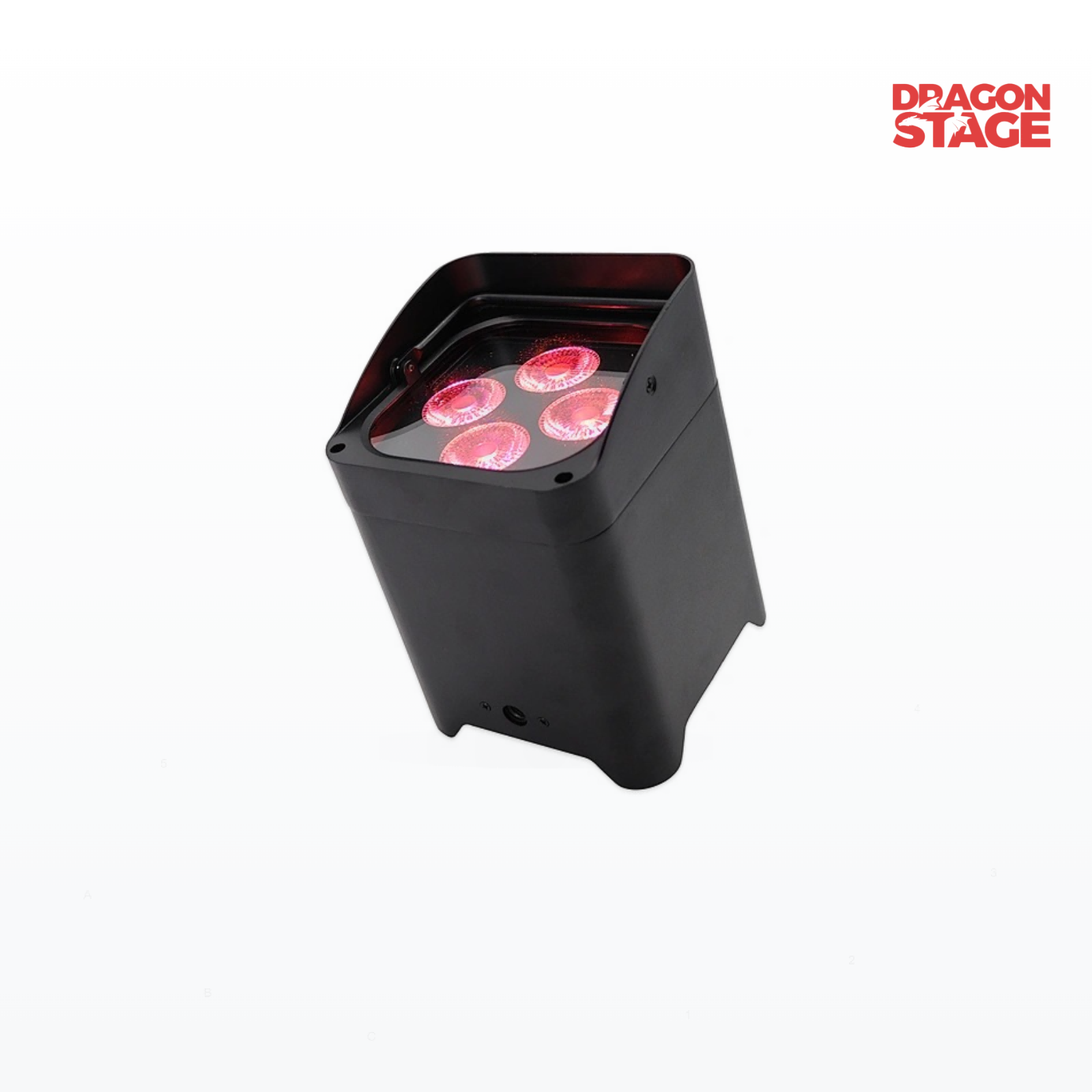

4 × 18W 6-in-1 LED Light Source

Four high-brightness 18W LEDs provide multi-color output from a compact fixture. The 6-in-1 LED configuration allows one fixture to create a wide range of color combinations without requiring separate single-color lamps.

9600mAh Built-In Battery

The built-in battery allows the fixture to be used where running power cables to every lighting position is inconvenient.

Actual operating time depends on brightness level, program, color combination and battery condition and should be confirmed separately.

25° Beam Angle

The 25-degree beam is suitable for concentrated uplighting of walls, columns, backdrops, stage areas and decorative event features.

Multiple Control Methods

Confirmed control options include:

• DMX512

• IR control

• Master/slave

• Automatic programs

• Sound active

This gives buyers a choice between simple standalone operation and more coordinated DMX-controlled setups.

6 / 10 DMX Channels

Two DMX channel modes are available, allowing the buyer to select a simpler control configuration or a more detailed programming mode depending on the lighting controller and event requirements.

WiFi Version Available

The product can be ordered either without WiFi or as a WiFi-enabled version.

WiFi should not automatically be treated as wireless DMX. Buyers requiring a particular WiFi app, operating system or wireless control protocol should confirm compatibility before ordering.

Multiple Transport Packages

Choose from:

• 4-light soft bag + carton

• 6-light flight case

• 8-light flight case

• 10-light flight case

• 12-light flight case

This makes the same fixture suitable for both small mobile users and larger rental inventories.

Technical Specifications

This uplight is especially suitable for buyers who frequently move lighting equipment between venues.

Typical applications include:

• Wedding uplighting

• Mobile DJ lighting

• Birthday and private parties

• Hotel and banquet events

• Corporate events

• Event backdrop lighting

• Wall and column uplighting

• Small stage decorative lighting

• Rental lighting inventory

• Temporary indoor event installations

Because the fixture has a built-in battery, it is particularly useful in event layouts where reducing visible power cabling helps create a cleaner setup.

Choosing the Right Version

Standard Version without WiFi

Choose the standard version if you normally use:

• DMX512;

• IR control;

• master/slave operation;

• automatic programs;

• sound-active mode.

For many mobile DJs, small events and rental applications, this is the simpler option because WiFi control may not be necessary.

WiFi Version

Choose the WiFi-enabled version when WiFi-based control is part of your preferred event workflow.

Before ordering the WiFi model, confirm the required:

• control method;

• mobile device or operating system;

• APP;

• WiFi protocol.

Do not assume that WiFi means wireless DMX. They are different control concepts.

Choosing the Right Packing Package

The packaging option should depend not only on how many fixtures you buy, but also on how frequently you transport them.

The 4-light soft bag package is the lighter and simpler option when maximum transport protection is not necessary.

For equipment that is transported frequently, loaded into vehicles or rented repeatedly, a flight case is normally the more practical choice.

You can also browse our
Flight Cases:
https://www.dragonevent.com/Flight-Cases-pl02054276.html

Quantity Guidance

There is no single correct number of uplights for every event.

The quantity depends mainly on:

• venue dimensions;

• number of walls or architectural features to illuminate;

• desired fixture spacing;

• whether the lights are used only for accent lighting or throughout the venue;

• required brightness and color effect;

• number of separate lighting zones.

For a buyer building an inventory rather than lighting one fixed venue, the available packaging provides a practical purchasing path:

4 fixtures
A useful small starter package or supplementary lighting set.

6–8 fixtures
A more flexible package for regular mobile event work.

10–12 fixtures
Better suited to buyers who frequently require multiple lighting positions or want a larger rental inventory.

These are purchasing guidelines rather than venue coverage calculations.

For a specific event, send us the room size, intended fixture positions and lighting purpose so the required quantity can be considered more accurately.

What Else Do You Need?

Required / Usually Needed

Power / Charging Connection

Although the fixture contains a battery, it still requires the appropriate power connection for charging or powered operation.

The exact supplied power cable and plug type should be confirmed when ordering.

DMX Controller and DMX Cables

A DMX controller and compatible cabling are required if you want centralized DMX512 programming rather than standalone operation.

Related lighting control and connection products can be found under:

Sound & Lighting Accessories:
https://www.dragonevent.com/Sound-Lighting-Accessories-pl03844276.html

Optional / Upgrade

Flight Case

Recommended for rental companies and equipment that is frequently transported.

Available package sizes:

• 6 fixtures

• 8 fixtures

• 10 fixtures

• 12 fixtures

Soft Carry Bag

A 4-light soft bag + carton option is available for buyers who prefer lighter and simpler transport.

Setup / Use Notes

For simple events, the fixtures can be operated using automatic programs, IR control or sound-active mode without building a complete DMX system.

For multiple fixtures requiring synchronized operation, use master/slave or DMX512 depending on the desired level of control.

When using DMX:

1. Confirm whether you want the 6-channel or 10-channel operating mode.

2. Set the appropriate DMX address on the LCD display.

3. Connect fixtures and controller according to your lighting layout.

4. Test the complete system before the event.

When using the battery, do not assume operating time based only on the 9600mAh battery specification. Runtime changes with output level, program and battery condition.

For WiFi models, confirm the exact WiFi control method before placing the order.

Common Buying Mistakes

1. Assuming WiFi Means Wireless DMX

This product is available with WiFi, but WiFi control and wireless DMX are not automatically the same thing.

If your existing controller uses a specific wireless DMX system, confirm compatibility separately.

2. Choosing Only by Fixture Price and Ignoring Transport

If the lights will travel to events every week, the transport package can matter almost as much as the fixture itself.

A soft bag may be suitable for occasional use, while a flight case is more practical for regular rental work.

3. Assuming Battery Capacity Tells You Exact Runtime

A 9600mAh battery specification alone does not determine exact operating hours.

Brightness, selected colors, effects and battery condition all influence runtime.

4. Ordering Too Few Fixtures Before Planning the Venue

Before deciding between 4, 6, 8, 10 or 12 fixtures, consider the number of actual lighting positions rather than simply choosing the cheapest package.

5. Forgetting to Confirm the Required Control Method

A buyer using only automatic programs has very different requirements from a buyer programming a complete DMX show.

Decide how the lights will actually be controlled before choosing the version.

1. What is the difference between the standard and WiFi versions?

The standard version supports DMX512, IR control, master/slave, automatic programs and sound-active operation.

A WiFi-enabled model is also available for buyers who require WiFi-based control.

The exact WiFi APP and protocol should be confirmed before ordering.

2. Does the WiFi version include wireless DMX?

WiFi should not automatically be interpreted as wireless DMX.

The confirmed control specification includes DMX512, while WiFi is an additional version option.

If you need the fixture to work with an existing wireless DMX transmitter or receiver system, send us the system information before ordering.

3. How many battery uplights should I buy?

It depends on your venue and lighting layout.

For inventory building, 4 fixtures provide a small starting package, while 6-, 8-, 10- and 12-light packages provide more flexibility for regular event and rental use.

For a specific event, provide the venue size and expected fixture positions.

4. What packing options are available?

The available options are:

• 4 lights in a soft bag + carton;

• 6 lights in one flight case;

• 8 lights in one flight case;

• 10 lights in one flight case;

• 12 lights in one flight case.

This lets buyers choose between lighter transport and more durable professional storage.

5. How long does the 9600mAh battery run?

The battery capacity is confirmed as 9600mAh, but exact operating time has not yet been confirmed.

Runtime depends on brightness, selected colors, program and battery condition.

Confirm the required working duration before ordering if battery runtime is critical to your event.

CTA

Choose your configuration before requesting a quotation:

1. Version

• Standard without WiFi

• WiFi-enabled

2. Quantity

• Individual quantity

• 4 pcs

• 6 pcs

• 8 pcs

• 10 pcs

• 12 pcs

• Other quantity

3. Packing

• Soft bag + carton

• 6-light flight case

• 8-light flight case

• 10-light flight case

• 12-light flight case

Please also tell us your country, plug requirement, intended control method and expected event use so we can prepare the appropriate product and packing option.
