Cable Ramp Buying Guide for Events: What Should You Buy First?

If power, audio or signal cables have to cross an area where people, equipment carts or vehicles move, simply laying the cables on the floor is usually not a good event setup.

You need to protect the cables and create a more manageable crossing.

That is where a cable ramp — also commonly called a cable protector — comes in.

But first-time buyers often start with the wrong question:

“Should I buy a 2-channel, 3-channel or 5-channel cable ramp?”

Channel count matters, but it is not the first decision.

Before buying, you should know:

1. What will cross over the ramp?

2. What cables need to go inside it?

3. How large are those cables and connectors?

4. How wide is the area you need to cross?

5. Is this for occasional personal use or repeated event/rental use?

Once those questions are clear, choosing from our Cable Ramps & Protectors becomes much easier.

The buying logic is:

WHO/WHAT CROSSES THE CABLE → CABLE TYPE & SIZE → CHANNEL NUMBER & SIZE → CROSSING LENGTH → QUANTITY → MINIMUM PRACTICAL PACKAGE

1. Quick Answer: What Should You Buy First?

For most small-event buyers, do not start by looking for the biggest or heaviest cable ramp.

Start with your actual crossing.

A small indoor DJ setup where guests walk across two or three cables is a very different situation from an outdoor event where equipment carts or vehicles may cross the cable route.

As a starting point:

The smallest practical solution is usually better than buying more cable ramp than your events actually require.

But “smallest” does not mean choosing channels that barely fit your cables.

That is where many buyers make their first mistake.

2. First Ask: What Will Cross Over Your Cables?

This is the most important starting question.

Cable ramps perform two related jobs:

• protect cables from crossing traffic;

• create a defined route over cables that would otherwise lie exposed in the event area.

But the required product changes according to what passes over it.

Pedestrians

Typical situations include:

• weddings;

• birthday parties;

• DJ events;

• corporate functions;

• exhibitions.

Your main concerns may include:

• trip exposure;

• ramp profile;

• cable capacity;

• keeping the event area organized.

You probably do not need to jump automatically to the largest heavy-duty model simply because it looks stronger.

Equipment Carts and Flight Cases

This is common for:

• DJs;

• AV companies;

• rental companies;

• event production crews.

Now the cable crossing may see:

• speaker carts;

• flight cases;

• equipment trolleys;

• other wheeled event equipment.

This is a different buying situation from pedestrian-only use.

Do not choose only by the number of channels.

You also need to check whether the particular cable protector is suitable for the intended crossing conditions.

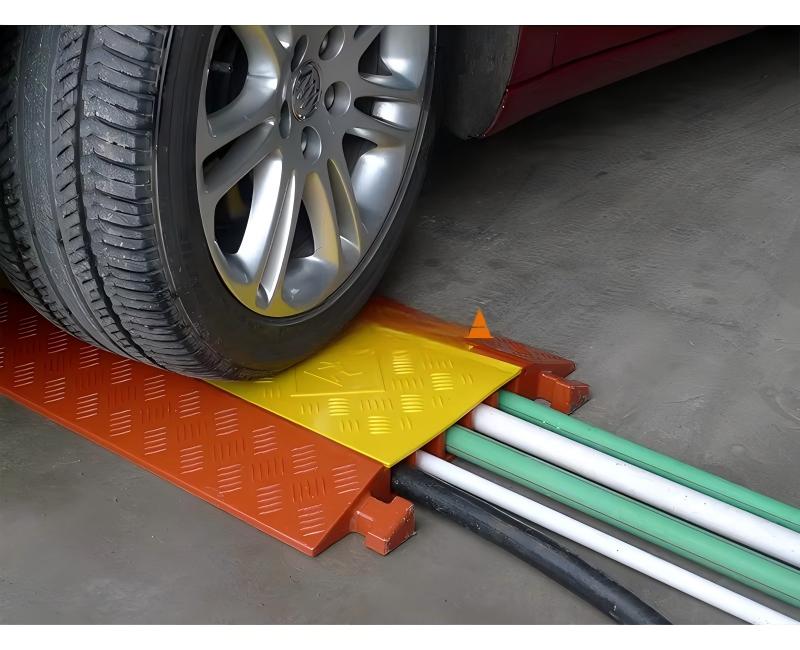

Cars and Vans

Once vehicles are involved, product selection requires more care.

Do not assume:

“It says heavy duty, so any vehicle can drive over it.”

“Heavy duty” is a product description, not a substitute for verified specifications.

Before buying, confirm:

• vehicle type;

• traffic frequency;

• product specification;

• ground conditions;

• cable dimensions;

• crossing length.

For unusual or demanding vehicle traffic, contact us before ordering rather than making the decision from the product name alone.

3. What Cables Are You Protecting?

The second question is:

What actually needs to go inside the ramp?

At events, this may include:

• power cables;

• speaker cables;

• audio cables;

• signal cables;

• data cables;

• lighting cables.

A DJ setup may have only a few runs.

A small AV event may have several different cable groups crossing the same route.

If you are planning the complete cable layout rather than only the protector itself, our Cables & Cable Management section provides the related product category for organizing and routing event cabling.

The important buying principle is:

Count your cable runs before choosing your channel count.

But do not stop there.

You also need to measure them.

4. 2-Channel, 3-Channel or 5-Channel: Which Should You Start With?

This is where most buyers begin comparing products.

The channel number tells you how many separate cable paths the ramp provides.

It does not automatically tell you how many cables will fit.

2-Channel Cable Ramp

A 2-channel cable ramp can make sense when:

• you have relatively few cable runs;

• you want to separate two cable groups;

• the individual channels provide enough usable space for your cables.

For a simple setup, buying five channels when you only need two may add unnecessary size and cost.

But there is an important exception:

If your cables or connectors are large, channel dimensions may matter more than channel count.

3-Channel Cable Ramp

A 3-channel configuration can provide a useful middle ground for many small events.

For example, a buyer may want separate paths for different groups of:

• power;

• audio;

• signal/data cables.

That does not mean every DJ automatically needs a 3-channel ramp.

It only makes sense if:

• the number of channels matches your routing plan;

• the usable channel dimensions fit the actual cables.

5-Channel Cable Ramp

A 5-channel cable protector may be useful when:

• more cable runs cross the same route;

• you want better cable separation;

• your AV/event setup is becoming more complex.

Typical users may include:

• event rental companies;

• AV companies;

• larger DJ setups;

• more equipment-intensive events.

However, more channels are not automatically better.

Five small channels may be less useful to you than fewer larger channels if you have thick cables or large connectors.

So the next question is more important than:

“How many channels?”

It is:

“How big is each channel?”

5. Channel Size Is Just as Important as Channel Count

This is probably the most important compatibility check in the entire buying process.

Imagine this situation:

Your cable has an outside diameter of 25 mm (about 1 in).

The cable ramp lists a channel dimension that appears large enough.

So you order it.

Then it arrives and you discover:

The cable fits, but the connector doesn't.

That is why you should not measure only the cable body.

Before ordering, check:

A. Cable Outside Diameter

Measure the thickest cable you expect to place in the channel.

B. Connector or Plug Size

If a connector or plug must pass through or sit within the channel arrangement, check its largest relevant dimension too.

C. Number of Cables Per Channel

If you intend to place several cables together, do not compare the channel dimensions against only one cable.

D. Usable Channel Dimensions

Use the manufacturer's actual usable channel dimensions rather than estimating from photographs.

A product can look large online and still be wrong for your cable.

If you are not sure, send us:

• cable diameter;

• connector dimensions;

• cable quantity;

• a photo of the cable/connector.

We can then help determine which Cable Ramp & Protector configuration is the better starting point.

6. Do Not Forget the Connector

This deserves its own section because it is an easy mistake to make.

Customers naturally think:

“I need to protect a 20 mm cable, so I need a channel larger than 20 mm.”

But cables often end in:

• plugs;

• connectors;

• couplers;

• larger molded ends.

The cable itself may fit easily while the end connection does not.

Therefore:

CABLE DIAMETER ≠ COMPLETE COMPATIBILITY

A better check is:

CABLE BODY + CONNECTOR + QUANTITY PER CHANNEL → REQUIRED USABLE CHANNEL SPACE

This is especially important when buying online, because a product photograph cannot confirm compatibility.

7. How Long Is the Cable Crossing?

Once you know the type of ramp you need, calculate quantity.

Do not ask:

“How many cable ramps should I buy?”

before measuring:

“How wide is the route I need to cross?”

For example, suppose your cable route crosses a venue access area that is:

6 m (19.7 ft) wide

and each cable ramp provides an effective connected coverage of:

1 m (3.28 ft)

Then:

6 m ÷ 1 m = 6 pieces

So you need:

6 cable ramp sections

for that crossing.

If the result is not a whole number, round up.

Example:

7.5 m ÷ 1 m = 7.5

You cannot buy half a connected section for the remaining route, so the practical starting quantity would be:

8 pieces

However, always calculate using the product's effective connected length where applicable, not a guessed length from a photograph.

8. What If You Have More Than One Cable Crossing?

Do not calculate the entire event as one straight line if the cables cross several separate routes.

For example:

Crossing A

DJ booth → power source

Required protected crossing:

4 m (13.1 ft)

Crossing B

Lighting area → control area

Required protected crossing:

3 m (9.8 ft)

Your requirement is not simply:

“I have a 7 m cable.”

What matters is the total length of cable that is actually exposed to crossing traffic.

In this simplified example:

4 m + 3 m = 7 m (23 ft) of protected crossing

Then calculate the required number of Cable Ramps & Protectors from the effective length of the specific product you choose.

9. Indoor vs Outdoor Events

The same cable routing problem can change when the venue changes.

Indoor Events

Typical applications:

• wedding halls;

• hotels;

• conference rooms;

• exhibitions;

• indoor DJ parties.

Consider:

• pedestrian routes;

• doors and entrances;

• equipment cart movement;

• available floor space.

Outdoor Events

Outdoor setups may introduce additional conditions such as:

• uneven surfaces;

• dirt;

• moisture;

• vehicle access;

• longer cable routes.

Do not assume that because a product is called a cable protector it is automatically suitable for every outdoor condition.

Check the actual product specification and event environment.

10. What Is the Minimum Practical Package?

For many small-event buyers, the minimum practical package is surprisingly simple.

You need:

1. Enough Channels

For the cable groups you actually need to protect.

2. Enough Channel Space

For the largest cables/connectors in those groups.

3. Enough Ramp Sections

To cover the full crossing width.

4. Compatible Connecting Sections

Where the selected system uses interlocking sections.

You probably do not need to buy the largest possible cable protector inventory on your first order.

For a new rental company, a better approach is:

Start with a common configuration that serves your regular events, then add more sections as your jobs become larger.

That is much more useful than buying a large quantity that spends most of its life in storage.

11. Buying for a Rental Business Is Different

A private buyer may need cable ramps for one particular event.

A rental company should think differently.

You are building inventory.

Ask:

• Can these sections connect into different lengths?

• Is this channel size useful for several types of events?

• Can I add more later?

• Are replacement sections available?

• Is the system easy to clean, transport and store?

A useful rental inventory works a little like building blocks:

You do not need one giant crossing. You need enough compatible sections to build the crossing each job requires.

For example, the same inventory might create:

4 m crossing today

then:

6 m crossing next weekend

then two separate:

3 m + 3 m crossings

depending on the event layout.

That flexibility is often more valuable to a small rental company than simply owning the largest possible ramp.

12. Common Cable Ramp Buying Mistakes

Mistake 1: Choosing Only by Channel Count

“5-channel” sounds better than “3-channel.”

But if the channels are too small for your cables, the extra channels do not help.

Check channel dimensions.

Mistake 2: Measuring the Cable but Forgetting the Connector

The cable may fit.

The plug may not.

Check both.

Mistake 3: Buying by the Word “Heavy Duty”

Do not use marketing terminology as a vehicle suitability calculation.

If cars, vans or heavier vehicles will cross the ramp, check the verified product specifications and actual use conditions.

Mistake 4: Forgetting the Total Crossing Length

One cable ramp section does not protect a 5 m (16.4 ft) doorway or vehicle route.

Measure the full crossing first.

Then calculate quantity.

Mistake 5: Buying Too Much for a Small Event

A wedding DJ with a few cable runs does not automatically need the largest cable ramp available.

Start with the smallest practical package that solves the actual problem.

Mistake 6: Assuming All Cable Ramps Connect Together

Similar-looking cable protectors are not automatically compatible.

Before adding new sections to equipment you already own, confirm:

• overall dimensions;

• channel dimensions;

• connector/interlocking design;

• model/system.

If compatibility is uncertain, send us photos and measurements rather than guessing.

13. Which Cable Ramp Should You Choose?

A simple decision path is:

The key principle is:

Choose from the cable outward — not from the product name inward.

First understand what must fit inside and what must cross over it.

Then choose the product.

14. When Should You Contact Us Instead of Ordering Directly?

Simple applications can often be selected directly from the Cable Ramps & Protectors category.

Contact us before ordering when:

• you do not know whether your connectors fit;

• you already own another cable ramp system and need compatible additions;

• vehicles will cross the route and product suitability is unclear;

• the event uses unusually large cables;

• you need many separate crossings;

• the application is outside normal small-event use.

Send us:

1. Cable type

Power / audio / signal / other.

2. Cable outside diameter

Metric or imperial is fine.

3. Largest connector dimensions

A photo with a ruler or tape measure is useful.

4. Number of cables

Tell us whether they need to be separated.

5. Crossing length

For example:

5 m (16.4 ft)

6. What will cross the ramp

People / carts / cars / vans / other.

7. Indoor or outdoor

This gives us enough information to recommend a practical starting package instead of simply recommending the largest model.

Final Recommendation

Buying a cable ramp is not mainly about choosing:

2-channel vs 3-channel vs 5-channel.

The real decision is:

WHAT CROSSES IT + WHAT GOES INSIDE IT + HOW FAR IT MUST CROSS

For most small-event buyers, use this order:

1. Identify the traffic

↓

2. Count your cable groups

↓

3. Measure the largest cable and connector

↓

4. Choose the channel number and usable channel size

↓

5. Measure the crossing

↓

6. Calculate the number of sections

↓

7. Confirm compatibility or vehicle suitability if necessary

Then choose the smallest practical package from our Cable Ramps & Protectors.

Do not buy more ramp simply because it looks more heavy-duty.

And do not buy less simply because your cable appears small.

Measure first. Buy second.

FAQ

How many channels do I need in a cable ramp?

It depends on how many cable groups you need to route and the usable dimensions of each channel.

Do not choose by channel count alone.

Can I put several cables in one channel?

Possibly, but compatibility depends on:

• cable diameters;

• connector dimensions;

• usable channel dimensions.

Measure the complete cable group rather than assuming it will fit.

Should I measure the cable or the connector?

Check both.

The connector may be considerably larger than the cable body and can become the limiting dimension.

How many cable ramp sections do I need?

Measure the total protected crossing length and divide it by the effective connected length of the selected ramp section.

Round up when necessary.

Can cars drive over a cable ramp?

Some cable protectors are intended for vehicle-crossing applications, but do not assume this from appearance or “heavy duty” wording alone.

Check the verified specifications of the specific product and your actual traffic conditions.

Can I connect a new cable ramp to one I already own?

Only if the systems are compatible.

Confirm:

• dimensions;

• interlocking connection;

• model;

• channel arrangement.

If you are unsure, send us photos and measurements.
