When buyers compare Cable Ramps & Protectors, one of the first differences they notice is the number of channels.

You may see:

• 2-channel cable ramps;

• 3-channel cable ramps;

• 5-channel cable ramps.

The natural question is:

“Which one should I buy?”

The answer is not simply:

More cables = more channels.

That is only part of the decision.

A 5-channel cable ramp with relatively small channels may be less useful than a 2-channel model with larger channels if you need to protect thick power cables.

So the real decision is:

NUMBER OF CABLE GROUPS + CABLE SIZE + CONNECTOR SIZE + TRAFFIC CONDITION → CHANNEL CONFIGURATION

The most important rule is:

Choose the channel size first enough to fit your cables, then decide how many channels you need.

1. Quick Answer

A simple starting point is:

This table is only a starting point.

Do not order solely from the words:

2-channel / 3-channel / 5-channel.

You still need to know:

• usable channel width;

• usable channel height;

• cable outside diameter;

• connector dimensions;

• number of cables you want to place in each channel.

2. What Does “Channel” Mean on a Cable Ramp?

The channels are the protected paths inside the ramp where your cables are placed.

For example:

A 3-channel cable ramp gives you three separate cable paths.

That can allow you to separate different cable groups instead of placing everything together.

At an event, those groups may include:

• power;

• audio;

• signal/data;

• lighting;

• speaker cables.

If you are organizing the complete cable route rather than only choosing the ramp, the related Cables & Cable Management category can help you think about the complete cable setup.

But one important point:

One channel does not necessarily mean one cable.

Several smaller cables may physically fit in one channel.

One large cable may require most of the channel by itself.

So do not calculate channel number only by counting individual cables.

3. When Does a 2-Channel Cable Ramp Make Sense?

A 2-channel cable ramp can be a very practical choice when your setup is simple.

Typical situations may include:

• small DJ setups;

• private parties;

• simple temporary power runs;

• limited audio/power crossings;

• events with only a few cable groups.

For example:

You may want:

Channel 1 → power

Channel 2 → audio/signal

If the channel dimensions are suitable, this may be enough.

Why Choose 2 Channels?

The main reason should not be:

“It is cheaper.”

The better reason is:

“My event does not need more cable paths.”

A smaller configuration may mean:

• simpler inventory;

• less unnecessary bulk;

• easier handling;

• lower purchase cost.

If two suitable channels solve your real problem, buying five channels provides no automatic advantage.

When a 2-Channel Ramp May Be Too Limited

A 2-channel model may become inconvenient when:

• your cable quantity grows;

• you want separate cable groups;

• one channel becomes overcrowded;

• your events vary greatly from one job to another.

For a rental business, think beyond one event.

Ask:

Will two channels still be useful across most of my common jobs?

4. When Does a 3-Channel Cable Ramp Make Sense?

A 3-channel ramp is often a useful middle option for small event buyers.

It may suit:

• mobile DJs;

• weddings;

• corporate functions;

• small AV setups;

• small rental businesses.

One possible routing approach could be:

Channel 1 → power

Channel 2 → audio

Channel 3 → signal/data

This is only an example.

You do not need to separate cables this way in every installation.

The actual arrangement depends on:

• cable type;

• cable size;

• system requirements;

• event layout.

Why 3 Channels Can Be Practical

A 3-channel configuration gives you more flexibility than a 2-channel model without automatically moving to a larger 5-channel design.

For many small-event buyers, it can provide a useful balance between:

• capacity;

• organization;

• transport;

• purchase cost.

But again:

Three channels are only useful if the channels themselves are large enough.

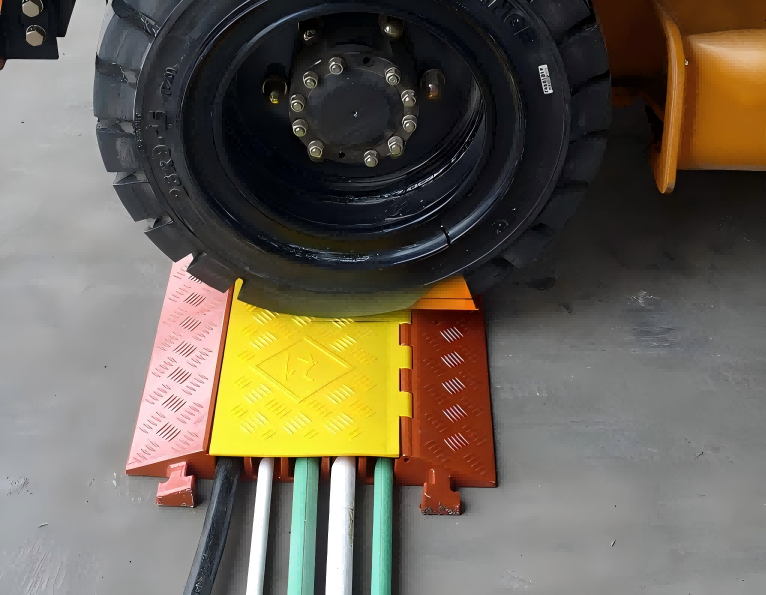

5. When Does a 5-Channel Cable Ramp Make Sense?

A 5-channel cable ramp becomes more attractive when your event system includes several cable groups.

Typical users may include:

• event rental companies;

• AV companies;

• larger DJ setups;

• more equipment-intensive corporate events;

• temporary production setups.

It may help when you have:

• multiple power runs;

• audio;

• signal;

• network/data;

• lighting control or other event cabling.

Why Choose 5 Channels?

The benefit is not simply “more is better.”

The advantage is:

More separate cable paths give you more routing options.

For a rental company, that can be useful because one job may require:

• three cable groups;

while another may require:

• four or five.

A larger channel count gives more flexibility across different jobs.

But Do Not Automatically Choose 5 Channels

A buyer may think:

“Five channels gives me more capacity, so I should buy five.”

That can be wrong.

Suppose:

• your main power cables are thick;

• your connectors are large;

• the 5-channel ramp has narrower channels than another model.

Then the extra channels may not solve your real problem.

This is why:

Channel count and channel dimensions must always be checked together.

6. Channel Count vs Channel Size: Which Matters More?

If your cable does not fit, channel count becomes irrelevant.

So when there is a conflict between:

• more channels;

• larger usable channels;

fit comes first.

Consider two imaginary products:

Ramp A

5 channels

but relatively narrow channels.

Ramp B

3 channels

but larger usable channels.

If your event uses thick power cables, Ramp B may be the more practical choice.

That is why the correct buying sequence is:

CABLE SIZE → CONNECTOR SIZE → CHANNEL SIZE → CHANNEL COUNT

not:

CHANNEL COUNT → hope the cable fits

7. Measure Your Cable Before Choosing

Before ordering, measure the largest cable you expect to protect.

Check:

Cable Outside Diameter

Measure the actual cable body.

If the cable is approximately:

25 mm (0.98 in)

do not choose a channel simply because the listed dimension looks “close enough.”

Leave enough usable space for practical placement according to the actual product design.

8. Do Not Forget Connector Size

This is one of the easiest mistakes to make.

Your cable may be:

20 mm (0.79 in)

but the connector may be much larger.

If the connector needs to pass through or sit inside the cable route, then the connector may determine compatibility.

Check:

• plug;

• coupler;

• molded cable end;

• connector shell.

If you are unsure, send:

• cable diameter;

• connector width;

• connector height;

• clear photo.

Do not choose only from the cable diameter.

9. How Many Cables Can Go Into One Channel?

There is no universal answer.

It depends on:

• usable channel width;

• usable channel height;

• cable diameter;

• number of cables;

• cable arrangement.

For example:

Three small signal cables may fit comfortably in a channel.

Three thick power cables may not.

This is why statements such as:

“A 3-channel ramp holds three cables”

are too simplistic.

The correct question is:

How much usable space does each channel provide for my actual cable group?

10. A Practical DJ Example

Suppose a mobile DJ has:

• one main power cable;

• two audio cables;

• two signal/data cables.

It would be easy to say:

“Five cables means I need a 5-channel ramp.”

Not necessarily.

A possible arrangement could be:

Channel 1 → power

Channel 2 → audio cables

Channel 3 → signal cables

If the dimensions and cable-routing requirements allow it, a 3-channel configuration may be enough.

This is why a DJ buyer should look at the complete Cables & Cable Management plan before selecting the protector.

Count functional cable groups, not just the number of cable jackets you can see.

11. A Practical Wedding Example

A small wedding may have temporary cabling for:

• DJ equipment;

• speakers;

• lighting;

• event power.

If only one pedestrian crossing needs protection, a moderate channel count may be sufficient.

But before ordering, check:

• where the cables cross guest traffic;

• how many cable groups cross at that exact point;

• whether large power connectors need to fit;

• total crossing width.

Do not buy a larger ramp just because the overall wedding uses many cables.

Only the cables crossing that specific protected route determine the requirement.

12. A Practical Rental Company Example

Rental businesses should think differently from one-time buyers.

Suppose your current job only needs:

• two cable groups.

A 2-channel system may work perfectly.

But if most of your future jobs involve:

• DJs;

• weddings;

• corporate events;

• AV systems;

a 3- or 5-channel configuration may give you more flexibility.

The important question becomes:

Which configuration can I rent most often?

Not:

Which configuration has the most channels?

For rental inventory, versatility matters.

13. Should Power, Audio and Signal Cables Always Use Separate Channels?

Do not assume a universal routing rule from the channel count alone.

Different systems and cables may have different requirements.

The Cable Ramp Buying Guide should help you buy the physical protector, but it should not replace the installation requirements of the equipment you are using.

When planning the full event cabling system, refer to the relevant equipment and cable requirements and use the Cables & Cable Management category as the shopping entry for related cable products.

The cable ramp gives you physical cable paths.

How those paths should be assigned depends on the actual system.

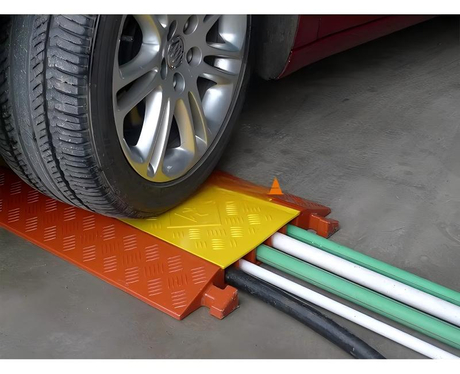

14. What About People, Carts and Vehicles?

Channel count does not tell you whether a cable ramp is suitable for a particular type of crossing traffic.

A 5-channel model is not automatically “more heavy duty” than a 2-channel model.

These are separate questions:

Question 1

How many cable paths do I need?

Question 2

What channel dimensions do I need?

Question 3

What will pass over the ramp?

For:

• pedestrian-only use;

• equipment carts;

• cars;

• vans;

• heavier or unusual vehicles;

check the actual specifications of the selected Cable Ramp & Protector.

Do not use channel count as a load-rating shortcut.

15. How Much Future Capacity Should You Buy?

DragonEvent's general buying principle applies here:

Buy the smallest practical solution that works now, then leave yourself a sensible upgrade path.

For an occasional event buyer:

If two suitable channels are enough, you probably do not need five.

For a rental company:

A slightly more flexible configuration can make sense if you realistically expect to use the extra channels across different jobs.

The keyword is:

realistically.

Do not buy for an imaginary future event that may never happen.

16. Common Buying Mistakes

Mistake 1: “More Channels Must Be Better”

No.

More channels only help if you need them and if their dimensions fit your cables.

Mistake 2: Counting Cables Instead of Cable Groups

Five cables do not automatically require five channels.

Check whether some cables can practically share a suitable channel according to the actual system requirements.

Mistake 3: Ignoring Channel Dimensions

This is probably the biggest mistake.

Always check usable channel size.

Mistake 4: Forgetting Connectors

The cable body may fit while the connector does not.

Measure both.

Mistake 5: Choosing 5 Channels for a Simple Setup “Just in Case”

Future flexibility is useful.

Unnecessary size and cost are not.

Buy according to realistic future use.

Mistake 6: Assuming Channel Count Means Vehicle Capacity

A 5-channel ramp is not automatically more suitable for vehicle traffic than a 2-channel ramp.

Check the product specification separately.

17. Simple Selection Table

Use this table to narrow your options.

Then compare the actual products in Cable Ramps & Protectors.

18. What Should You Send Us If You Are Unsure?

You do not need to know the correct channel count before contacting us.

Send:

1. Cable Quantity

How many cables cross the route?

2. Cable Types

For example:

• power;

• audio;

• signal/data.

3. Cable Diameter

Especially the largest cable.

4. Connector Size

Photos with a ruler or tape measure are useful.

5. Crossing Length

For example:

4 m (13.1 ft)

6. What Will Pass Over the Ramp

• pedestrians;

• equipment carts;

• cars;

• vans;

• other.

7. Whether You Already Own Cable Ramps

If yes, send:

• photos;

• dimensions;

• interlocking connection details.

Then we can determine whether:

• 2 channels;

• 3 channels;

• 5 channels;

or another configuration makes more sense.

Final Recommendation

Do not choose a cable ramp by asking:

“Which one has the most channels?”

Choose by asking:

“How many usable cable paths do I need, and are those paths large enough for my actual cables?”

The correct sequence is:

1. Count cable groups

↓

2. Measure cable and connector size

↓

3. Confirm usable channel dimensions

↓

4. Choose channel count

↓

5. Confirm crossing suitability

↓

6. Calculate the required ramp quantity

For many small events:

• 2 channels may be enough for simple setups;

• 3 channels can provide useful flexibility;

• 5 channels become more attractive as cable-routing complexity grows.

But there is no prize for buying the highest channel count.

The best cable ramp is the one that gives your cables enough space and your event enough flexibility without buying unnecessary capacity.

Browse the available Cable Ramps & Protectors, then confirm the channel dimensions before ordering.

FAQ

Is a 5-channel cable ramp better than a 3-channel cable ramp?

Not automatically.

A 5-channel model provides more separate cable paths, but a 3-channel model may be better if its channel dimensions fit your cables more appropriately.

How many channels does a DJ need?

There is no fixed number.

It depends on:

• power cables;

• audio cables;

• signal/data cables;

• their dimensions;

• how you plan to group them.

For many small DJ setups, 2- or 3-channel models are worth comparing first.

Can multiple cables go in one channel?

Possibly.

It depends on the cable dimensions, channel dimensions and actual cable-routing requirements.

Do not assume fit without measuring.

Should I choose channel number or channel size first?

Make sure the channel is large enough for your cables first.

Then decide how many separate channels you need.

Does a 5-channel ramp support heavier vehicles than a 2-channel ramp?

Channel count alone does not determine vehicle suitability.

Check the verified specifications of the specific cable protector.

What if I do not know which channel count I need?

Send us:

• cable quantity;

• cable types;

• largest cable diameter;

• connector dimensions;

• crossing length;

• traffic type.

We can help narrow the correct Cable Ramp & Protector configuration.
