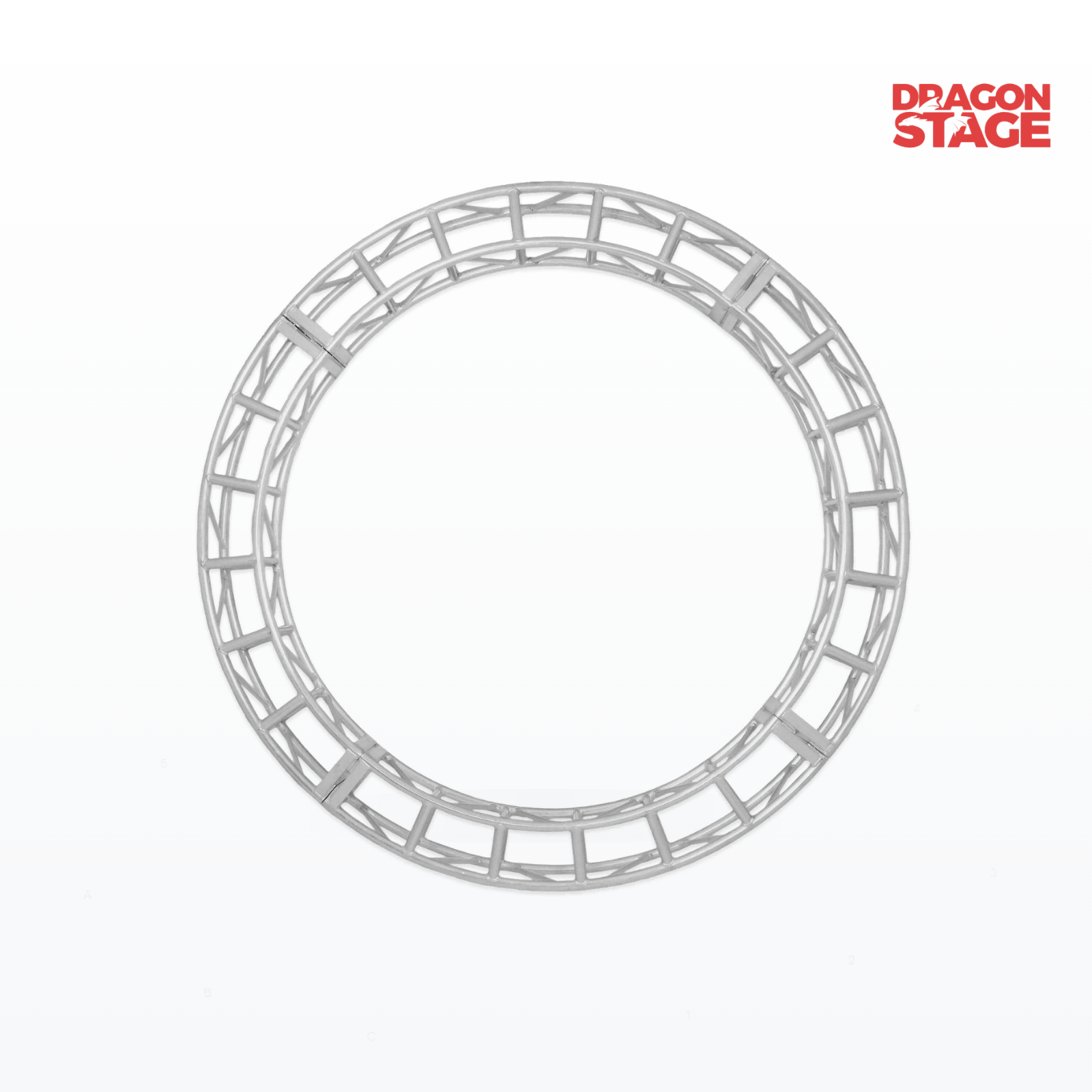

A complete 3 m / approximately 10 ft diameter circular square truss made from four 90° curved sections.
The 300 × 300 mm bolted square truss configuration is designed for circular lighting displays, DJ setups, wedding décor, exhibition features and temporary event installations where a compact complete truss ring is required.
| Availability: | |
|---|---|
| Quantity: | |
Dragon Stage

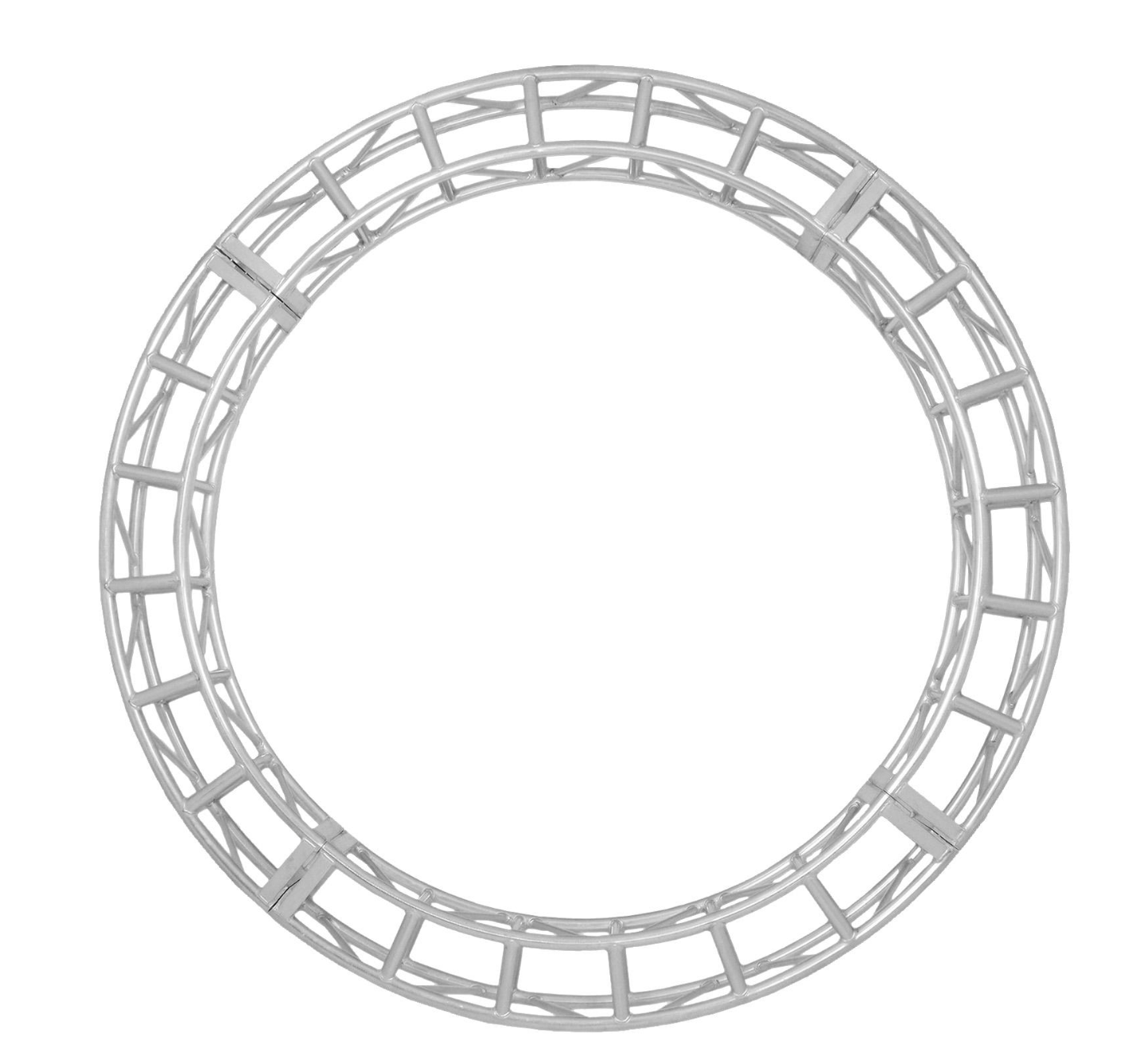

This circular bolted square truss consists of four matching 90° curved truss sections. When all four sections are connected, they form one complete 360° circular truss with a nominal diameter of 3 m / approximately 10 ft.
The truss body uses a 300 × 300 mm square profile and bolted connection between the arc sections.
This configuration is especially practical for buyers who want a complete circular truss rather than assembling a circle from a larger number of smaller arcs. One complete ring only requires:
4 × 90° sections = 360°
That makes the system easier to understand, count, transport and reassemble for repeated event use.
The supplied reference product follows the same basic buying logic: four 90° square-truss sections form a 3 m / 10 ft circular truss using bolted connections.
For other diameters and curved truss configurations, browse:
Circle & Curved Truss
https://www.dragonevent.com/Circle-Curved-Truss-pl05744276.html
The full circular truss uses:
4 × 90° curved sections
Four sections connect to create one complete 360° ring, so buyers do not need to calculate a complicated combination of different curved pieces.
The curved sections use a 300 × 300 mm square truss format, providing the four-chord box appearance commonly used for event lighting and decorative truss installations.
The four curved segments connect using a bolted connection system.
This makes the circle modular: it can be separated into four sections for transport and storage, then assembled again at the event location.
A nominal 3 m diameter is approximately 9.84 ft, commonly described in the market as a 10 ft / 3 m circle.
This compact diameter is suitable where buyers want a visible circular truss feature without moving immediately to a much larger ring.
Rental companies, DJs and event installers can dismantle the complete circle into four quarter-circle sections after use rather than transporting the ring as one fixed structure.
Specification | Details |
|---|---|
Product Name | Circular Bolted Square Truss |
Truss Profile | 300 × 300 mm |
Imperial Approximation | Approx. 11.8 × 11.8 in |
Finished Circle Diameter | 3 m |
Imperial Diameter | Approx. 9.84 ft / commonly referred to as 10 ft |
Number of Sections | 4 |
Arc per Section | 90° |
Complete Circle | 360° |
Connection Type | Bolted Connection |
Truss Shape | Square / Box Truss |
Configuration | 4 × 90° curved sections |
Finish | Silver / Natural Aluminum Appearance |
Typical Use | Event lighting, DJ setups, weddings, exhibitions and decorative circular truss installations |
A 3 m / 10 ft circular truss can be used as a visual truss feature behind or above a DJ area where the event design needs a circular shape rather than a conventional straight truss frame.
The circular shape works naturally for wedding décor, floral arrangements, fabric, lightweight decorative elements and lighting-based event designs.
The circle can form a central visual element for exhibition booths, product displays and branded event installations.
Lighting fixtures can be arranged around a circular layout when the mounting method and total system requirements have been properly selected.
For larger hanging systems, unusual mounting arrangements or structurally significant suspended installations, the complete setup should be reviewed for the specific project rather than treating the truss ring alone as an engineering-approved solution.
Choose this 3 m / 10 ft diameter version when you specifically need a relatively compact complete circle.
It is a practical starting size for buyers who want a noticeable circular feature but do not need a 4 m, 5 m or larger ring.
The important selection points are:
1. Confirm the finished diameter
This product forms approximately:
Ø3 m / Ø9.84 ft
Do not select it only because the listing says “10 ft.” If your venue drawing requires an exact outside diameter, confirm which diameter measurement is being specified before ordering.
2. Confirm the 300 × 300 mm profile
If this circle must connect to existing straight or curved truss, do not assume all “300 mm square truss” is compatible.
You should confirm the existing system's:
overall truss dimensions;
main tube position;
bolt pattern;
hole spacing;
connection plate/interface;
photos or drawings.
A similar-looking square truss is not automatically compatible.
3. Decide whether you need a complete ring or individual arcs
This product is designed around:
4 × 90° sections = one full circle.
If your project only needs a semicircle or partial curved feature, you may not need all four sections.
The calculation is very simple.
Each segment covers:
90°
A complete circle is:
360°
Therefore:
360° ÷ 90° = 4 sections
So the standard full-circle configuration is:
4 curved sections = 1 complete 3 m / 10 ft circle
If you need:
1 full circle → 4 sections
2 full circles → 8 sections
3 full circles → 12 sections
If the product is sold in a complete four-section set, then:
1 set = 1 complete circle
For unusual partial-circle layouts, calculate the required arc before ordering rather than simply buying complete sets.
The curved sections use bolted connections, so the correct fastening hardware is necessary to assemble the complete circle.
However, whether the hardware is included in your DragonEvent package should be confirmed before publication or ordering.
For related connection and mounting items:
Truss & Rigging Accessories
https://www.dragonevent.com/Truss-Rigging-Accessories-pl02744276.html
How the circle is supported depends on the actual application.
A floor-supported decorative circle, a supported display feature and a suspended lighting circle are not the same setup.
The support method should be selected from the complete installation requirements.
Depending on the event, buyers may later add suitable clamps, lighting fixtures, mounting accessories or transport protection.
These should be selected according to the actual truss interface and intended use, not simply because they are visually compatible.
Lay out the four 90° sections first and confirm their orientation before fully tightening the bolted joints.
Connect the segments sequentially until all four arcs form the complete circle.
Before adding lighting, décor or other equipment, check that all section connections are properly assembled according to the intended truss connection method.
For suspended installations or installations carrying significant equipment, the overall support, suspension points, loads and installation method require project-specific confirmation.
A single section is only one quarter of the ring.
You need:
4 × 90° = 360°
for one complete circle.
They are very close, but not mathematically identical.
3 m ≈ 9.84 ft
So if an installation must match an existing frame, wall opening or exact drawing dimension, use the confirmed metric dimension rather than assuming “10 ft” is exactly 3048 mm.
Overall truss size alone does not confirm compatibility.
Two products may both be described as 300 mm square truss but use different bolt patterns, plate dimensions or connection interfaces.
A four-section circle requires the correct hardware at each section joint.
Confirm whether the product package includes the required bolts, nuts and washers.
Buying the circle itself is straightforward. Deciding how to suspend it and what equipment can be carried is a different question.
For suspended lighting loads or unusual structures, send the complete layout for project-specific review.
Yes. The intended complete configuration uses four 90° curved sections.
Together:
4 × 90° = 360°
forming one complete circular truss.
Yes. Each of the four arc sections represents approximately one quarter of the complete circle.
The confirmed metric size is 3 m, which is approximately 9.84 ft.
“10 ft / 3 m” is commonly used as the commercial size description, but buyers matching an existing installation should use the exact confirmed dimension.
Possibly, but 300 × 300 mm size alone does not prove compatibility.
Please provide your existing truss dimensions, bolt pattern, hole spacing, connector details and photos before ordering it as an extension or replacement.
Geometrically, two 90° sections make a 180° semicircle.
Whether that partial configuration is suitable for the intended support or installation depends on how you plan to use and support it.
For a standard complete ring, order the four-section 3 m / 10 ft circular truss configuration.
Before ordering, please confirm:
Finished Diameter: 3 m / approx. 10 ft
Truss Profile: 300 × 300 mm
Configuration: 4 × 90° sections
Connection: Bolted
Use: Floor-supported / display / lighting / other
If the circle must connect to existing truss, also send photos, connection dimensions and bolt-hole spacing.
For suspended installations or larger event structures, send the complete layout and intended equipment so the system can be reviewed as a project rather than only as an individual truss product.
