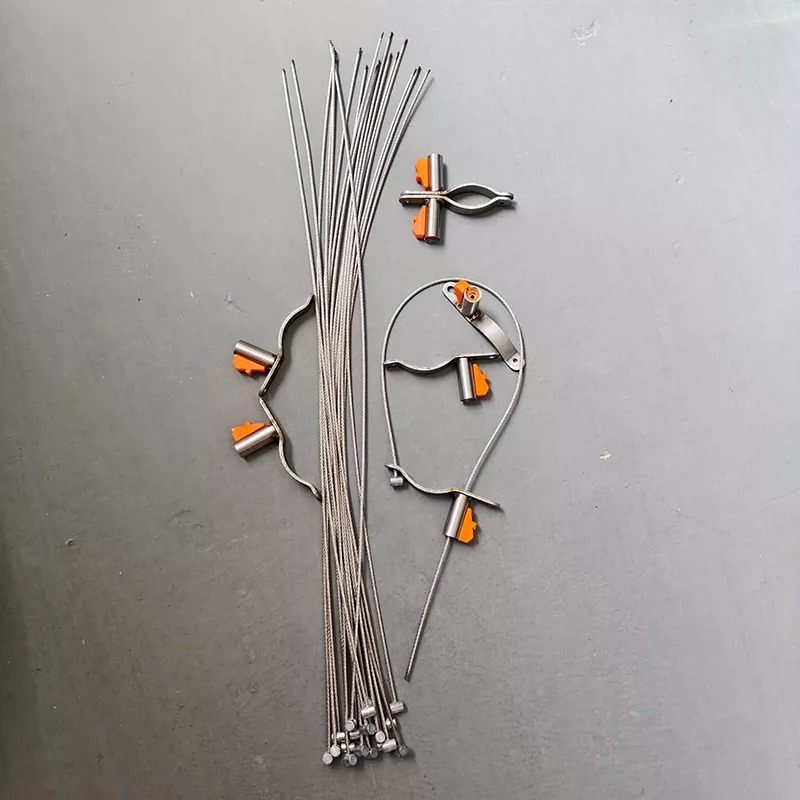

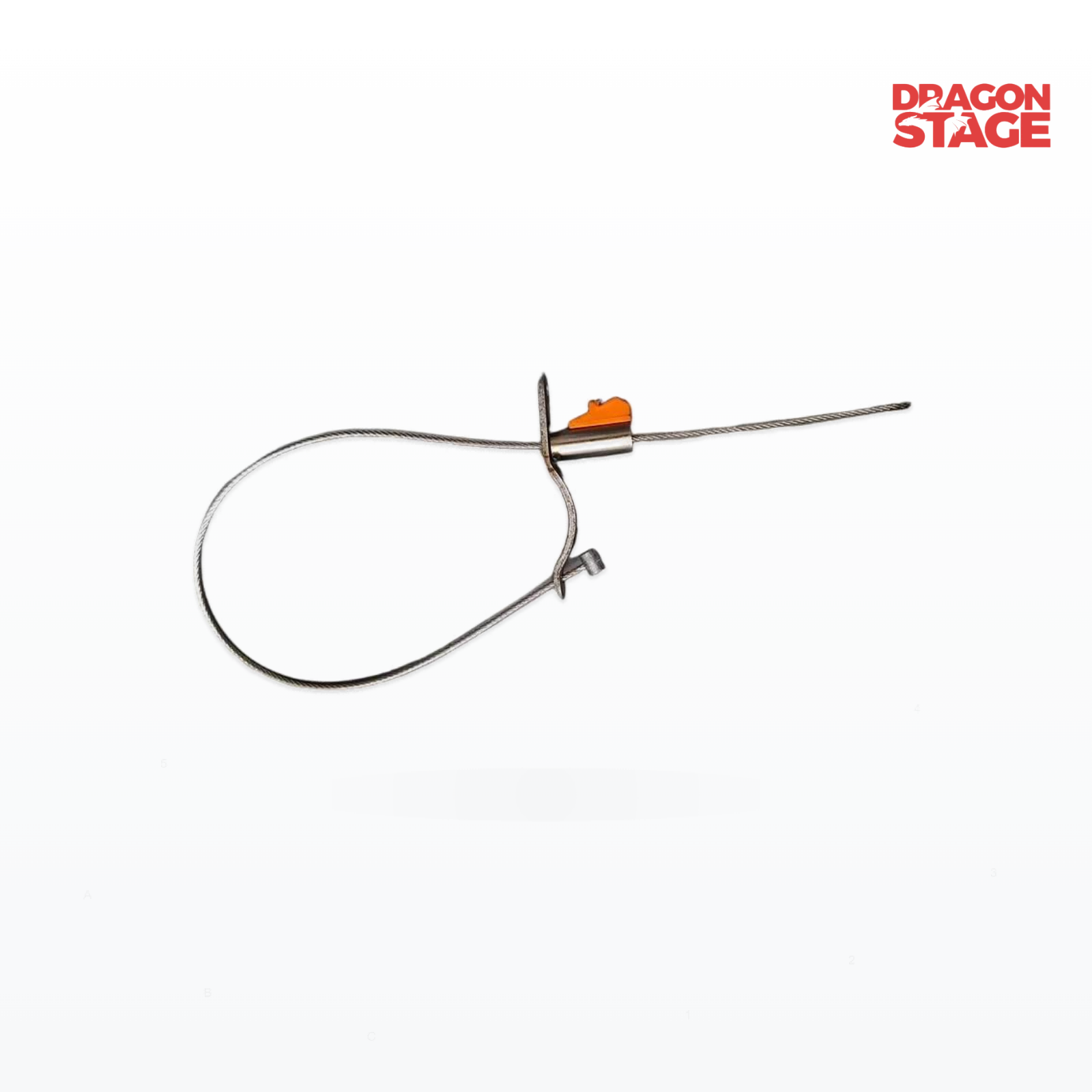

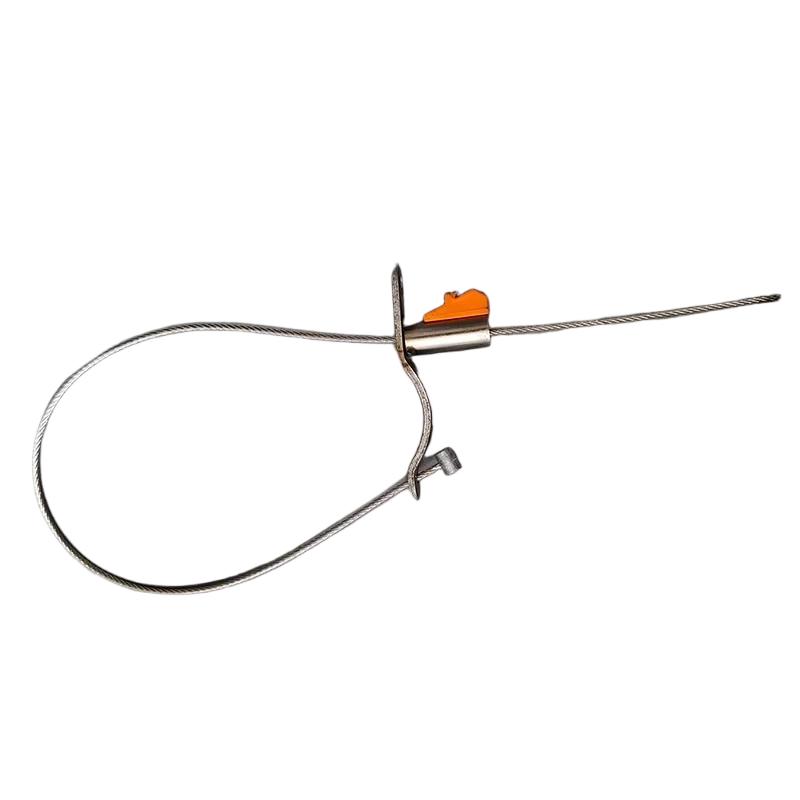

1. 304 Stainless Steel Wire Rope

The cable uses 304 stainless steel wire rope for repeated event-installation use.

Confirmed specification:

Wire Rope Diameter: 2 mm

Cable Length: Approx. 500 mm

The stainless steel construction is suitable for repeated handling and temporary indoor/outdoor event use.

2. Quick Tightening Mechanism

The locking body allows the cable to be tightened progressively rather than tied manually.

This makes the product useful when crews need to install several tightening points during LED wall setup.

The practical advantage is:

install → tighten → check → release → reuse

without repeatedly tying and untying conventional rope.

3. Compact and Lightweight

The product is small enough to be carried as part of a rental LED-screen installation kit.

For rental companies, compact accessories matter because crews may carry dozens of connectors, tools, cables and fixing components to every event.

4. Fast Installation and Removal

The product is designed for quick assembly and dismantling.

The supplier material specifically positions it for:

• fast disassembly;

• repeated use;

• installation together with the screen;

• rapid mounting on site.

This is especially useful for rental LED screens that are frequently installed for one event and dismantled immediately afterward.

5. Suitable for Layher / Scaffold LED Support

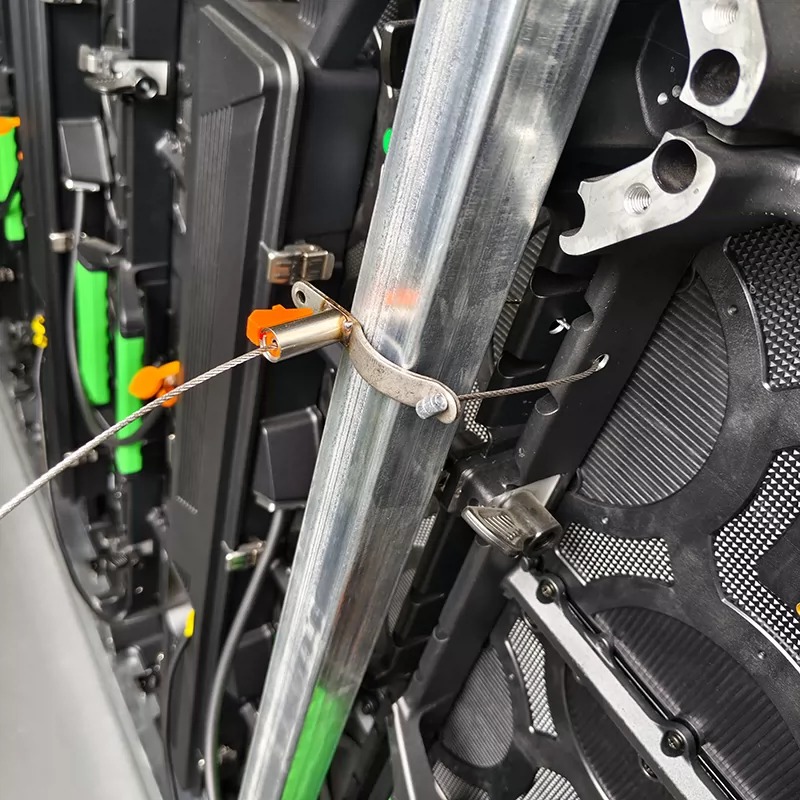

The supplied photos show the cable used between:

Rear of LED Cabinet ↔ Round Scaffold / Layher Support Tube

This makes it particularly relevant for temporary LED support systems where the screen sits in front of a scaffold or Ringlock framework.

For larger structural LED-support systems, see LED Screen Structure.

6. Reusable Rental Accessory

This is not a disposable tie.

The stainless cable and mechanical locking assembly are intended to be reused across multiple setups.

That makes it a useful accessory for:

• LED rental companies;

• event production teams;

• stage companies;

• temporary screen installers.

Load Rating Note

The 240 kg maximum load and 84 kg safe load come from the supplied product information.

Unless formal test documentation is available, these figures should be treated as supplier-stated product data, not as an independently verified certified WLL/SWL.

This accessory should not be used as the sole primary structural support for an LED wall.

Rental LED Screen Fixing

This is the main application.

The cable is used to pull the LED wall toward the support structure and maintain a controlled relationship between the rear of the screen and the scaffold frame.

Layher-Supported LED Wall

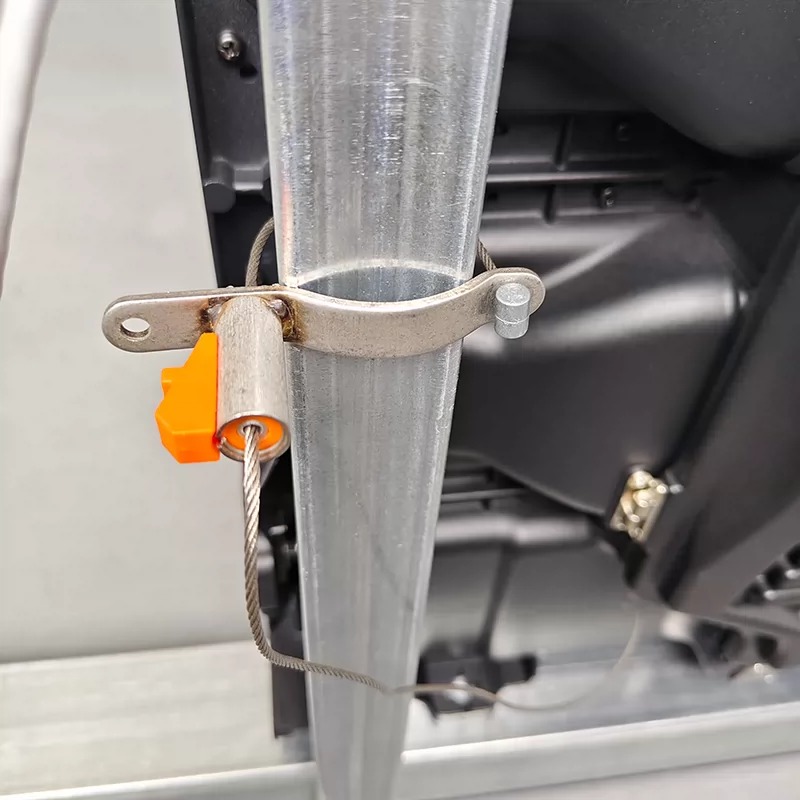

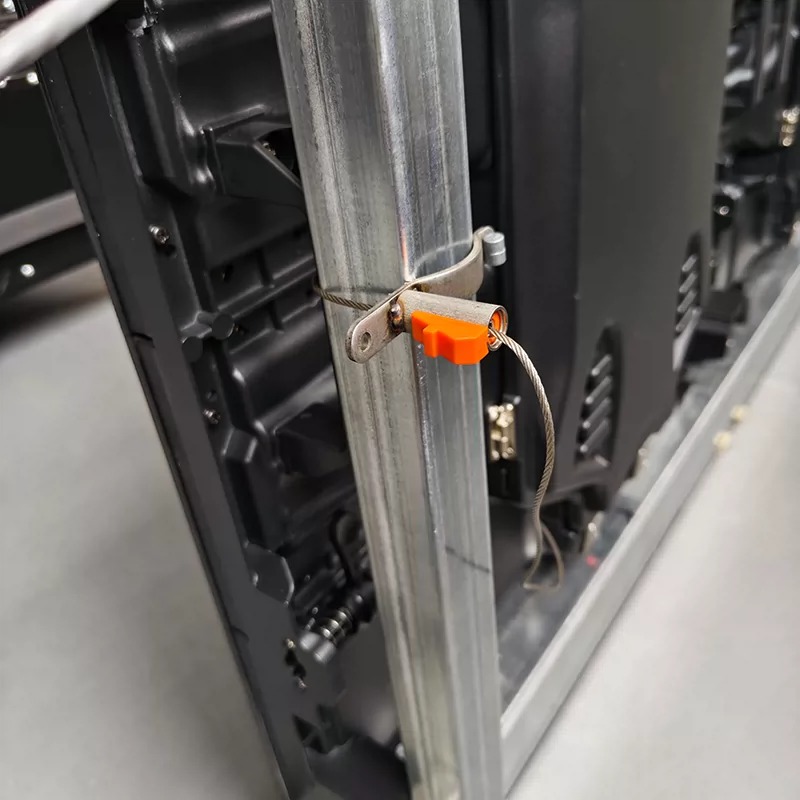

When LED cabinets are installed in front of Layher scaffold, the cable can be wrapped around a suitable tube and tightened toward the screen cabinet.

This helps installers create additional restraint between the LED wall and rear support.

Ringlock LED Screen Structure

The same concept may be used with compatible Ringlock support structures when:

• the tube position is suitable;

• the cable can be routed correctly;

• the screen connection point is appropriate.

Compatibility should be checked before use.

Indoor Rental LED Events

Typical applications include:

• exhibitions;

• conferences;

• corporate events;

• indoor concerts;

• hotel events;

• stage backdrops.

Outdoor Temporary LED Events

The product may also be used as part of temporary outdoor LED installations.

However, outdoor LED screen structures involve additional structural and wind considerations.

This tightening cable is only one accessory within the complete system and should not be treated as a substitute for engineered screen support or properly designed restraint.

How to Use

Step 1 — Position the LED Wall

Install the LED cabinets and complete the main cabinet-to-cabinet connections first.

Do not use the tightening cable to compensate for incorrectly assembled cabinets.

Step 2 — Identify the Rear Support Tube

Choose an appropriate scaffold or Layher tube behind the LED wall.

The tube position should allow the cable to pull the screen in the intended direction.

Step 3 — Wrap the Cable

Loop the stainless steel cable around the support tube.

Then connect or route the cable toward the intended LED cabinet fixing point.

Step 4 — Insert Into the Locking Mechanism

Feed the wire rope through the quick-lock assembly.

The mechanism allows the cable to tighten progressively.

Step 5 — Tighten Gradually

Pull or adjust the cable step by step.

Do not apply excessive force immediately.

The goal is:

controlled restraint and positioning

not deforming the LED cabinet or forcing the support frame.

Step 6 — Check the LED Screen

After tightening, inspect:

• screen flatness;

• cabinet position;

• support contact;

• cable routing;

• locking condition.

Then make small corrections as needed.

How to Choose

Confirm the Required Cable Length

The supplied version uses approximately:

500 mm / 19.7 in

of stainless steel wire rope.

Before purchasing, measure the actual distance between:

LED Screen ↔ Support Tube

including the cable path around the tube.

Confirm the Connection Point

Different rental LED cabinets have different rear-frame designs.

Before ordering, check where the cable will attach or bear against the screen side.

Confirm the Support Tube Position

This tool works best when there is a suitable rear tube close enough to the screen.

If the scaffold is positioned much farther back, a 500 mm cable may not be enough.

Confirm How Many Tightening Points You Need

Do not assume one cable is enough for an entire LED wall.

Quantity depends on:

• screen size;

• support-frame layout;

• number of restraint points;

• installation method.

For rental inventory, it is usually sensible to keep spare units because these are small installation accessories.

Minimum Practical Package

For one local tightening point:

1 × LED Screen Tightening Cable

For a complete LED wall, several may be required depending on the screen and rear support configuration.

A practical installation kit may include:

**LED Screen Tightening Cables

• LED Screen Leveling Spacer Blocks

• Cabinet Connection Hardware

• Required Structural / Safety Accessories**

The tightening cable controls restraint.

The leveling spacer controls rear spacing and local flatness.

These two accessories solve different problems and can naturally be used together.

Buying Mistakes to Avoid

1. Treating It as the Main Suspension Cable

This is a screen tightening / restraint accessory.

Do not use it as the primary hanging system for an LED wall.

2. Using the 240 kg Figure as a Certified Rigging Rating

The product image states:

Maximum Load: 240 kg

Safe Load: 84 kg

but no independent test certificate has been supplied.

Do not market this as a certified lifting sling or rated rigging wire unless documentation is available.

3. Over-Tightening the LED Cabinet

More tension is not automatically better.

Excessive tightening may transfer unnecessary force into:

• cabinet frame;

• LED module alignment;

• locking points;

• support structure.

Tighten only enough for the intended positioning and restraint.

4. Using It to Correct a Bad Support Structure

If the rear scaffold is in the wrong position or significantly out of alignment, correct the support structure first.

This accessory is for practical fine positioning and restraint—not for forcing a poorly positioned structure into place.

5. Ignoring Cable Inspection

Because this is a reusable steel-wire accessory, inspect before reuse for:

• broken strands;

• severe bending;

• deformation;

• damaged locking parts;

• loose welds;

• abnormal wear.

Damaged units should be removed from service.

Necessary Related Products

LED Display

For LED screen products and display systems:

LED Display

LED Screen Support Structures

For large temporary screen-support systems:

LED Screen Structure

The support structure, screen weight, wind exposure and overall project configuration need to be evaluated separately from this small tightening accessory.

What is this LED screen tightening cable used for?

It is used to pull and restrain rental LED screen cabinets toward a Layher, Ringlock or scaffold support structure.

What material is the cable?

The wire rope is 304 stainless steel.

What is the cable diameter?

Approximately:

2 mm

How long is the cable?

Approximately:

500 mm / 19.7 in

Can it be reused?

Yes.

It is designed for repeated installation and dismantling.

Is it suitable for rental LED screens?

Yes.

Rental LED installation is one of its main intended uses.

Can it be used with Layher scaffolding?

Yes, when the tube position and cable length are suitable.

Can it be used with Ringlock structures?

Possibly, provided the support-tube position and screen connection are compatible.

What is the load capacity?

The supplier information states:

Maximum Load: 240 kg

Safe Load: 84 kg

These values have not been independently verified in the supplied material, so they should not be treated as certified rigging ratings.

Can this cable hang the LED screen?

No.

It should not be used as the sole primary suspension system for an LED wall.

It is intended as a tightening and restraint accessory.

Is it the same as the adjustable LED screen spacer block?

No.

The two products solve different problems:

Tightening Cable → pulls and restrains the screen toward the support

Adjustable Spacer Block → adjusts the gap and helps local screen flatness

They can be used together in the same rental LED installation.
