Lightweight adjustable plastic spacer block for rental LED screens installed against Layher or scaffold support structures. Used between the rear of the LED cabinet and the support tube to help fine-tune spacing, improve screen flatness, add an extra contact point and make setup adjustment faster. Approximate unit weight: 49 g.
| Availability: | |
|---|---|
| Quantity: | |
Dragonstage
When a rental LED wall is installed against a Layher or scaffold support structure, the distance between the rear of the LED cabinet and the support tube is not always perfectly consistent.
That small gap can create practical setup problems:
the screen surface may be difficult to keep flat;
the cabinet may not sit evenly against the support structure;
installers may need repeated manual adjustment;
the screen may have too few contact points against the rear support.
This Adjustable LED Screen Leveling Spacer Block is a small reusable plastic accessory designed to solve that setup problem.

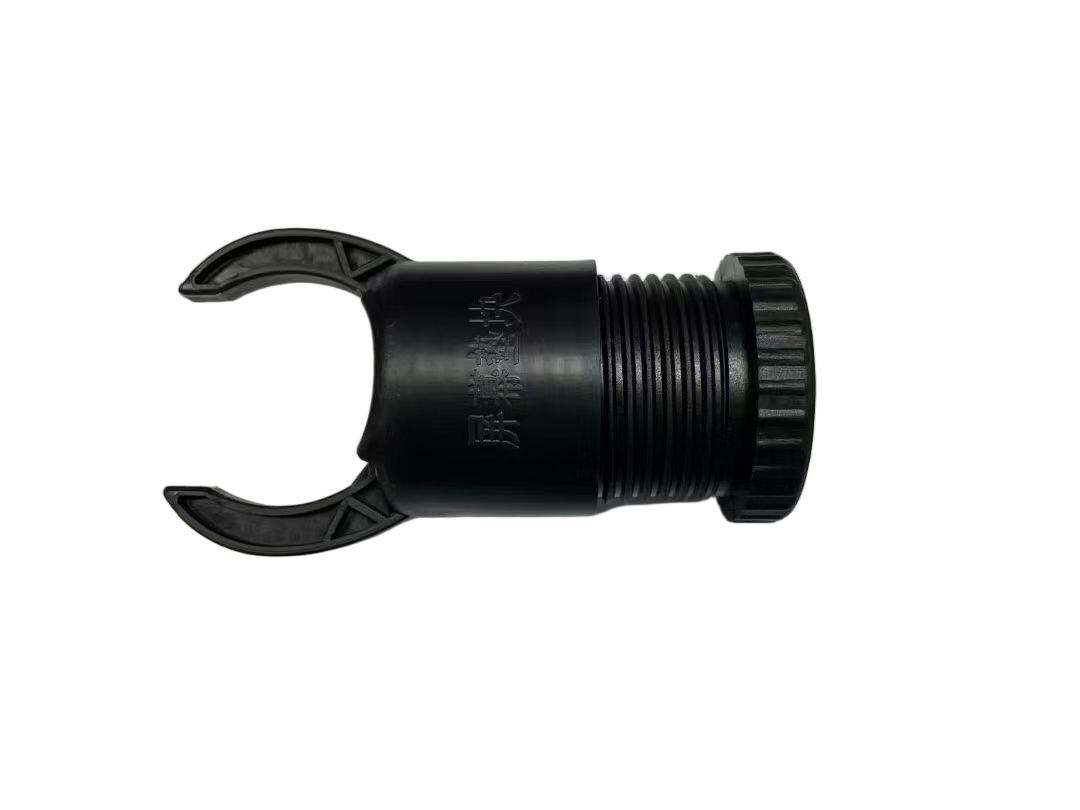

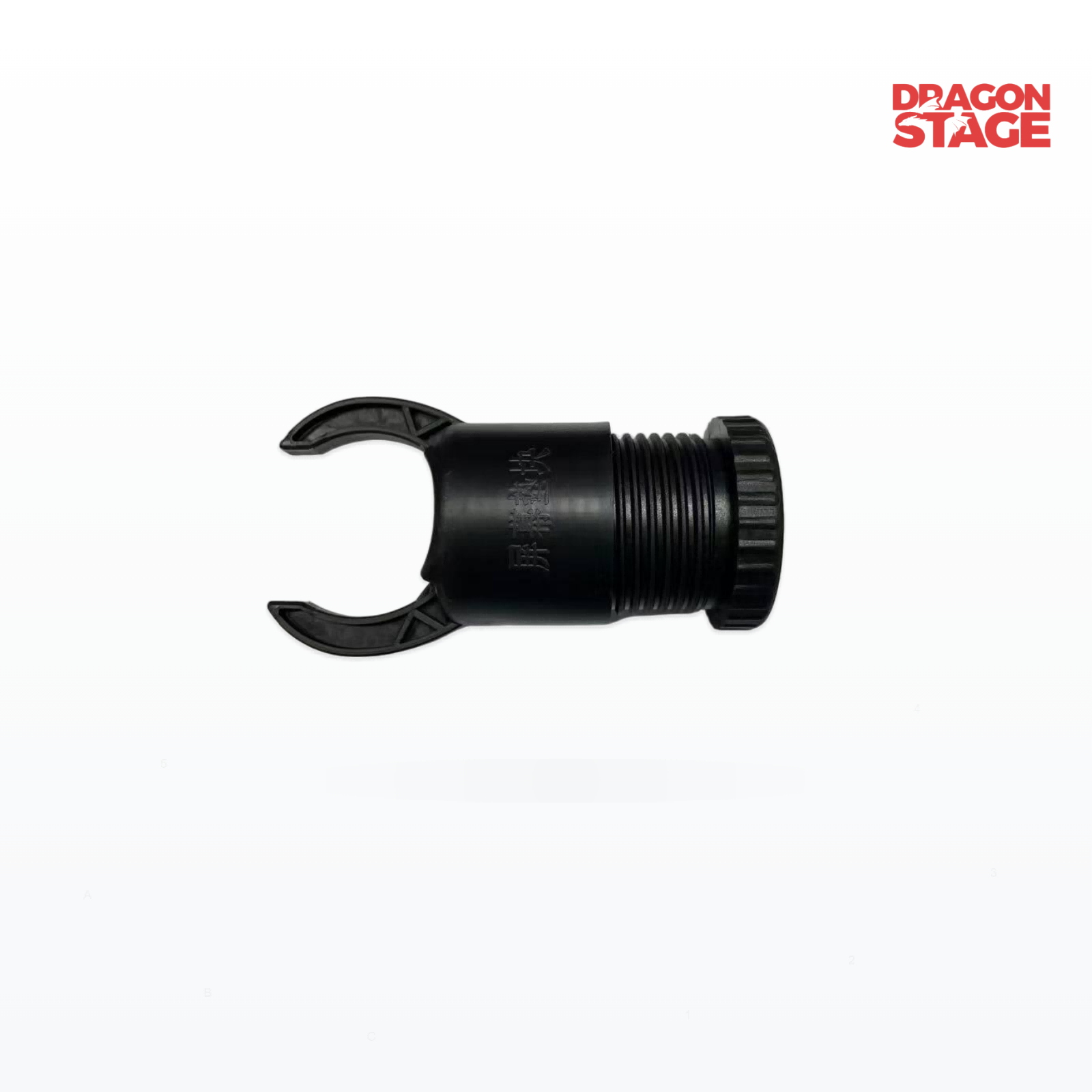

The spacer sits between the LED cabinet and the rear support tube. By rotating the threaded adjustment section, installers can fine-tune the effective spacing so the contact point better matches the actual gap.
It is especially suitable for rental LED screens used with Layher-style support structures, where quick installation, repeat use and small positional corrections are common.
For LED display systems and related screen products, see LED Display.
The threaded lower section allows the spacer position to be adjusted.
This makes it useful when the actual distance between:
LED Cabinet ↔ Support Tube
is slightly different from one installation point to another.
Instead of inserting improvised materials behind the screen, the installer can fine-tune the spacer to obtain a more consistent contact point.
One of the main purposes of this product is to help with screen leveling and flatness adjustment.
By adding a controlled rear contact point, it can assist installers when aligning rental LED cabinets so the overall screen surface is more even.
It should be understood as an installation adjustment accessory, not as a substitute for correctly assembled LED cabinets or a properly designed support structure.

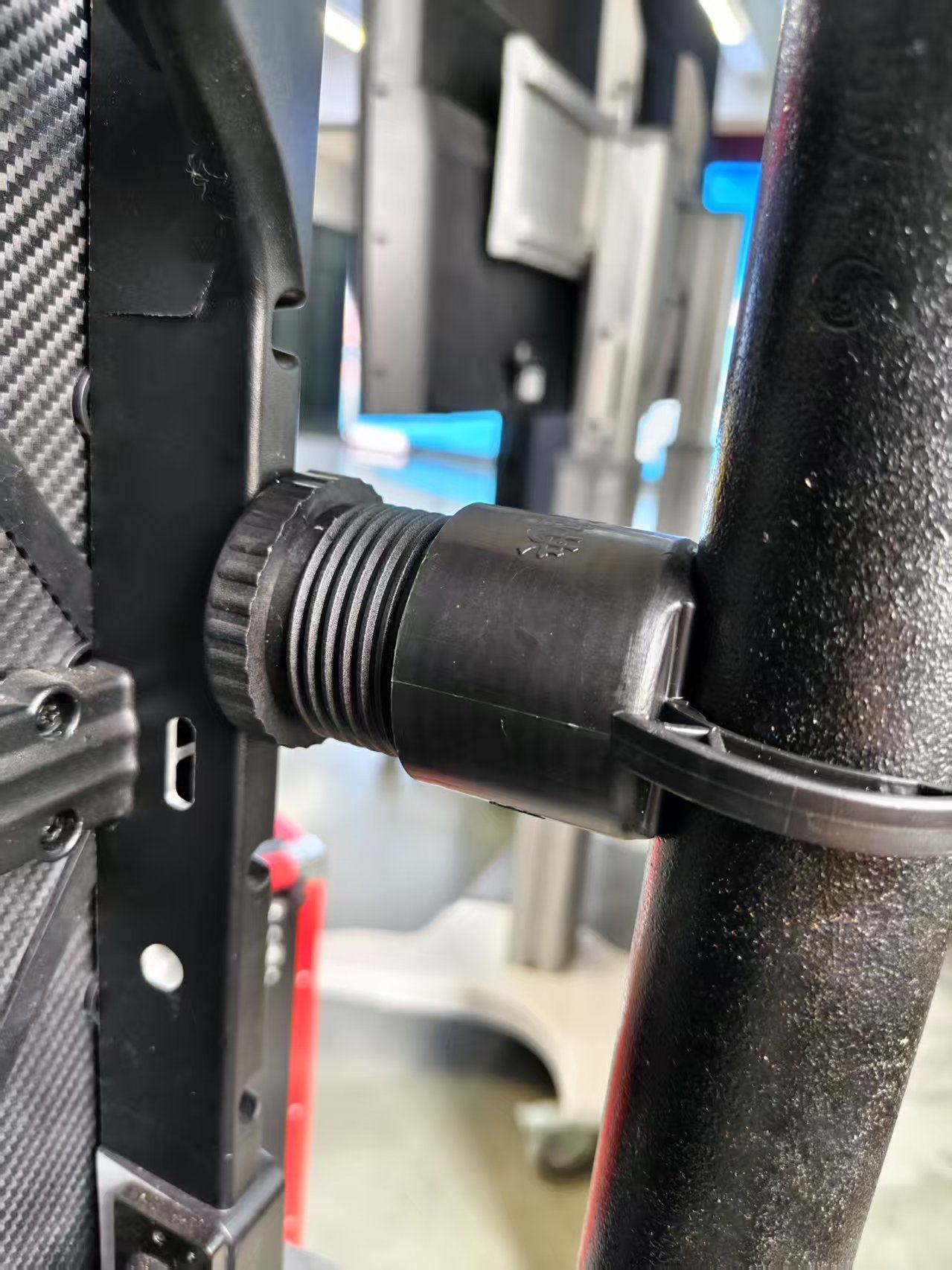

The fork-shaped top section contacts the round support tube behind the LED wall.
This additional contact point can help reduce unwanted spacing variation between the LED cabinet and the rear support.
The practical logic is:
More Controlled Contact Points → Easier Local Adjustment → Better Screen Alignment
The product is particularly relevant when rental LED cabinets are installed in front of:
Layher-style scaffolding;
Ringlock / scaffold support frames;
rear LED support tubes;
temporary event screen structures.

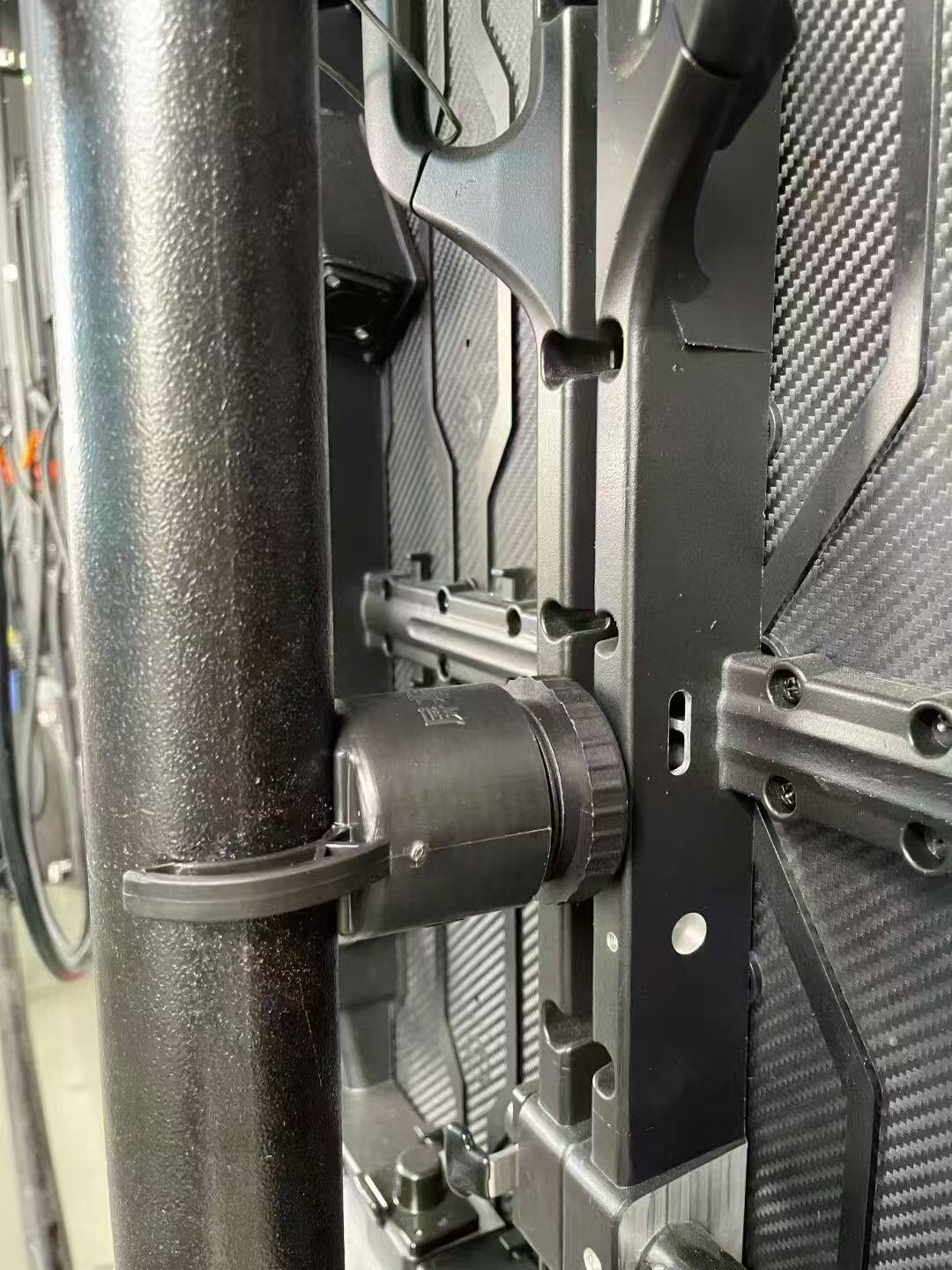

The product shown is used directly between the LED cabinet rear frame and a round vertical support member.
Compatibility still needs to be checked against the actual screen cabinet and support-tube position.
The supplied information identifies the product as a plastic adjustable spacer designed for repeated use.

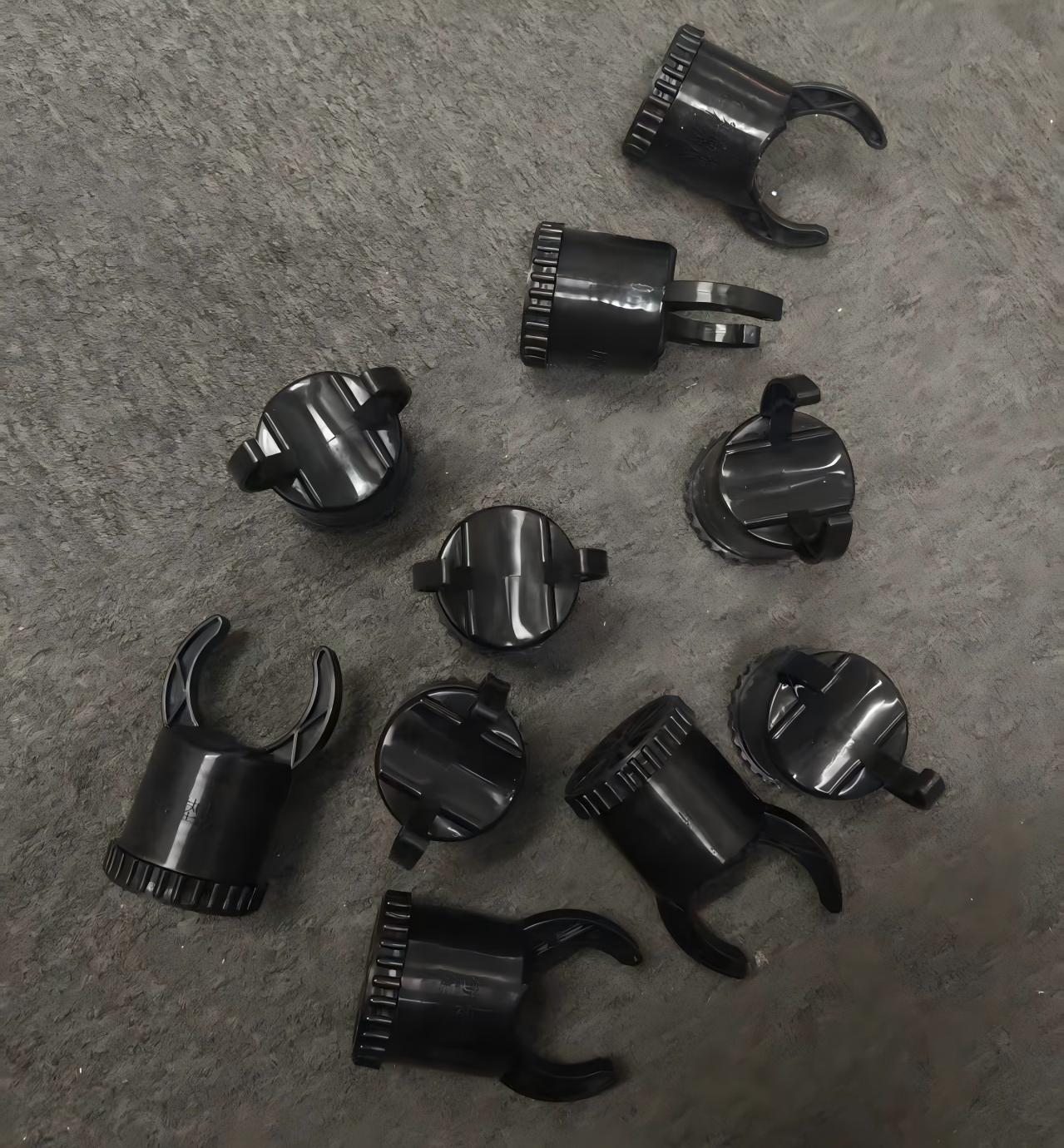

This is useful for rental companies because the same accessory can be kept with LED-screen installation hardware and reused across multiple jobs.
Approximate unit weight:
49 g / 0.11 lb
This makes it practical to carry multiple pieces as part of an LED installation kit without materially increasing transport weight.
Specification | Details |
|---|---|
Product Type | Adjustable LED Screen Leveling Spacer Block |
Main Application | Rental LED Screen Rear Adjustment |
Material | Plastic |
Adjustment | Threaded Manual Adjustment |
Approx. Unit Weight | 49 g / 0.11 lb |
Installation Position | Between LED Cabinet and Rear Support Tube |
Typical Support | Layher / Scaffold / Round Rear Support Tube |
Reusable | Yes |
Adjustment Purpose | Spacing / Leveling / Additional Contact |
Color | Black |
Quantity | Sold Per Piece |
Note: Exact adjustment range and compatible tube diameter are not confirmed in the supplied information and should not be assumed.
This is the primary application.
When rental LED cabinets are assembled into a larger wall, the rear support distance may vary slightly.
The adjustable spacer can be positioned behind the cabinet and adjusted until it contacts the rear support tube.
This makes local screen alignment faster than repeatedly adding temporary packing materials.
For LED walls installed against a Layher-type structure, the spacer can be used at selected positions between the rear cabinet frame and the scaffold tube.
It is especially useful where the screen and support structure are close together but require fine spacing adjustment.
For larger LED support structures, the complete structural system should be considered separately; this accessory is only a local positioning and contact aid.
For rental businesses, this is the kind of small accessory that can solve recurring installation problems.
A practical LED installation kit may include:
**LED Cabinet Hardware
Cables
Screen Alignment Tools
Adjustable Spacer Blocks
Required Connection / Safety Accessories**
Because each spacer weighs only about 49 g, keeping several in the installation kit is practical.
The spacer may also be useful for:
concerts;
weddings;
exhibitions;
corporate events;
indoor rental screens;
temporary outdoor event screens when used within a properly designed complete system.
First assemble and connect the LED cabinets according to the screen manufacturer's installation method.
Do not use the spacer to compensate for incorrectly connected cabinets.
Identify the distance between the rear of the LED cabinet and the Layher or scaffold tube.
If the screen needs an additional rear contact point, position the spacer at the appropriate location.
The fork-shaped section is positioned around the round support tube.
The opposite end sits against or connects to the intended position on the LED cabinet assembly, depending on the actual installation configuration.
Turn the threaded adjustment section until the spacer makes suitable contact.
The objective is to help control the local spacing—not to force the screen into position with excessive pressure.
After adjustment, inspect the front surface of the LED wall.
Make additional small corrections where needed.
For a larger screen, multiple spacers may be used at different rear positions depending on the support layout.
The most important question is:
Where will the spacer contact or connect to your LED cabinet?
Rental LED cabinets differ in rear-frame geometry.
Do not assume this accessory fits every LED cabinet simply because the screen size is similar.
The fork-shaped end must suit the actual support tube.
Before ordering, confirm:
tube outside diameter;
available clearance;
contact position;
direction of installation.
The supplied photos show the spacer used against a round support tube, but the exact compatible diameter is not provided.
The product has a threaded adjustment mechanism, but the exact maximum/minimum adjustment distance has not been provided.
If your rear gap is unusually large, measure it before ordering.
For a small local adjustment:
1 × Adjustable LED Screen Spacer Block
may solve one specific contact point.
For a larger rental LED wall, several pieces may be more practical because adjustment may be needed at multiple positions.
A reasonable buying method is:
Count the intended rear contact points → add a few spare pieces for rental inventory
rather than buying only one piece for an entire LED wall.
This product is an adjustment and contact accessory.
No verified load rating has been provided.
Do not use it as a primary structural support, suspension point, ballast connection or certified load-bearing component.
If LED cabinets are incorrectly connected or the support structure is significantly out of position, the underlying installation problem should be corrected first.
The spacer is intended for fine adjustment, not for forcing a badly aligned structure into place.
The photos show use with a round rear support tube.
The exact compatible tube diameter is not confirmed.
Measure before ordering.
Different rental LED cabinets have different rear frames and fixing locations.
Check the actual cabinet before purchasing.
The threaded adjustment should create suitable contact, not excessive compression.
Too much pressure could transfer unnecessary force into the LED cabinet or its rear frame.
For LED display systems, see:
For larger LED screen support structures, the spacer should be treated only as an installation accessory. The scaffold, Ringlock or truss support system still needs to be selected and configured independently according to the actual screen size and project conditions.
It is used between the rear of a rental LED cabinet and a Layher or scaffold support tube to help adjust spacing and improve local screen alignment.
Yes.
The product uses a threaded adjustment section that allows the effective spacing to be fine-tuned.
The supplied information identifies it as a durable plastic product.
Approximately:
49 g / 0.11 lb
per piece.
Yes.
It is designed as a reusable installation accessory for rental LED screen setups.
It can help by providing an additional adjustable rear contact point, making local alignment easier.
It does not replace correct LED cabinet assembly.
That is one of its primary intended applications, provided the actual tube size and installation position are compatible.
Possibly, if the relevant support tube geometry and spacing are compatible.
Compatibility should be checked rather than assumed.
No.
This spacer is used for spacing and leveling.
It is not a replacement for required screen fastening, wire rope, straps, structural connections or other safety hardware.
No verified load rating has been supplied.
It should not be treated as a primary structural or load-bearing component.
That depends on the size of the LED wall and how many rear contact points require adjustment.
For rental use, keeping several pieces plus spares is usually more practical than buying only one.
