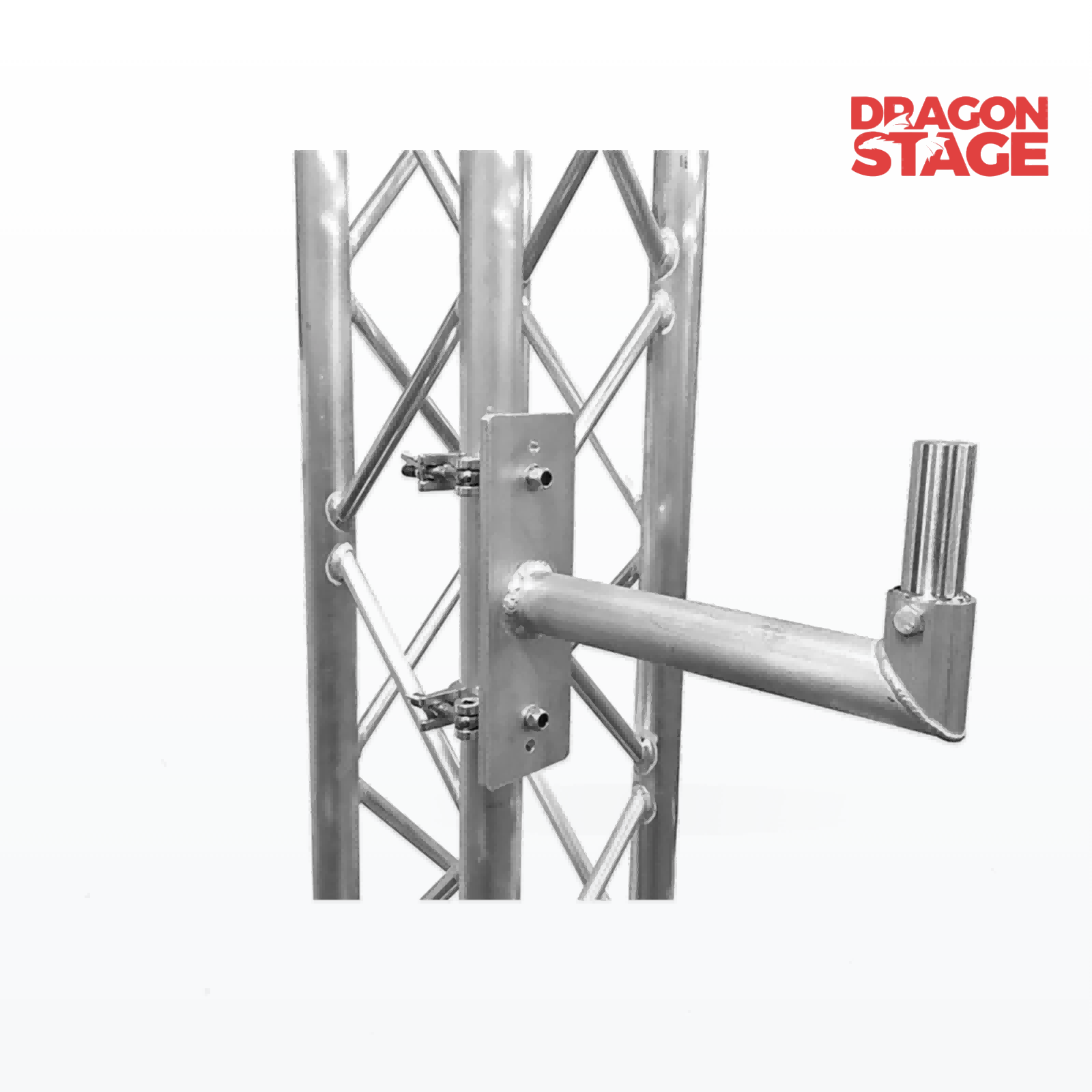

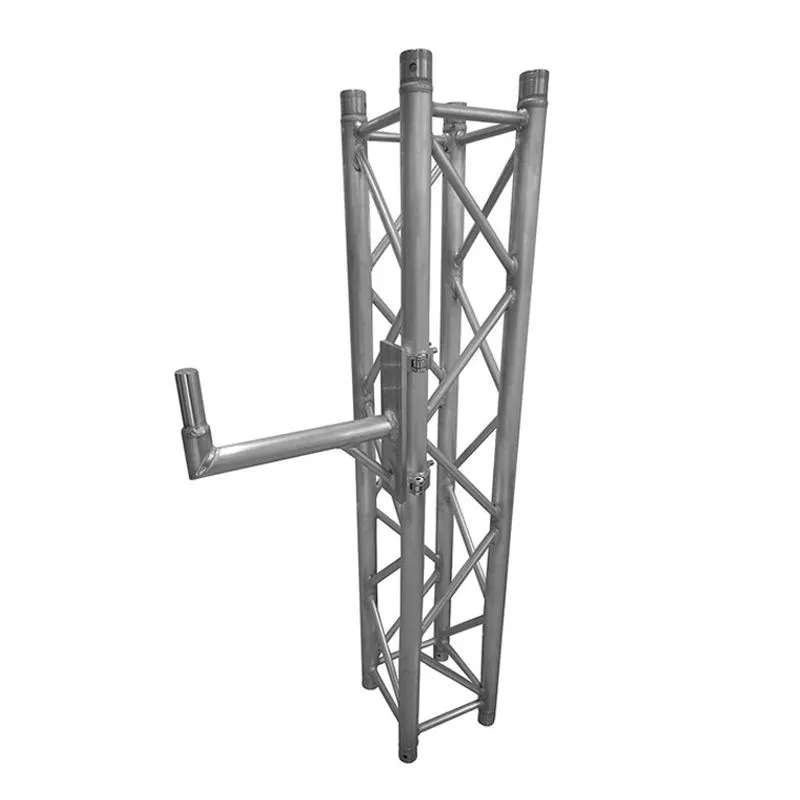

DT-F34 Aluminum Truss Speaker Mount, Vertical Truss Tower Attachment for Truss Tower Speaker Hanging

• Dedicated truss speaker mounting solution for compatible vertical truss tower applications.

• Compatible with DT34P, DT44P, DT36 and DT-GP Truss.

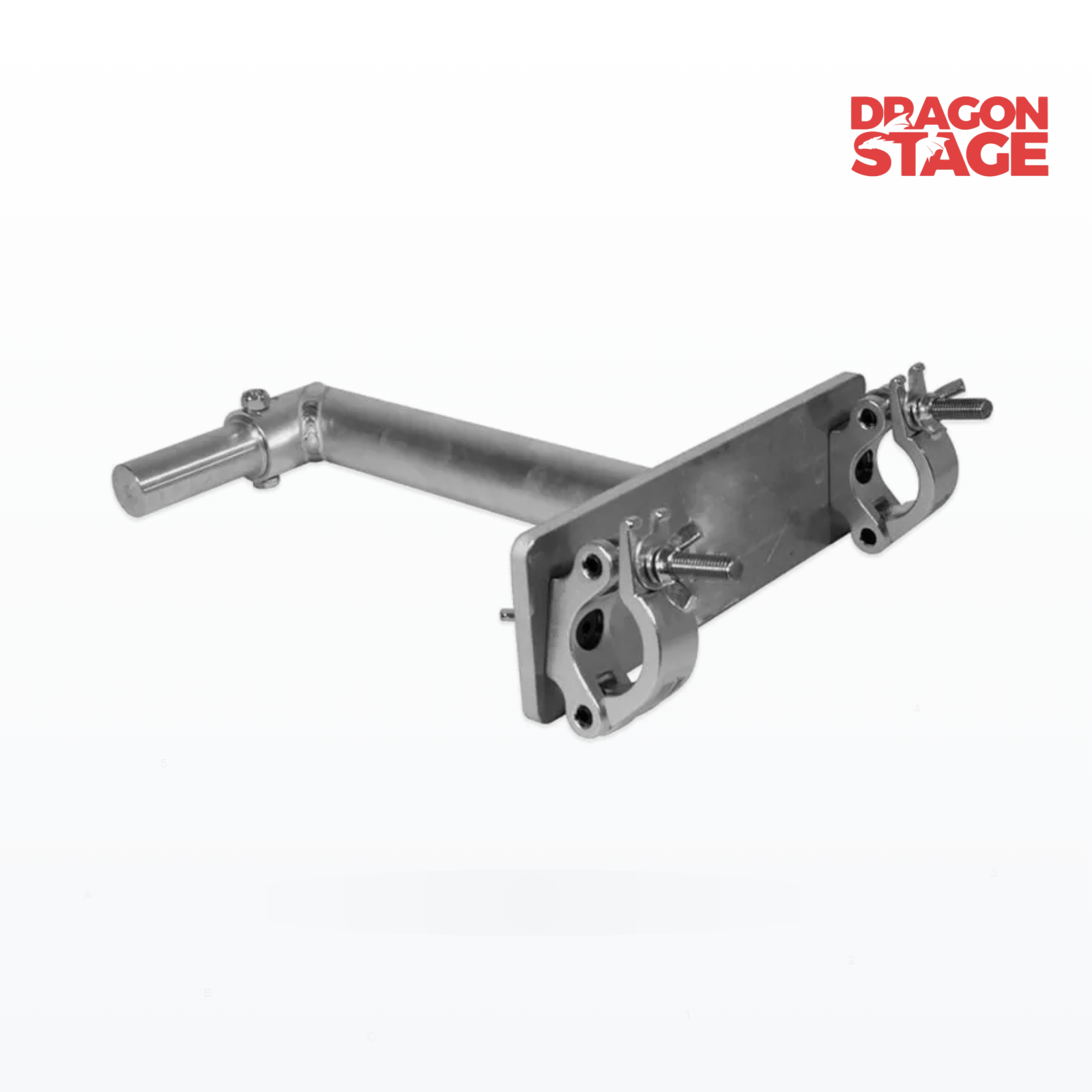

• Includes 2 narrow pro clamps for attachment to the compatible truss system.

• Designed for speaker cabinets with 1 3/8" (3.5 cm) cabinet inserts.

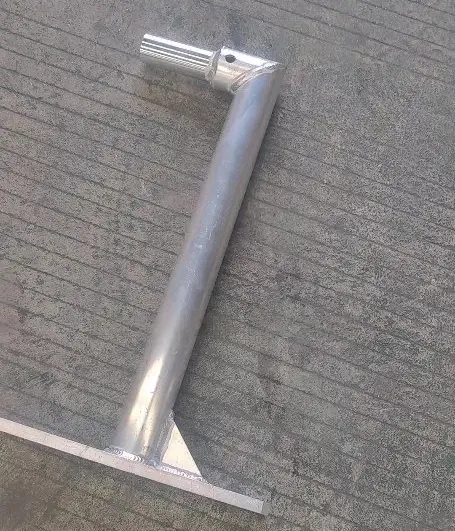

• 30 cm shaft length for the specified speaker mounting configuration.

• 34 kg / 75 lbs maximum load capacity according to the supplied product information.

• 3.63 kg unit weight for a practical mobile production accessory.

• Suitable for concerts, events, touring productions and temporary sound reinforcement setups.

• Designed specifically for integrating compatible speakers with a truss tower support system.

The DT-F34 Aluminum Truss Speaker Mount is designed for sound reinforcement systems where compatible loudspeakers need to be mounted from a vertical truss tower.

Typical applications include:

• Concert sound systems

• Festival sound reinforcement

• Mobile touring productions

• Event stages

• Outdoor event sound systems

• Corporate event production

• Temporary entertainment structures

• Truss tower speaker mounting

• Portable professional audio setups

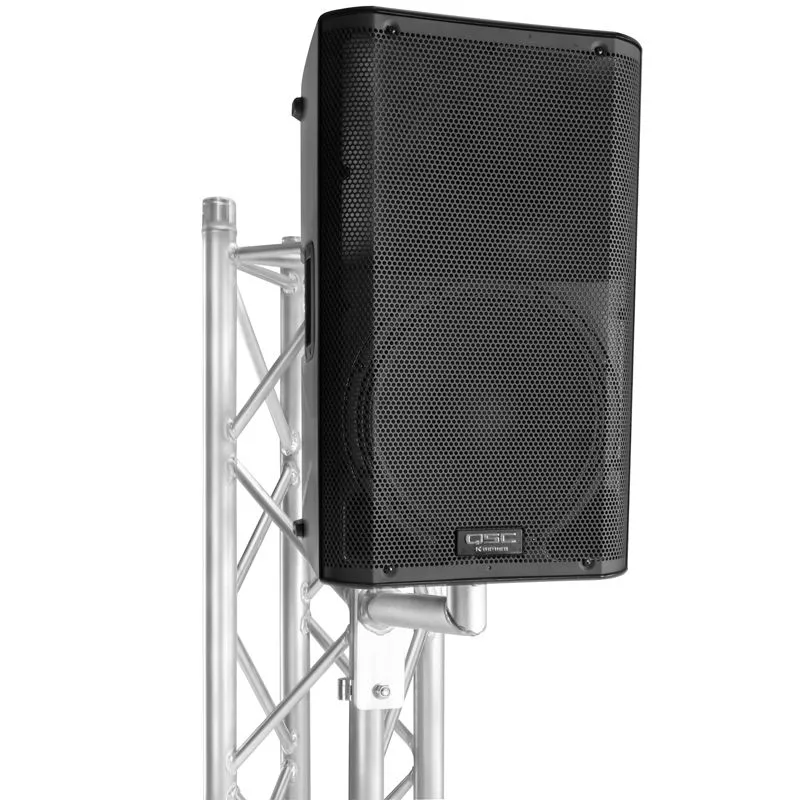

It is particularly useful when a compatible speaker needs to be positioned at an elevated location while using an existing vertical truss tower as the supporting structure.

Speaker Mounting for Truss-Based Sound Systems

Truss structures can provide elevated mounting positions for compatible event equipment. The DT-F34 is designed specifically around this application, combining truss attachment clamps with a speaker mounting shaft.

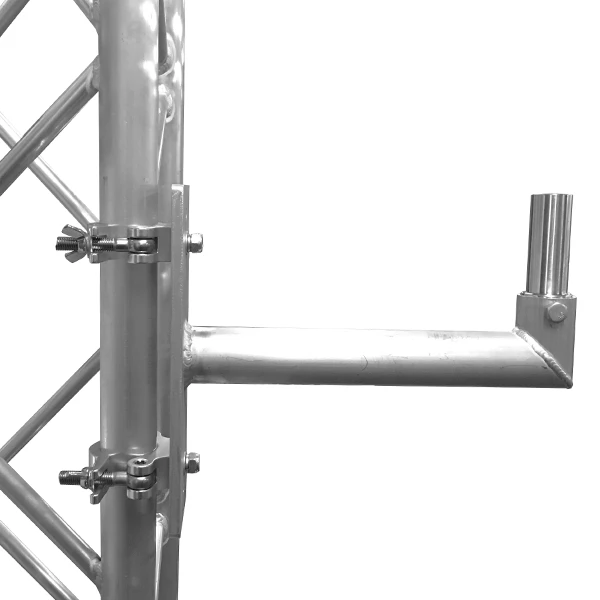

The supplied 2 narrow pro clamps connect the mount to compatible DT34P, DT44P, DT36 or DT-GP Truss, while the 1 3/8-inch speaker cabinet insert compatibility provides the specified interface for the supported speaker configuration.

Before installation, verify the truss model, speaker cabinet insert size, speaker weight and complete support arrangement. The mount's 34 kg capacity should not be used as the only basis for evaluating the capacity of the complete system.

Compatibility

The DT-F34 is specified for:

• DT34P Truss

• DT44P Truss

• DT36 Truss

• DT-GP Truss

For the speaker side, the supplied specification identifies 1 3/8-inch (3.5 cm) cabinet inserts.

If your existing truss or speaker uses a different connection size, compatibility should be confirmed before ordering.

1. What truss systems is the DT-F34 compatible with?

The supplied specifications list DT34P, DT44P, DT36 and DT-GP Truss as compatible truss systems.

2. What size speaker cabinet insert does it fit?

The speaker mounting shaft is specified for 1 3/8-inch (3.5 cm) cabinet inserts.

3. How long is the speaker mounting shaft?

The shaft length is 11 3/4 inches, or approximately 30 cm.

4. What is the maximum load capacity?

The specified maximum load capacity is 34 kg / 75 lbs.

The complete installation must remain within the limitations of the truss, speaker mount, clamps, speaker cabinet and connection arrangement.

5. How many clamps are included?

The product includes 2 narrow pro clamps.

6. How much does the DT-F34 weigh?

The supplied unit weight is 8 lbs (3.63 kg). The listed packing volume weight is 4 kg.

7. Can it be used for concert speakers?

It is designed for compatible speaker mounting on compatible vertical truss towers, making it suitable for event and concert sound reinforcement applications when the speaker and complete support system meet the specified requirements.

8. Can I use it with any vertical truss tower?

No. The supplied compatibility information specifically identifies DT34P, DT44P, DT36 and DT-GP Truss. Compatibility with other truss models should be confirmed before use.

9. Is the 34 kg rating the capacity of the complete truss system?

No. The 34 kg / 75 lbs figure is the specified maximum load capacity of the speaker mount. The capacity of the complete installation depends on the supporting truss, connections, speaker and other relevant components.

CTA

Looking for a dedicated speaker mounting solution for a compatible truss tower?

The DT-F34 provides a specified 34 kg / 75 lbs maximum load capacity, 30 cm speaker shaft and 2 narrow pro clamps for compatible DT34P, DT44P, DT36 and DT-GP Truss. Confirm your truss model, speaker cabinet insert and total equipment weight before ordering.
