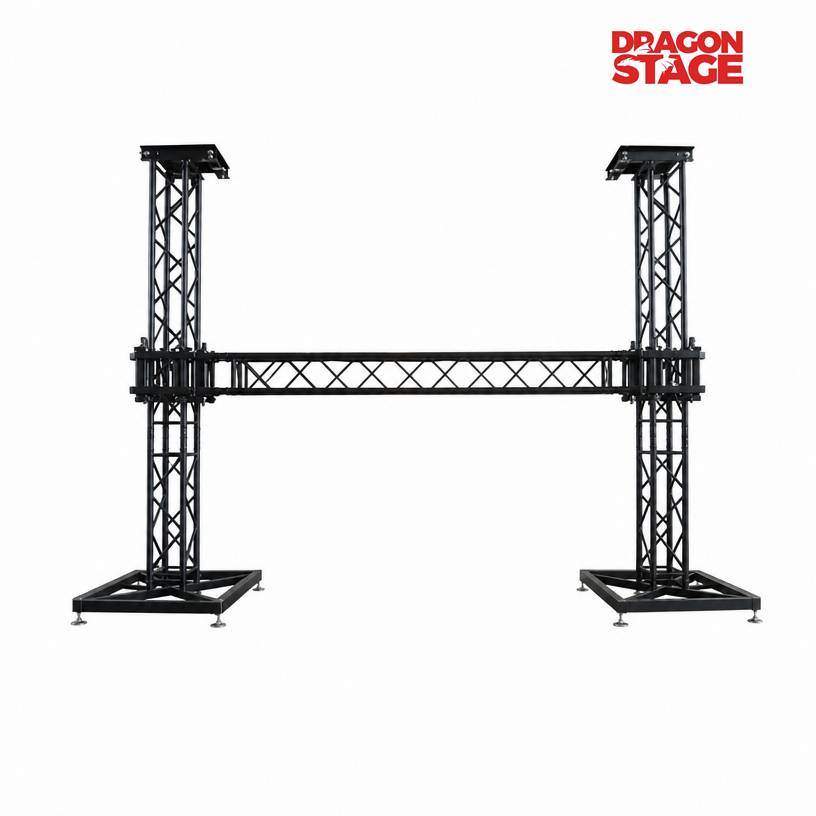

8m Wide × 5m High Goal Post Structure

The system provides an 8-meter horizontal span and an overall 5-meter tower height, creating a large suspension area suitable for LED walls, stage displays and event equipment.

The open goal post design provides clear space below the horizontal beam, allowing the suspended equipment to become the visual focus of the installation.

Black Powder-Coated Finish

The complete truss structure features a black powder-coated finish.

Compared with standard silver aluminum truss, the black finish is especially suitable for applications involving:

• LED screens

• Dark stage backdrops

• Concert stages

• Exhibition displays

• Lighting structures

• Professional event environments

The darker appearance helps reduce the visual prominence of the supporting structure and creates a more integrated overall presentation.

Manual Chain Hoist Lifting System

The horizontal truss beam is raised using manual chain hoists mounted to the lifting towers.

This lifting method allows the overhead beam to be positioned during installation before the suspended equipment is secured and adjusted.

Advantages of Manual Chain Hoist Lifting

• Convenient beam lifting during installation

• Adjustable working height

• No integrated electric lifting system required

• Suitable for temporary event setups

• Practical for mobile production and rental applications

Modular Truss Section Configuration

The 8-meter span is assembled from:

3m + 3m + 1m + 1m

Each 5-meter vertical tower is assembled from:

2m + 2m + 1m

Rather than using a single oversized structure, the modular design allows individual sections to be transported, stored and assembled separately.

This configuration is particularly practical for:

• Event rental companies

• Mobile production teams

• Temporary installations

• Exhibition contractors

• LED display installation projects

Freestanding Tower and Base Design

Two vertical truss towers support the horizontal beam from both sides.

Each tower is installed on a wide base structure designed to provide a stable footprint for the complete gantry system.

Adjustable leveling feet are incorporated into the base assembly to assist with positioning during installation.

Designed for LED Screen Hanging

The central horizontal beam provides an overhead support position for hanging:

• LED video walls

• LED display screens

• Stage background screens

• Event information displays

• Exhibition displays

• Digital advertising screens

Additional equipment may also be suspended where appropriate, subject to the confirmed loading requirements and complete structural configuration.

Technical Specifications

Modular Configuration

8m Horizontal Beam

3m + 3m + 1m + 1m = 8m

Left Vertical Tower

2m + 2m + 1m = 5m

Right Vertical Tower

2m + 2m + 1m = 5m

The Black Gantry Truss System is suitable for a variety of temporary and professional event installations.

LED Screen Support

The system can be used as a freestanding structure for suspending LED screens at stages, event venues and temporary installations.

Concert and Music Events

The black powder-coated finish makes the structure suitable for concert stages and production environments where a darker supporting structure is preferred.

Exhibitions and Trade Shows

The gantry structure can support LED displays, digital signage and other suspended presentation equipment.

Corporate Events

Suitable for product launches, conferences, presentations and branded event installations.

Sports Events

Can be used for LED screens, score displays, information boards and event production equipment.

Event Rental Applications

The modular construction makes the system suitable for rental companies that require flexible truss sections for different project sizes.

Concert Stages · LED Walls · Exhibitions · Trade Shows · Corporate Events · Sports Events · Outdoor Events · Temporary Installations · Rental Production

FAQ

1. What is the overall size of this gantry truss system?

The standard configuration shown is 8 meters wide and 5 meters high.

The horizontal beam is assembled from:

2 × 3m + 2 × 1m

Each vertical tower is assembled from:

2 × 2m + 1 × 1m

2. Is the gantry truss finished in black?

Yes. The structure shown features a black powder-coated finish.

This finish is suitable for stage environments, LED screen installations and other applications where a darker supporting structure is preferred.

3. How is the horizontal beam lifted?

The system uses manual chain hoists to raise and position the horizontal beam during installation.

The final lifting method and operating procedure should be determined according to the complete configuration and installation requirements.

4. Can this system be used for hanging an LED screen?

Yes. The primary application of this gantry configuration is to provide an overhead structure for suspending an LED screen or LED wall.

The final suspended load and configuration should be confirmed according to the LED screen weight, hanging points, load distribution and complete structural design.

5. Can the width and height be customized?

Yes. Because the structure is based on modular truss sections, other widths and heights can be configured according to project requirements.

For a custom configuration, please provide:

Required Width × Required Height × Application × Equipment to Be Supported

6. Can other equipment be suspended from the horizontal beam?

Depending on the complete structural design, the horizontal beam may be used for suitable event equipment such as LED screens, lighting fixtures or banners.

The allowable load should always be confirmed according to the span, support conditions, load distribution, lifting configuration and complete truss system.

7. Is this system suitable for outdoor use?

The gantry structure can be configured for temporary outdoor event applications. However, outdoor installation requires consideration of the complete installation conditions, including ground conditions, wind exposure, ballast or anchoring requirements and the suspended equipment.

8. Can I order a different truss configuration?

Yes. The system can be customized for different project requirements.

Possible options include:

• Different widths

• Different heights

• Alternative truss section combinations

• Different powder-coated colors

• Different base configurations

• LED screen hanging accessories

• Customized lifting configurations

CTA

Need a Custom Black Gantry Truss System?

Tell us your project requirements:

Width × Height × Application × LED Screen Size/Weight × Required Lifting Method

We can help configure the appropriate combination of truss sections, vertical towers, bases, lifting components and LED screen hanging accessories for your project.

For custom sizes, black or other powder-coated colors, special configurations or complete event structures, please contact us for a tailored solution and quotation.
